Introduction: What the Hikvision DS-KAB673-FBQR Does

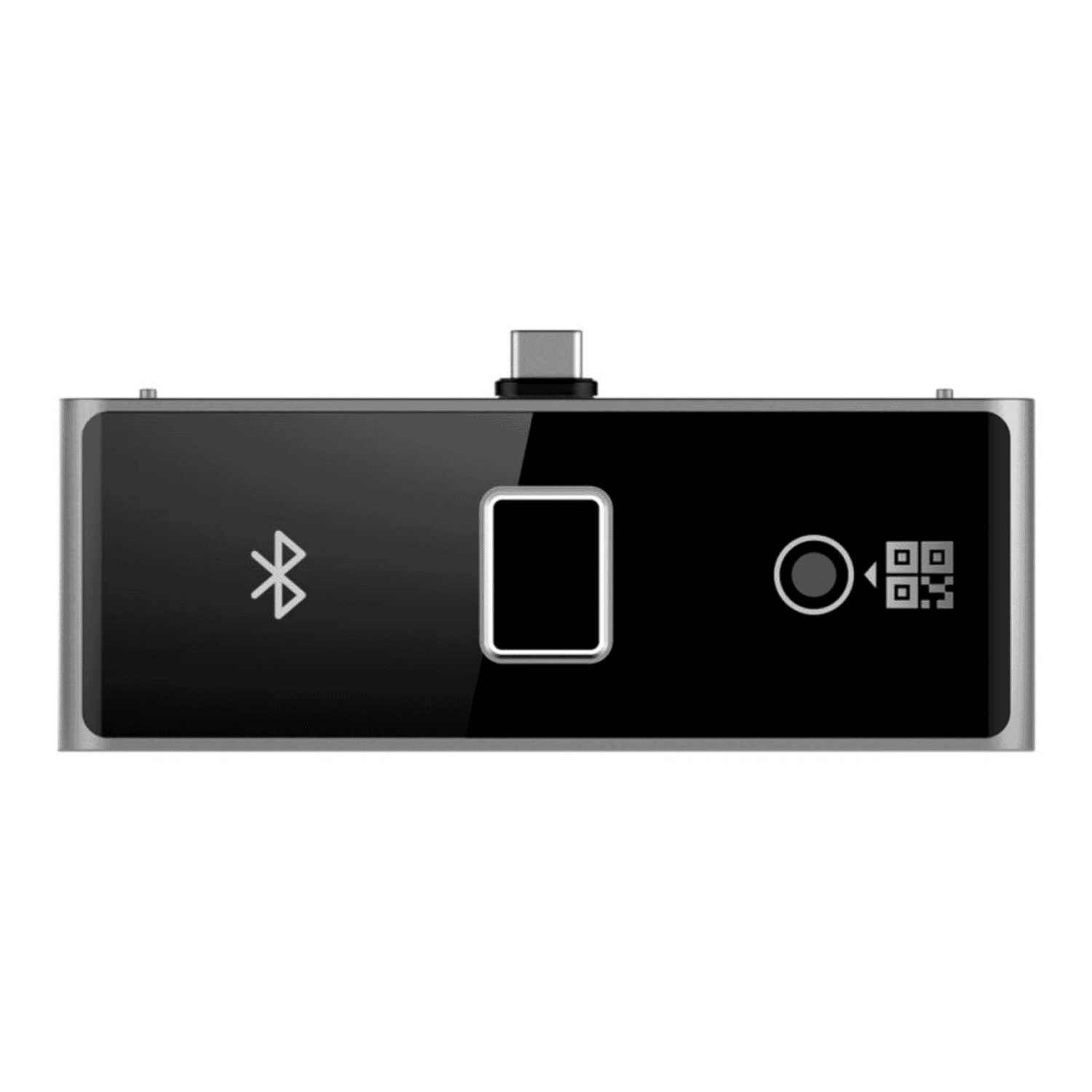

Hikvision DS-KAB673-FBQRis a peripheral authentication module engineered to expand the identification options of compatible Hikvision face-recognition terminals (notably the DS-K1T673 series). Compact and USB-powered, it brings three popular ID methods together — fingerprint, Bluetooth Low Energy (BLE) for mobile credentials, and QR/barcode scanning — inside an IP65-rated housing that is suitable for outdoor installations. The unit is aimed at installers and organisations that want to add multi-modal authentication to existing terminals without replacing the host device.
Key features at a glance
- Multi-ID: fingerprint, BLE (smartphone) and QR/barcode scanning in one peripheral.
- Fast fingerprint verification: under 1 second for typical scans.
- USB interface: DC 5 V power via USB, maximum 500 mA — connects directly to the host terminal.
- Outdoor-ready: IP65-rated housing with a wide operating temperature range (-30 °C to +60 °C).
- Broad barcode support: QR plus Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codabar, Code 9 and UCC/EAN-128.
- Compact form factor: around 111 × 48 × 24 mm, making it easy to mount alongside access points.
Detailed specifications and benefits
The DS-KAB673-FBQR is designed primarily as an add-on to supported Hikvision face-recognition terminals. Below are the technical highlights followed by the practical benefits they deliver:
- Model: DS-KAB673-FBQR.
- Identification modes: Fingerprint, Bluetooth (BLE), QR code (plus multiple barcode formats).
- Supported codes: QR; Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codabar, Code 9, UCC/EAN-128.
- Fingerprint verification: < 1 s (typical).
- Communication: USB (some retailer pages list USB-C connectors — verify cable/port for your installation).
- Power: DC 5 V via USB, max 500 mA.
- Degree of protection: IP65 (dust-tight and protected against water jets).
- Operating temperature: -30 °C to +60 °C.
- Dimensions: approx. 111 × 48 × 24 mm (varies slightly by listing).
- Compatible terminals: Hikvision DS-K1T673 series (connects via USB).
- Datasheet/downloads: available from Hikvision product pages and authorised resellers; consult for wiring and full specifications.
- Enhanced flexibility: Instead of replacing an existing face terminal, add fingerprint, BLE and QR capability to provide multiple authentication options for different user needs.
- Improved reliability in real-world conditions: When face recognition is impaired (masks, glasses, poor lighting), fingerprint or QR can serve as reliable fallbacks.
- Outdoor suitability: IP65 rating and wide temperature tolerance allow use at building entrances, gates and other external points where weather exposure is a concern.
- Fast throughput: Sub-second fingerprint verification helps avoid bottlenecks in medium-traffic entry points.
- Mobile-friendly: BLE support enables smartphone-based credentials and touchless workflows for visitors or employees.
- Versatile visitor and credential workflows: QR and barcode support enables temporary passes, printed visitor badges and mobile QR codes from apps or email links.
Use cases and scenarios where the module excels
The DS-KAB673-FBQR is suited to installations that need a combination of usability, durability and flexibility. Typical use cases include:
Offices that require a combination of convenience and security can use the module to enforce multi-factor authentication (for example, face + fingerprint or QR + BLE) without replacing existing face terminals. The USB-powered module is an affordable way to add an extra authentication layer.
The IP65 rating and wide operating temperature range make this peripheral suitable for weather-exposed mounting near gates, parking barriers and outdoor doors. BLE and QR support are especially useful for vehicles or visitors where placing a finger on a sensor is less convenient.
Worksites with shift workers, contractors or visitors can benefit from multiple ID options. Employees might use fingerprint or BLE, while contractors or visitors receive QR passes for temporary access. Fast fingerprint reads minimize queueing during shift changes.
In environments where face recognition may be unreliable due to masks, PPE or safety eyewear, the fingerprint sensor provides a proven alternative. QR codes and BLE add additional touchless or low-touch options.
Events, clinics, or commercial receptions can issue QR codes for temporary access that the module scans quickly without complex enrolment. BLE credentials allow returning visitors or contractors to use their phones for easy access.
Comparisons with similar products on the market
When evaluating the DS-KAB673-FBQR, it helps to compare it against two general alternatives: integrated multi-modal terminals and single-function peripheral readers.
- Cost: Adding the DS-KAB673-FBQR to an existing compatible terminal is usually more cost-effective than replacing a terminal with a new, fully integrated multi-modal device.
- Flexibility: A peripheral lets organisations stage upgrades (add fingerprint or QR support when needed) rather than committing to an all-in-one terminal right away.
- Limitations: Integrated solutions can be more compact and may offer deeper feature integration out of the box; peripherals require compatibility and correct USB integration with the host terminal.
- Consolidation: The DS-KAB673-FBQR combines three ID methods in one unit, reducing hardware clutter and simplifying mounting and cabling compared to deploying three separate readers.
- Trade-offs: A dedicated high-end fingerprint reader or enterprise BLE gateway might offer marginally better performance or range, but the peripheral delivers a balanced set of features for most access-control needs.
Compatibility with Hikvision DS-K1T673-series terminals is a key selling point, but prospective purchasers should verify the host firmware version and connector type (some listings reference USB-C) before ordering. Also confirm regulatory approvals (CE, UKCA or local marks) on official datasheets for deployments that require certification evidence.
Customer testimonials and real-world feedback
As of this writing, no consolidated set of verified customer testimonials from the manufacturer is published in the product listing. That said, feedback on similar Hikvision peripheral modules typically emphasises a few recurring points:
- Positive: installers appreciate the straightforward USB connection and the ability to upgrade existing terminals without full replacement.
- Positive: end users often cite the convenience of multiple authentication options and the faster fingerprint verification times compared with older sensors.
- Considerations: some integrators note the importance of checking firmware compatibility and cable types (USB vs USB-C) during procurement to avoid surprises on-site.
If independent reviews are required for procurement, request references from the reseller or ask for a demo unit to validate performance in your environment before large rollouts.
Conclusion: Why choose the DS-KAB673-FBQR
The Hikvision DS-KAB673-FBQR peripheral module is a practical, cost-effective way to add fingerprint, BLE and QR/barcode authentication to compatible Hikvision face-recognition terminals. Its IP65-rated housing and wide operating temperature range make it suitable for both indoor and outdoor access points, while sub-second fingerprint verification supports efficient user throughput. For organisations that want to expand authentication options without replacing existing hardware, this module offers a balanced mix of durability, versatility and value.
Before purchasing, confirm the specific host terminal model and connector type, review firmware compatibility and verify regulatory documentation for your region. When those checks are complete, the DS-KAB673-FBQR is a strong choice for sites that require multi-modal ID, weather resistance and straightforward integration with Hikvision terminals.
