Introduction: What the Hikvision DS-KAD7060EY-S Is and Why It Matters

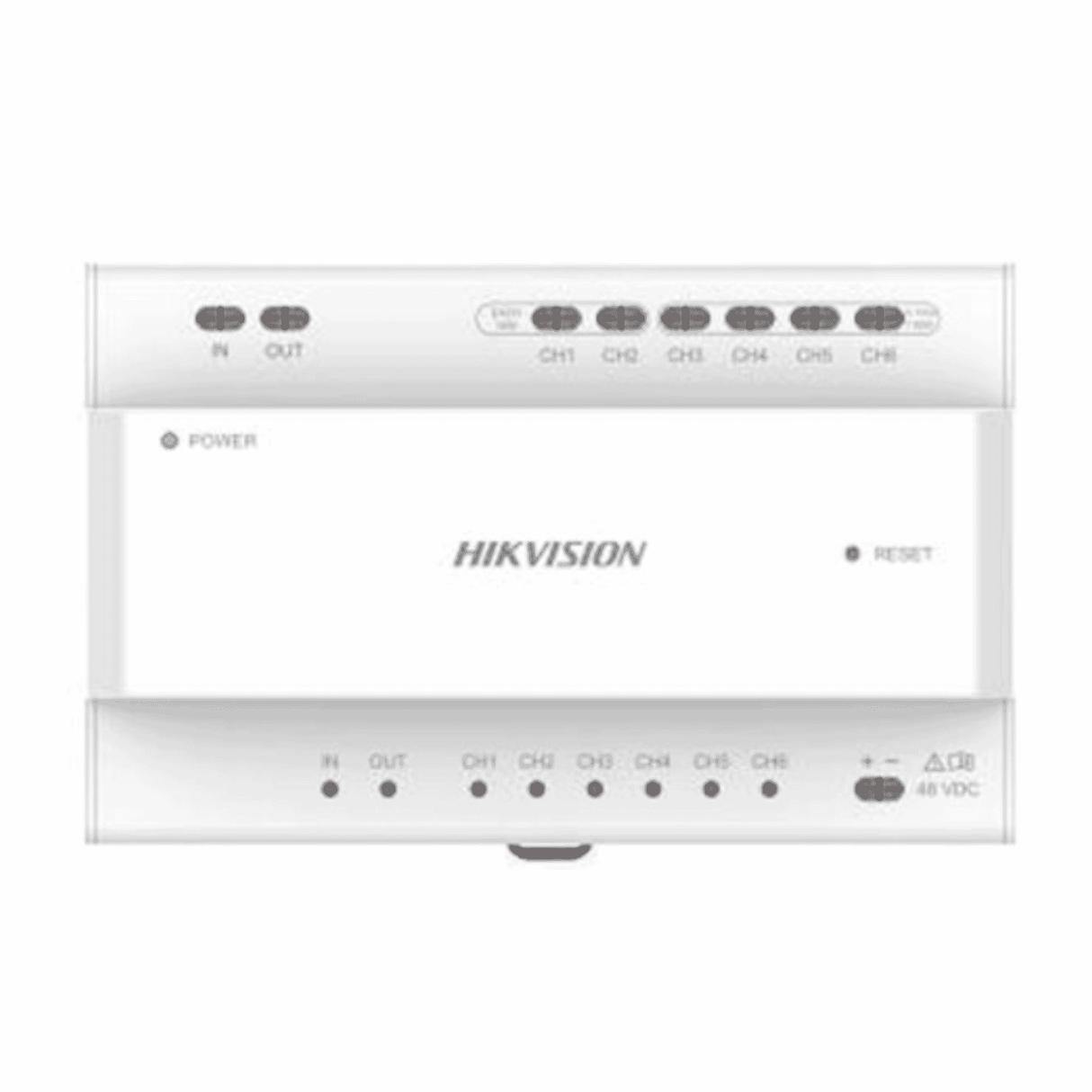

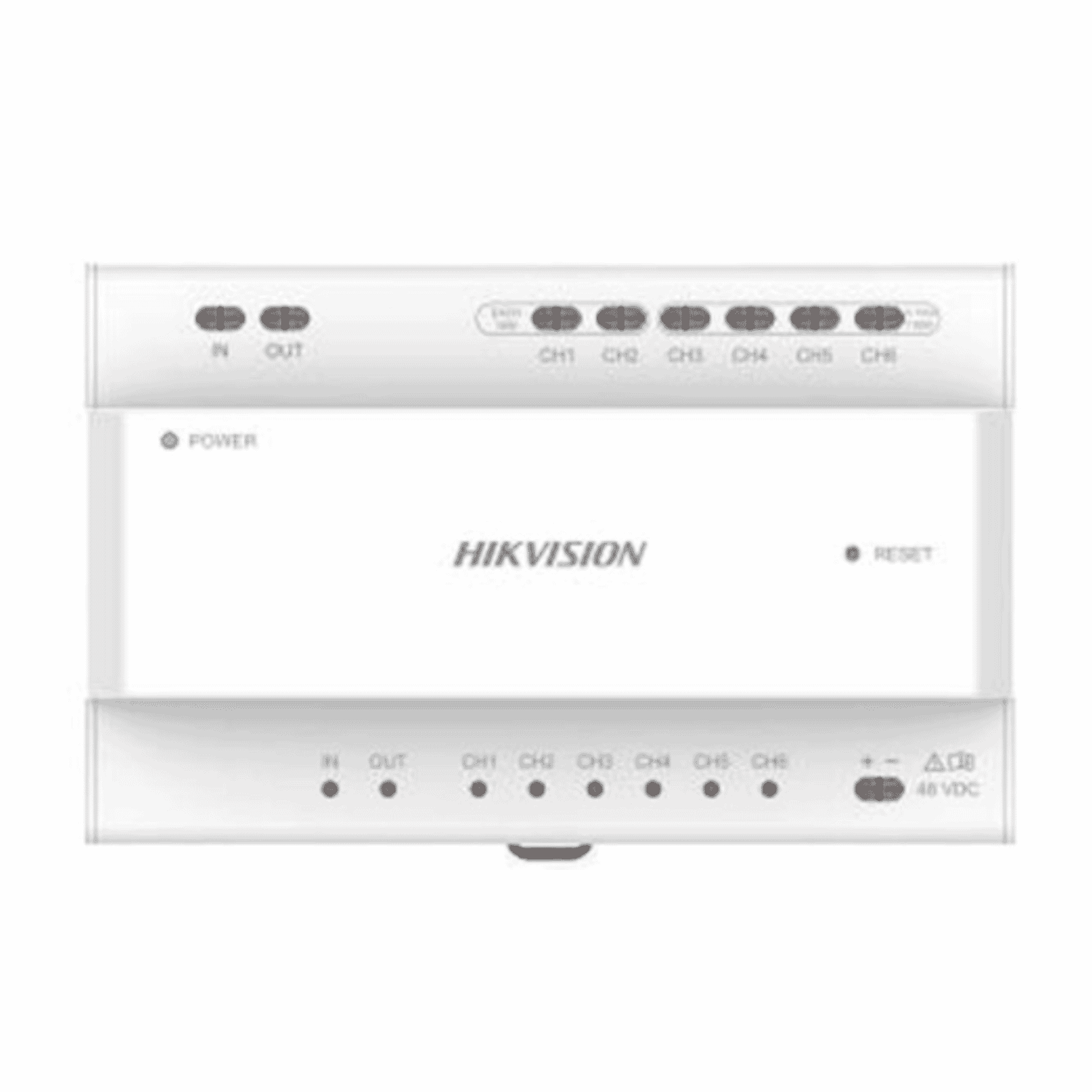

The Hikvision DS-KAD7060EY-S is an 8-port 2-wire HD distributor designed as a central "star centre" for Hikvision EY-series 2-wire video intercom systems. Built for installers and systems integrators working on multi-apartment, multi-building or campus-style deployments, this DIN-rail mount unit centralises audio, video and data routing between door panels, indoor monitors and subsidiary distributors. Compact, low-power and cascade-capable, the DS-KAD7060EY-S streamlines wiring, simplifies topology and helps maintain signal integrity across larger intercom networks.
Key features at a glance
- 8 two-wire interfaces:CH1–CH6 plus IN/OUT cascade ports for flexible distribution.
- DIN-rail mounting:Designed for electrical cupboards or plantroom enclosures; surface-mount options are noted by some resellers.
- 48 VDC external power input:Uses an external PSU (not included) and consumes under 10 W.
- Cascade support:Allows chaining of multiple distributors for multi-building or large-block installations.
- Compact footprint:Dimensions 143.7 × 92.4 × 65.9 mm—small enough to fit into typical enclosure space.
Detailed specifications and benefits
Understanding the technical details helps determine whether the DS-KAD7060EY-S is the right choice for your project. Below is a concise breakdown of its key specifications and the practical benefits they provide.
- Model:DS-KAD7060EY-S
- Product type:2-wire HD distributor / star centre for Hikvision EY-series intercoms.
Benefit: The unit is purpose-built to work with Hikvision’s 2-wire ecosystem, reducing integration complexity and ensuring protocol compatibility when used in supported systems.
- Two-wire interfaces:8 ports (CH1–CH6 + IN/OUT cascade).
- Indicators:Per-interface status LEDs (CH1–CH6 + IN/OUT) plus one power LED.
- Controls:Reset button for simple fault recovery or factory reset operations.
Benefit: Per-port LEDs provide quick visual verification of link status and troubleshooting information, while the reset button offers a straightforward recovery method for field maintenance.
- Power input:48 VDC external power supply required (not included).
- Power consumption:Less than 10 W.
- Operating environment:−10 °C to 55 °C with 10%–90% non-condensing humidity.
Benefit: Low power consumption reduces PSU sizing and operating costs. The standard commercial ambient range makes the unit suitable for typical indoor enclosures but note it isn’t specified for harsh outdoor locations without appropriate enclosure protection.
- Dimensions:143.7 × 92.4 × 65.9 mm.
- Mounting:DIN-rail; some resellers document surface-mounting workarounds or accessory options.
Benefit: DIN-rail compatibility speeds installation in electrical cupboards, enabling tidy, modular system assemblies alongside other control gear.
- Compliance:Documentation available states "INSUFFICIENT DATA" for certifications — installers should confirm CE / UKCA and local regulatory compliance before sale or deployment.
- Documentation:Datasheet and Quick Start resources are available from product literature to ensure correct wiring and PSU selection.
Benefit: Having a clear datasheet makes it easier for integrators to size power supplies and plan cascades; however, confirming local compliance is an important pre-sales and installation step.
Use cases and scenarios where the DS-KAD7060EY-S excels
The DS-KAD7060EY-S is aimed at projects that require centralised two-wire distribution with simple, reliable routing of video, audio and data. Typical applications include:
- As a central hub in a riser cabinet that distributes two-wire signals to individual floor or apartment risers. The per-port LEDs make it easy to isolate faults on specific lines without removing devices.
- Use the IN/OUT cascade ports to link multiple distributors across buildings. This topology reduces the amount of long-run cabling to each door station and supports expansion as new buildings are commissioned.
- Property managers benefit from centralised wiring and simplified maintenance. The DIN-rail mount keeps the unit accessible within electrical cupboards alongside power supplies and other system components.
- Where replacing multi-core coax or networked intercoms is costly, the DS-KAD7060EY-S supports existing two-wire infrastructure upgrades to HD-capable intercom components with minimal rewiring.
Comparisons with similar products in the market
When selecting a distributor/star centre, installers typically weigh port count, mounting form factor, power requirements and expandability. Here are practical comparison points for the DS-KAD7060EY-S against common alternatives:
- Many Hikvision distributors share the same basic functionality (two-wire ports, cascade capability). The DS-KAD7060EY-S is optimised for DIN-rail mounting and compact installations; non-S variants may offer different mechanical mounting or firmware differences. Check firmware compatibility when mixing unit types.
- IP-based systems provide more flexibility, remote management and higher scalability but typically require structured IP infrastructure and PoE switches. The DS-KAD7060EY-S is a simpler, lower-cost option where two-wire EY-series devices are already standard or where cabling replacement is impractical.
- Other vendors may offer distributors with more ports or integrated power supplies. The DS-KAD7060EY-S trades these extras for a compact DIN-rail form factor and close compatibility with Hikvision EY-series endpoints. When choosing, consider whether integrated PSU or higher port density is more important than compact, modular DIN-rail deployment.
Customer feedback and installer perspectives
Public, long-form customer reviews specific to the DS-KAD7060EY-S are limited in some markets. From installer forums and reseller notes, common, pragmatic feedback includes:
- "Appreciated the DIN-rail form factor—saves space in the riser cabinet and keeps installations tidy."
- "Per-port LEDs make fault-finding quicker—no need to disconnect devices to check link status."
- "Buyers should remember the external 48 VDC PSU requirement—plan for power supply redundancy in larger systems."
These comments reflect real-world priorities: ease of installation, clear diagnostics and correct power planning. If you require verified customer testimonials for marketing, consider collecting post-install feedback from early projects or checking reseller product pages for region-specific reviews.
Important installation and safety notes
- Requires an external 48 VDC power supply. Verify PSU capacity against total system load before commissioning.
- Follow Hikvision installation guides and local wiring regulations. Confirm firmware compatibility when mixing DS-KAD7060EY and DS-KAD7060EY-S units in the same system.
- Confirm CE / UKCA or other local market compliance prior to sale and installation—documentation indicates insufficient data in some listings.
Conclusion: Why choose the DS-KAD7060EY-S?
The Hikvision DS-KAD7060EY-S is a focused, practical choice for installers working with Hikvision EY-series 2-wire intercom systems who need a compact, DIN-rail-mounted distribution hub. Its 8 two-wire interfaces, cascade capability and per-port LEDs make it well suited to multi-apartment, multi-building and retrofit projects where minimising cabling and simplifying maintenance are priorities. While it lacks an integrated power supply and public long-form customer reviews are limited, its low power draw, small footprint and clear role within Hikvision’s ecosystem make it an attractive, cost-effective option for professional deployments.
If your project needs a low-complexity, reliable two-wire distribution solution for HD intercom devices—and you plan your power provisioning and compliance checks carefully—the DS-KAD7060EY-S deserves serious consideration. For more technical details and installation guidance, refer to the product datasheet and Hikvision documentation before ordering and commissioning.
