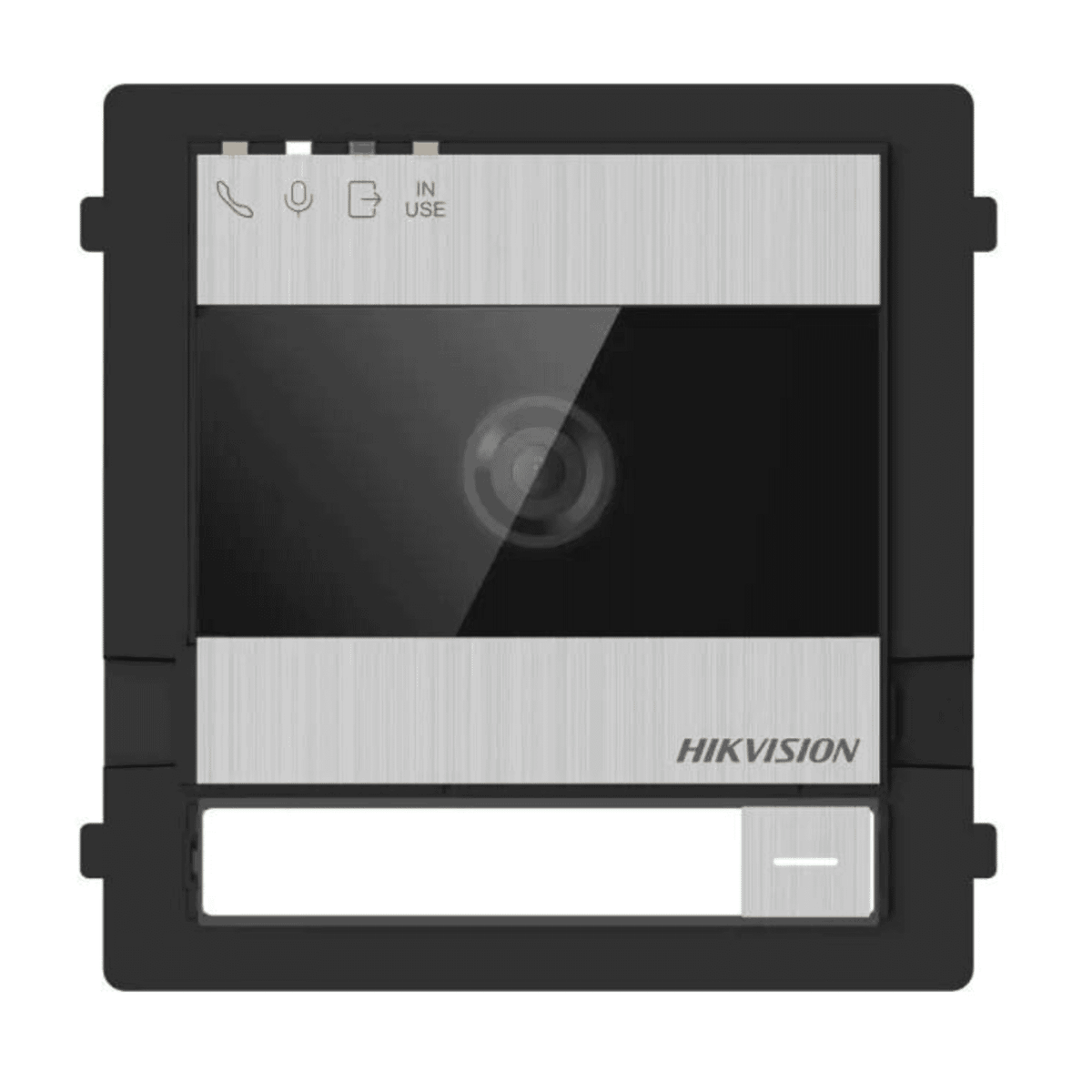

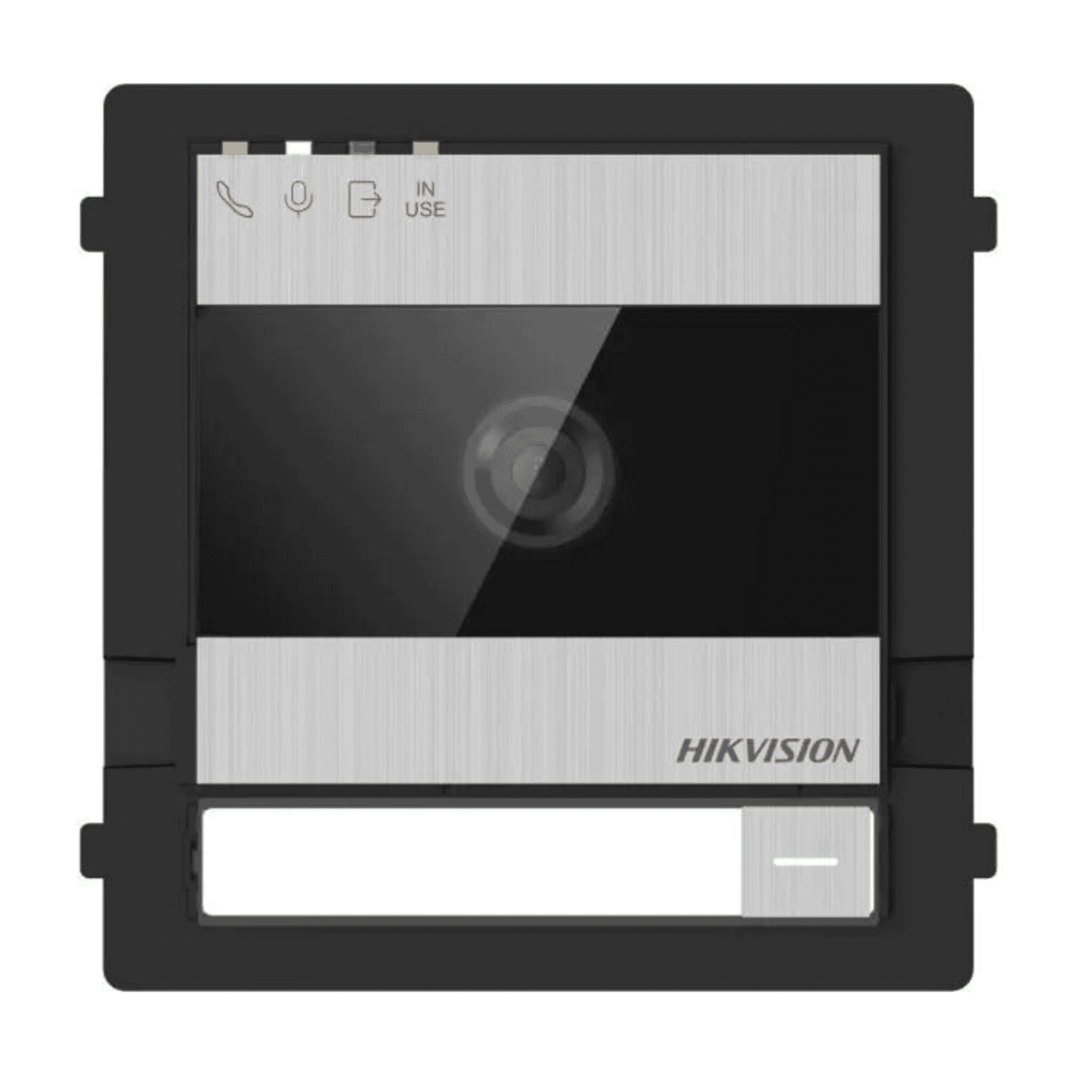

Introduction to the Hikvision DS-KD7003EY-IME2 and its key features
The Hikvision DS-KD7003EY-IME2 is a compact, rugged outdoor video door station main module engineered for single-apartment or single-button access control installations. Sporting a 2 MP fisheye camera with wide dynamic range (WDR) and IR supplement lights, the unit delivers broad scene coverage and reliable low-light performance. Designed to work within Hikvision's 2-wire HD ecosystem, the DS-KD7003EY-IME2 combines a weatherproof IP65 / IK08-rated enclosure, integrated audio with noise suppression and echo cancellation, and modular expansion capability to support a variety of sub-modules (keypads, card readers, nameplates and more). With a suggested retail price around $149.99, it aims to provide a professional-grade access entry point for residential and light-commercial installations where durability, expandability and ease of retrofit matter.
Detailed description of specifications and benefits
The DS-KD7003EY-IME2 packs features that address image quality, audio clarity, system capacity and environmental durability. Below is a focused breakdown of the most important specifications and the practical benefits they deliver.
- 2 MP fisheye camera (resolution: 2 MP) with a wide field of view (H: 133° × V: 82°) — Benefit: captures a broad scene from a compact mounting, reducing blind spots around the entry point and often eliminating the need for multiple cameras.
- WDR (Wide Dynamic Range) and IR supplement lights — Benefit: handles challenging lighting conditions (backlit entrances, strong shadows) and supports night or low-light viewing with improved detail.
- H.264 video codec — Benefit: efficient video compression that balances image quality with bandwidth and storage needs within the Hikvision ecosystem.
- Built-in omnidirectional microphone and loudspeaker — Benefit: allows clear two-way voice communication between visitor and resident or security staff.
- G.711 A/U codecs and audio processing (noise suppression and echo cancellation) — Benefit: improves intelligibility in noisy environments and produces a natural-sounding conversation over the intercom.
- Adjustable volume and 64 kbps audio channel — Benefit: audio can be tuned for specific site conditions.
- 2-wire HD interface (10/100 Mbps over two-wire) — Benefit: simplifies retrofit installations by reusing existing wiring while preserving high-definition video and robust communications.
- Supports up to 2,000 users and up to 99 linked indoor stations — Benefit: scalable for larger single-building or small multi-occupant setups without needing immediate upgrades.
- Modular support for up to 16 Hikvision sub-modules — Benefit: customisation is straightforward — add card readers, keypads, extra buttons or nameplates to match site requirements.
- Alarm inputs and tamper detection — Benefit: integrates with access control and alarm systems and provides tamper alerts to help protect the device from vandalism.
- Lock control outputs (relay and pulse options) — Benefit: flexible control of electric strikes, magnetic locks or other door release mechanisms.
- Power: typically supplied through a Hikvision 2-wire distributor (DS-KAD7060EY) at 48 V, with some configurations accepting 12 VDC — Benefit: system designers have options for powering devices based on the deployment model.
- IP65 weatherproof and IK08 impact resistant — Benefit: built to withstand outdoor weather and light-to-moderate physical impact, suitable for exposed entryways.
- Operating temperature range −40 °C to 60 °C — Benefit: reliable operation across extreme climates, from cold winters to hot summers.
- Compact footprint (99.5 × 98.5 × 35 mm) and lightweight — Benefit: fits in tight locations and supports both surface and flush mounting for flexible installations.
Use cases and scenarios where the product excels
The DS-KD7003EY-IME2 is most effective in contexts that require a rugged, compact and expandable door station that can leverage existing wiring or integrate tightly into a Hikvision 2-wire HD system. Typical scenarios include:
- Residential single-apartment entry points — For houses, duplexes or flats where a single-button door station and a wide field of view are desirable.
- Retrofit projects — Sites with legacy two-conductor cabling can be upgraded to HD video without recabling, lowering labour and material costs.
- Light commercial locations — Small offices, clinics, or retail stores that need a professional entry point with access control and visitor communication.
- Gated communities and secondary entrances — Acts as a durable, weatherproof communication node with the ability to add card or keypad sub-modules for multi-function access control.
- Multi-station systems — With support for up to 99 linked indoor stations and 2,000 users, the module works well in single-building multi-unit scenarios when paired with Hikvision indoor devices.
Comparisons with similar products on the market
When evaluating the DS-KD7003EY-IME2 against other solutions, consider three main categories: traditional IP PoE door stations, consumer smart doorbells, and alternative two-wire professional systems.
PoE (Power over Ethernet) door stations typically offer direct network connectivity via Cat5/6 and centralized power. The advantage of PoE units is simple single-cable installation for new builds and wide third-party integration. The DS-KD7003EY-IME2’s 2-wire approach shines in retrofit scenarios where running new Ethernet cable is costly or impractical. It delivers HD video over existing wiring while remaining tightly integrated into Hikvision’s 2-wire HD ecosystem.
Doorbell cameras from consumer brands are excellent for homeowners seeking cloud-based notifications, mobile apps and quick DIY installs. However, they typically lack industrial certifications (IP/IK ratings), modular expansion, and enterprise-capable user/linked-station capacity. The DS-KD7003EY-IME2 is designed for professional access control and durability, making it a more appropriate choice for long-term installations that require local control and integration with access systems.
Compared to other two-wire professional offerings, Hikvision’s module stands out for its modular sub-module ecosystem, high user capacity (2,000 users), and integrated audio processing. The fisheye lens offers broader coverage than many single-lens modules, reducing the need for supplemental cameras. Potential trade-offs include dependency on Hikvision distributors for typical power/configuration and the need for installers familiar with the Hikvision 2-wire platform.
Customer impressions and typical reviews
While specific customer reviews for this exact SKU may vary by market and installer experience, common feedback themes from integrators and end-users working with similar Hikvision door stations include:
- Image quality: Installers often praise the clarity and coverage of the fisheye camera for entryways and small vestibules, especially when combined with WDR for challenging lighting.
- Build quality and reliability: The IP65 and IK08 ratings receive positive notes for outdoor resilience. Users report long-term reliability when professionally installed and protected against extreme weather.
- Modularity: Customers appreciate the ability to add sub-modules for card readers or keypads without replacing the main module, enabling phased upgrades.
- Installation considerations: Some installers mention that the 2-wire HD approach requires familiarity with Hikvision distributors and cabling best practices; professional installation is recommended to ensure correct power and network configuration.
- Value: For professional installations requiring durability and expandability, feedback commonly indicates strong value relative to similarly specified professional door stations.
Conclusion: why the DS-KD7003EY-IME2 is a great choice
The Hikvision DS-KD7003EY-IME2 is a compelling option where a balance of ruggedness, image coverage, and modular expansion is required. Its 2 MP fisheye camera with WDR and IR supplementation provides broad and usable video coverage, while integrated audio processing helps ensure clear communication. The device’s support for up to 16 sub-modules and large user capacity makes it flexible for evolving access-control needs, and the 2-wire HD interface offers a practical retrofit path that avoids costly recabling in many projects.
Ultimately, for homeowners, property managers or integrators looking for a professional, weatherproof entry station that fits into Hikvision’s 2-wire ecosystem — and for deployments that prioritize durability and expandability over purely consumer-focused cloud features — the DS-KD7003EY-IME2 delivers a feature-rich and cost-effective solution. For accurate integration and certification details, installers should consult Hikvision’s datasheet and user manual and follow local regulations. With the combination of professional-grade specifications and pragmatic installation options, this door station is well suited to meet the demands of residential and light commercial access control projects.
