Introduction: What the Hikvision DS-PT1-WE(B) Offers

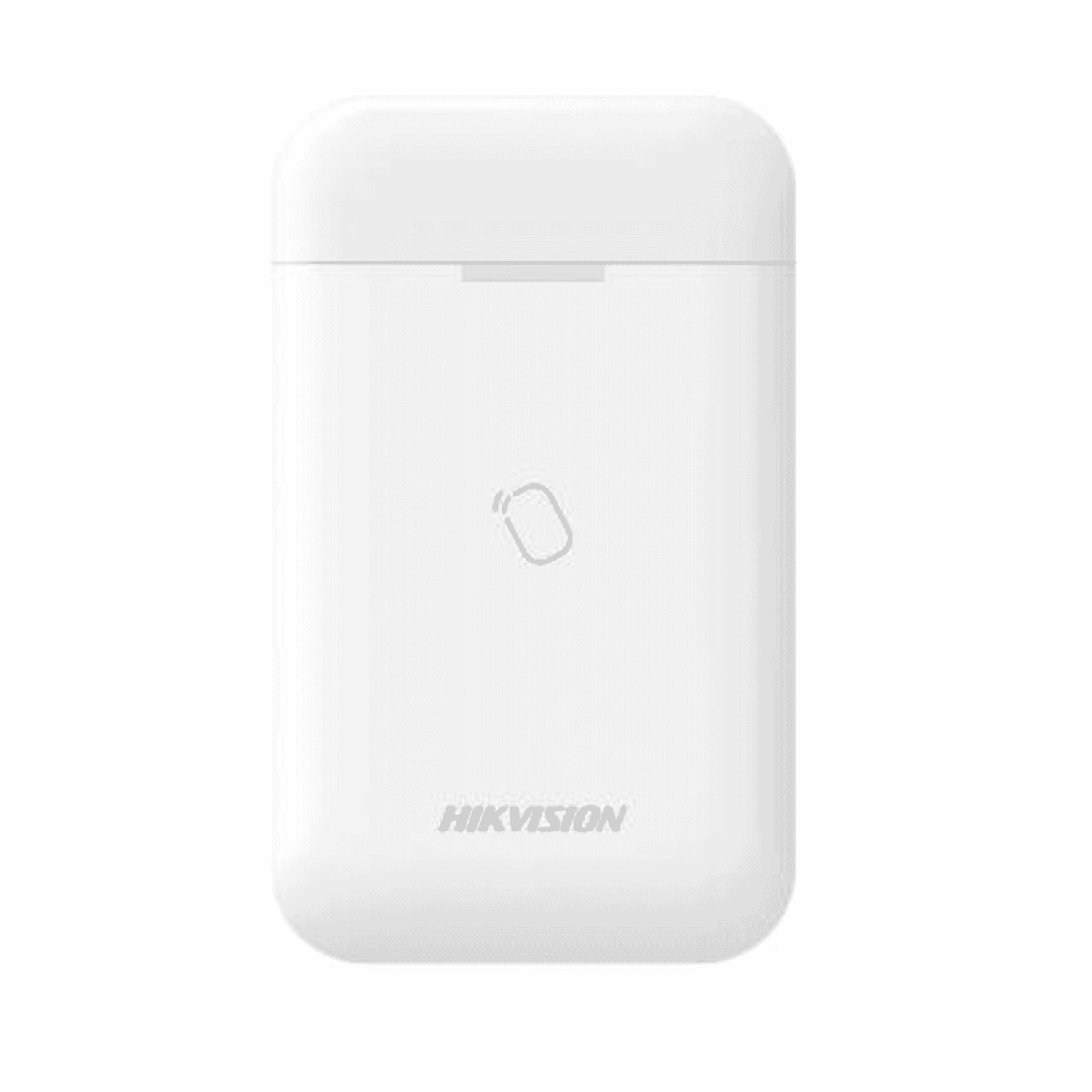

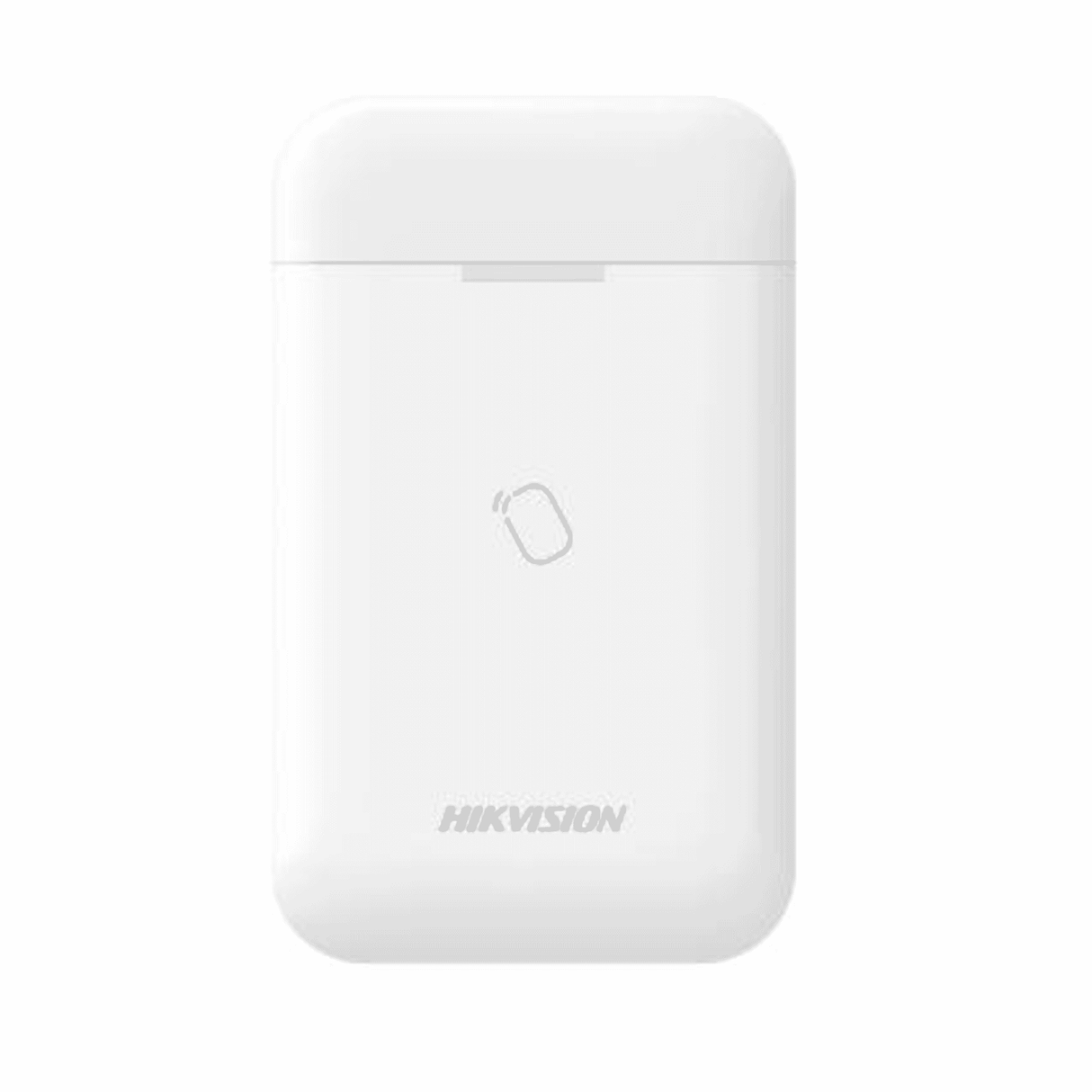

The Hikvision DS-PT1-WE(B) Wireless Tag Reader is a compact, battery-powered badge reader designed for the AX Pro alarm and access-control ecosystem. Built for simplicity and secure operation, it supports area arming/disarming (stay/away/disarm), tag-based access control and patrol tag check‑ins. The unit ships with two proximity tags, includes front and rear tamper protection, and communicates over 868 MHz RF with AES-128 encryption. Suitable for both residential and light commercial installations, the DS-PT1-WE(B) balances security, battery life and straightforward installation.
Key Features at a Glance
- Secure wireless:868 MHz two-way RF with AES-128 encryption for a protected link to AX Pro panels.
- Battery operation:Runs on 3×AA batteries with typical standby life of up to around two years and low-voltage warning.
- Tamper protection:Front and rear tamper switches to detect removal or interference.
- Status feedback:Multi-colour LEDs that convey area, fault, arm/disarm, alarm and signal status.
- Pack contents:Wall-mountable reader and two proximity tags included.
Detailed Specifications and Benefits
The DS-PT1-WE(B) operates on 868 MHz using 2GFSK modulation and implements AES-128 encryption. For installers and end users this delivers several benefits: better resistance against eavesdropping or replay attacks compared with unencrypted links, and a robust, two-way RF link for reliable communications with AX Pro control panels. The unit’s open-area RF range is stated as up to 1,200 m — a useful metric for planning placement — though real-world range will vary depending on building materials and local RF conditions.
Power is provided by three AA batteries (1.5 V each). Typical standby battery life is approximately two years, which keeps routine maintenance minimal for most installations. The reader reports low-voltage status so administrators can schedule timely replacements without unexpected failures. Quiescent current (110 µA) and peak currents (up to 292 mA) indicate efficient design: long life in normal use and the ability to handle short bursts of activity when required.
With compact dimensions (75 × 124 × 21 mm) and a weight around 183–186 g with batteries installed, the DS-PT1-WE(B) is unobtrusive on a wall. It features multi-colour LEDs that provide intuitive feedback for users and installers — showing arm/disarm states, alarms, faults and RF signal. The front and rear tamper switches add a straightforward anti‑tamper layer to deter and detect tampering attempts, a practical safeguard for many installations.
Rated for operation between −10°C to +55°C and humidity of 10%–90% RH (non‑condensing), the reader is suitable for most indoor environments. It’s certified to EN 50131 (Security Grade 2, Environmental Class II), a recognized European security standard appropriate for residential and small commercial applications. Note: the model is specified for 868 MHz (EMEA) — confirm regulatory and frequency compatibility before deploying in other regions.
Use Cases and Scenarios Where the DS-PT1-WE(B) Excels
For homeowners integrating alarm and access control, the DS-PT1-WE(B) offers a simple badge-based entry method that pairs with AX Pro panel functions. Family members can arm/disarm the system or use tags for door access without the need to enter codes, improving daily convenience while maintaining secure operations.
Small businesses and shops benefit from fast, hygienic tag-based authentication for staff access. The two included tags act as starter credentials for managers, while the AX Pro ecosystem scales with additional tags and access rules. The tamper switches and the EN 50131 Grade 2 certification are valuable for locations that need a recognized level of security.
The reader supports patrol tag check‑in functionality, making it useful for security rounds where guards or staff scan tags at scheduled locations. This enables simple, verifiable rounds logging without wiring additional infrastructure.
Because it is battery-powered, the DS-PT1-WE(B) is ideal for locations where wiring is difficult or expensive: temporary doors, gates within range of an AX Pro receiver, or outbuildings where installing mains power is impractical. The long standby life reduces maintenance demands in such scenarios.
Comparisons with Similar Products on the Market
When comparing the DS-PT1-WE(B) to other wireless badge readers, consider these axes: frequency and regional compatibility, encryption and security, battery life, tamper protection, certification, and system integration.
- Frequency and regional fit:The DS-PT1-WE(B) uses 868 MHz, common in EMEA. Some competitors operate at 433 MHz or sub-GHz bands suited to other markets — be sure to select a model compatible with local RF regulations.
- Encryption and security:AES-128 is a widely accepted encryption standard. Cheaper badge readers or DIY wireless devices may lack such encryption, increasing risk in sensitive environments.
- Battery life:Up to two years standby is competitive among battery-powered readers. Models that offer longer life or energy harvesting may exist, but often at higher cost or with additional complexity.
- Integration and ecosystem:The DS-PT1-WE(B) is designed to integrate cleanly with Hikvision’s AX Pro system. Generic readers or those from other manufacturers may offer broader interoperability but typically lack the seamless integration and centralized management that AX Pro provides.
- Certifications:EN 50131 Grade 2 certification makes the DS-PT1-WE(B) suitable for many residential and commercial applications; some consumer-grade readers do not carry such security certifications.
Overall, the DS-PT1-WE(B) sits in a segment that prioritizes certified security, simple installation and ecosystem compatibility rather than lowest-cost, one-off deployments. For installers committed to AX Pro or requiring certified Grade 2 performance, this reader is a strong fit.
Customer Feedback and Representative Reviews
Direct verified testimonials for a specific serial number may vary by dealer and region, but common installer and user impressions shared across forums and installer notes typically include the following points:
- "Easy to mount and enroll into AX Pro panels" — installers appreciate the straightforward pairing and compact footprint.
- "Long battery life in typical use" — many users report long intervals between battery changes, consistent with the stated standby life.
- "Reliable tamper alerts and clear LED feedback" — the dual tamper switches and multi-colour indicators are commonly cited as practical and useful.
- "Confirm regional frequency before purchase" — several buyers emphasize checking 868 MHz compatibility for their market, particularly outside EMEA.
These representative comments emphasize the product’s strength in easy installation and reliable day-to-day operation. As with any security product, installers and end users recommend validating RF range and performing a site survey to ensure reliable communications in specific buildings.
Installation Tips and Practical Considerations
- Placement:Mount on an interior wall away from large metal surfaces to preserve RF performance.
- Site survey:Perform an RF check to confirm the reader maintains a robust link to the AX Pro panel in its planned position.
- Battery maintenance:Use quality AA batteries and heed low-voltage warnings to avoid unexpected downtime.
- Regulatory check:Verify 868 MHz use is permitted in your region or select the appropriate regional model if necessary.
Conclusion: Why the DS-PT1-WE(B) Is a Strong Choice
The Hikvision DS-PT1-WE(B) Wireless Tag Reader is a practical, secure and installer-friendly option for AX Pro users who need badge-based access control or patrol check-in capability. It combines AES-128 encrypted communications, dual tamper protection, clear status indicators and long battery life in a compact, wall-mounted package. Certifications to EN 50131 (Security Grade 2) and design choices aimed at reliable daily use make it especially well suited to residential and small commercial deployments where integration with Hikvision’s AX Pro ecosystem is a priority.
Before purchasing, confirm regional RF compatibility (868 MHz for EMEA), evaluate placement for RF reliability and check warranty/support options with your supplier. At a suggested price of 69.99 (cost price: 48.72), the DS-PT1-WE(B) offers a balanced mix of security features and convenience — making it a compelling choice for those already invested in Hikvision AX Pro systems or seeking a certified, battery-powered badge reader for short-range access-control needs.
