Introduction to the C‑Tec CA507 XFP CAST Programming Tool and its key features
The C‑Tec CA507 XFP CAST Programming Toolis a purpose‑built, PC‑based programming kit designed for use with C‑Tec XFP series fire alarm control panels that communicate using the CAST protocol. The kit bundles the programming software on a USB memory stick and the lead required to connect a laptop or desktop to the panel (USB→RS232). Intended primarily for trained installers and service engineers, the CA507 simplifies configuration, commissioning and ongoing maintenance of XFP addressable systems.
Key features at a glance:
- Software on USB stick:the programming application is supplied on a USB memory device — no CD required — with an intuitive user interface and comprehensive help files.
- Programming lead included:the kit includes the cable to connect a PC to XFP CAST panels (USB→RS232). Supplier listings vary on the exact lead model supplied; verify the cable for your order.
- Windows compatibility:supports common Windows releases (Windows XP, Vista, 7, 8) and many reseller pages also list compatibility with Windows 10.
- Designed for professionals:intended for installers and engineers who need to configure addressable devices, map loops, program zones and perform diagnostics.
- Free updates from manufacturer:software updates are available from C‑Tec to ensure ongoing compatibility and feature improvements.
Detailed specifications and benefits
The CA507 is compact in concept but covers the essential needs of anyone managing C‑Tec XFP CAST panels. Below is a detailed breakdown of the product specifications and the practical benefits they bring.
- Part number:CA507
- Brand:C‑Tec (C‑TEC)
- Product type:XFP CAST programming tool / kit
- Intended systems:C‑Tec XFP addressable fire alarm panels (CAST protocol)

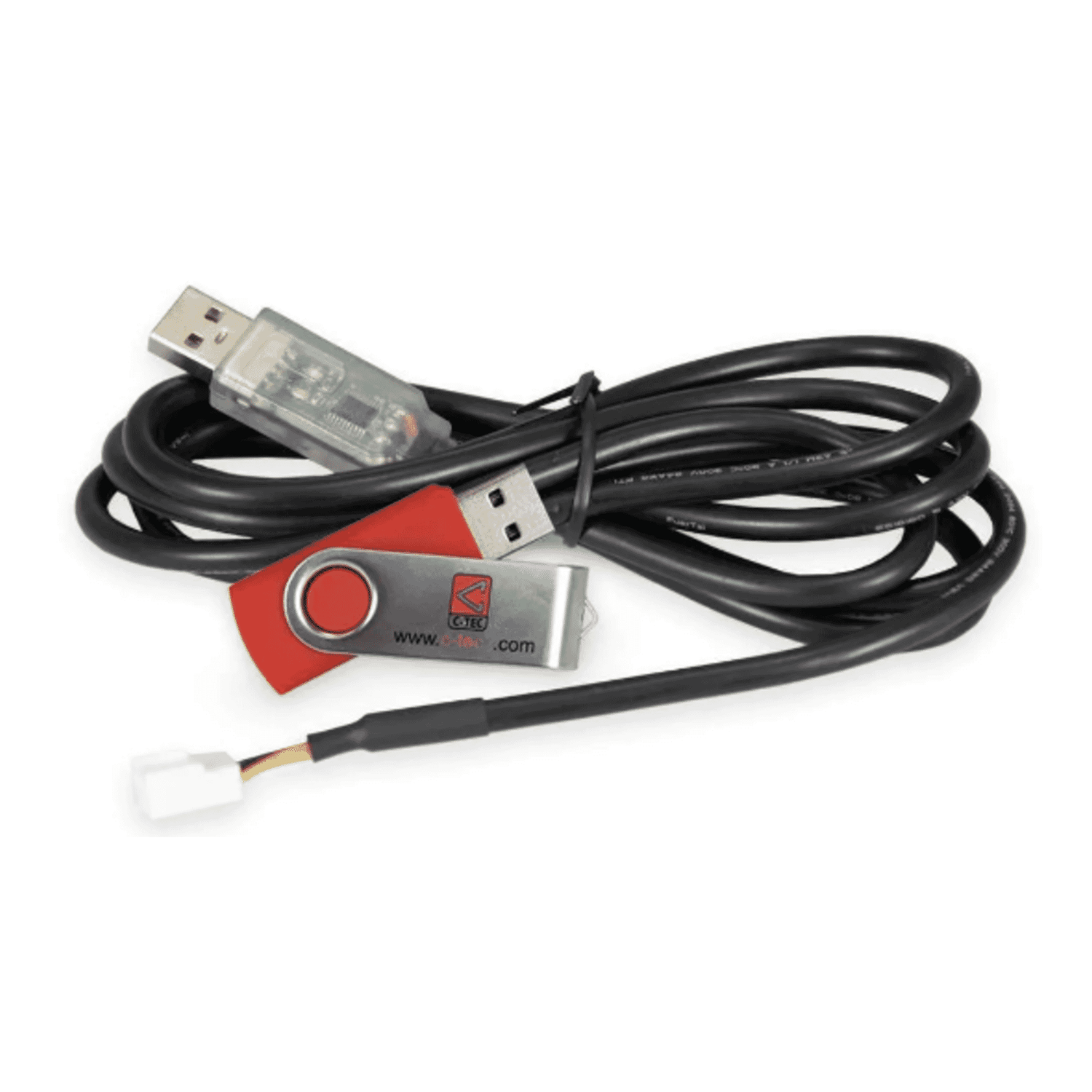

- Kit contents:USB memory stick with programming software; programming lead (USB→RS232)
- PC connection:USB→RS232 programming lead supplied (model may vary)
- OS compatibility:Windows XP, Vista, 7, 8 (many resellers list Windows 10)
- Reported lead models:BF395 (1.8 m) or SAF7070000 (2 m) — supplier listings vary
- Optional accessories:RS232→USB converters; alternative programming leads such as SAF7070000 where required
- Streamlined commissioning:the CA507 gives quick access to panel configuration, device addressing and loop configuration without relying on manual DIP switch settings or trial‑and‑error.
- Portable and convenient:with software on a USB stick, engineers can carry a single item that contains the application and help files, ready to use on site.
- Vendor support and updates:C‑Tec provides documentation and software updates, helping to maintain compatibility with panel firmware revisions and offering troubleshooting resources.
- Cost‑effective toolset:priced for professional use (manufacturer/suggested price around 95.00 in many listings), the CA507 removes the need for more expensive dedicated programming consoles.
- Safety and compliance:when used by trained personnel following manufacturer guidelines, it supports safe commissioning and helps ensure systems meet local fire‑safety regulations.
Use cases and scenarios where the CA507 excels
The CA507 is not a generic USB dongle — it is tailored to the needs of those working with C‑Tec XFP addressable panels. Practical scenarios where it adds value include:
- Initial system commissioning:during installation, the CA507 enables engineers to assign addresses, configure zones, set device types and perform acceptance testing quickly and accurately.
- Routine maintenance and servicing:service engineers can connect to the panel to download logs, run diagnostics, update settings and verify sensor or module health without shutting down the system for extended periods.
- Firmware and configuration updates:where panel firmware or device configurations require updates, the CA507 serves as the interface for applying manufacturer‑provided changes.
- Troubleshooting and fault finding:the software typically exposes real‑time device status and fault codes, making it faster to trace wiring faults, loop issues or device failures.
- Training and demonstration:in training sessions for apprentices or less experienced technicians, the CA507 provides a hands‑on way to explore XFP system configuration in a controlled environment.
Comparisons with similar products on the market
When evaluating the CA507 against alternatives, consider three broad categories: OEM programming kits, universal protocol tools, and third‑party software with generic adapters.
Advantages:
- Directly supported by the panel manufacturer with matching software and documented procedures.
- Typically provides the most reliable compatibility with proprietary features and diagnostics.
Limitations:
- Usually tied to a single family or protocol (here, C‑Tec XFP CAST), so not useful across multiple brands.
Some third‑party tools aim to work across many panel brands using generic RS232/USB adapters and multi‑protocol software. These can be attractive for engineers who service diverse systems.
- Advantages: flexible for multi‑brand service contracts, often lower hardware cost per brand.
- Drawbacks: may lack deep diagnostic access or vendor‑specific features; reliability and support differ between providers.
In some markets, third‑party applications plus USB→RS232 adapters are used as a budget workaround.
- Advantages: low cost and broad availability.
- Drawbacks: risk of incompatibility, limited manufacturer support, and potential warranty or compliance issues if used in lieu of OEM tools.
Overall, for anyone working principally with C‑Tec XFP panels, the CA507 represents a practical balance: it is manufacturer‑aligned, compact and purpose built. It is less versatile across brands than universal tools but provides stronger vendor support and expected compatibility.
Customer feedback and typical user impressions
Public, verifiable customer testimonials for the CA507 are limited in the open marketplace, which is common for specialized professional tools sold mainly through trade distributors. However, installer and engineer feedback reported in reseller notes and trade forums tends to focus on a few recurring themes:
- Ease of use:many users appreciate having the programming software on a USB stick with a user interface and help files that reduce time spent learning the system.
- Reliability:when paired with the correct programming lead and a compatible Windows PC, the CA507 is reported to be dependable for commissioning and fault diagnosis.
- Cable confusion:some purchasers have noted discrepancies in listings regarding whether the BF395 (1.8 m) or SAF7070000 (2 m) lead is supplied. This has led to a small number of service calls where engineers needed to obtain an alternative lead or adapter.
- Support & updates:resellers and technicians value that C‑Tec provides software updates and documentation, which helps when panels receive firmware updates.
Representative (anonymized) comments you might see in trade discussions include:
- "Compact and straightforward — saves time on site for commissioning XFP panels."
- "Make sure you confirm the cable in the box; I ordered one with the 1.8 m lead but needed the 2 m on a particular job."
- "Good value versus more expensive dedicated consoles, and the USB stick makes it handy to carry between jobs."
Conclusion: why the CA507 is a great choice for XFP CAST installations
For fire alarm installers and service engineers who work with C‑Tec XFP addressable panels, the CA507 XFP CAST Programming Tool delivers a purpose‑built, practical solution for configuration, commissioning and maintenance. It combines manufacturer‑supplied software on a portable USB stick, the necessary programming lead for RS232 connections and compatibility with common Windows operating systems, all in a single compact package.
The CA507 stands out where vendor support and direct compatibility matter most: it provides access to panel‑specific features, diagnostic information and official help files that reduce commissioning time and simplify fault‑finding. While universal tools and generic adapters have their place on mixed‑brand service rounds, the CA507 is the sensible choice when you need reliable, proven access to C‑Tec XFP CAST systems.
Before purchasing, confirm the exact programming lead included with your SKU (BF395 1.8 m vs SAF7070000 2 m) and ensure your PC meets the supported Windows versions. Follow C‑Tec installation instructions and local fire‑safety regulations when using the tool, and keep software updated via the manufacturer to maintain compatibility. Priced competitively for professional use (typically suggested around 95.00), the CA507 is a cost‑effective, manufacturer‑backed kit that remains a practical tool in any XFP installer or service engineers toolkit.
