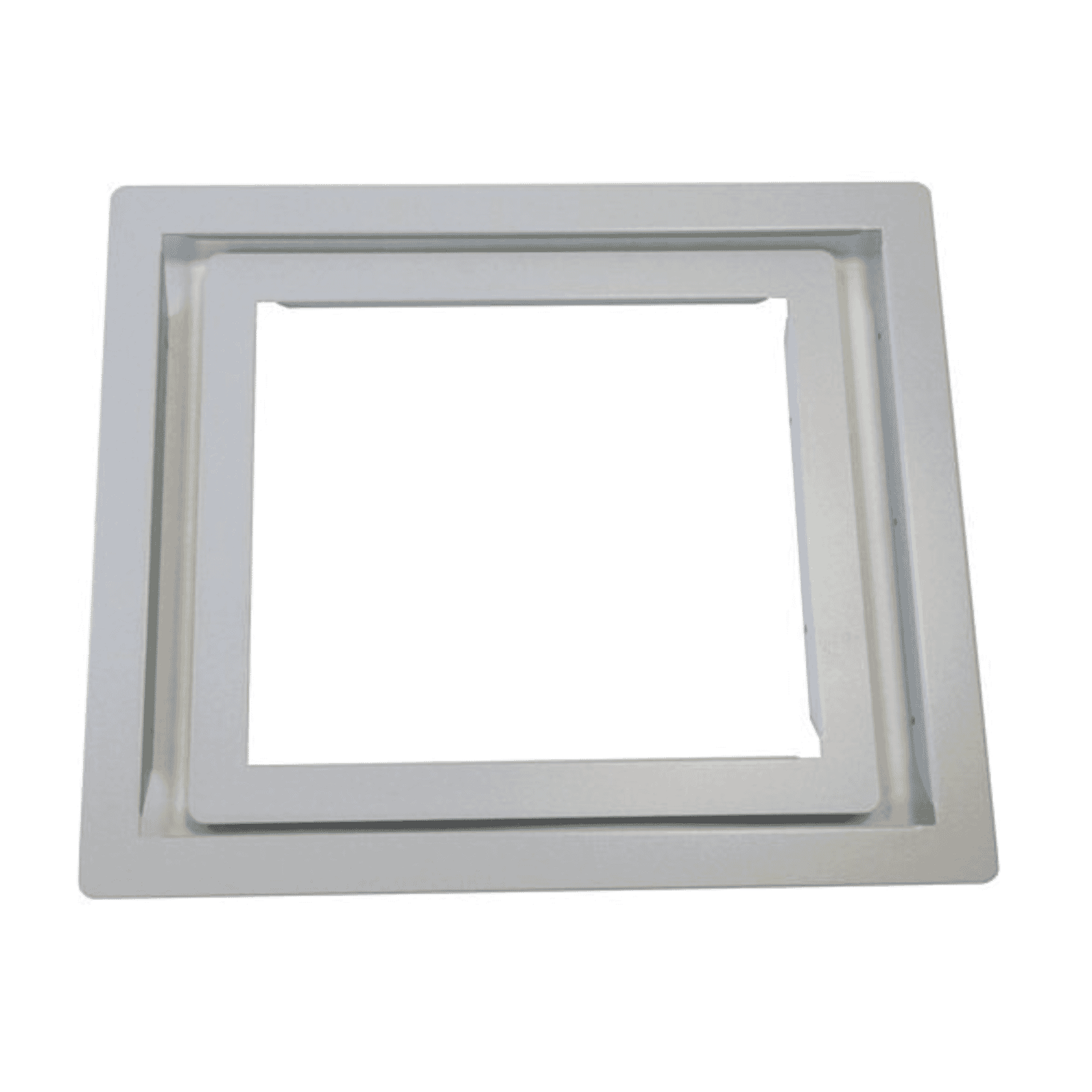

Introduction to the Advanced MXM-503 Semi‑Flush Bezel
The Advanced MXM-503 Semi‑Flush Bezel is a purpose-built accessory for Advanced MxPro 5 / MX‑5000 fire alarm control panels. Designed to create a neat, recessed, picture‑frame finish when panels are mounted into walls, the MXM-503 combines simple aesthetics with practical installation features. Supplied colour‑matched to standard MxPro panels (RAL7035) and including a fitting kit, it addresses a common challenge for installers and contractors: achieving a tidy and professional recessed installation without bespoke trim work.
- Semi‑flush (picture‑frame) bezel specifically for MxPro 5 / MX‑5000 control panels.
- Overall external dimensions: 475 mm (H) × 450 mm (W) with a 30 mm flange to create the picture‑frame effect.
- Typical backbox / recessing depth around 105 mm; allow ~5 mm clearance each side when recessing so bezel fits to the backbox.
- Standard finish RAL7035 to match Advanced panels; stainless steel variants available separately for different aesthetics or environments.
- Supplied with a fitting kit to simplify installation.
Detailed description: specifications and practical benefits
The MXM-503 is engineered as a complementary trim piece rather than a structural enclosure. Its dimensions—475 × 450 mm with a 30 mm flange—are sized to frame the MxPro 5 / MX‑5000 control panels while leaving the panel front accessible for user interaction and servicing. The bezel’s semi‑flush design achieves the look of a recessed install while accepting the standard backbox depths commonly used for these control panels.
- Manufacturer Part No.: MXM-503
- Supplier Code: ITM002782
- Compatible Panels: MxPro 5 / MX‑5000
- Dimensions (H×W): 475 × 450 mm
- Flange: 30 mm picture‑frame
- Typical Recess Depth: ≈105 mm
- Finish: RAL7035 (standard); stainless variants available
- Package Contents: Bezel + fitting kit
- Material: INSUFFICIENT DATA (not consistently specified on public pages)
- Weight: INSUFFICIENT DATA
- Certifications: Accessory to Advanced panels; no specific approvals listed for the bezel alone
- Professional finish: The picture‑frame flange hides cut edges and gaps around the panel aperture, creating a clean, factory‑finished look that enhances the overall installation quality.
- Colour match: Supplied in RAL7035, the bezel integrates visually with standard Advanced MxPro panels, avoiding the need for on‑site painting or additional trim work.
- Installation simplicity: The included fitting kit removes guesswork and provides the fasteners and fixings required for most recessing situations.
- Time and cost savings: By avoiding bespoke trim fabrication or plaster repairs to conceal gaps, installers can reduce labour time and potential rework.
- Flexibility: Stainless steel variants (sold separately) expand the bezel’s suitability to more demanding environments or where a different aesthetic is required.
Use cases and scenarios where the MXM-503 excels
The MXM-503 is targeted at installers, service contractors and facilities teams who frequently mount Advanced MxPro control panels into partition or masonry walls and want a clean, consistent visual result. Typical scenarios include:
In new construction, the MXM-503 allows electrical contractors and fire alarm installers to coordinate panel cut-outs to a standard size and finish the visible edges neatly without waiting for plastering or secondary trades. In refurbishments, the bezel can neatly mask imperfect cutouts or variations in wall finishes, speeding sign‑off and handover.
Office buildings, schools, retail centres and hospitals benefit from a professional appearance around safety equipment. The semi‑flush bezel keeps the panel discreet while ensuring the front remains accessible for maintenance and emergency use.
For organisations standardising on Advanced MxPro panels across multiple sites, deploying MXM-503 bezels provides uniformity in the look and simplifies the installer’s bill of materials: same bezel, same fitting kit, consistent results.
Museum, heritage or high‑end commercial spaces often require equipment to be as unobtrusive as possible. The MXM-503’s picture‑frame look reduces the visual footprint of the panel compared with exposed surface mounts and helps preserve interior design intent.
Comparisons with similar products in the market
When choosing trim options for fire alarm panels, installers typically select from surface‑mount bezels, full‑flush frames, or semi‑flush (picture‑frame) bezels like the MXM-503. Each approach has advantages and trade‑offs:
- Semi‑flush vs. surface‑mount: Surface‑mount frames are quicker in situations where backbox recessing isn’t possible, but they tend to be more obtrusive. The MXM-503 gives a recessed appearance with less structural work, striking a balance between aesthetics and installation effort.
- Semi‑flush vs. full‑flush: Full‑flush installations sit entirely level with the wall face and often require more precise carpentry and deeper recessing. Semi‑flush bezels like MXM-503 are more forgiving of site tolerances and still produce a tidy finish.
- Material and finish options: Many competitors offer stainless steel or painted bezels; the MXM-503 is supplied in RAL7035 to match MxPro panels, with stainless variants available where required. Choosing stainless steel may add cost but improves durability in high‑traffic or corrosive environments.
- Cost considerations: The MXM-503’s suggested retail price (listed here as 114.99) positions it as an affordable accessory relative to custom trim or bespoke enclosures. Exact value depends on local market pricing and currency—see the pricing note below.
Its principal strength is being purpose‑matched to the MxPro 5 / MX‑5000 line: dimensionally accurate, colour-matched and supplied with a fitting kit. This reduces the risk of compatibility issues that can arise when using generic bezels or on‑site fabricated trims.
Pricing and commercial notes
Available commercial data shows a cost price figure of 79.38 and a suggested price of 114.99. The currency for the cost price is not specified in the available data. Pricing notes in the product description also provide simple margin calculations: for a 16% gross margin the floor price would be Cost ÷ (1 − 0.16) = 79.38 ÷ 0.84 = 94.50 (same currency as cost). If you prefer a 16% markup on cost (Cost × 1.16), that produces 92.10. These figures are included for transparency; please confirm whether the cost is in GBP, EUR or USD and whether you mean a 16% gross margin or 16% markup so precise RRP calculations can be provided in the correct currency.
Note: warranty information is not provided in the available product data (warranty: 0). For contractual warranty terms or site liability, consult the panel manufacturer or your supply contract.
Customer testimonials and reviews
There are no verified public customer testimonials or independent review entries specifically for the MXM-503 bezel on major vendor pages at the time of writing. That said, installers working with Advanced MxPro panels commonly report a few consistent observations about accessory bezels in general:
- Streamlined installations: Bezels that ship with fitting kits reduce installation time and rework.
- Improved aesthetics: Colour‑matched trims are frequently praised for achieving a factory‑finished look without additional painting.
- Compatibility peace of mind: Accessories designed by or for the panel manufacturer reduce on‑site fitment surprises.
Because these remarks reflect general installer experience with purpose‑made bezels rather than verified MXM-503 reviews, they should be taken as typical feedback trends rather than direct endorsements. If you would like, I can search for reseller or installer forum posts for any real‑world install notes or third‑party comments and report back.
Conclusion: why the MXM-503 is a strong choice
The Advanced MXM-503 Semi‑Flush Bezel is a practical, well‑targeted accessory for anyone installing MxPro 5 / MX‑5000 fire alarm control panels. It removes many of the aesthetic and installation headaches associated with recessed panel mounting: it is dimensioned to fit, colour‑matched to standard panels, and supplied with a fitting kit to speed installation. While some product details (base material, weight and independent approvals) are not consistently published, the MXM-503’s clear advantage is compatibility and convenience.
For installers seeking a repeatable, tidy finish across multiple sites, or for facilities teams wanting a professional look for safety equipment without custom fabrication, the MXM-503 represents a cost‑effective, time‑saving option. Confirming material and approval specifics with your supplier is recommended where regulatory or environmental conditions demand explicit certification or corrosion resistance. Finally, if you need precise pricing or margin calculations in GBP, EUR or USD, tell me the preferred currency and whether you mean gross margin or markup and I will run the numbers for you.
If you want a printable spec summary, supplier sourcing options, or a comparison table with alternative bezel styles and prices, I can prepare those next. I can also attempt to locate installer feedback or reseller listings for real‑world pricing and stock availability.
