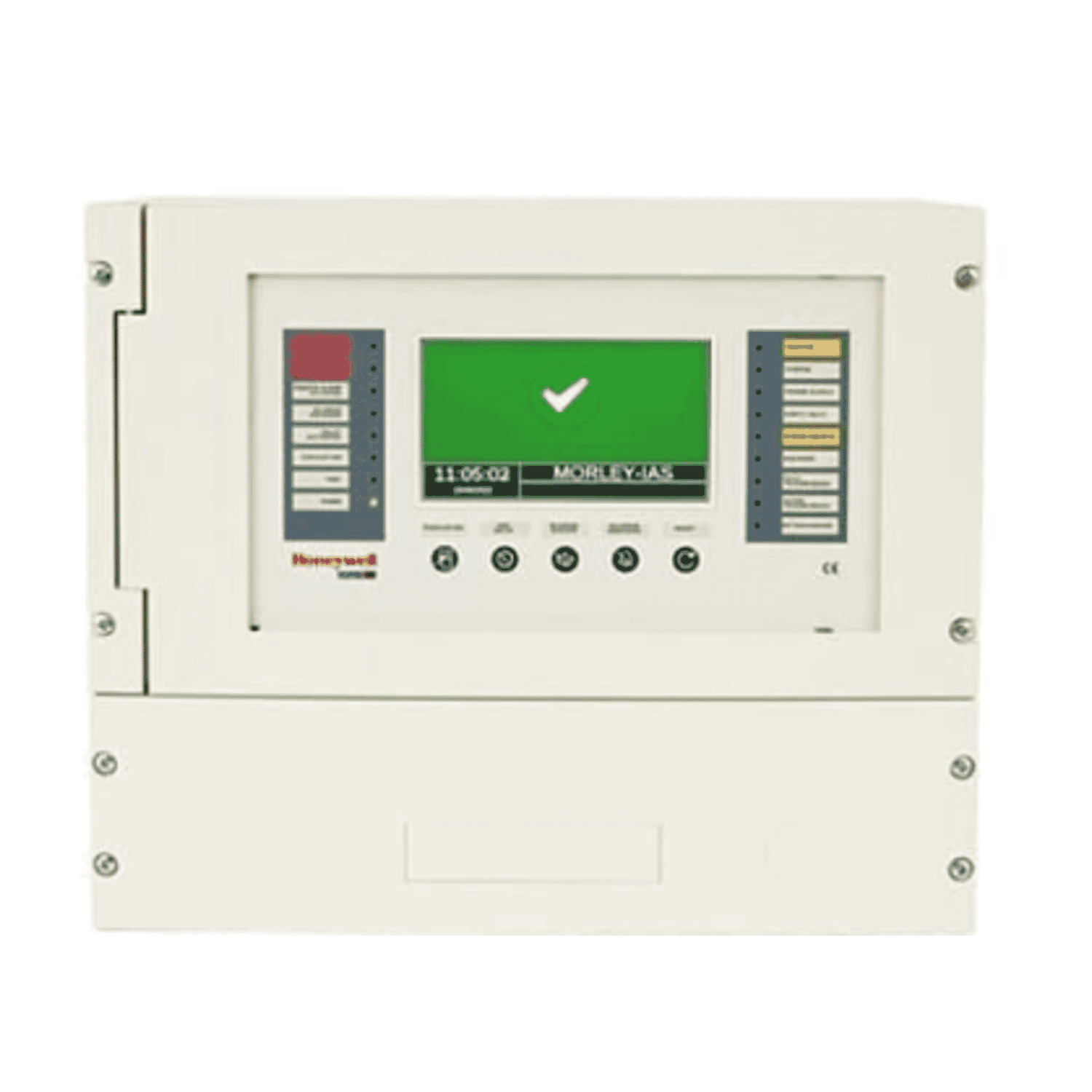

Introduction to the Morley‑IAS MA‑8000‑01 (MAx 4‑Loop Panel)
The Morley‑IAS MA‑8000‑01, part of the MAx family, is a networkable, multi‑processor addressable fire alarm control panel designed for medium‑to‑large commercial installations. The base unit offers four addressable detection loops and can be expanded to eight using MA‑LIB2 expansion cards. With a 7" colour resistive touchscreen, advanced programmable logic, extensive event logging and CANbus networking, the MA‑8000‑01 is aimed at projects that require flexibility, scalability and EN54‑level compliance.
Key Features at a Glance
- 4 addressable loops in the base unit, expandable to 8 loops for larger systems.
- 7" full‑colour resistive touchscreen(800 × 480) plus physical function keys for intuitive local control.
- High loop power: 750 mA per loop, suitable for power‑hungry devices including EN54‑23 VADs.
- CANbus networking: optically‑isolated lines support up to 64 panels (128 loops) for large distributed systems.
- Advanced Control‑By‑Event logic: programmable cause‑and‑effect for complex site requirements.
- Extensive logging: non‑volatile history of up to 10,000 historical events and 4,000 active events.
Detailed Specifications and Benefits
The MA‑8000‑01 combines robust hardware with flexible software features to address real‑world fire detection needs. Important technical specifications include:
- Model family / Model:Morley‑IAS MAx (MA‑8000 series) / MA‑8000‑01.
- Loops:4 loops in base, expandable to 8 using MA‑LIB2 cards; loop addressing typically supports many detectors and modules (protocol dependent).
- Loop power:750 mA per loop — supports multiple powered devices and EN54‑23 visual alarm devices (VADs).
- Display:7" TFT resistive touchscreen (800 × 480) for clear status, controls and navigation.
- Outputs and power:1 fault relay; 3 configurable relays; 1 monitored sounder circuit; 24 VDC auxiliary (max 1 A). Power supply typically 24 V DC, 200 W variant; battery support up to 2 × 12 V / 38 Ah.
- Networking & ports:CANbus networking with optical isolation; USB, isolated RS‑485, RS‑232/485 and peripheral ports for printers or remote peripherals.
- Event logging:Non‑volatile storage retains up to 10,000 historical events and 4,000 active events — critical for investigations and maintenance reporting.
- Physical and environmental:Dimensions approx. 398 × 483 × 217.5 mm, weight around 8 kg, IP30, operating temperature −5°C to +40°C.
- Standards:Designed for EN54‑2, EN54‑4 and EN54‑13 compliance — verify certificate references for projects and region.
Benefits that arise from these specifications include straightforward local operation via the touchscreen, reliable loop power for mixed device types, and system‑level resilience thanks to multi‑processor hardware and non‑volatile logging. Network capabilities let sites distribute detection responsibilities across multiple panels while retaining centralised supervision and configuration.
Use Cases and Where the MA‑8000‑01 Excels
The MA‑8000‑01 is well suited to a range of medium and large applications where addressable detection, scalability and compliance are required. Typical environments include:
- Retail centres and shopping malls:Multiple zones, thousands of devices and the need for clear local control and event history. The touchscreen and cause‑and‑effect programming simplify day‑to‑day management and fault diagnosis.
- Office campuses and multi‑tenanted buildings:CANbus networking supports distributed panels across several buildings or floor‑zones while preserving coordinated alarm handling.
- Hospitals and healthcare facilities:Advanced logic allows the creation of nuanced evacuation and alerting schemes, including delayed alarms, staged evacuations and interface to building management systems.
- Hotels and leisure complexes:Mixed device types including detectors, input modules and VADs are powered reliably by the generous loop current, while event logs assist with compliance and reporting.
- Industrial and warehouse sites:The robust enclosure, scalable loops and multiple communications ports make the MA‑8000‑01 a good fit for larger floorplates with complex detection needs.
Its suitability is strongest where projects require EN54 compliance and predictable expansion paths. Integrators will appreciate programmable walk‑test modes, automatic device recognition and flexible peripheral support that speed commissioning and maintenance.
Comparisons with Similar Products
When specifying an addressable panel, project teams often compare features such as loop capacity, networking scale, certifications, interface quality and total cost of ownership. Here are some comparison points to consider between the MA‑8000‑01 and other offerings:
- Compared to single‑manufacturer small systems:Smaller or single‑loop panels are less expensive initially but lack the scalability, advanced logic and networking that the MA‑8000‑01 provides. For growing sites, the expandable loop count and CANbus networking can reduce future upgrade complexity.
- Compared to higher‑end enterprise platforms:Enterprise panels from some manufacturers may offer larger native loop counts or deeper integration with proprietary management suites. The MA‑8000‑01 competes strongly on price‑to‑features for medium systems while offering EN54 compliance — a common project requirement in many regions.
- Compared to competing EN54 panels (general):The MA‑8000‑01 stands out for its 7" touchscreen usability, 750 mA loop drive and CANbus networking. Some competitors might offer touchscreenless models or lower loop current, which can limit VAD usage or require additional power devices.
- Maintenance and installer perspective:Features such as automatic device recognition, walk‑test modes and comprehensive event logging streamline commissioning and servicing, which can translate into lower lifecycle costs versus panels that require more manual configuration or offer limited diagnostics.
Every project has unique constraints — consult specific datasheets, pricing and certification status when choosing between suppliers. The MAx family’s balance of features and competitively suggested pricing (suggested list price around 1,799.00 where listed) makes it a compelling option for many mid‑scale deployments.
Customer Feedback and Installer Notes
While project‑specific reviews vary, typical feedback from installers, commissioning engineers and end users highlights several recurring positive themes:
- Usability:Installers report that the touchscreen interface and physical function keys make local operation intuitive during commissioning and routine checks.
- Commissioning speed:Automatic device recognition and walk‑test features are frequently cited as time‑savers on site, reducing man‑hours during handover.
- Reliability:Integrators commonly note stable behaviour in networked configurations and reliable event logging that helps fault diagnosis.
Note: Honeywell/Morley‑IAS documentation indicates some MAx family variants may be discontinued in certain regions. Before specifying, confirm availability, firmware support and warranty terms with an authorised distributor or Honeywell contact. This avoids surprises around lifecycle support on completed installations.
Installation, Compliance and Practical Considerations
Installation must be performed by qualified fire alarm engineers in accordance with local codes and EN54 rules. Practical points to bear in mind include correct battery sizing (panel supports up to 2 × 12 V / 38 Ah), appropriate cabling and ensuring the relevant EN54 certificate references are verified for the project’s jurisdiction. Do not service internal electronics while the unit is powered — follow the manufacturer’s manual for wiring, loop planning and programming.
Conclusion: Why Choose the MA‑8000‑01?
The Morley‑IAS MA‑8000‑01 represents a balanced solution for medium‑to‑large commercial fire alarm projects that require addressable detection, expandability and EN54 compliance. Its combination of a large, clear touchscreen, high loop power, extensive logging and CANbus networking makes it versatile for a wide range of installations — from retail centres and hospitals to multi‑building campuses. For integrators, the device recognition, walk‑test and programmable logic features reduce commissioning time and simplify ongoing maintenance.
Before final specification, confirm product availability and certification status with Honeywell/Morley‑IAS or an authorised distributor, and ensure installation is completed by a qualified engineer. When these checks are satisfied, the MA‑8000‑01 is a strong candidate for projects that demand robust, scalable and EN54‑capable addressable fire alarm control.
