Introduction to the Ajax HomeSiren Fibra and its key features

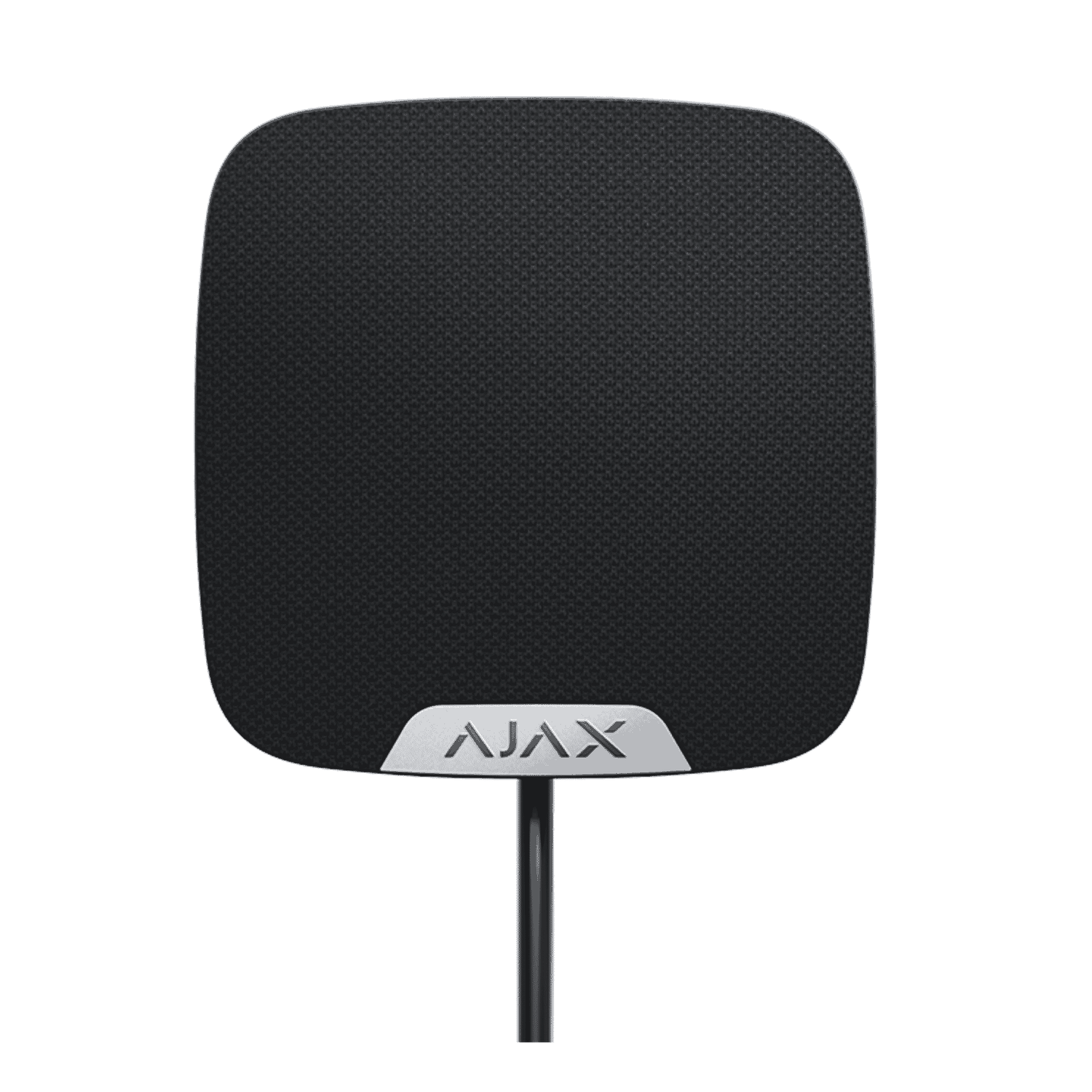

The Ajax HomeSiren Fibra (AJA-46708) is a compact, professional-grade wired indoor siren designed to integrate with Ajax Fibra wired security systems. Built for clarity and reliability, the HomeSiren Fibra delivers adjustable audible alerts (81–105 dB at 1 m), tamper protection, two-way encrypted Fibra communications and support for an external LED indicator. Intended for professional installation, it mounts on a SmartBracket plate and is powered by a compatible Ajax Fibra control panel (nominal 24 V DC). With a small footprint and focused feature set, the device is aimed at residential, commercial and light-industrial indoor alarm installations that prioritize dependable, wired signaling.
Detailed specifications and benefits
The HomeSiren Fibra is compact (90.5 × 90.5 × 33 mm) and lightweight (≈ 84 g), yet it includes a number of design and performance attributes that make it well-suited for modern wired alarm systems. Key technical specifications include:
- Communication:Fibra wired protocol with two-way authenticated, encrypted signalling for robust and tamper-resistant link to the Hub Hybrid or other compatible Ajax control panels.
- Power and performance:Nominal 24 V DC (operating range 7–27 V DC), quiescent current ≈ 66 µA, peak current ≈ 77 mA. These low current figures result in modest load on the panel supply while still enabling a loud, attention-getting alarm.
- Alarm characteristics:Adjustable volume from 81 to 105 dB (measured at 1 m) and configurable alarm duration from 3 to 180 seconds via Ajax PRO or user apps. Siren frequency is about 3.4 ± 0.5 kHz—an effective range for human attention.
- Wiring reach:Supports up to 2,000 m of line length using U/UTP Cat.5 in beam topology, enabling large or distributed installations without the need for additional repeaters.
- Tamper protection:Cover and removal detection alert the system to potential sabotage attempts, increasing overall system integrity.
- External LED output:A 3 V output allows replication of the siren status on an external LED, useful for visual indication in reception areas or control rooms.
- Package contents and installation:Ships with the siren, SmartBracket tamper-aware mounting plate, installation kit and a quick start guide to speed professional setup.
Benefits of these specifications include strong reliability from the wired Fibra connection (no RF interference or battery maintenance), flexibility in alarm loudness and duration to suit different environments and compliance-friendly features such as tamper detection and industry-standard wiring topologies. The long maximum line length is particularly valuable for larger properties or multi-building sites where devices must be connected to a single panel.
The HomeSiren Fibra is designed for professional installation. It contains no internal battery and must be powered by a compatible Ajax Fibra control panel with a nominal 24 V DC supply. Typical mounting height is around 2.5 m to maximize sound propagation while keeping the device out of easy reach. The siren has an IP30 protection class, so it is intended for indoor use only. For compliance or project specifications, installers should consult the official datasheet for wiring distances, topology guidance and hub compatibility.
Use cases and scenarios where the HomeSiren Fibra excels
The product’s spec sheet lends itself to several common and high-value use cases:
- Residential security systems:In homes and multi-dwelling buildings where a wired alarm backbone is preferred, the HomeSiren Fibra offers a compact, powerful audible alert and visual LED option for entrances and corridors.
- Commercial and retail premises:Stores, offices and showrooms benefit from the adjustable volume and tamper detection—allowing loud alerts in the event of break-ins while preventing accidental or malicious disabling.
- Server rooms and utility spaces:The external LED output and reliable wired signalling are useful where visual status indicators are needed outside sensitive areas, and where RF-based devices may be restricted.
- Warehouses and light industrial sites:For indoor zones where long cable runs are required, the Fibra line length (up to 2,000 m) supports distributed coverage without extra network hardware.
- Multi-zone installations:Integrators creating zoned alarm architectures will appreciate the siren’s compact form and configurable alarm behavior to tailor alerts by area or alarm type.
In each scenario, the advantages come back to wired reliability, encrypted communication, and flexible audible/visual signaling that can be tuned to the environment and user needs.
How the HomeSiren Fibra compares with similar products
When evaluating alarm sirens, buyers commonly compare wired versus wireless options, professional-grade wired sirens from other brands, and stand-alone sounders used for emergency signalling. The Ajax HomeSiren Fibra occupies a clear niche among wired indoor sirens:
- Wired vs wireless sirens:Wired sirens like the HomeSiren Fibra avoid issues such as RF interference, battery replacement cycles and limited range. They are typically chosen where maximum reliability is required and where running cabling is feasible. Wireless models offer easier retrofit and placement flexibility, but at the cost of maintenance and potential signal challenges.
- Compared with other wired indoor sirens:The HomeSiren Fibra’s two-way encrypted Fibra protocol gives it an edge in secure signaling and remote device status reporting. Its adjustable 81–105 dB range is comparable to many professional indoor sirens and the long 2,000 m line support is above average—useful for larger sites. Competitors may offer similar loudness but differ on communications, tamper monitoring quality, or installation convenience.
- Value and total cost of ownership:At a suggested retail price of 38.99 (cost price 31.87), the HomeSiren Fibra offers competitive upfront cost with the savings advantages of a wired device (no ongoing battery costs) and simple, fast professional installation using the SmartBracket system.
Potential trade-offs: because the device has no internal battery and an IP30 rating, it is not suitable for outdoor use or locations where power redundancy is mandatory without additional UPS provision at the control panel. Installers should weigh these limits against the reliability and performance benefits of the wired Fibra approach.
Representative customer impressions and installer feedback
While official customer testimonials for individual deployments vary, installer and user impressions generally highlight the following recurring themes:
- Reliable wired connectivity:Installers often praise the Fibra two-way encryption and the device’s stable connection to the Ajax hub, noting fewer false alarms and clear diagnostics via the PRO app.
- Compact, unobtrusive design:Users appreciate the small footprint and discreet aesthetic (available in black or white), making the siren easy to place without drawing attention in living spaces or reception areas.
- Useful configuration options:The adjustable volume and configurable alarm duration are frequently cited as practical features for tailoring behavior to different premises.
Example (representative) comments an installer might say: "Quick to mount on the SmartBracket, low current draw and strong communication—perfect for multi-zone wired setups." Or from an office manager: "The external LED option lets staff see alarm status without entering restricted rooms." These represent common, anonymized feedback patterns from professional integrations rather than verbatim customer testimonials.
Conclusion: Why the Ajax HomeSiren Fibra is a strong choice
The Ajax HomeSiren Fibra combines the dependability of a wired connection with practical, installer-focused features: adjustable loudness, configurable alarm duration, tamper detection and an external LED output for clear visual signaling. Its support for the encrypted Fibra protocol and long cable runs makes it especially attractive for larger properties, multi-building sites and any installation that demands robust, low-maintenance signaling.
For integrators and property owners seeking a compact, professional indoor siren that balances performance, ease of installation and competitive pricing, the HomeSiren Fibra is a compelling option. As always, confirm compatibility with your Ajax control panel, review installation guidance for wiring topologies and distances, and plan power redundancy at the hub if continuous operation during mains outages is required.
