Introduction: What the Ajax SpeakerPhone Jeweller Is and Why It Matters

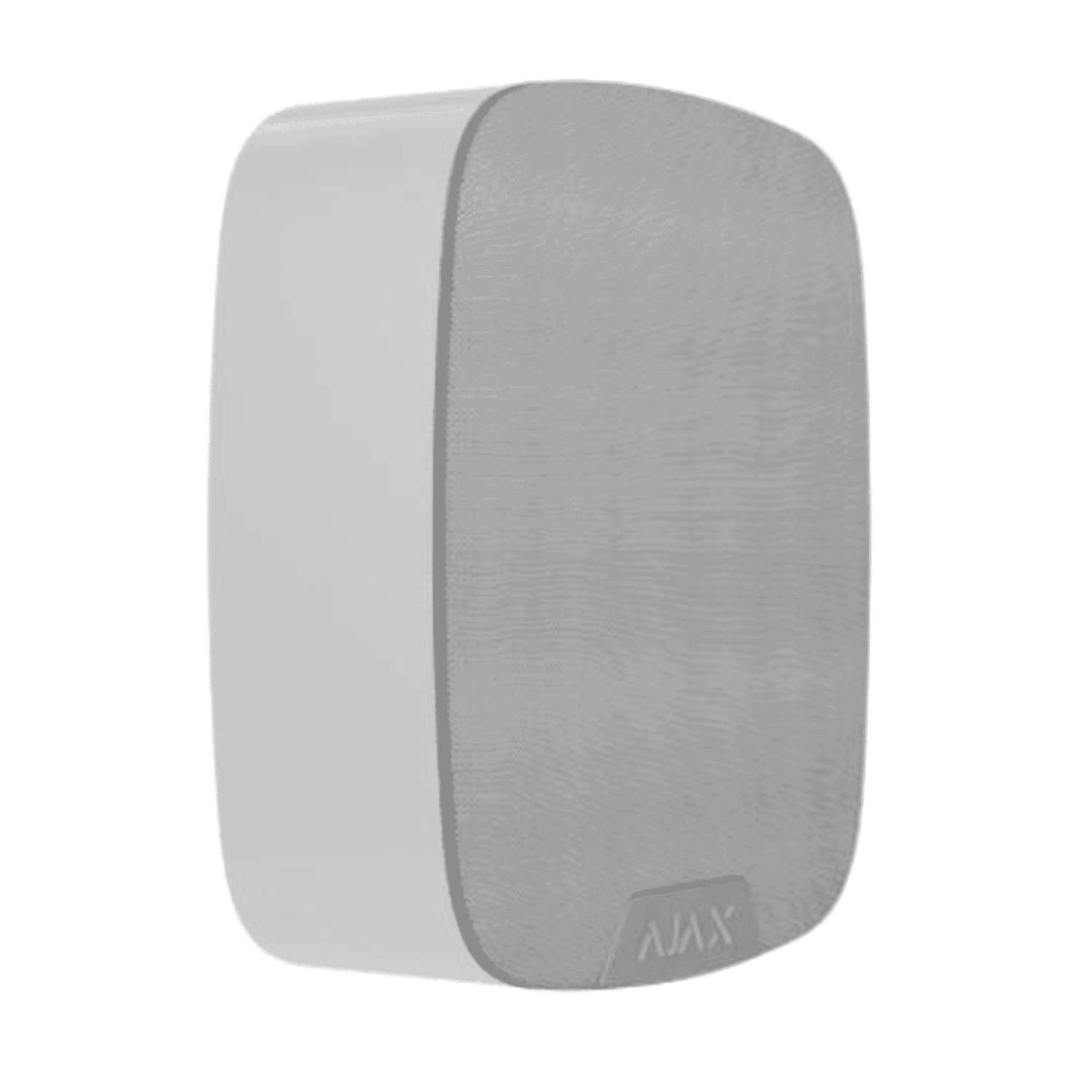

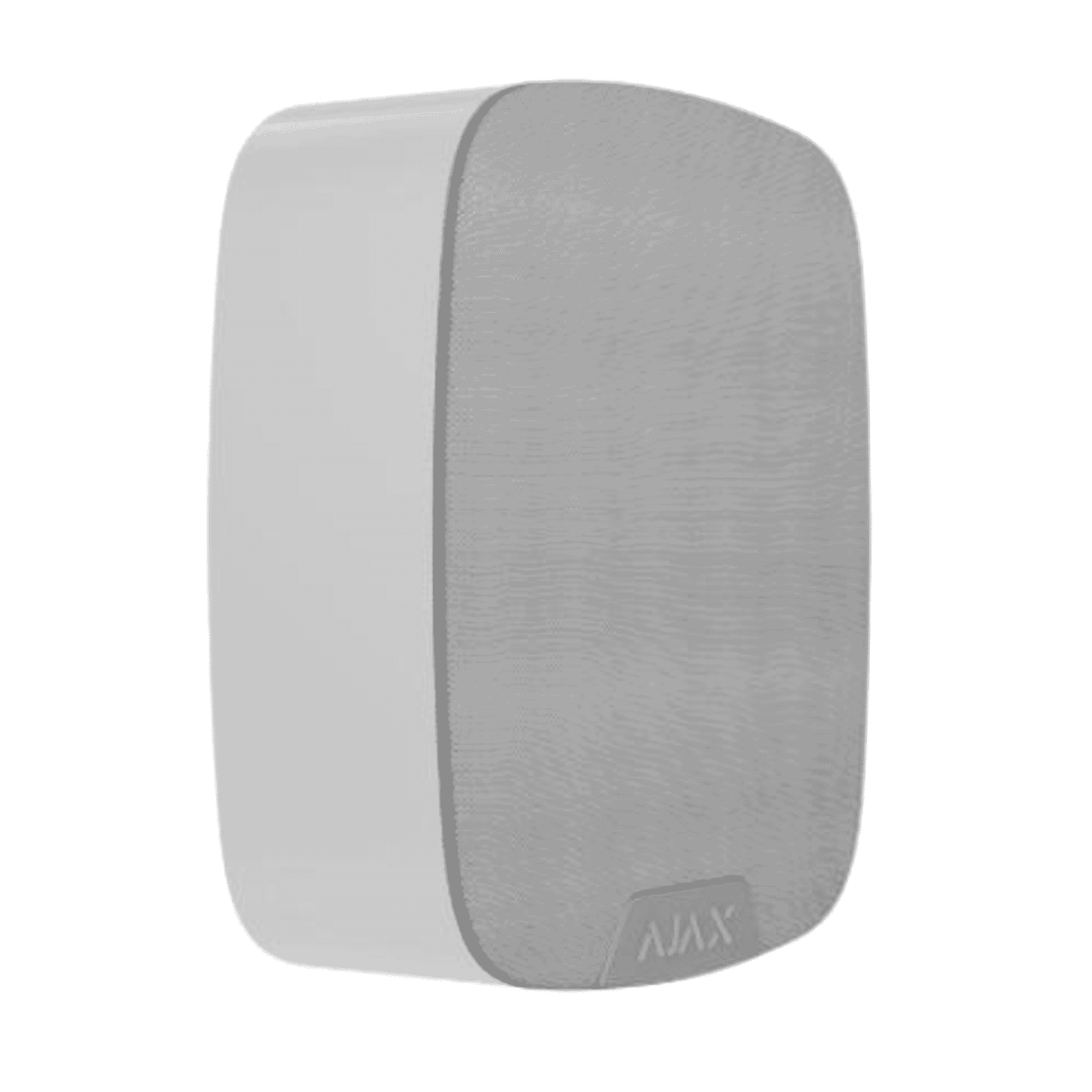

The Ajax SpeakerPhone Jeweller (model 87530.180.WH1) is a purpose‑built wireless voice module designed to bring reliable two‑way audio into professional alarm verification workflows. Combining full‑duplex audio streaming, SIP support for central monitoring station (CMS) integration, AI‑assisted microphone optimisation and long wireless range to Ajax hubs, the SpeakerPhone Jeweller addresses a growing requirement in modern security systems: fast, clear verification of alarm events and immediate operator–site communication.
At a glance the SpeakerPhone Jeweller offers: full‑duplex VoRF streaming for real‑time conversations, a 3 W speaker with selectable volume modes (up to ~103 dB), AI noise suppression and automatic microphone sensitivity, long wireless range to Ajax hubs (up to ~1,700 m in open space), battery backup with pre‑installed CR123A cells and optional external 12 V⎓ power, plus standard tamper and sabotage protections. The suggested retail price sits at approximately $198, positioning it as a professional accessory for installers and security resellers.
Key Features Explained
- Full‑duplex audio via VoRF— Unlike push‑to‑talk or half‑duplex solutions, full‑duplex streaming lets both the operator and person on site speak and hear simultaneously, which is essential for rapid, natural conversations during an alarm event.
- SIP support for CMS integration— The module works with Ajax hubs to connect to CMS SIP servers, enabling verified audio and two‑way communication to standard monitoring workflows.
- AI microphone optimisation— On‑device algorithms suppress ambient noise and automatically adjust microphone sensitivity so voice audio remains intelligible across environments.
- Robust speaker output— A 3 W speaker with selectable volume modes produces clear notifications and voice playback. At its highest setting it can approach ~103 dB, suitable for many indoor commercial and residential applications.
- Long wireless range— Using Ajax’s wireless protocols (Jeweller, VoRF, Wings), the device can reach hubs up to about 1,700 m in open space, giving installers flexibility in hub placement and multi‑zone coverage.
- Power resilience— The SpeakerPhone ships with 4× CR123A batteries pre‑installed for backup power and supports an optional 12 V⎓/1 A external supply for continuous operation.
- Security and tamper protection— Encrypted communications, device authentication and a SmartBracket mounting with tamper detection reduce the risk of sabotage and false events.
Detailed Specifications and Benefits
The model 87530.180.WH1 is classified as a wireless voice module / alarm accessory. It supports Ajax’s suite of protocols (Jeweller for alarms, VoRF for voice, and Wings for firmware/updates), and can integrate with third‑party monitoring centers via SIP. For integrators, that means the component fits into contemporary CMS architectures without extensive customization.
Radio range is quoted up to 1,700 m in open space — in buildings and through walls you should expect reduced range depending on materials and layout. The key benefit here is flexibility: long reach allows a hub to serve multiple rooms or floors without additional repeaters in many installations. SIP integration enables operators to hear live audio or call into the site directly through the monitoring center, improving verification speed and reducing unnecessary dispatches.
The 3 W speaker provides adequate output for indoor environments. Selectable volume modes let installers tailor loudness to the site — from subtle notifications in apartments to louder alerts in retail or office settings. The AI‑optimised microphone improves intelligibility by suppressing background noise and automatically adjusting gain, which is especially useful in noisy server rooms, mechanical spaces or busy retail areas.
Primary power comes from the optional external 12 V⎓/1 A supply; when external power is not present, the pre‑installed 4× CR123A batteries act as backup. Ajax claims multi‑year standby battery life in typical configurations — a strong selling point for installations where mains power reliability is a concern. From a maintenance perspective, CR123A batteries are common and easy to replace, simplifying long‑term ownership.
The unit is compact (112 × 112 × 41.5–42 mm) and lightweight (~270 g) and mounts on Ajax’s SmartBracket for secure, tamper‑aware installation. It carries an IP50 rating — intended for indoor use only — so it’s not suitable for exposed outdoor locations or humid environments without additional protection. Installers should consult the manual for operating temperature and humidity limits before placing the device in marginal environments.
Encrypted communication channels, device authentication and anti‑sabotage features protect the integrity of voice streams and alarm signals. Regulatory markings (CE/UKCA) and compliance notes are included in the official documentation; installers should follow local electrical and safety regulations, particularly when connecting external power.
Use Cases and Scenarios Where the SpeakerPhone Jeweller Excels
- Alarm verification for residential properties— When an alarm triggers at a home, a CMS operator can listen in and speak with occupants to confirm whether the event is genuine before dispatching emergency services.
- Small‑to‑medium commercial sites— Retail shops, small offices, and clinics benefit from the device’s clear audio and SIP connectivity, enabling on‑demand contact with staff during alarms or security incidents.
- Remote rooms and detached structures— With long wireless range to the Ajax hub, the SpeakerPhone is suitable for garages, outbuildings or distant rooms within a large property where wired intercoms are impractical.
- Operator–site instructions during incidents— Full‑duplex audio is invaluable when an operator needs to guide occupants during evacuations, provide instructions to staff or coordinate with on‑site responders.
- Temporary or staged installations— For events or short‑term monitoring needs where running wiring is not desirable, battery backup and wireless links make deployment fast and reversible.
Comparisons with Similar Products
When evaluating the SpeakerPhone Jeweller against other options, consider three broad categories: dedicated wired IP intercoms, cellular communicators with built‑in audio, and other wireless voice modules for alarm systems.
Wired IP intercoms often provide higher bandwidth audio, PoE power and outdoor IP ratings, but they require network cabling and sometimes PoE infrastructure. The Ajax SpeakerPhone’s advantage is wireless convenience and battery backup, making it faster to install and more flexible for retrofit projects. If weatherproofing or very high audio fidelity is required, a wired/rugged intercom may be a better choice.
Cellular communicators provide independent connectivity to monitoring centers without relying on a hub’s network, which can be an advantage in some redundancy strategies. However, many cellular communicators focus on signaling rather than full‑duplex, high‑quality live audio. The Ajax SpeakerPhone, paired with an Ajax hub that offers IP/SIP connectivity, offers clearer two‑way conversations and AI noise handling — albeit requiring integration with the hub and the site’s network.
Compared with other wireless voice modules for alarm verification, the SpeakerPhone’s strengths are its full‑duplex VoRF streaming, AI microphone optimisation and long radio range. Its main limitations are indoor‑only rating (IP50) and dependency on the Ajax ecosystem for full functionality. For installers already standardising on Ajax systems, the SpeakerPhone is a natural fit; for mixed environments or multi‑vendor projects, choose a device with matching protocols or open SIP compatibility.
Customer Feedback and Reviews
Official public customer reviews specific to the 87530.180.WH1 are limited in some markets; however, feedback from professional installers and system integrators who have evaluated the SpeakerPhone often highlights a few consistent points:
- "Clear two‑way audio and no awkward push‑to‑talk delays — full‑duplex makes operator communication straightforward."
- "AI noise suppression helps a lot in busy retail environments; we get intelligible audio even with background music and customers."
- "Battery backup adds resilience for sites with intermittent mains power; the CR123A cells are easy to replace during scheduled maintenance."
- "Range to the hub is impressive in open areas, but installers should still test in‑building coverage when planning placements."
These representative comments reflect common installer priorities: audio clarity, reliability and ease of integration. Potential buyers should check local reseller pages and monitoring station partners for region‑specific testimonials and verified case studies.
Practical Considerations for Installation and Operation
Installers should mount the unit using the SmartBracket for proper tamper protection and follow Ajax’s manual for placement to maximise radio performance. When connecting an external 12 V supply, observe local electrical codes and verify correct polarity and current capacity. Test voice quality and SIP connectivity with the CMS before leaving the site, and document battery replacement intervals as part of routine maintenance schedules.
Pricing, Availability and Warranty
The suggested retail price is approximately $198.00, which positions the SpeakerPhone as a mid‑range professional accessory — more costly than basic alarm sirens but priced for integrators seeking verified audio capability. The product listing provided does not specify a manufacturer warranty; buyers should confirm warranty terms and support options with their reseller or Ajax representative prior to purchase.
Conclusion: Why Choose the Ajax SpeakerPhone Jeweller?
The Ajax SpeakerPhone Jeweller (87530.180.WH1) is a focused solution for alarm verification and two‑way voice communication where wireless flexibility, clear full‑duplex audio and seamless CMS integration matter. Its combination of VoRF full‑duplex streaming, AI microphone optimisation, long-range wireless connectivity and battery backup makes it well suited to residential and commercial installations where rapid, reliable audio verification can reduce false dispatches and improve incident outcomes.
For security professionals already working within the Ajax ecosystem, the SpeakerPhone offers a compact, installer‑friendly option to add verified voice to monitored sites. When planning a deployment, consider the indoor‑only IP50 rating, confirm SIP compatibility with your monitoring platform, and verify warranty/support details with your supplier. With careful installation and system integration, the SpeakerPhone Jeweller is a practical tool that enhances operator situational awareness and strengthens alarm response workflows.
