An introduction to the product and its key features

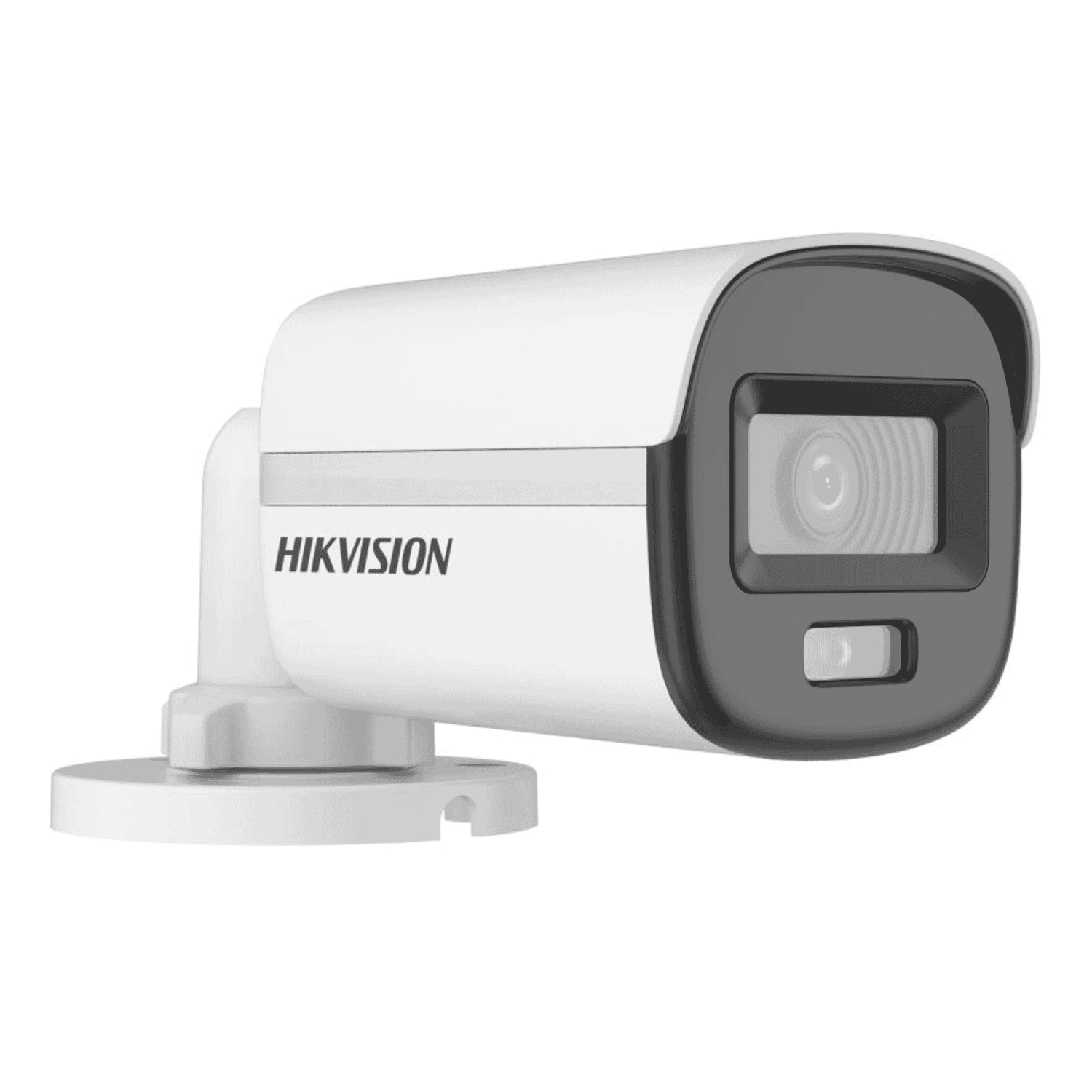

The Hikvision DS-2CE10KF3T-LE (3.6 mm) — marketed as the Hikvision 3K ColorVu Mini Bullet — is a compact Turbo‑HD (4‑in‑1) analogue camera built to deliver high‑detail colour imaging around the clock. Targeted at budget‑conscious projects that still demand strong low‑light performance, this mini bullet camera combines a ~3K (2960 × 1665) sensor, Hikvisions ColorVu technology, and a Smart‑Hybrid dual‑light system (IR plus white light). Key features include 24/7 colour capture in very low light, PoC (Power over Coax) support for simplified installations, an IP67 metal housing for outdoor durability, and a fixed 3.6 mm lens with a wide field of view.
Detailed description of specifications and benefits
The DS-2CE10KF3T-LE packs several technologies into a small form factor. Below is a breakdown of the most relevant specifications and what they mean in real‑world installations.
- 3K sensor (2960 × 1665):Approximately 3K resolution provides noticeably more detail than standard 1080p cameras. For analogue systems, this level of detail helps when identifying faces, license plates at short to medium range, and other fine features in the scene.
- Frame rates:3K at ~20 fps; 4 MP/1080p modes available up to 25/30 fps depending on region. These frame rates are suitable for general monitoring, retail environments and most perimeter applications.
- Wide Dynamic Range (WDR) ≥130 dB:WDR helps maintain detail in scenes with bright backlighting and deep shadows, such as entrances or windows with strong sunlight behind a subject.
- 3D/2D Noise Reduction:Improved low‑light clarity with reduced video noise, which helps both visual inspection and video analytics accuracy.
- ColorVu sensor:Designed to capture colour images in extremely low ambient light when used with the cameras white light. This improves situational awareness — colour can be critical when identifying clothing, vehicle colours or other contextual cues.
- Smart‑Hybrid dual‑light:Integrates IR and white light, each with a range around 20 m. The camera can switch or combine these lighting modes to maintain illumination while avoiding false alarms or overt lighting when not required.
- Minimum illumination:Approx. 0.0003–0.0005 Lux at F1.0 with AGC on, and 0 Lux with the white light activated. In practice, this translates to reliable colour imaging at night when white light is engaged and useful monochrome IR imaging when white light is not desired.
- PoC support (Power over Coax):Allows the camera to receive power and video over a single coaxial cable when paired with a compatible PoC DVR, simplifying cabling and installation in retrofits where running separate power lines is inconvenient.
- 12 VDC option:The camera also supports 12 VDC powering. Note installer guidance: when using DC adapters, one adapter per camera is recommended unless using a properly sized multi‑output power supply designed for CCTV use.
- Power consumption:Typical draw around 4–7 W, depending on region and active lighting mode. This is modest and translates to low ongoing operating costs for single cameras and large systems alike.
- Housing:Metal body rated IP67 for dust and water ingress — suitable for exposed outdoor mounting.
- Operating temperature:From −40 °C to 60 °C, making it appropriate for a wide range of climates and mounting locations.
- Dimensions and weight:Compact mini bullet form (approx. 161.1 × 68.4 × 65.2 mm and ~400–440 g), which eases placement and reduces visual impact on façades.
Use cases and scenarios where the product excels
The DS-2CE10KF3T-LE is designed for analogue surveillance projects that demand better-than-basic night performance without the cost or complexity of high‑end IP systems. Typical use cases include:
- Retail storefronts and shopfronts:Colour at night helps with theft deterrence and post‑incident analysis. The cameras 3K detail improves identification of individuals and small items near the entry.
- Residential and small business perimeters:Quick to deploy where existing coax infrastructure is present — PoC support reduces new cabling needs.
- Parking areas and small lots:The cameras wide field of view and colour nighttime capability aid in identifying vehicle colours and activity in low light.
- Entryways and gates:WDR and improved low‑light capture reduce false negatives in backlit or shadowed doorways.
- Retrofit analogue upgrades:Organisations upgrading from older 720p/1080p analogue cameras can gain higher resolution and colour nighttime imaging while retaining analogue DVR infrastructure.
Comparisons with similar products in the market
Within the analogue/Turbo‑HD segment, the DS-2CE10KF3T-LE is positioned as a value‑oriented, feature‑rich mini bullet. When comparing it to alternatives, consider these points:
- Versus basic 1080p analogue cameras:The 3K sensor offers greater resolution for scene detail, and ColorVu white‑light support improves nighttime colour capture where 1080p cameras would rely solely on IR and deliver monochrome footage.
- Versus other ColorVu models:Hikvisions broader ColorVu lineup includes higher‑spec dome and turret options, and some models offer motorised lenses or larger sensors. The DS-2CE10KF3T-LE is compact and budget friendly — ideal where a fixed lens and compact footprint are desired.
- Versus entry‑level IP cameras:IP cameras may offer more advanced analytics, higher network flexibility and higher maximum resolutions, but they require PoE switches or separate power and typically a network infrastructure overhaul. For installers with existing coax or customers prioritising cost and simple DVR‑based management, the Hikvision Turbo‑HD route is often more economical.
- PoC-compatible choices:Other manufacturers also offer PoC-capable HD analogue cameras, but PoC compatibility depends on the DVR and coax standard. The DS-2CE10KF3T-LE adheres to Hikvisions PoC implementations and integrates cleanly with compatible Hikvision DVRs for single‑cable deployments.
Customer feedback and installer notes
While formal customer reviews for specific SKUs vary by region, common installer and end‑user observations across similar ColorVu products include:
- Positive feedback:Installers often highlight the cameras excellent nighttime colour images when the white light is enabled. The compact metal housing and straightforward mounting are appreciated in tight installations, and PoC support reduces installation time where compatible DVRs are used.
- Practical installer notes:When using 12 VDC power, follow the manufacturers guidance about adapters and wiring; many installers recommend one adapter per camera unless the power supply is explicitly specified for multi‑camera use. For PoC, ensure your DVR and coax cabling are compatible and tested for power delivery across the distances you need.
- Considerations:The visible white light option is excellent for forensics and deterrence but may be unsuitable in sensitive locations where visible lighting at night is undesirable. In such cases, configure the camera to rely on IR or tune smart light settings according to site requirements.
Conclusion — why this product is a great choice
The Hikvision DS-2CE10KF3T-LE (3.6 mm) ColorVu mini bullet camera offers a compelling balance of price, performance and practical features for analogue CCTV projects. Its approximately 3K resolution and ColorVu sensor deliver genuinely useful improvements in scene detail and nighttime colour imaging compared with standard HD analogue models. PoC support and a tolerance for harsh environmental conditions (IP67 and −40 °C operation) make it a convenient option for retrofits and outdoor installations where simplicity and reliability matter.
For small retailers, residential sites, parking areas and installers upgrading ageing analogue systems, this camera provides a straightforward path to better imaging without the cost and complexity of replacing entire systems with IP infrastructure. With a suggested retail price around $59.99 (check your local market for exact pricing and SKU certification like CE/UKCA), the DS-2CE10KF3T-LE is positioned as a cost‑effective way to get superior low‑light colour performance in a compact, weatherproof package.
Final note:Always verify local certification and ensure installation is carried out in accordance with regional electrical and safety regulations. For best results, pair the camera with a compatible PoC DVR or a recommended 12 VDC supply and review smart light settings during commissioning to tailor performance to the sites needs.
