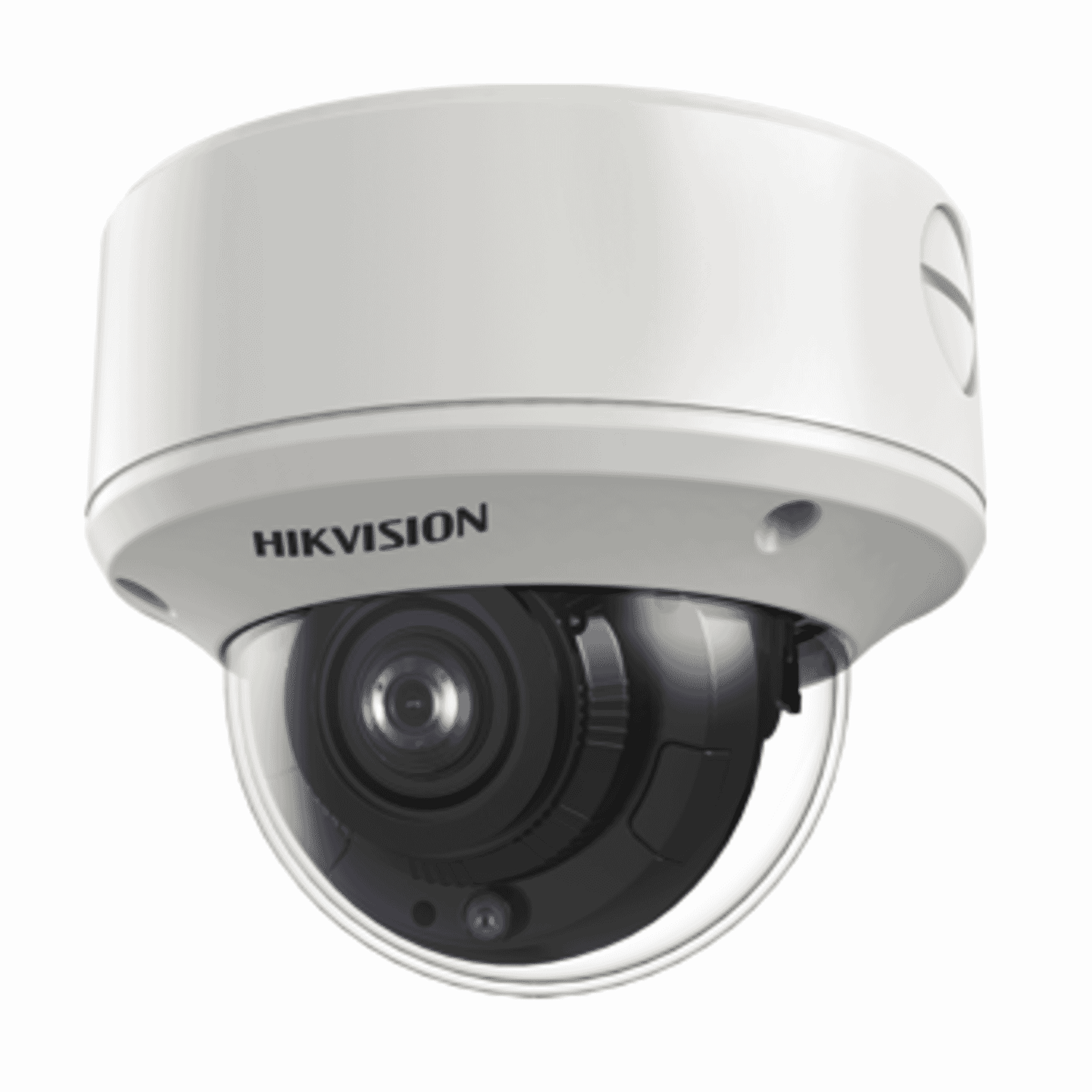

Introduction: Meet the DS-2CE59U1T-AVPIT3ZF
The DS-2CE59U1T-AVPIT3ZF is an 8MP (4K) motorised varifocal vandal dome camera built for demanding indoor and outdoor surveillance. Combining a high-resolution 8.29MP progressive CMOS sensor with a motorised 2.7–13.5 mm varifocal lens, auto-focus during zoom and long-range EXIR 2.0 infrared illumination, this model aims to bridge the gap between professional contractor-grade cameras and advanced DIY installations. With a rugged metal dome rated IP67 for weather protection (and IK10 reported in some regions for vandal resistance), multiple HD-over-coax output options and features like digital WDR and 2D DNR, this camera is designed for clarity, flexibility and reliability in many security scenarios.
Key features at a glance
- 8MP (3840×2160) 4K resolutionfor detailed wide-area coverage.
- Motorised 2.7–13.5 mm varifocal lenswith on-the-fly auto-focus during zoom for fast field-of-view adjustments without manual lens access.
- EXIR 2.0 Smart IRproviding night vision up to approximately 60 metres.
- Switchable 4-in-1 HD-over-coax outputs(TVI / AHD / CVI / CVBS) for broad DVR compatibility.
- Robust construction— metal dome, IP67 ingress protection and reported IK10 vandal resistance on some regional pages.
- Improved image processingwith digital WDR, BLC/HLC and 2D DNR to handle difficult lighting conditions.
Detailed specifications and benefits
The camera uses an 8.29 MP progressive-scan CMOS sensor capable of capturing up to 3840 × 2160 pixels (4K). This resolution delivers significantly more detail than 1080p cameras, enabling better licence-plate recognition, facial capture at greater distances and more effective forensic review. Progressive scan reduces motion artefacts, making it suitable for scenes with moving people or vehicles.
The motorised varifocal lens ranges from 2.7 to 13.5 mm, producing a horizontal field of view of roughly 108.1° down to 45.6°. Motorised zoom lets you adjust framing remotely (when integrated with compatible DVRs or telemetry controllers), while the auto-focus during zoom keeps images sharp without physical access to the lens—valuable for mounted or high ceilings where manual focus would be impractical.
EXIR 2.0 Smart IR provides uniform illumination and extends night vision to around 60 metres under optimal conditions. Combined with a minimum illumination of 0.01 lux in colour mode (F2.4, AGC ON) and 0 lux in black-and-white with IR, the camera performs well in low-light or no-light environments, offering usable images across day/night cycles.
Switchable 4-in-1 outputs (TVI / AHD / CVI / CVBS) make the DS-2CE59U1T-AVPIT3ZF an attractive choice for systems using HD-over-coax DVRs. This flexibility simplifies upgrades where existing coax cabling is retained and allows integrators to standardise on one camera model while supporting multiple DVR brands. Up-the-coax telemetry (Hikvision-C) enables remote lens and OSD control, reducing the need for site visits during commissioning.
Digital WDR, BLC (backlight compensation) and HLC (highlight compensation) help manage challenging lighting—such as strong backlight or headlights—while 2D DNR reduces image noise in low-light situations. These features combine to improve effective image quality and reduce storage/transmission bandwidth when noise would otherwise inflate file sizes.
Housed in a metal dome with an approximate diameter of 145.2 mm and a height of 124.1 mm, the camera weighs roughly 640 g and is rated IP67 for weather resistance. Operating temperature ranges from -40 °C to 60 °C and humidity tolerance is ≤ 90% non‑condensing, making it suitable for a wide variety of climates. Power options include 9.6–14.4 VDC or 19.2–28.8 VAC, with a max power consumption of about 8.2 W; vendors recommend using one adapter per camera for reliable operation.
Use cases and scenarios where this camera excels
- Perimeter and car park surveillance— The 4K resolution and long-range IR help capture license plates and vehicle details at distance while the rugged housing endures outdoor conditions.
- Building entrances and lobbies— Wide-angle settings at the short end of the lens document approach paths and faces; auto-focus during zoom allows detail capture without re-positioning the camera.
- Retail and commercial spaces— High resolution supports loss prevention and detailed incident review across larger areas, reducing the number of cameras required to cover the same space.
- Transport hubs and perimeter security— The combination of 4K detail, night vision and vandal-resistant housing suits stations, gatehouses and other high-traffic external locations.
- Coax-based system upgrades— For sites with existing coax cabling and DVRs, the 4-in-1 output compatibility makes this camera a practical upgrade path to higher resolution without rewiring.
Comparisons with similar products on the market
When evaluating the DS-2CE59U1T-AVPIT3ZF against alternatives, consider three main axes: resolution and optics, night performance, and system compatibility.
Many mainstream dome cameras offer 4MP or 6MP sensors; true 8MP (4K) models like this deliver finer detail for identification tasks. Competing 4K domes with fixed lenses may offer simpler installation but lack the remote varifocal flexibility and auto-focus that this model provides, making the DS-2CE59U1T-AVPIT3ZF better for sites where framing adjustments are expected after installation.
EXIR 2.0 is comparable to or better than standard IR arrays in the same price class, giving more even illumination and longer effective range. Premium IP cameras with larger sensors and more advanced low-light processing (or true WDR hardware solutions) may outperform this model in the very darkest conditions, but those devices are typically more expensive and may require network infrastructure (PoE switches, NVRs) rather than coax DVRs.
Where HD-over-coax compatibility matters, this camera is an excellent value proposition. Network IP alternatives offer advantages in analytics, remote management and power-over-Ethernet simplicity, but they also increase system complexity and cost. For projects prioritising straightforward upgrades of coax-based DVRs, the DS-2CE59U1T-AVPIT3ZF is often a lower-cost path to 4K image quality. With a suggested price around USD 110 (cost price example USD 81), it sits competitively against similar 4K varifocal domes aimed at commercial and contractor markets.
Customer feedback and installer notes
No official customer testimonials are provided with the product data here, and warranty terms vary by vendor. However, common feedback themes from integrators and installers evaluating similar 4K motorised varifocal domes typically include:
- Positive notes on image clarity and the usefulness of motorised zoom/auto-focus for commissioning without manual adjustments.
- Appreciation for 4-in-1 coax compatibility when upgrading legacy systems—reduces labour and cabling costs.
- Comments on the benefit of rugged metal housing and IP67 rating for outdoor installations; some users expect IK10 vandal resistance but recommend checking regional model specs if IK rating is critical.
- Requests to confirm power supply choices and to use individual adapters per camera to avoid power faults—consistent with manufacturer recommendations.
For any purchase, ask the supplier for datasheets, regional approvals (CE / UKCA) and explicit warranty information. If possible, request sample footage to confirm performance in your target environment (day/night, backlight, long-range scenes).
Conclusion: Why choose the DS-2CE59U1T-AVPIT3ZF?
The DS-2CE59U1T-AVPIT3ZF packs a compelling mix of features—true 4K resolution, motorised varifocal lens with auto-focus, long-range EXIR 2.0 IR, and multi-format coax outputs—into a rugged IP67 metal dome. For projects that need high-detail imaging, flexible field-of-view adjustments and compatibility with existing HD-over-coax installations, this camera presents a strong value proposition. It is well suited to perimeter, entrance and commercial surveillance where both day and night performance matter, and where vandal and weather resistance are required.
Before committing, verify regional approvals, confirm power requirements and warranty terms with your supplier, and if possible, test the camera in your target scene. When those checks are complete, the DS-2CE59U1T-AVPIT3ZF is a practical, cost-effective way to bring 4K capability and installation flexibility to many CCTV projects.
Suggested retail pricing and cost examples vary by region and reseller. As a reference point, a suggested price of approximately USD 110 and a cost-price example of USD 81 were provided; actual market prices will vary with distributor, quantity and support packages.
