Introduction to the Hikvision DS-2CE78U1T-IT3F and its key features

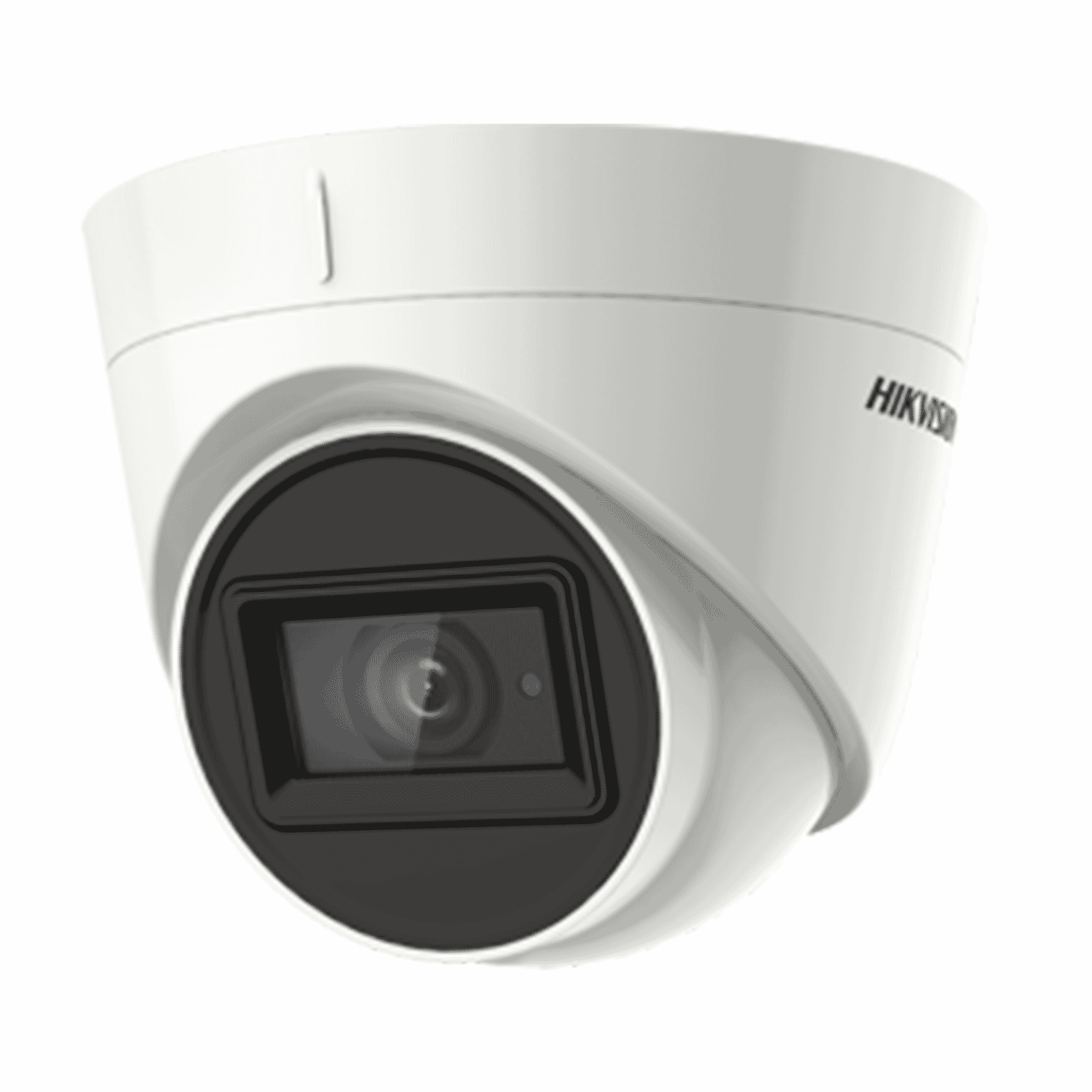

The Hikvision DS-2CE78U1T-IT3F is a 4K (8.29 MP) TurboHD turret camera designed for outdoor analogue CCTV applications. As a compact, cost-conscious option for installers and end users who rely on coaxial cabling, it combines very high resolution imaging with a wide 2.8 mm fixed lens, Smart EXIR illumination for reliable night performance and broad format compatibility (TVI / AHD / CVI / CVBS). With an IP67-rated housing and a wide operating temperature range, this model is built to withstand outdoor conditions while delivering detailed images that make identification and situational awareness easier.
Key features at a glance:
- 8.29 MP progressive-scan CMOS sensor, up to 3840 × 2160 (4K).
- 2.8 mm fixed lens providing an approximate 102° horizontal field of view.
- EXIR 2.0 Smart IR illumination rated to roughly 60 m for night coverage.
- Switchable HD analogue output (TVI / AHD / CVI / CVBS) for compatibility with most HD analogue DVRs.
- Robust outdoor design: IP67 ingress protection and wide temperature tolerance (−40 °C to 60 °C).
- Image enhancement features such as DWDR, HLC, BLC and 2D DNR, plus day/night ICR.
Detailed specifications and the benefits they deliver
The DS-2CE78U1T-IT3F uses an 8.29 MP progressive-scan CMOS sensor capable of producing up to 3840 × 2160 (4K) resolution. This higher pixel count delivers markedly more detail than common 2MP/1080p analogue cameras, making it easier to read license plates at distance, identify faces in crowded scenes and crop into footage without losing too much clarity. Note that at the camera’s maximum resolution the frame rate is mode-dependent (up to 12.5–15 fps for 8MP), which is typical for many 4K analogue solutions and should be considered when specifying for fast-motion scenes.
The fixed 2.8 mm lens offers a wide horizontal field of view (approx. 102.2°), making this camera well-suited to broad-area coverage such as parking lots, storefronts, building perimeters and open yards. The turret form factor and 3-axis adjustment simplify aiming and mounting, which reduces installation time on walls or soffits.
For night-time visibility the camera uses Hikvision’s EXIR 2.0 Smart IR illumination with a quoted effective range of up to 60 m. The combination of the sensor’s sensitivity (colour: 0.01 Lux @ F1.2 with AGC on; 0 Lux with IR) and the IR system provides clear monochrome images in low-light conditions. Image enhancement functions — DWDR (digital wide dynamic range), HLC (highlight compensation), BLC (backlight compensation) and 2D DNR (noise reduction) — help maintain usable footage in scenes with high contrast or poor lighting.
One of the DS-2CE78U1T-IT3F’s strengths is its multi-format analogue output. The camera can be switched between TVI, AHD, CVI and CVBS to match a wide range of HD analogue DVRs, which is particularly valuable when upgrading legacy coax systems. The camera also supports Up-the-Coax (HIKVISION-C) remote OSD and configuration, allowing many settings to be adjusted from the DVR, saving time on-site and reducing the need for repeated physical access to the camera.
Powered by 12 VDC (±25%) with a maximum consumption around 5.3 W, the camera is simple to deploy with common CCTV power supplies. Its compact mechanical dimensions (Ø 109.82 mm × 91.03 mm) and weight (~320 g) make it unobtrusive while still robust. Rated IP67 and with an operating temperature range of −40 °C to 60 °C (≤ 90% non‑condensing humidity), it’s intended for true outdoor deployments where weather and temperature extremes are a concern.
Use cases and scenarios where this camera excels
The DS-2CE78U1T-IT3F is particularly well suited to scenarios that need improved resolution without replacing coax infrastructure. Typical applications include:
- Retail and storefront surveillance — Wide FOV reduces the number of cameras required to cover shopfronts and sidewalks; 4K detail helps with incident review and loss prevention.
- Parking lots and driveways — EXIR illumination supports long-range night viewing; the wide lens captures vehicle movements across lanes or entrances.
- Commercial building perimeters and small industrial sites — Rugged IP67 housing and broad temperature range make it appropriate for exposed sites.
- Residential and housing estates — Cost-effective 4K upgrade path for systems that retain coax cabling and want higher-resolution imagery.
- Legacy system upgrades — When customers want 4K detail without ripping out existing coax, the switchable analogue formats and Up-the-Coax control simplify integration.
Be mindful that at maximum 4K resolution the camera operates at a modest frame rate, so the camera is best used where high pixel detail is a priority over very high frame-rate motion capture. For applications requiring fluid, high-speed motion tracking, consider reducing resolution or using complementary cameras where frame rate is critical.
Comparisons with similar products on the market
Within the landscape of surveillance cameras, the DS-2CE78U1T-IT3F occupies a niche for those who need 4K detail but must remain on analogue coax infrastructure. Compared to other product types:
- Vs. 2MP/4MP analogue cameras:The 8MP 4K output provides far greater image detail, which improves identifiability in wide scenes. However, lower-resolution cameras generally support higher frame rates and require less storage.
- Vs. 4K IP cameras:IP cameras typically offer higher frame rates at 4K, onboard analytics and PoE convenience, but they demand network bandwidth, switches, and often higher cost. The Hikvision TurboHD turret is more economical where existing coax wiring is to be preserved.
- Vs. other 4K TurboHD models:Many 4K TurboHD cameras share similar sensor performance; choose based on lens FOV, form factor (turret vs dome vs bullet), IR range and mounting options. The turret shape here eases adjustability and tamper-resistance compared with some dome variants.
In short, the DS-2CE78U1T-IT3F is a competitive choice when balancing resolution, cost and backward compatibility. Its principal trade-offs are a lower frame rate at full 4K and lack of native PoE/network features — trade-offs that are acceptable for many outdoor and upgrade scenarios.
Customer feedback and installer experiences
Direct public reviews for specific models vary by market. Below are commonly reported observations from installers and end users who choose similar Hikvision TurboHD 4K turret cameras (summarised as typical feedback rather than specific verified testimonials):
- Installers:Often praise the camera for easy aiming (3-axis turret), flexible multi-format switching (helpful when working across different DVR brands) and remote OSD support which speeds setup.
- Small business owners:Frequently comment that the jump from 2MP to 8MP noticeably improves the quality of captured evidence—faces and licence plates are clearer—while retaining existing coax infrastructure.
- Site managers:Appreciate the IP67 rating and durable operation in cold and hot climates; several note satisfactory night images thanks to EXIR illumination when the scene is within the effective IR range.
If you require verified third-party reviews or case studies, check reseller sites, installer forums and local integrators for real-world installation feedback in environments similar to yours.
Conclusion: why choose the DS-2CE78U1T-IT3F?
The Hikvision DS-2CE78U1T-IT3F 4K TurboHD turret camera is a pragmatic, value-oriented option for anyone seeking high-resolution analogue surveillance without migrating to IP. It excels where wide-area coverage, improved identification capability and retention of coax infrastructure are priorities. Its standout attributes are 4K detail, wide-angle coverage from a 2.8 mm lens, long-range EXIR night illumination and versatile multi-format compatibility that eases integration with a variety of DVRs.
Consider this camera when you need better-detail recordings for retail loss prevention, parking and perimeter monitoring, or when upgrading legacy installations. Bear in mind the frame-rate trade-offs at full 8MP resolution and the camera’s reliance on 12 VDC power rather than PoE. For pricing, the suggested retail positioning is around $99.99 (check local pricing and supply), making it an accessible upgrade for many projects.
As always, follow local regulations and installation best practices. Consult the official Hikvision datasheet and manuals for full technical data, power requirements and certification details, and if in doubt, engage a qualified installer to ensure optimal performance and compliance.
