Introduction to the Hikvision DS-2CE19H0T-AIT3ZF and its key features

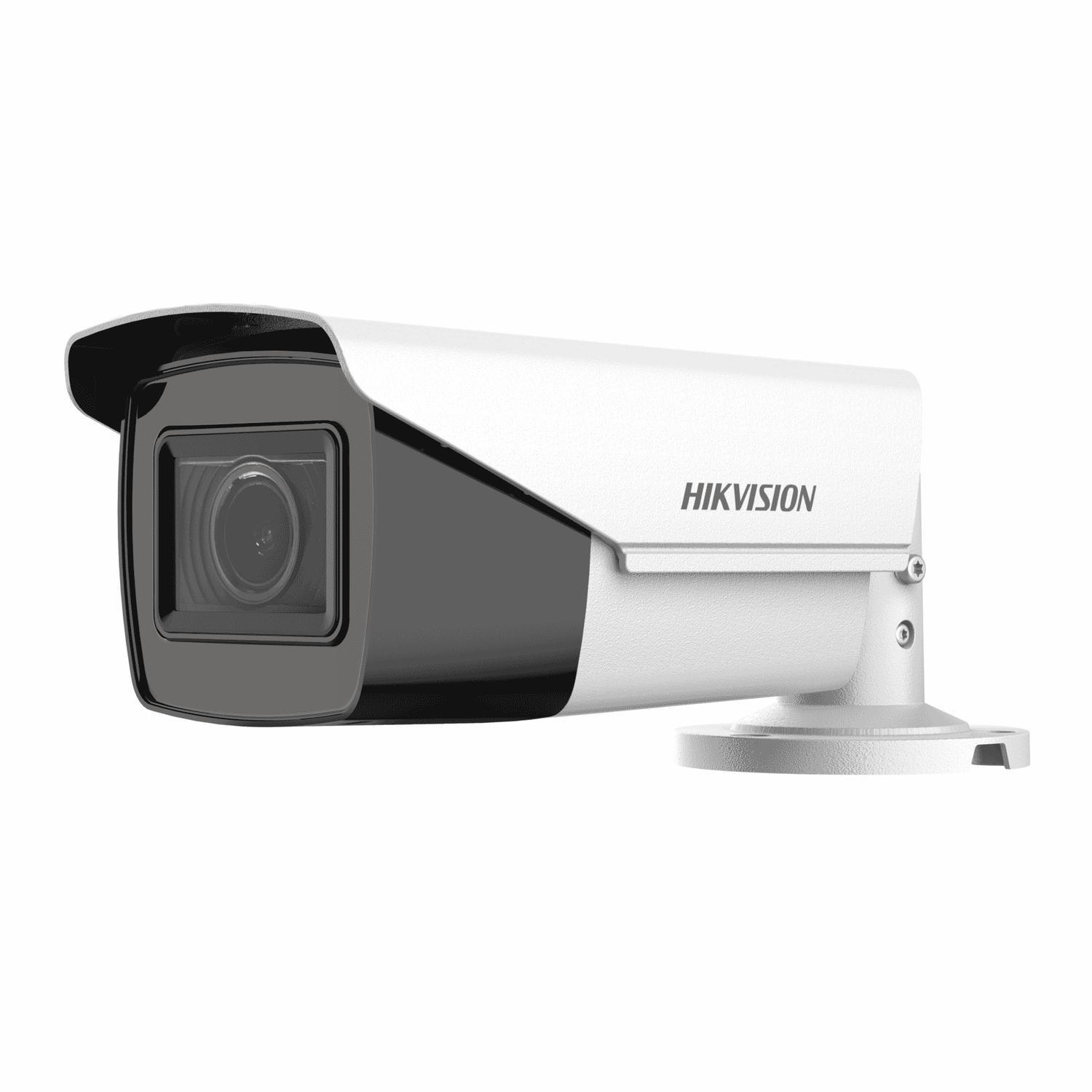

Hikvision DS-2CE19H0T-AIT3ZFis a 5 MP Turbo‑HD (analogue HD) outdoor bullet camera designed for installers, homeowners and small‑to‑medium businesses that want high‑resolution surveillance without the complexity or cost of a full IP overhaul. At its core this camera combines a 5 MP sensor (2560 × 1944), a motorised 2.7–13.5 mm varifocal lens, EXIR night illumination of up to ~40 m and a weatherproof IP67 housing. It supports multiple analogue output formats (TVI/AHD/CVI/CVBS), giving flexibility for mixed or legacy CCTV systems, while image enhancement tools such as Digital WDR, BLC, HLC and 2D DNR help deliver clear, usable footage in a wide range of lighting conditions.
Detailed specifications and benefits
The camera uses a 5 MP CMOS sensor, producing up to 2560 × 1944 resolution — a noticeable step up from typical 2 MP (1080p) analogue bulbs. Higher pixel counts deliver clearer facial and licence plate detail at medium distances, making the camera well suited for perimeter and point‑of‑entry coverage. Low‑light sensitivity is strong (approximately 0.01 lux at F1.6 with AGC enabled) and, with EXIR illumination engaged, the camera reaches 0 lux for monochrome images in full darkness and provides usable IR coverage to around 40 m. Smart IR reduces overexposure when subjects are close to the camera.
The motorised varifocal 2.7–13.5 mm lens gives an approximate horizontal field of view from about 95° at the wide end down to 26° at the telephoto end. This lets installers tailor coverage from broad situational awareness (wide) to focused identification (tele). Because the lens is motorised, adjustments can be made remotely where your DVR/installation tools support remote control — saving ladder time and enabling fast fine‑tuning after mounting.
One of the practical strengths of this model is its switchable single‑port analogue output — TVI / AHD / CVI / CVBS. That broad compatibility simplifies upgrades: you can connect the camera to a variety of Turbo‑HD or AHD recorders without changing cabling. Frame rates will depend on the selected analogue mode (for example, 5 MP at 20 fps in some modes, 4 MP at 30/25 fps in others), so review your recorder’s supported modes to get the desired performance.
Built‑in image processing features — Digital WDR (DWDR), Back Light Compensation (BLC), Highlight Compensation (HLC), 2D DNR and AGC — help produce usable video in challenging lighting, such as backlit doorways or mixed sunlight and shade. The camera’s metal front cover and plastic body balance durability and cost, while IP67 protection ensures the device is dust tight and can withstand immersion tests suitable for harsh outdoor environments. Operating temperature ranges from −40 °C to 60 °C, and the device tolerates up to 90% non‑condensing humidity.
Power options are straightforward: 12 VDC ±15% or 24 VAC ±15%, with a maximum power draw around 8.8 W. Note that this analogue camera does not provide PoE natively — if you prefer PoE convenience, use a PoE‑to‑12 VDC converter or choose an IP camera instead. Physical dimensions (84.5 × 92 × 255.1 mm) and weight (≈ 682 g) are typical for bullet cameras and make installation on walls and soffits straightforward.
Use cases and scenarios where the camera excels
- Perimeter surveillance:The 5 MP resolution combined with 40 m EXIR means clear detail on gates, fences and car parks at medium distances.
- Entryways and driveways:Motorised varifocal lens lets you zoom in on license plates or faces without re‑mounting the camera.
- Retail and small business exteriors:Switchable output formats make the camera easy to integrate into existing analogue systems during incremental upgrades.
- Residential and domestic security:High resolution for doorways and yards while keeping cabling and recorder choices simple.
- Light industrial sites and loading bays:Rugged operating temperature and IP67 weatherproofing suit outdoor and semi‑exposed environments.
- Retrofit projects:When upgrading older 720p/1080p analogue systems, this camera provides a resolution boost without replacing coax cabling.
Comparisons with similar products in the market
Compared with IP cameras of equivalent resolution, Turbo‑HD analogue cameras like the DS‑2CE19H0T‑AIT3ZF are generally more cost‑effective for retrofit projects where coaxial cabling already exists. They avoid the need for network reconfiguration and can be connected to familiar DVR workflows. However, IP cameras typically offer easier remote access, PoE power, and more advanced analytics (on‑device VCA) in many cases. If your installation requires PoE simplicity or high‑end analytics, a modern IP camera may be preferable despite a higher upfront cost.
Compared to 2 MP fixed‑lens analogue cameras, the Hikvision 5 MP varifocal gives markedly better identification detail and flexibility. Fixed 2 MP cameras can be suitable for general monitoring, but they lack the resolution to reliably identify faces or plates at distance, and they cannot change field of view post‑installation. The motorised lens of the 5 MP model reduces installation time and increases versatility.
Within Hikvision’s analogue line, this model sits above basic dome or fixed bullet variants due to its higher resolution and motorised lens. Against competitor analogue offerings from other established brands, the differentiators are the combination of 5 MP resolution, motorised varifocal control and multi‑standard output. Some competitors may offer slightly different IR ranges, full metal bodies or warranties; compare datasheets for exact mechanical and compliance details. If a higher resolution is required, consider 4K IP cameras, but expect a higher price and different cabling considerations.
Customer feedback and installer impressions
Official customer testimonials for specific SKUs can vary by vendor and region. Below are representative points drawn from installer and end‑user feedback commonly reported for 5 MP varifocal Turbo‑HD cameras like this Hikvision model:
- "Image clarity is a step up from 1080p — facial features and plate details are noticeably better at medium ranges."
- "The motorised lens saves time. We can remotely tweak the zoom and focus from the DVR menu rather than re‑position the camera."
- "Night vision performs well — IR illumination gives usable monochrome images out to 30–40 m in typical conditions."
- "Switchable outputs are useful for mixed systems; we didn’t need to re‑run cabling when upgrading a site."
- "Some installers note the lack of native PoE as a downside, but that’s expected for analogue models — it’s a trade‑off for cost and legacy compatibility."
These points represent common themes rather than endorsements from named individuals. When evaluating stock or purchase options, check vendor review pages for region‑specific experiences and support feedback.
Conclusion: Why choose the Hikvision DS-2CE19H0T-AIT3ZF?
The Hikvision DS‑2CE19H0T‑AIT3ZF is a strong choice for anyone who needs higher‑resolution analogue surveillance with the flexibility of a motorised varifocal lens and robust night vision. It bridges the gap between legacy CCTV infrastructure and modern image quality, making it particularly attractive for retrofit projects and sites that want improved identification capability without the cost and complexity of full IP conversion.
Key strengths include the 5 MP sensor for detailed images, the 2.7–13.5 mm motorised lens for adaptable coverage, EXIR illumination for long‑range night surveillance and IP67 weatherproofing for reliable outdoor operation. Its switchable TVI/AHD/CVI/CVBS output supports a range of recorders, helping installers deploy the camera in diverse environments.
For homeowners, retailers and installers seeking a pragmatic balance of resolution, flexibility and competitive price, the DS‑2CE19H0T‑AIT3ZF represents a practical, cost‑effective option. As always, review your recorder compatibility, power supply and mounting choices before purchase, and consult the Hikvision datasheet or local supplier for detailed wiring and mode specifics.
