Introduction to the Hikvision DS-2CE5AD0T-VPIT3F and its key features

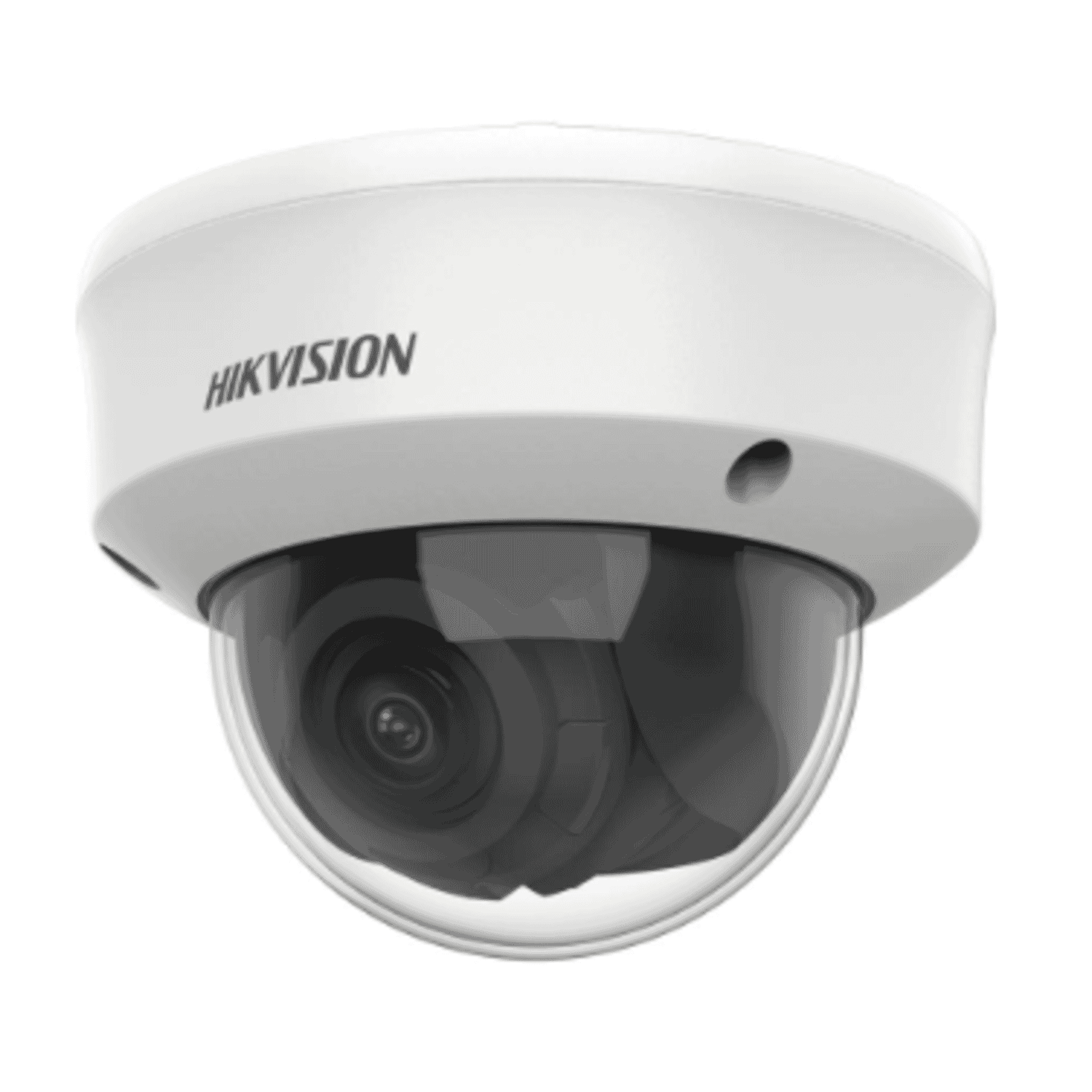

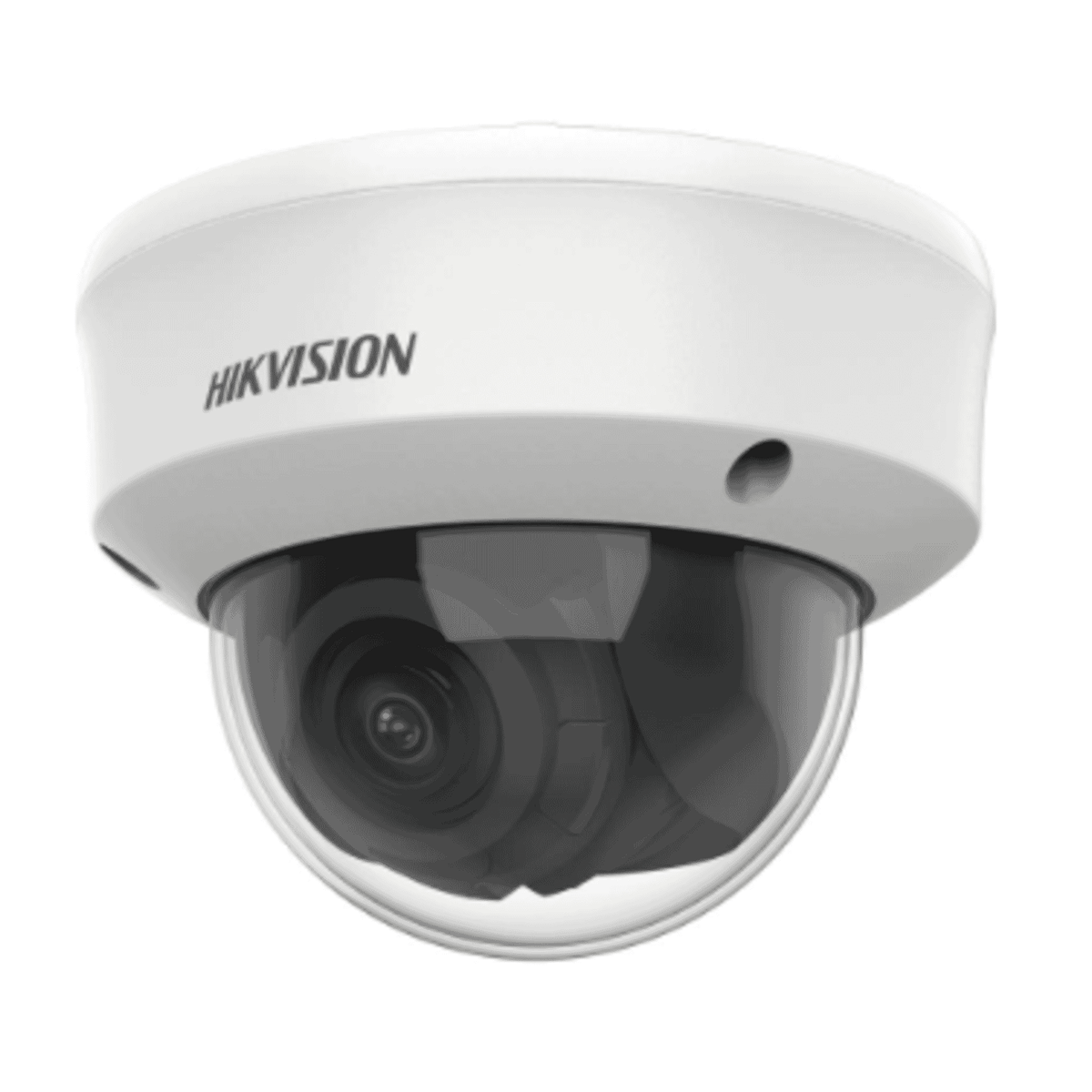

Hikvision DS-2CE5AD0T-VPIT3Fis a 2 MP Turbo‑HD vandal‑proof dome camera designed for outdoor surveillance where durability and flexible analogue compatibility matter. It combines a motorised varifocal lens with long‑range IR illumination and rugged environmental protection (IP67 and IK10), making it a practical option for perimeter, car park and entrance monitoring. The camera supports switchable 4‑in‑1 outputs (TVI/AHD/CVI/CVBS), low power consumption and common image enhancement functions such as Digital WDR and Smart IR.
- Resolution: 2 MP (1920 × 1080) at up to 25/30 fps
- Motorised varifocal lens: 2.7–13.5 mm (some SKUs 2.8–12 mm)
- Smart IR / EXIR with up to 40 m illumination for night monitoring
- 4‑in‑1 analogue outputs: TVI / AHD / CVI / CVBS
- Environmental rating: IP67 weatherproof and IK10 vandal resistance
- Image processing: Digital WDR, 2D DNR, BLC/HLC
- Power: 12 VDC, typ. 4–5 W max
Detailed specifications and benefits
The DS-2CE5AD0T-VPIT3F is built around a 2 MP CMOS image sensor that delivers 1080p resolution and smooth frame rates at common analogue standards. Its motorised varifocal lens provides on-the-fly focal adjustment so installers can fine‑tune field of view without manual lens swapping or extensive on‑site re‑aiming. Below are the primary specification groups and what each means in practice.
- Image sensor: 2 MP CMOS producing 1920 × 1080 resolution — delivers clear, full HD images adequate for identification and situational awareness in most security scenarios.
- Frame rate: Up to 25/30 fps on TVI/AHD/CVI modes — smooth motion rendering for people and vehicle tracking.
- Low‑light: 0.01 Lux @ F1.2 (colour, AGC ON); 0 Lux with IR — practical colour performance in dim conditions and full monochrome detail with IR at night.
- Day/Night: ICR (auto/colour/BW) — automatic switching preserves colour in daytime and sensitivity at night.
- Image features: Digital WDR improves contrast in mixed lighting; 2D DNR reduces noise in low light; BLC/HLC manage backlight and headlight glare; Smart IR prevents IR overexposure on close objects.
- Motorised varifocal lens (2.7–13.5 mm or 2.8–12 mm on some SKUs) — quickly adjust from wide coverage (approx. 100°) to tighter tele views (approx. 30°) for detailed identification or licence plate capture at moderate distances.
- IR range: Up to 40 m with Smart IR/EXIR — effective for medium‑range outdoor areas such as car parks, driveways and building perimeters.
- Housing: Metal body with plastic cover — balance of strength and weight.
- Ingress protection: IP67 — sealed against dust and water, suitable for exposed outdoor locations.
- Vandal resistance: IK10 — robust dome able to resist significant impact and tampering attempts.
- Dimensions & adjustments: Ø143 × 106.7 mm with wide pan/tilt/rotation ranges to precisely frame targets.
- Power: 12 VDC input with typical consumption around 4–5 W — compatible with common CCTV power supplies and low power overhead.
- Video outputs: Switchable TVI/AHD/CVI/CVBS — great for installers who manage mixed recorders or are upgrading legacy analogue systems incrementally.
- Product status: Listed as legacy/discontinued on the manufacturer site — check stock levels and firmware/warranty support with your supplier before purchase.
Use cases and scenarios where this camera excels
The DS-2CE5AD0T-VPIT3F is aimed at environments where mechanical robustness, flexible analogue output and mid‑range night performance are priorities. Typical deployments include:
- IP67 sealing and IK10 vandal protection allow the dome to withstand weather and attempted physical tampering common to exposed fence lines, gates and building perimeters.
- Motorised varifocal lens helps installers tailor coverage to long runs or focus on likely intrusion points without replacing hardware.
- 40 m IR illumination and adjustable focal length help capture vehicle movement and registration details during night hours in moderately sized parking areas.
- Smart IR reduces bloom from headlights and returns usable monochrome images at night.
- Sturdy vandal‑proof dome housing is suitable for entrances and public access points where cameras can be subject to knocks or abuse.
- 1080p resolution affords clear situational awareness for identity checks or incident review.
Comparisons with similar products on the market
The DS-2CE5AD0T-VPIT3F occupies a practical middle ground between budget fixed‑lens analogue domes and higher‑end IP cameras. Its main selling points are the motorised varifocal lens, 4‑in‑1 analogue compatibility and hardening (IP67/IK10). Consider these comparisons when evaluating options:
- Fixed‑lens models are often cheaper but lack the flexible framing provided by a motorised varifocal. If you need to cover varying distances or change views after installation, the DS-2CE5AD0T-VPIT3F saves time and labour.
- Many peers offer similar image quality and housing. The Hikvision model stands out for 4‑in‑1 output switching, simplifying upgrades from legacy recorders. Feature parity (WDR, DNR, Smart IR) is common, so choice often comes down to brand preference, warranty and availability.
- IP/PoE cameras now commonly offer higher resolutions (4 MP, 4K), on‑camera analytics and network power convenience. However, they tend to cost more and may require new network infrastructure. The DS-2CE5AD0T-VPIT3F is typically cheaper upfront and is ideal where existing analogue cabling and recorders are retained.
- This unit is listed as legacy/discontinued by the manufacturer. While you can often source stock from distributors, factor in potential limits on firmware updates, support and replacement parts when budgeting long‑term systems.
Customer feedback and installer impressions
Official public reviews for legacy models can be limited. Installer communities and small‑business buyers who have used this class of Hikvision Turbo‑HD dome tend to report consistent practical strengths and a few caveats:
- Typical positive notes: Robust housing (IK10) and IP67 sealing make it reassuring for outdoor use; motorised varifocal saves site visits; Smart IR and 1080p provide usable night footage for many applications.
- Common caveats: As a legacy analogue model, it lacks modern IP analytics (e.g., deep learning VCA) and higher megapixel options found in newer PoE cameras. Verify firmware and warranty status at purchase.
Example installer comments (summarised): "Solid build and easy to adjust remotely during setup — good value for retrofits." Another frequent remark: "Great for keeping existing coax installs while improving image quality over older analogue cameras." These reflect typical user experiences rather than formal endorsements.
Conclusion: Why the DS-2CE5AD0T-VPIT3F is a strong choice
If you need a durable, flexible and cost‑effective analogue dome camera for outdoor surveillance, the Hikvision DS-2CE5AD0T-VPIT3F is a compelling option. It blends practical 1080p image quality with a motorised varifocal lens, long‑range IR and wide compatibility across TVI/AHD/CVI/CVBS outputs. Its IP67 and IK10 ratings make it suitable for exposed and high‑risk locations, while the low power draw suits standard CCTV power supplies.
That said, plan installations with the model’s legacy status in mind. Confirm stock availability, warranty and firmware support with your supplier, and weigh the benefits of retaining analogue infrastructure against upgrading to modern IP cameras if analytics or higher resolutions are required.
Overall, for installers and site owners who prioritise ruggedness, flexible framing and analogue compatibility—especially when working from existing coax systems—the DS-2CE5AD0T-VPIT3F remains a practical and often budget‑friendly choice.
