Introduction: Hikvision DS-2CE72KF0T-LFS at a glance

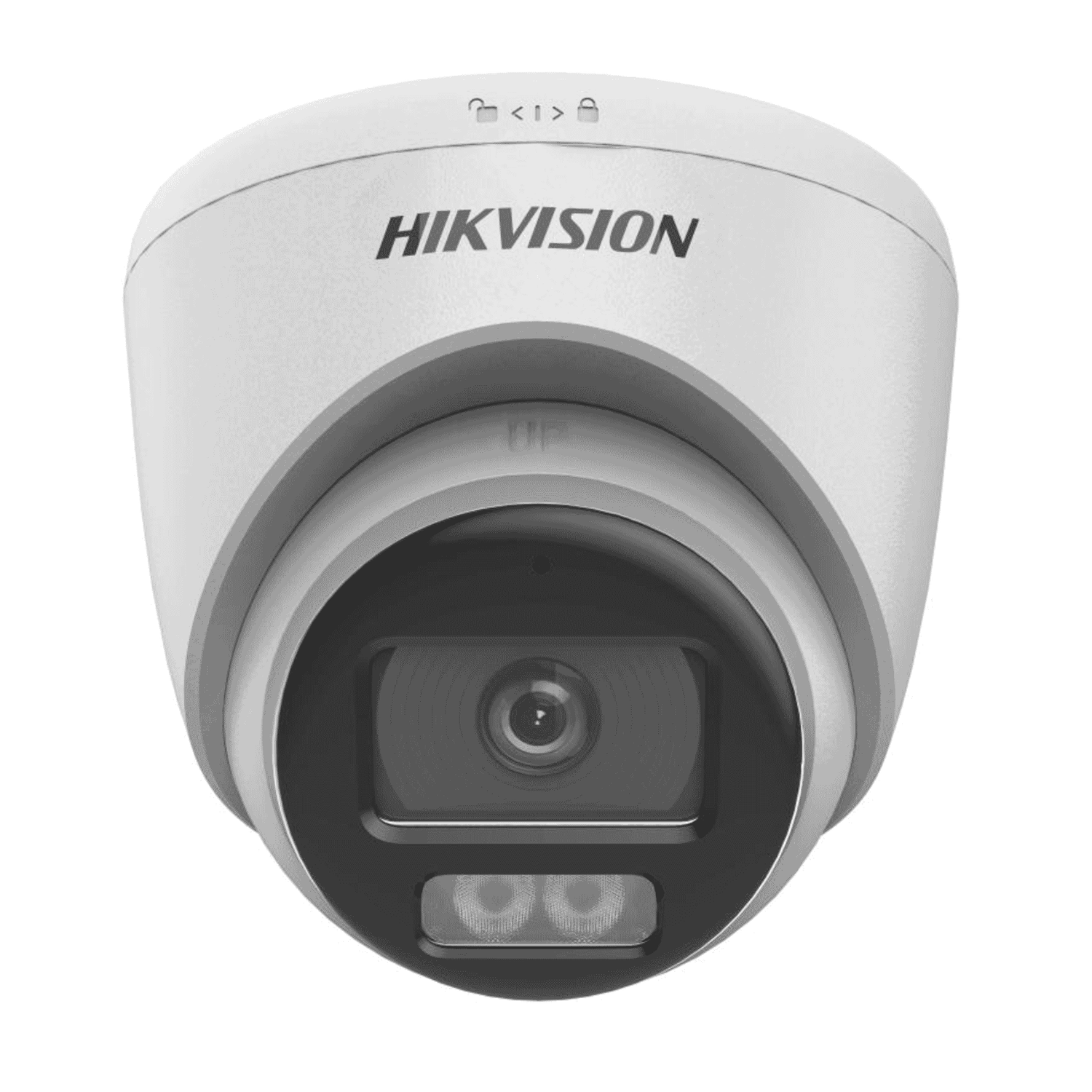

Hikvision DS-2CE72KF0T-LFS — 3K ColorVu Turret Camera (2.8 mm)is a Turbo‑HD fixed turret camera designed to bring high‑quality, full‑colour imaging to analogue surveillance systems. Featuring a 3K (2960 × 1665) sensor, an F1.0 wide‑angle 2.8 mm lens, Smart hybrid illumination (IR + white light), a built‑in microphone (audio over coax) and switchable TVI/AHD/CVI/CVBS outputs, this model is aimed at homeowners, installers and small business operators who want vivid night‑time colour and straightforward compatibility with existing DVRs. Rugged IP67 weatherproofing and an extended operating temperature range make it suitable for a wide variety of indoor and outdoor deployments.
Key features summary
- 3K ColorVu sensor delivering 2960 × 1665 true‑colour imaging day and night.
- 2.8 mm fixed lens with approximately 110° horizontal field of view for wide coverage.
- Smart hybrid illumination combining IR and white light for colour night capture up to ≈40 m.
- Switchable 4‑in‑1 outputs (TVI / AHD / CVI / CVBS) for easy integration with most analogue DVRs.
- Built‑in microphone providing audio over coax for added situational context.
- Rugged IP67 construction and operation from −40 °C to +60 °C for all‑weather use.
- Compact turret form with adjustable pan/tilt/rotation for flexible mounting and aiming.
Detailed specifications and practical benefits
The camera uses a 3K CMOS sensor (2960 × 1665), which sits above standard 1080p and provides noticeably more detail for identifying faces, license plates and finer scene elements. With an F1.0 aperture the lens gathers more light than typical consumer cameras, and combined with Digital WDR and 2D DNR the DS-2CE72KF0T-LFS produces balanced, low‑noise images in challenging lighting conditions.
Minimum illumination is specified at 0.001 Lux at F1.0 in colour mode, and 0 Lux when the white light is activated. That means even in very low ambient light the camera can preserve colour and detail where IR‑only systems would revert to monochrome.
The fixed 2.8 mm lens (M12 mount) delivers a wide horizontal field of view of approximately 110°, vertical ~60° and diagonal ~143°. This makes the camera well suited to covering entryways, porches, short driveways, retail shop floors and other areas where a broad perspective is needed without installing multiple cameras.
Traditional IR illumination provides visibility at night but in monochrome. The DS-2CE72KF0T-LFS features Smart hybrid illumination that uses IR and a controllable white light. In auto or manual modes the white light can be used to retain true colour at night out to around 40 m, which improves identification and can deter unwanted activity. The hybrid approach also helps maintain discreet monitoring (IR) when colour lighting is not required, while white light can be activated for evidential capture or deterrence.
A built‑in microphone offers audio over coax capability, adding a layer of context to recorded events without the need for separate audio wiring. While advanced video analytics are typically more common in IP/NVR systems, the inclusion of audio can make post‑event review and incident verification more effective when used with compatible DVRs.
Switchable TVI/AHD/CVI/CVBS outputs mean the camera works with a wide range of analogue DVRs. For projects upgrading from older analogue cameras, this simplifies migration: you can replace older cameras and use existing coax and DVR hardware in many cases. Power is 12 VDC ±25% with a maximum consumption of about 5.2 W, keeping installation straightforward and low‑power.
With IP67 ingress protection and an operating range from −40 °C to +60 °C, the camera is built to withstand adverse weather and temperature extremes. The compact turret body and pan/tilt/rotation adjustments allow flexible aiming on walls or ceilings while keeping a discrete footprint.
Use cases and scenarios where this camera excels
- Residential entry and perimeter monitoring:The wide field of view and colour night imaging improve recognition of visitors and make it easier to distinguish details like clothing colours and vehicle hues at night.
- Small business storefronts and retail floors:Capture colour evidence for incidents after hours, reduce false alarms with better scene understanding, and benefit from audio over coax to get context on events.
- Parking lots and driveways:The 2.8 mm lens covers broad areas and the hybrid illumination helps capture licence plates and vehicle details where lighting is poor.
- Warehouses and loading bays:Rugged operating temperatures and IP67 rating make it suitable for unheated areas, and the increased resolution aids inventory monitoring and incident review.
- Cost‑sensitive upgrade projects:For sites with existing coax infrastructure, switching to ColorVu 3K cameras offers a major image quality upgrade without the full cost and rewiring required for IP systems.
How it compares to similar products
To evaluate the DS-2CE72KF0T-LFS, it helps to compare it against three common alternatives: standard 1080p IR analogue cameras, higher resolution IP cameras, and other analogue ColorVu or colour‑at‑night models.
Most 1080p IR cameras switch to monochrome at night and offer less detail overall. The 3K sensor yields more pixels and finer detail; combined with ColorVu white light capability, the Hikvision camera preserves colour at night, making identification and evidence capture significantly better than typical 1080p IR units.
PoE IP cameras often offer higher resolutions (4K+), advanced analytics and centralized management. However, IP deployments can be more expensive and may require network upgrades and PoE switches. The DS-2CE72KF0T-LFS provides an excellent middle ground for users who want better-than‑HD image quality and colour at night while leveraging existing coax infrastructure and analogue DVRs.
Other manufacturers and Hikvision’s own ColorVu line offer similar approaches. What distinguishes the DS-2CE72KF0T-LFS is the 3K sensor resolution combined with a wide F1.0 lens, Smart hybrid illumination and audio over coax — a blend of features that makes it especially versatile for retrofit and mixed systems.
Customer feedback and installer impressions
Representative user feedback and common installer notes for cameras like the DS-2CE72KF0T-LFS include:
- "Night images are surprisingly useful — colour is preserved and makes identifying people and cars much easier." — Typical homeowner comment.
- "Easy to swap into existing DVR systems because of the 4‑in‑1 output. Install time is low and clients appreciate the improved images without huge costs." — Common installer feedback.
- "Sturdy build and weatherproofing give confidence for outdoor placements, and the low power draw keeps wiring simple." — Small business owner perspective.
These anecdotal observations reflect themes seen across professional reviews: marked improvement in night‑time colour fidelity, good value for money in retrofit projects, and dependable build quality for outdoor use.
Conclusion: Why choose the DS-2CE72KF0T-LFS?
The Hikvision DS-2CE72KF0T-LFS 3K ColorVu turret camera strikes a practical balance between image quality, low‑light capability and installation simplicity. It offers substantially better-than‑HD resolution, an F1.0 wide‑angle lens, and Smart hybrid illumination to preserve colour at night — features that translate into clearer evidence, fewer ambiguous recordings and better overall situational awareness. Switchable 4‑in‑1 outputs and audio over coax make it especially attractive for upgrades and mixed analogue environments, while IP67 sealing and wide temperature tolerance ensure reliable outdoor operation.
Priced as an affordable upgrade option (suggested price $74.99), the DS-2CE72KF0T-LFS is a solid choice for homeowners and small businesses that want true‑colour night imaging and straightforward compatibility with existing DVRs. For anyone upgrading legacy analogue systems or seeking a robust, colour‑capable turret camera without moving fully to IP, this Hikvision model is a compelling, value‑driven option.
