An introduction to the product and its key features

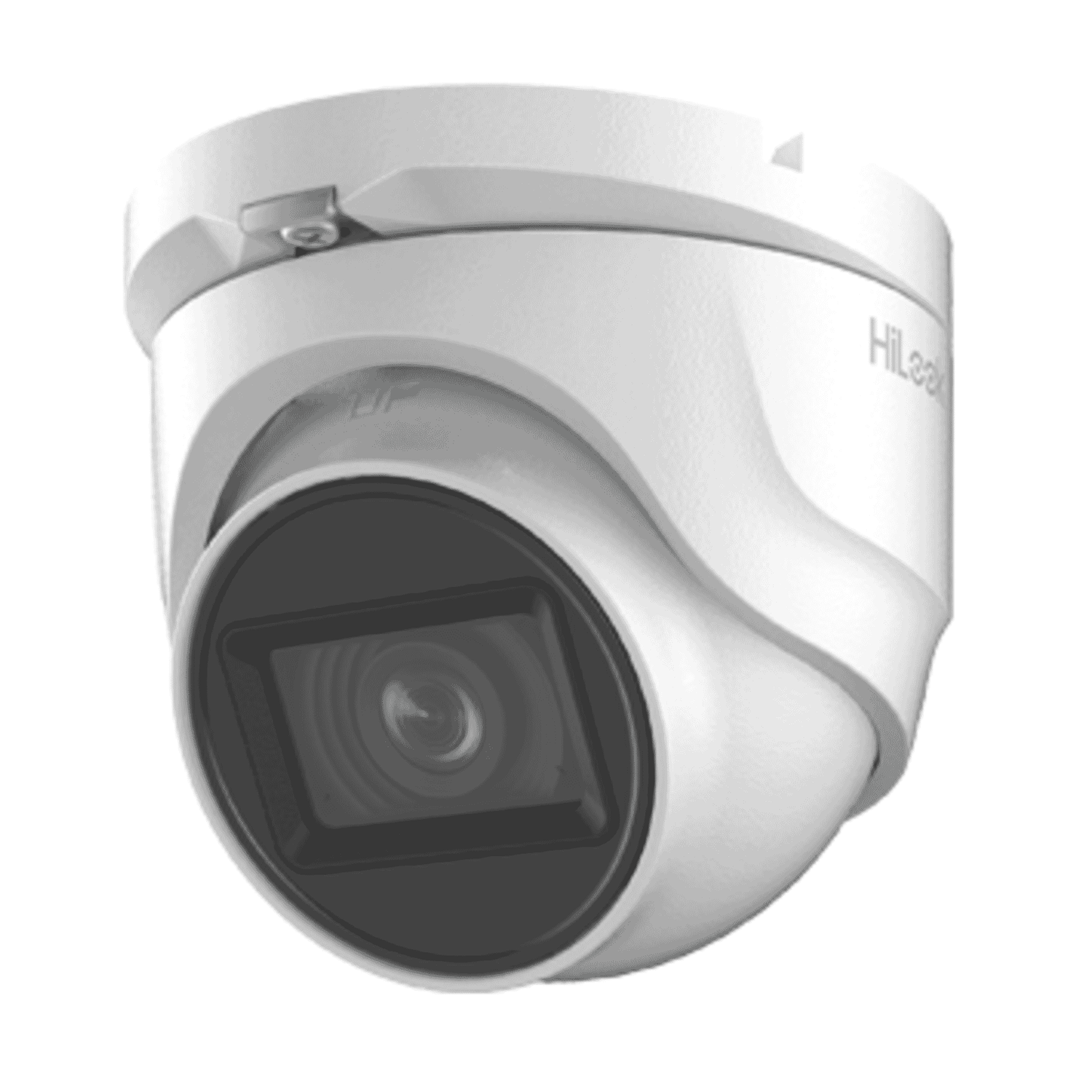

The HiLook THC-T180-M is a compact turret-style analogue HD camera that brings 8MP (4K) image clarity to cost-conscious surveillance installations. Designed for both indoor and outdoor use, this HiLook 8MP 2.8mm turret camera pairs high-resolution imaging with broad DVR compatibility and a rugged IP67 metal housing. Key features that make the THC-T180-M stand out include a 2.8 mm wide-angle lens (approx. 102.9° horizontal field of view), EXIR 2.0 night illumination with reach up to ~30 metres, and switchable 4-in-1 analogue outputs (TVI / AHD / CVI / CVBS) for plug-and-play compatibility with most HD DVRs on the market.
Detailed description of specifications and benefits
The THC-T180-M is engineered to meet the needs of installers and end users who want higher resolution without the complexity or cost of a full network (IP) system. Here are the most relevant specifications and the practical benefits they deliver:
- 8.29 MP CMOS sensor delivering 3840 × 2160 (8MP, 4K) resolution.
Benefit: 4K resolution provides significantly more detail than 1080p cameras, improving the ability to identify faces, read number plates at shorter distances, and capture finer scene context—useful in retail, front-of-property surveillance, and small commercial premises.
- 2.8 mm fixed (M12) lens with approx. 102.9° horizontal FOV.
Benefit: The wide-angle lens covers broad scenes—doors, corridors, shop floors or small yards—reducing the number of cameras needed for area coverage. Fixed lenses keep installation simple and costs down.
- Minimum illumination 0.01 Lux (F1.2, AGC ON); 0 Lux with IR. EXIR 2.0 smart IR up to ~30 m.
Benefit: EXIR 2.0 provides even IR illumination with reduced hotspotting, delivering usable monochrome images in complete darkness up to the quoted range. The low-light sensitivity ensures clearer colour images at dusk and in poorly lit indoor areas.
- Switchable TVI / AHD / CVI / CVBS outputs.
Benefit: The camera integrates easily with a wide variety of HD DVRs and legacy analogue equipment. For technicians upgrading older systems, the 4-in-1 format reduces compatibility headaches and allows staged system improvements.
- Metal body with IP67 protection rating. Operating temperature −40 °C to 60 °C. Power: 12 VDC, max approx. 2.9 W.
Benefit: The metal, weatherproof enclosure is suited to exposed outdoor locations and harsh climates. Low power consumption simplifies power budgeting—useful where multiple cameras operate from the same supply.
- Digital WDR, BLC, HLC, AGC, white balance and STD/HIGH-SAT image modes. ICR mechanical IR cut filter for accurate day/night colour rendering.
Benefit: These processing features help maintain usable images in scenes with varying light levels (backlight or headlights) and optimise picture quality for different installation scenarios.
- Dimensions approx. 82.6 × 90 × 79.37 mm; weight ~300 g; turret/surface mount. Pan 0–360°, tilt 0–75°, rotation 0–360° for aiming flexibility.
Benefit: Compact size and multiple adjustment axes make positioning straightforward. The turret design conceals cabling and generally simplifies wall or soffit installations.
Use cases and scenarios where the product excels
The HiLook THC-T180-M is well suited to a range of common surveillance needs where 4K detail and analogue compatibility are priorities. Typical scenarios include:
- Retail stores and boutiques: High resolution helps with facial recognition, customer flow analysis, and reducing blind spots over counters and aisles. The wide field of view suits shop floors and entrances.
- Residential and multi-dwelling entry points: A compact turret over front doors or driveways captures identification detail while maintaining a discreet appearance.
- Small commercial sites and offices: Cost-effective way to bring 4K imaging to existing analogue DVR systems without a full network upgrade.
- Perimeter, car parks and shared courtyards: IP67 housing and EXIR nighttime range are useful for outdoor perimeter coverage and poorly lit parking areas.
- Schools, warehouses and logistics hubs: Where wide-angle daytime coverage is important and peak frame rates are less critical, 4K resolution aids evidence capture and monitoring.
Note on frame rate: When using the TVI mode at full 8MP, frame rates are limited (e.g. around 12.5–15 fps). This design suits many static or slow-motion monitoring applications, but if smooth high-frame-rate capture (e.g. 25–30 fps) is essential for fast-moving scenes, consider the trade-off between resolution and frame rate when planning deployments.
Comparisons with similar products in the market
When assessing the THC-T180-M against other camera types, several comparisons are useful:
Compared with 1080p HD analogue cameras, the THC-T180-M’s 4K resolution provides a substantive increase in scene detail. This matters for identification tasks and for covering larger areas with a single camera. However, 4K analogue at full resolution often runs at lower frame rates than 1080p. If high frame-rate capture is a priority for your use case (e.g. fast-moving traffic), you may prefer 1080p at higher fps or an IP camera that supports higher-resolution high-frame-rate streams.
Network cameras provide features such as PoE power over Ethernet, flexible bitrates, on-camera analytics, and often higher frame rates at 4K. The THC-T180-M’s advantages compared with IP alternatives are simplicity and cost: analogue 4-in-1 cameras are typically less expensive and integrate directly with existing DVRs without the need for network infrastructure, switches or more advanced configuration. If you already have or plan an HD DVR-based system, THC-T180-M is a budget-friendly upgrade path to 4K imaging.
Many turret cameras share the same mechanical form factor; the deciding factors are sensor size, low-light performance, IR technology, and build quality. The HiLook’s EXIR 2.0 and metal IP67 housing place it competitively in the value segment. Buyers seeking advanced analytics, higher frame rates, or manufacturer-backed extended warranties may need to look at higher-tier models from larger brands or IP models with on-board processing.
Customer testimonials and review guidance
Official public customer reviews for the THC-T180-M are limited; availability of user feedback can vary by reseller and region. Based on installer notes and typical user feedback for similar HiLook models, common points reported by customers include:
- Positive: Good image quality for the price, easy integration with existing HD DVRs, sturdy metal housing and reliable night performance using EXIR.
- Considerations: Lower frame rates at maximum 8MP resolution—acceptable for many surveillance needs but worth noting for high-motion environments. As with many entry-level products, extended warranty and support packages depend on the seller.
If you are considering purchase, ask the vendor for local customer references, sample footage, or demo units where possible. Confirm warranty terms and post-sale support, since warranty coverage can vary by distributor.
Conclusion: Why the HiLook THC-T180-M is a great choice
The HiLook THC-T180-M delivers a compelling mix of 4K detail, broad analogue compatibility and rugged weatherproofing at an entry-level price point. For installers and site owners looking to upgrade existing Turbo‑HD/analogue DVR systems to higher resolution without switching to a full IP workflow, it represents a practical and cost-effective choice. The wide-angle 2.8 mm lens, EXIR 2.0 night illumination and IP67 metal housing make it versatile for retail, residential, commercial and light industrial applications.
As with any purchase, weigh the trade-offs: if you need high frame rates for fast-motion capture or advanced analytics, an IP camera or higher-tier model may be more appropriate. For most everyday surveillance tasks where image detail, compatibility and robustness matter, the THC-T180-M offers strong value—especially when paired with a compatible HD DVR and professionally installed to ensure optimal placement and cabling.
Before buying, confirm the DVR compatibility, local warranty arrangements and any installation requirements. When those boxes are checked, the HiLook THC-T180-M is a solid, budget-friendly way to bring 4K clarity to analogue CCTV systems.
