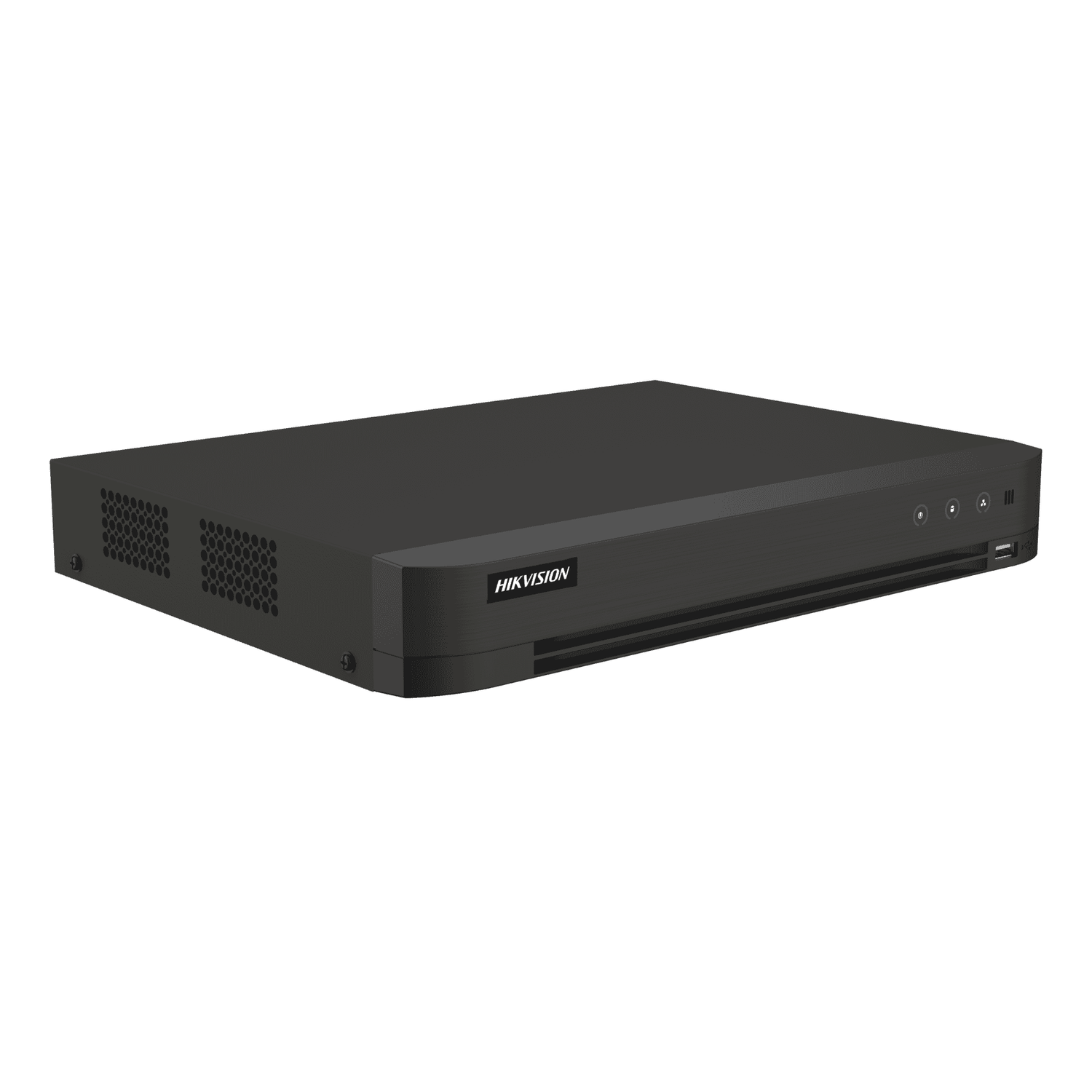

Hikvision iDS-7216HQHI-M1/XT 16‑ch AcuSense Hybrid DVR, 4K HDMI, 1×SATA

Introduction to the Hikvision iDS-7216HQHI-M1/XT and its key features

Hikvision iDS-7216HQHI-M1/XTis a compact, 1U hybrid DVR designed for small to medium commercial HDCCTV installations that need reliable recording, intelligent analytics and flexible camera compatibility. Marketed as a 16‑channel AcuSense hybrid DVR (4K HDMI), it blends analogue and IP camera support, modern H.265 Pro+ compression and Hikvision’s AcuSense deep‑learning analytics to cut false alarms and lower storage requirements without sacrificing image quality.

• Hybrid flexibility:16 analogue BNC inputs with expandability to up to 24 total channels including IP cameras.
• AcuSense analytics:Human/vehicle classification, Motion Detection 2.0, perimeter protection and up to 4‑channel facial capture.
• Efficient encoding & display:H.265 Pro+/H.265/H.264 support and a 4K HDMI output for high‑resolution monitoring.
• Storage & remote access:Single SATA bay supporting up to 12 TB and remote access via Hik‑Connect, DDNS and ONVIF.

Detailed specifications and benefits

The iDS-7216HQHI-M1/XT is engineered to be a practical balance between capability and cost. Below are the key specification highlights and the practical benefits they deliver.

This is a 1U hybrid AcuSense DVR (model iDS-7216HQHI-M1/XT) intended for rack or shelf mounting in small server rooms, communication cabinets or standalone installations. Its compact footprint (319 × 240 × 48 mm) and low weight (≤ 2 kg) make it easy to integrate into constrained spaces.

The recorder provides 16 analogue BNC inputs as standard and supports mixed analogue/IP deployments up to 24 channels total (default up to 8 IP inputs, expandable depending on licensing and network). Analogue inputs support up to 5 MP (including 3K/5MP lite), while IP channels accept up to 6 MP each. Decoding capacity reaches up to 24 channels of 1080p @30fps, and the device includes 4K HDMI output for crisp local monitoring alongside VGA and CVBS outputs.

Benefit: Support for higher‑resolution analogue formats and IP cameras lets integrators upgrade incrementally—reuse existing coax runs and add IP cameras where needed, while still delivering high‑quality live display and playback.

Video compression is handled using H.265 Pro+, H.265, H.264+ and H.264, with H.265 Pro+ delivering the best storage efficiency. The AcuSense analytics suite provides Motion Detection 2.0, human/vehicle classification and perimeter protection to better filter events and reduce false positives from animals, weather or lighting changes. Facial capture is supported on up to 4 channels with face libraries (up to 16) for simple local face searching and capture.

Benefit: Smarter analytics reduce time spent reviewing footage and lower storage needs by prioritising human/vehicle alarms, making long‑term retention more affordable.

Physical storage is via 1 × SATA bay supporting drives up to 12 TB. Network capability includes a single Gigabit RJ45 interface with a total throughput of 256 Mbps and support for up to 128 remote connections. Remote access methods include Hik‑Connect, DDNS, ONVIF and HTTPS.

Benefit: Sufficient throughput for mixed channel setups and flexible remote access options let administrators monitor sites remotely, stream multiple channels or pull recorded evidence efficiently.

Physical I/O includes HDMI (4K), VGA and CVBS video outputs; audio in/out (typical 1 audio in or up to 16 via coax option); front USB 2.0 and two rear USB 3.0 ports; RS‑485 for PTZ control. Power is via 12 VDC and power consumption is ≤ 24 W.

Benefit: Standard I/O set simplifies connection to monitors, speakers and PTZ cameras; USB 3.0 ports speed up backup and local export of footage.

Use cases and scenarios where this DVR excels

The hybrid nature and analytics of the iDS-7216HQHI-M1/XT make it suitable for a wide range of small to medium commercial installations where budget, incremental upgrades and reduced false alarms matter.

• Small to medium retail stores can keep legacy analogue cameras while adding high‑resolution IP cameras at entrances or checkout areas. AcuSense reduces nuisance alarms from customers, trolleys or pets and highlights human activity for loss prevention and incident investigation.

• Office parks and managed properties benefit from mixed camera ecosystems: analogue cameras in common areas combined with IP at access points. Remote access via Hik‑Connect aids security managers who need on‑demand playback or live monitoring without complex infrastructure changes.

• Educational institutions that want long‑term recording and event filtering can use perimeter protection and human/vehicle classification to flag potential intrusions while avoiding alarm fatigue from wildlife or weather conditions.

• Branches of businesses (bank branches, clinics, storage facilities) often need reliable recording with easy local monitoring. The unit’s single HDD bay (up to 12 TB) and efficient H.265 Pro+ compression make it practical for moderate retention windows without large network storage overheads.

How it compares with similar products on the market

Hybrid DVRs and NVRs range from no‑frills recorders to enterprise platforms with many drive bays and heavy compute. The iDS-7216HQHI-M1/XT sits in the pragmatic middle: more intelligent and flexible than basic analogue DVRs, but less costly and complex than high‑end NVR systems.

• Basic DVRs record analogue video with minimal analytics and older codecs (H.264), resulting in larger storage needs and more false alarms. The Hikvision unit adds modern codecs (H.265 Pro+) and AcuSense analytics to cut storage and increase alarm accuracy.

• Full IP NVRs offer advanced features and scalability but require replacing analogue cameras and often a higher budget. The Hikvision hybrid approach allows phased upgrades—keep useful coax infrastructure while introducing IP cameras where they matter most.

• Enterprise recorders deliver many drive bays, redundant storage and higher decode counts for large deployments. The iDS‑7216HQHI‑M1/XT is aimed at smaller sites where those capabilities would be overkill; it focuses on cost‑effective intelligence and everyday reliability.

Customer feedback and installer notes

Public, verified customer reviews for this exact model may be limited through retail listings, but installer feedback and field experience typically highlight a few recurring themes:

• Positive:Installers appreciate the hybrid flexibility—being able to reuse coax and add IP cameras reduces migration costs. AcuSense analytics are commonly praised for lowering false alarms, which improves system value for customers.
• Practical considerations:Single SATA bay limits on‑box retention for larger channel counts; many installers combine the DVR with network storage or periodic backups for longer retention. Compatibility checks are recommended when integrating older analogue formats or third‑party IP cameras—verify ONVIF profiles and codec support.
• Support and updates:As with all security devices, keeping firmware current and adhering to local certification (CE/UKCA where applicable) and wiring standards ensures reliable operation and compliance.

Conclusion — why this DVR is a great choice

The Hikvision iDS-7216HQHI-M1/XT offers a compelling mix of features for organisations that need intelligent surveillance without the complexity and cost of a full IP overhaul. Its hybrid architecture supports gradual upgrades, H.265 Pro+ compression reduces storage costs, and AcuSense analytics meaningfully cut false alarms and improve event relevance. With 4K HDMI output, support for higher‑resolution analogue and IP cameras, and straightforward remote access options, the recorder is well suited to retail, offices, schools and small commercial sites.

In short, if you are looking for a practical, feature‑rich recorder that balances budget, smart analytics and flexible camera support, the iDS‑7216HQHI‑M1/XT is a robust choice for small to medium deployments. Consider pairing it with an appropriately sized HDD and a clear integration plan for legacy cameras and any new IP devices to get the best performance for your site.
