Hikvision iDS-7216HUHI-M2/PXT 16‑ch Hybrid AcuSense DVR, PoC, 4K HDMI

Introduction: Meet the Hikvision iDS-7216HUHI-M2/PXT — 16‑channel AcuSense Hybrid DVR (PoC)

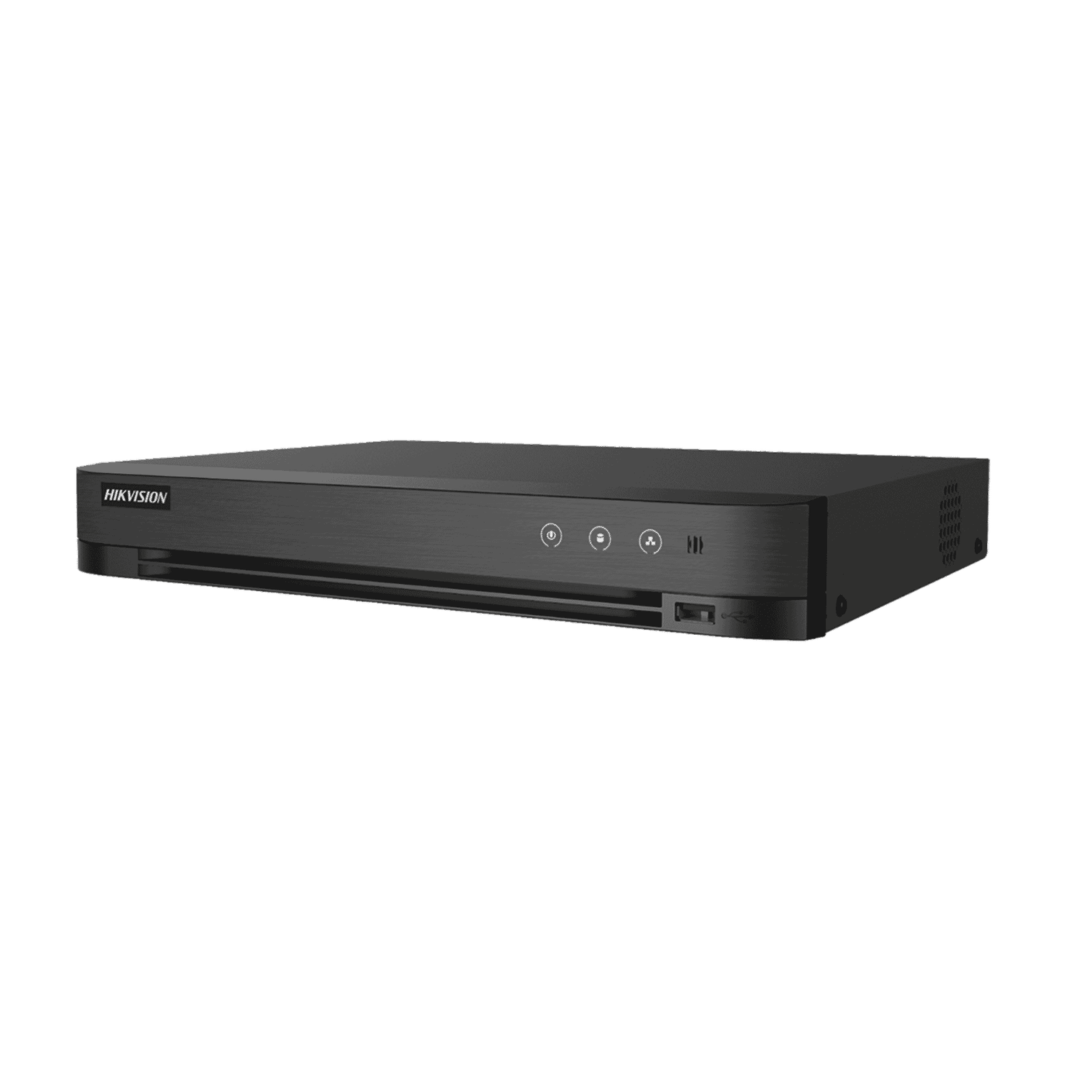

The Hikvision iDS-7216HUHI-M2/PXT is a compact 1U hybrid DVR designed to bridge legacy analogue systems with modern IP camera technology while delivering edge AI analytics. Built around Hikvisions AcuSense deep‑learning platform, this 16‑channel hybrid unit supports TurboHD analogue formats (HD‑TVI, AHD, HDCVI, CVBS) plus local IP expansion, Power‑over‑Coax (PoC) for compatible cameras, and a 4K HDMI output for high‑resolution monitoring. Its aimed at installers and system integrators who want an efficient, cost‑effective recorder that reduces false alarms and simplifies cabling for medium commercial and multi‑site CCTV deployments.

Key features at a glance

• Hybrid inputs:16 analogue BNC inputs with up to 16 local IP channels (expandable to 32).
• AcuSense AI analytics:Motion Detection 2.0 with human/vehicle classification, perimeter protection, and face capture/recognition (face features on up to 4 analogue channels).
• PoC support:Power‑over‑Coax compatibility for select Hikvision cameras with PoC power management (AT/AF modes).
• High efficiency video:H.265 Pro+/H.265/H.264(+) compression and support for input resolutions up to 8 MP‑Lite/5 MP depending on format.
• 4K HDMI output:Simultaneous HDMI (up to 3840×2160) and VGA outputs, with decoding up to 24 channels of 1080p@30fps.
• Storage and connectivity:Two SATA bays (supplier listing: up to 12 TB per disk), USB 2.0 front and USB 3.0 rear, gigabit Ethernet and common network protocols (Hik‑Connect, ONVIF, DDNS, HTTPS).

Detailed specifications and benefits

• Channels:16 analogue BNC inputs plus up to 16 local IP inputs, expandable to a total of 32 channels. This hybrid approach lets you reuse analogue cameras while adding IP devices where needed.
• Max input resolution:Supports up to 8 MP‑Lite/5 MP on compatible cameras (actual supported resolution varies by camera format and frame rate; consult datasheet for exact limits).
• Compression:H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 reduces bandwidth and storage requirements compared with legacy codecs.
• Decoding:Local decoding capability of up to 24 channels at 1080p@30fps makes this unit suitable for multi‑screen control rooms without offloading decoding to servers.
• Analytics:Built‑in AcuSense analytics (Motion Detection 2.0) filters out non‑relevant motion and classifies human and vehicle targets, significantly reducing false alarms from animals, weather or foliage. Perimeter protection triggers reliable tripwire and intrusion events; face capture/comparison is available for four analogue channels.

• Storage:Two SATA drives supported (supplier listing: up to 12 TB per disk). This provides ample local retention for most mid‑size installations; consider NAS/central storage for large multi‑site retention policies.
• Network:1 × RJ45 10/100/1000 Mbps port with total throughput of 256 Mbps. Supports Hik‑Connect, DDNS, ONVIF and HTTPS for remote access and integration.

• Video outputs:HDMI up to 4K (3840×2160) and VGA simultaneously, ideal for a high‑resolution monitor at the security desk plus a secondary display.
• Audio & alerts:4‑channel audio in, 1 audio out and two‑way audio over coax for selected cameras; 4 alarm inputs and 1 alarm output for local integration with sirens, strobes or access control triggers.
• USB & serial:USB2.0 front ×1, USB3.0 rear ×2, RS‑485 for legacy PTZ control.
• PoC features:Supports Hikvision PoC cameras and includes PoC power allocation modes (refer to datasheet for AT/AF specifics and power budgets). PoC simplifies installations by delivering power over existing coaxial cabling where compatible cameras are used.
• Physical:Compact 1U form factor (384 × 313 × 52 mm), operating range −10°C to +55°C and typical power consumption ≤ 20 W (without HDD).

Primary benefits

• Cost‑effective migration:Allows organisations to gradually migrate from analogue to IP without rewiring, protecting previous camera investments.
• Reduced false alarms:AcuSense AI dramatically reduces nuisance alarms through human/vehicle classification and perimeter rules, saving time and improving response quality.
• Installation simplicity:PoC support reduces the need for separate power runs for compatible cameras, speeding up installs and cutting material costs.
• Flexible monitoring:4K HDMI and robust decoding lets operators view high‑resolution feeds locally while recording many channels concurrently.

Use cases and scenarios where the model excels

Retail stores, warehouses, small logistics hubs and office campuses often have a mix of analogue and IP cameras. The iDS‑7216HUHI‑M2/PXT suits these environments by supporting analogue BNC inputs for existing cameras while offering local IP expansion for higher‑resolution zones (entrances, cashiers, loading bays) where analytics like person/vehicle detection and perimeter protection add real operational value.

Businesses with multiple branches can standardise on a hybrid DVR that can be deployed quickly by local technicians. The AcuSense analytics helps central security teams reduce false positives and focus on verified events, making remote monitoring of many sites more manageable.

When upgrading an existing CCTV system, the ability to use existing coaxial wiring and cameras while adding IP cameras selectively is a major advantage. PoC is especially useful in retrofit projects where adding power cables would be costly or disruptive.

Comparisons with similar products

In the hybrid DVR market, the iDS‑7216HUHI‑M2/PXT competes with other manufacturers hybrid recorders and Hikvisions own range of hybrid and IP‑only recorders. Key comparison points include analytics capability, PoC support, maximum channel count, decoding performance and storage capacity.

• Hybrid DVRs vs IP NVRs:All‑IP NVRs provide higher scalability, greater feature parity with modern IP cameras and easier centralised management. However, hybrid DVRs like this Hikvision model win when existing analogue infrastructure needs to be retained or when budget constraints prevent a full IP rip‑and‑replace.
• PoC vs PoE:PoC is ideal for reusing coax cabling while PoE is standard on Ethernet. PoC reduces rewiring in retrofit jobs; PoE provides more flexible camera placement with network switches. Choose based on your wiring environment and camera choices.
• Within Hikvisions lineup:Higher‑end Hikvision NVRs may offer multi‑stream decoding, larger channel counts and more advanced analytics or facial recognition on IP cameras. The iDS‑7216HUHI‑M2/PXT is positioned as a mid‑range hybrid with an excellent balance of AI features, PoC and 4K output for its price class.

Customer feedback and installer impressions

While individual customer reviews vary by deployment, common themes from installers and integrators evaluating the iDS‑7216HUHI‑M2/PXT include:

• "AcuSense analytics cuts down on false alarms and reduces wasted guard time"  installers appreciate the quality of person/vehicle filtering compared with classic motion detection.
• "PoC saved us time and eliminated separate power runs on several retrofit projects"  many technicians note that PoC compatibility with Hikvision cameras simplifies fieldwork and reduces material costs.
• "Good value for mixed analogue/IP sites"  customers upgrading in phases find the hybrid nature and local IP expansion useful and cost effective.

Note: These comments reflect typical installer feedback patterns and industry observations. For site‑specific references and certified case studies, consult your distributor or Hikvision regional resources.

Installation, compliance and practical notes

Always verify region‑specific firmware and certification (CE/UKCA, local approvals) before deployment. Confirm the exact SKU/variant and firmware version for maximum HDD capacities and feature availability, since some regions list different limits. Follow local wiring and electrical codes when implementing PoC and mains wiring. For high retention periods or enterprise deployments consider networked storage or central VMS integration.

Pricing and commercial considerations

Based on the provided cost price of 351.61 and a target margin of 16%, a suggested retail price in the example listing is 418.35 (please confirm currency and desired pricing ending, e.g., .00, .95 or whole currency). This places the unit competitively in the mid‑range hybrid DVR segment given its AI features, PoC support and 4K HDMI output.

Conclusion: Why choose the Hikvision iDS‑7216HUHI‑M2/PXT?

The Hikvision iDS‑7216HUHI‑M2/PXT is a practical and capable hybrid recorder for organisations managing mixed analogue and IP estates. It balances cost, performance and intelligent analytics in a compact 1U chassis. Key reasons to choose this model include the AcuSense human/vehicle analytics that reduce false alarms, PoC support that simplifies retrofit installations, and high‑resolution HDMI output for clear local monitoring. For medium commercial sites, branch rollouts and phased upgrades, it offers a versatile platform that preserves legacy investments while enabling modern AI‑driven security capabilities.

Next steps:Confirm your currency and preferred retail rounding so the RRP can be finalised, and consult Hikvisions regional documentation for firmware, certification and power budget details for PoC cameras prior to installation.
