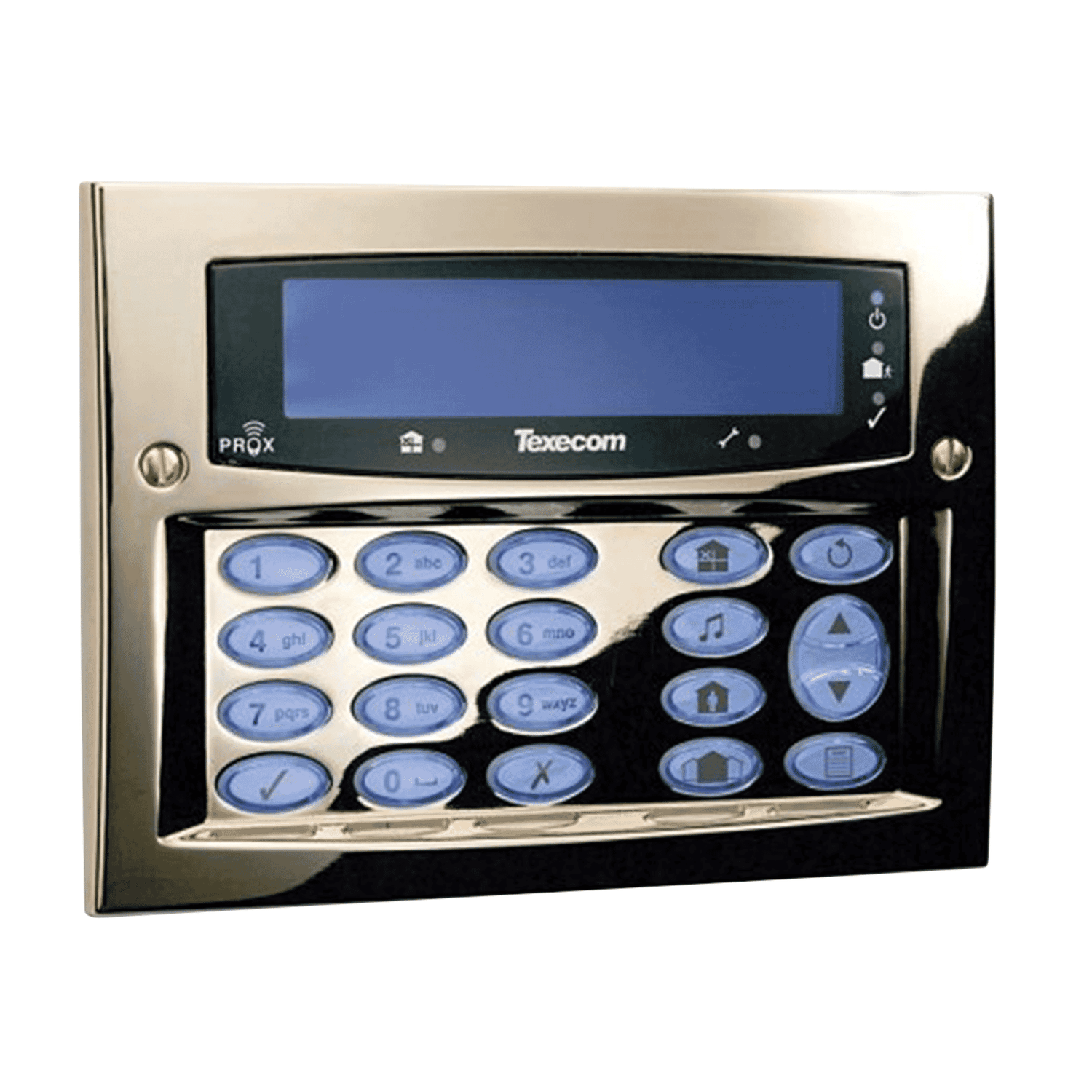

Introduction to the Premier Elite FMK Flush‑Mount LCD Keypad
Premier Elite FMK Flush‑Mount LCD Keypad (DBD‑0122) — Polished Brassdelivers a refined combination of premium aesthetics, proven Texecom engineering and Grade‑3 security credentials. Designed for wired Texecom Premier and Premier Elite alarm control panels, this flush‑mount keypad offers a large, easy‑to‑read blue 32‑character LCD, touch‑tone backlit keys, an integral proximity tag reader, and built‑in speaker functionality. Finished in polished brass, it’s aimed at installations where appearance matters as much as performance — think luxury homes, executive offices and boutique commercial spaces.
Key Features at a Glance
- Large blue 32‑character LCD with adjustable backlighting for clear status and menu navigation.
- Touchtone backlit keypad for reliable and intuitive operation in low light.
- Built‑in proximity reader for tag‑based arming and disarming — quick and convenient access control.
- Provides 2 additional zone inputs and 1 programmable output to increase system flexibility.
- Integral speaker plus extension speaker output for audible alarms and prompts.
- Flush‑mount design in polished brass for a high‑end, low‑profile finish.
- Certified EN50131‑3 / PD6662 Grade 3 (Class II) and CPNI accredited for elevated security applications.
Detailed Specifications and Benefits
The Premier Elite FMK (DBD‑0122) is engineered to meet both aesthetic and technical demands of modern security installations. Below are the key technical specifications and the practical benefits they deliver to installers and end users.
- Part / Model:DBD‑0122 (Premier Elite FMK, Polished Brass)
- Operating voltage:9–13.7 V DC
- Current consumption:Quiescent 90 mA; Alarm 110 mA; Backlit 185 mA; Alarm + Backlit 205 mA
- Display:Large blue 32‑character LCD
- Keys:Touchtone backlit keys (adjustable)
- Proximity reader:Integral proximity tag reader (Texecom tags supported)
- Zone inputs:2 additional zone inputs
- Programmable outputs:1 programmable output
- Speaker output:Integral speaker + extension speaker output
- Mounting:Flush mount (FMK)
- Dimensions (FMK):168 × 124 × 7 mm
- Surface mount depth (SMK variant):26 mm
- Finish:Polished Brass
- Certifications:EN50131‑3 / PD6662 Grade 3 (Class II); CPNI accredited
- Compatibility:Wired Texecom Premier / Premier Elite panels
- Grade‑3 certification:This certification indicates the keypad and its supported system meet robust standards for intruder alarms — critical for installations that require higher assurance, such as upscale properties and some commercial premises.
- Proximity reader:Built‑in tag support allows fast, keyless arming and disarming for residents and staff, reducing the need to give out codes and improving convenience without sacrificing control.
- Large LCD & backlighting:The 32‑character blue display simplifies system status checks and menu navigation. Adjustable backlighting and touch‑tone keys improve usability in both bright and low‑light conditions.
- Additional inputs/outputs:Two extra zone inputs and a programmable output provide installation flexibility — feed in additional sensors, tamper inputs, or remote indicators without having to modify the control panel extensively.
- Flush‑mount polished brass finish:The FMK housing creates a discreet, built‑in appearance that complements premium interiors while offering the durability expected in an installed security device.
Use Cases and Scenarios Where the DBD‑0122 Excels
The Premier Elite FMK is particularly well suited to projects where both appearance and performance are priorities. Common scenarios include:
- High‑end residential properties:Homes with bespoke interiors, heritage finishes or luxury fittings benefit from a polished brass, flush‑mount keypad that blends with décor rather than standing out as a piece of industrial equipment.
- Executive offices and boardrooms:Professional environments that require a discreet security presence enjoy the refined aesthetics and simple tag‑based access for senior staff.
- Boutique hotels and serviced apartments:The proximity reader enables flexible guest or staff permissions while the flush mounting maintains an elegant look in public areas and suites.
- Retail and showrooms selling premium goods:Locations that combine customer experience with heightened security can maintain visual standards while meeting Grade‑3 security requirements.
- Locations requiring compliance:Installations that specify EN50131‑3 / PD6662 Grade 3 or CPNI accreditation in tender documents will find this keypad an appropriate component for compliance.
Comparisons with Similar Products
When evaluating the DBD‑0122, it helps to compare it against common alternatives: surface‑mount keypads, standard plastic keypads, and other manufacturers’ offerings.
- Flush‑mount (FMK): Provides a slim, integrated appearance (depth 7 mm) that is ideal for premium installations where a low profile is desired.
- Surface‑mount (SMK): Easier and sometimes cheaper to install on existing walls where recessing is impractical; the SMK variant has a deeper profile (26 mm) but a less discreet look.
- Polished brass elevates the visual fit and finish and is chosen for aesthetic cohesion. Plastic or generic metal finishes are more utilitarian and cost‑focused.
- For showpiece rooms, the DBD‑0122 avoids the visual mismatch that can occur with standard keypads.
- Texecom Premier/Premier Elite keypads like the DBD‑0122 are purpose‑built to integrate tightly with Texecom control panels, ensuring full feature compatibility and reliable system behaviour.
- Other brands (e.g., well‑known commercial alarm manufacturers) may offer keypads with similar features, but guaranteed compatibility, certification alignment and menu‑driven programming are practical advantages of using the OEM keypad for Texecom systems.
Customer Feedback and Installer Notes
Public customer reviews specifically for the DBD‑0122 are relatively limited compared with mainstream consumer electronics, which is common for professional security hardware. Installer feedback and industry notes typically highlight several practical points:
- Installers appreciate the clear display and menu‑driven programming for straightforward commissioning with Premier and Premier Elite panels.
- Feedback often cites the convenience of the built‑in proximity reader for premises where many authorized users require quick access without distributing codes.
- Specifiers value the Grade‑3 certification and CPNI accreditation when recommending systems for higher‑risk or standards‑driven projects.
- A small number of users note that polished finishes require occasional cleaning to maintain appearance, which is expected for brass fixtures.
If you are evaluating the product for a specific project, ask your installer for on‑site photos of similar installations and a demonstration of tag enrolment and menu navigation. Installers can also advise on compatibility with specific Texecom panel firmware versions and recommended wiring practices.
Pricing, Installation and Other Practical Notes
The suggested retail price for the Premier Elite FMK DBD‑0122 is around $189.99, with a supplier cost listed at $160.73. As wired alarm keypads, these are typically supplied and installed by professional security engineers. Installation considerations include ensuring correct wiring (9–13.7 V DC), adherence to earthing and alarm panel integration guidance, and compliance with local certification and insurance requirements.
Warranty terms vary by supplier; confirm the warranty and support arrangements at time of purchase. Note that this product is intended to be installed by a qualified professional in accordance with the manufacturer manual and local regulations.
Conclusion: Why Choose the Premier Elite FMK (DBD‑0122)?
The Premier Elite FMK Flush‑Mount LCD Keypad in polished brass (DBD‑0122) is an excellent choice when you need a security device that combines refined aesthetics with robust, certified performance. It is particularly well suited to premium residential and commercial installations where appearance, convenience and Grade‑3 security compliance are priorities. The large 32‑character blue LCD, touch‑tone backlit keys, built‑in proximity reader and extra inputs/outputs give both installers and end users practical flexibility, while the flush‑mount polished brass finish ensures the keypad integrates neatly into high‑quality interiors.
For projects driven by compliance, style and usability, the DBD‑0122 stands out as a thoughtfully designed component of the Texecom Premier ecosystem. Talk to your authorised Texecom installer to confirm compatibility with your control panel and to get a tailored quote and installation plan that meets your security and aesthetic needs.
