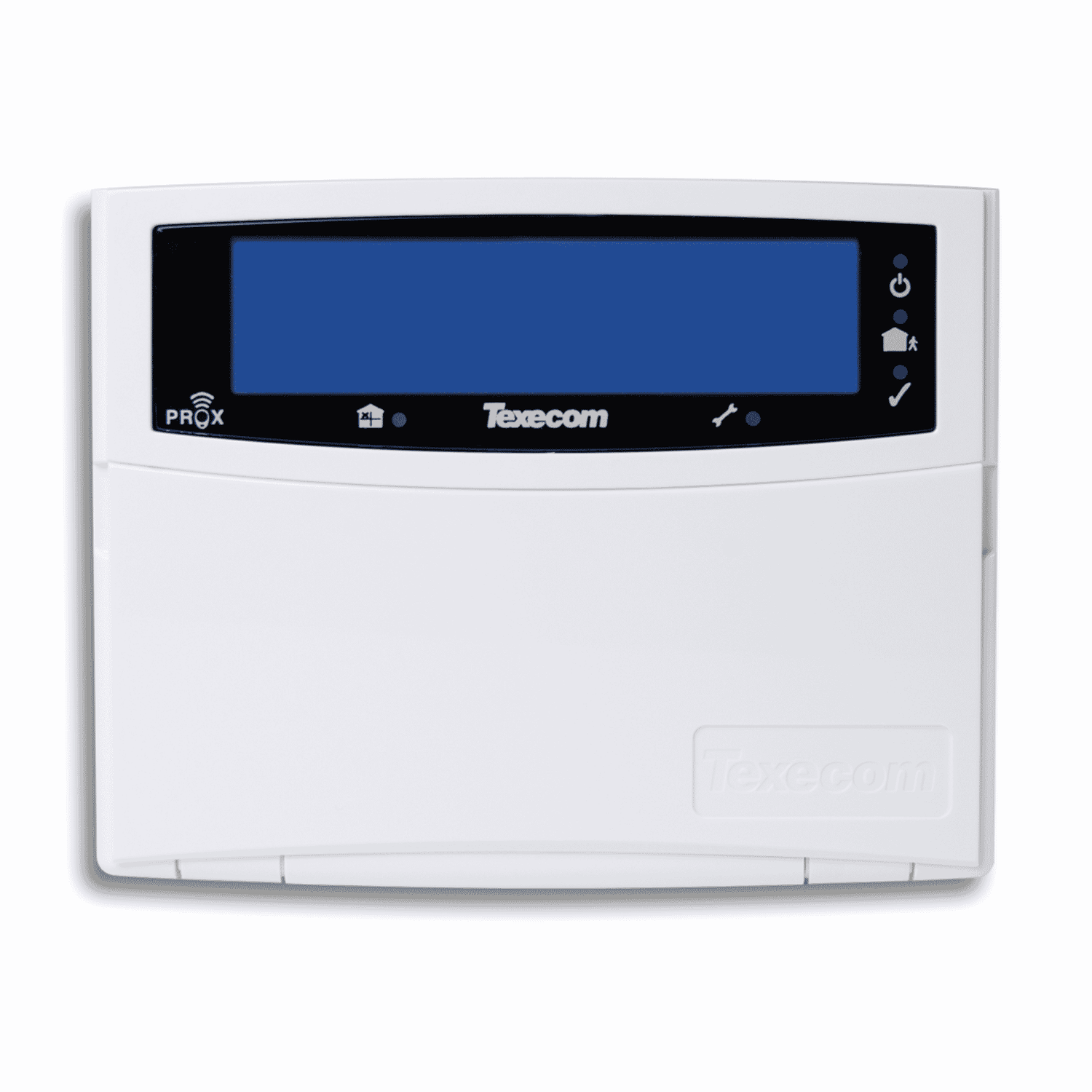

Introduction to the Premier Elite LCDLP (DBD-0168)
Premier Elite LCDLP (DBD-0168)is a professional-grade wired alarm keypad designed for use with Texecom Premier and Premier Elite alarm panels. It combines a large 32-character backlit blue LCD, touchtone and backlit keys, an integrated proximity-tag reader and an audible piezo sounder in a compact, installer-friendly package. With support for two additional remote zones and a programmable output, the LCDLP is aimed at commercial and high-security domestic applications where reliability, usability and compliance with recognised standards are essential.
Key features at a glance
- 32-character backlit blue LCD with menu-driven interface for clear status and simple navigation
- Built-in proximity-tag reader supporting Texecom prox tags for tag-based arming and disarming
- Two programmable DP or EOL remote zones to expand sensing capability
- One programmable output and a programmable information/status LED for flexible system signalling
- Touchtone, backlit keys with adjustable backlighting and a built-in piezo sounder
- 4-wire connection to panel with speaker driver output for external volume control
- CPNI-accredited and certified to PD6662 / EN50131 Grade 3 for commercial-grade security
Detailed specifications and their benefits
The DBD-0168 is specified to serve demanding environments. Below is a summarized view of the main specifications and how each translates into practical benefits:
- Manufacturer:Texecom — a recognised name in professional security equipment, ensuring compatibility and support across the Premier product family.
- Model/Part code:DBD-0168 (Premier Elite LCDLP) — clearly identified for procurement and installation reference.
- Product type:Wired programmable keypad — wired connectivity for consistent, tamper-resistant communication with the panel.
- Display:32-character backlit blue LCD with a menu-driven interface. The display gives clear system messages, status, and prompts, reducing installer and user confusion during operation.
- Keys:Touchtone, backlit keys provide intuitive feedback and allow use in low-light conditions, improving usability for building occupants and security personnel.
- Zones:Two programmable DP or EOL zones allow the keypad to host additional sensors or tamper circuits. This is useful where remote detection points or localised inputs are needed without adding a separate module.
- Outputs:One programmable output and an information/status LED provide local signalling and integration points for external devices such as strobes, local indicators or interface relays.
- Panel connection:4-wire connection to the control panel offers a robust, low-latency link for commands and status updates.
- Sounder:Built-in piezo sounder for audible feedback, with a speaker driver output to accommodate external speaker control and volume adjustments.
- Proximity:Integrated prox tag reader compatible with Texecom prox tags — enables fast, secure tag-based arming and disarming without keypads entering PINs.
- Security standard:PD6662 / EN50131 Grade 3 — indicates the unit meets specifications for commercial-grade systems where higher resistance to attack and tamper is required.
- Accreditation:CPNI-accredited — relevant for customers seeking equipment endorsed for secure installations.
- Typical size (approx.):160 × 130 × 40 mm — compact enough for wall mounting in plant rooms, reception areas or beside access points.
- Weight:Manufacturer weight data not specified — check with your supplier if exact shipping weight matters for logistics.
Benefits in everyday use
These specifications translate into several practical benefits. The large, menu-driven blue LCD makes system status and prompts easy to read at a glance, reducing operator errors. Integrated prox-tag support speeds up authorised access without burdening users with PINs, and reduces the risk of PIN sharing. Programmable zones on the keypad make it possible to accommodate localised sensors (for example, a server room door contact) without running further wiring back to the main panel. Grade 3 certification and CPNI accreditation provide assurance to installers and end users that the device is suitable for high-security contexts.
Use cases and scenarios where the LCDLP excels
The Premier Elite LCDLP is particularly well suited to the following scenarios:
- Commercial premises with multiple access points:Reception desks, side entrances or staff-only doors can each host an LCDLP to provide local arming/disarming and status feedback while retaining central control at the panel.
- High-security domestic installations:For high-value residences requiring professional-grade equipment and tag-based user convenience, the LCDLP combines aesthetics and functionality while meeting Grade 3 standards.
- Server rooms and plant rooms:The keypad’s programmable remote zones mean local door contacts or tamper switches can be monitored directly at the keypad location, enabling quick local response and clear status messages.
- Multi-user environments:Where different staff members need access at different times, prox tags provide an efficient and auditable solution for arming/disarming without the need for PIN management.
- Retrofit and expansion projects:The wired 4-wire connection and programmable outputs allow installers to add functionality to existing Texecom systems without complex rewiring or large upgrades.
Comparisons with similar products on the market
When choosing a keypad, buyers typically consider factors such as display clarity, user interface, access options (tags vs codes), wired vs wireless, and compliance level. Here’s how the DBD-0168 compares in those dimensions:
- Display and interface:The 32-character blue LCD and menu-driven layout place the LCDLP ahead of basic LED-only or small-segment keypads. Compared with purely LED keypads, it delivers richer status messages and clearer prompts for non-technical users.
- Proximity access:Built-in prox tag support is an advantage over keypads that require an external prox reader. Some competitors offer separate prox readers; the integrated approach reduces installation time and cost.
- Wired vs wireless:Wired keypads like the LCDLP provide greater tamper resistance and lower latency than wireless variants, which can be preferable for commercial and Grade 3 installations. Wireless keypads offer easier placement and retrofit benefits, but at the expense of battery management and, in some environments, security considerations.
- Certification level:PD6662 / EN50131 Grade 3 certification places the LCDLP in a higher assurance category than many residential-grade keypads (Grade 2). For commercial clients or critical infrastructure, Grade 3 equipment is often required by insurers or regulatory bodies.
- Competitors:Rival brands produce similar wired keypads with displays and prox options, but the Texecom ecosystem compatibility is a selling point for customers who already use Premier or Premier Elite panels. When comparing models, consider support, panel compatibility and available programmable I/O functionality to match site requirements.
Customer feedback and installer impressions
No formal customer testimonials are supplied in the product brief. However, based on common feedback trends for this class of device, installers and end users typically highlight the following points:
- Ease of installation and straightforward 4-wire connection to Texecom panels.
- Clear, informative display that reduces user errors and phone support calls.
- Integrated prox reader reduces the need for extra hardware and improves client experience for multi-user sites.
- Grade 3 certification is frequently cited by installers specifying systems for commercial projects or properties requiring a higher security rating.
If you are considering the LCDLP, ask your supplier for case studies or references from installers who have deployed the keypad in similar environments.
Conclusion: why the Premier Elite LCDLP (DBD-0168) is a strong choice
The Premier Elite LCDLP (DBD-0168) is a well-rounded, professional keypad that balances usability, expandability and security. Its 32-character backlit blue LCD and menu-driven interface make routine interaction intuitive, while the built-in prox tag reader and programmable zones add practical flexibility on site. Compliance with PD6662 / EN50131 Grade 3 and CPNI accreditation make it suitable for commercial and high-security domestic installations where higher assurance levels are needed.
For system designers and installers working within the Texecom Premier ecosystem, the LCDLP simplifies integration and provides useful local I/O options without additional modules. For end users, the combination of clear feedback, tag-based access and robust construction delivers day-to-day convenience and peace of mind. If you need a wired, professional keypad with an emphasis on clear user feedback, proximity access and Grade 3 security, the Premier Elite LCDLP is a compelling choice—subject to confirmation of warranty and supply details from your vendor.
