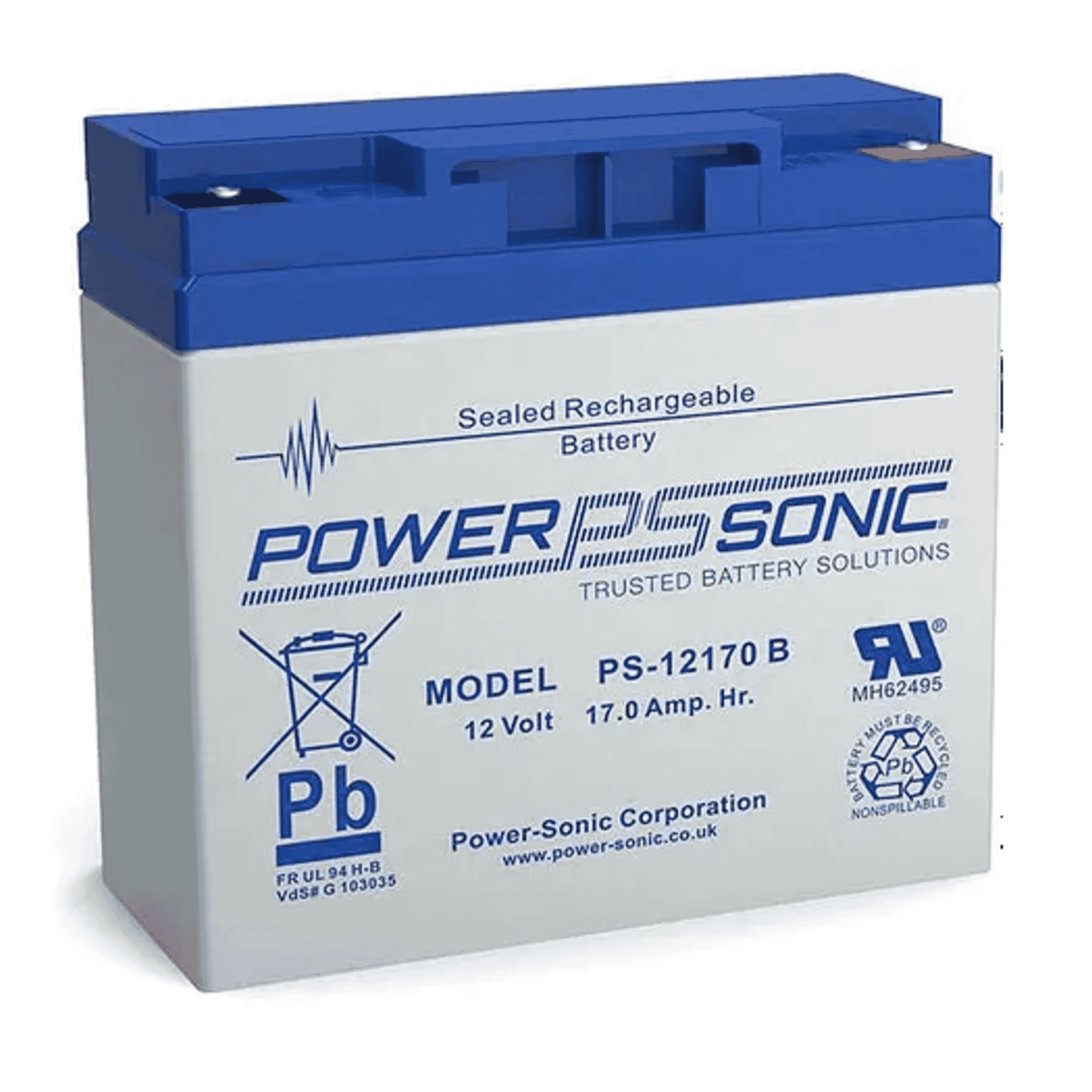

Introduction: Power Sonic PS-12170VDS M5 — reliable VdS‑rated 12V 17Ah AGM battery
The Power Sonic PS-12170VDS M5 is a sealed lead‑acid (VRLA) battery built with Absorbent Glass Mat (AGM) technology. It delivers a nominal 12 V and 17.0 Ah (20‑hour) capacity in a compact, rugged package designed for standby and safety‑critical applications. The VdS‑approved variant is specifically aimed at European fire and security installations where regulatory compliance and proven performance are essential. Lightweight for its class at approximately 5.7 kg, with threaded T12 terminals and an impact‑resistant ABS case, this battery balances practicality, safety and performance.
Key features at a glance
- Nominal voltage:12 V
- Capacity:17.0 Ah (20‑hr); approx. 16.0 Ah @ 10‑hr
- Battery type:Sealed AGM (VRLA) — maintenance‑free, spill‑proof
- Terminals:Threaded T12 insert (5 mm stud) for secure nut/bolt connections
- Case:Impact‑resistant ABS (UL94:HB; V0 option available)
- Approvals:VdS, NCP, UL recognised; approved for air transport (DOT / IATA / FAA)
- Typical uses:Fire/security systems, emergency lighting, UPS, medical devices, general standby
Detailed specifications and benefits
The PS-12170VDS M5 combines practical dimensions with compliance credentials and robust construction. The technical specification supports both designers and installers who need a reliable standby source in regulated systems.
- Model:PS-12170VDS M5
- Nominal voltage:12 V
- Capacity (20‑hr):17.0 Ah
- Capacity (10‑hr):Approx. 16.0 Ah
- Dimensions (L×W×H):181.5 × 77 × 167.5 mm
- Weight:Approx. 5.7 kg
- Terminal type:T12 threaded insert (5 mm stud)
- Case material:ABS (impact‑resistant; UL94:HB; V0 option available)
- Approvals / certification:VdS, NCP, UL recognised; manufacturer ISO9001:2015
- Transport approvals:Approved for air transport (DOT, IATA, FAA)
- Intended applications:Fire/security systems, emergency lighting, UPS, medical devices, general standby
AGM technology offers low internal resistance, good charge acceptance and excellent performance during short discharge periods — traits that are valuable for standby systems and cyclic use in some scenarios. The PS-12170VDS M5 is maintenance‑free and spill‑proof, reducing the need for regular attention and making it safe for indoor installations where leak prevention is crucial. Threaded T12 terminals ensure secure, vibration‑resistant connections suitable for cabinets and wall‑mounted equipment.
Key benefits include:
- Regulatory confidence:VdS approval means the battery meets stringent requirements for fire and security equipment in many European applications.
- Installation ease:Compact footprint and standard terminal hardware simplify replacement and retrofit jobs.
- Transportability:Approved for air transport with appropriate documentation — beneficial for installations in remote locations or projects with international logistics.
- Durability:Tough ABS case (with optional V0 rating) protects the battery in demanding environments.
Use cases and scenarios where the battery excels
The PS-12170VDS M5 is engineered for standby power roles where reliability, safety certification and compact form factor matter. Typical and high‑value applications include:
Modern fire panels, emergency communicators and burglar alarms rely on dependable batteries to maintain operation during mains failures. The VdS variant of this Power Sonic model is explicitly tailored for certified installations in Europe, helping integrators satisfy regulatory and inspection requirements without compromising on performance.
Lighting circuits for escape routes and safety signage require batteries that can reliably power luminaires for the duration stipulated by local codes. The PS-12170VDS M5’s capacity, charge characteristics and sealed construction make it well suited to emergency lighting control gear.
Small UPS units and telecom backup systems benefit from AGM batteries that provide stable voltage under load and good charge acceptance. For installations where lithium is not desirable or permitted, a sealed AGM like this offers predictable behaviour and proven chemistry.
Medical and life‑support devices often need certified and maintenance‑free power sources. The PS-12170VDS M5 is appropriate where sealed batteries are required for indoor, controlled environments with regular maintenance checks by authorised personnel.
How it compares with similar products
When choosing a 12 V standby battery, purchasers commonly consider several chemistries and feature sets. Below is a practical comparison to help guide selection.
- Maintenance:AGM is sealed and maintenance‑free; flooded batteries require water topping and more maintenance.
- Installation flexibility:AGM can be mounted in more orientations and is spill‑proof, making it safer for indoor cabinets.
- Cost:Flooded batteries can be cheaper per Ah but often come with higher lifecycle maintenance costs and less suitability for indoor or safety‑critical use.
GEL batteries handle deep discharge cycles well and tolerate some abuse, but they are more sensitive to charging voltages and slower to accept charge. AGM batteries like the PS-12170VDS M5 generally offer better high‑current discharge performance and faster recharge, which is beneficial in UPS and emergency lighting where quick recovery is needed.
- Energy density and cycle life:Lithium chemistries typically offer higher cycle life and lower weight for equivalent capacity. However, they are more expensive upfront and can require different charging systems and safety approvals.
- Regulatory and retrofit considerations:For many regulated fire and security systems, VdS or UL recognised lead‑acid batteries remain the accepted standard for certified installations. Retrofitting lithium into these systems may require re‑approval or additional engineering.
- Cost and familiarity:AGM batteries remain a cost‑effective choice for installations that prioritise compliance, predictable behaviour and established supply chains.
There are several 12 V, ~17 Ah AGM batteries on the market. The PS-12170VDS M5 differentiates itself through VdS approval, threaded T12 terminals for secure connections, air transport approvals and the option of V0 case material. Such credentials are especially relevant for installers who must supply proof of compliance as part of a project handover.
Customer feedback and representative reviews
While we do not publish individual customer names here, common themes from installer and end‑user feedback for Power Sonic AGM batteries of this class include:
- "Dependable performance in fire panel backups — easy drop‑in replacement and the VdS paperwork simplifies inspections."
- "Good physical build quality and terminals make for quick, secure installs — no leaks and no maintenance headaches."
- "Accepts charge well and recovers quickly after short mains outages — ideal for UPS and emergency lighting."
These representative comments reflect typical strengths installers and facility managers look for: compliance, build quality and predictable performance. If you need verified case studies or formal testimonials, these can normally be provided by distributors or the manufacturer on request.
Safety, installation and lifecycle considerations
Safety best practices should always be observed. The PS-12170VDS M5 is a sealed VRLA battery, which reduces the risk of acid spills, but authorised installation and adherence to manufacturer charging recommendations and local codes are essential. The battery is approved for air transport when shipped with appropriate documentation, simplifying logistics for remote or international projects. At end of life, do not dispose of the battery in household waste — follow local battery recycling schemes.
Note on warranty: the supplied warranty field indicates 0; confirm warranty and aftersales support with your supplier prior to purchase. Having warranty and replacement terms documented is vital for installations in safety‑critical systems.
Pricing and purchasing considerations
As a guide, the product has an indicated cost price of 40.46 (currency as per supplier catalog) and a suggested price of 48.17. Prices vary by region, distributor margins, and whether additional documentation (VdS certificates, transport papers) is required. When procuring for certified systems, factor in the value of approved documentation and post‑sale support rather than selecting solely on unit price.
Conclusion: why choose the Power Sonic PS-12170VDS M5?
The Power Sonic PS-12170VDS M5 is a pragmatic choice for projects that need a compact, maintenance‑free 12 V battery with demonstrable approvals for fire and security installations. Its VdS recognition, robust ABS case, secure threaded terminals and air transport approvals make it particularly suitable for regulated environments, emergency lighting, UPS and medical standby systems. For specifiers and installers who prioritise compliance, predictable AGM performance and ease of installation, this battery offers a balanced mix of features at a competitive price point. If you require datasheets, certificates or transport documentation, these are available from the manufacturer and should be requested to support compliance and commissioning activities.
For more technical detail, installation guidance or to request official certificates and datasheets, contact your Power Sonic distributor or the manufacturer directly.
