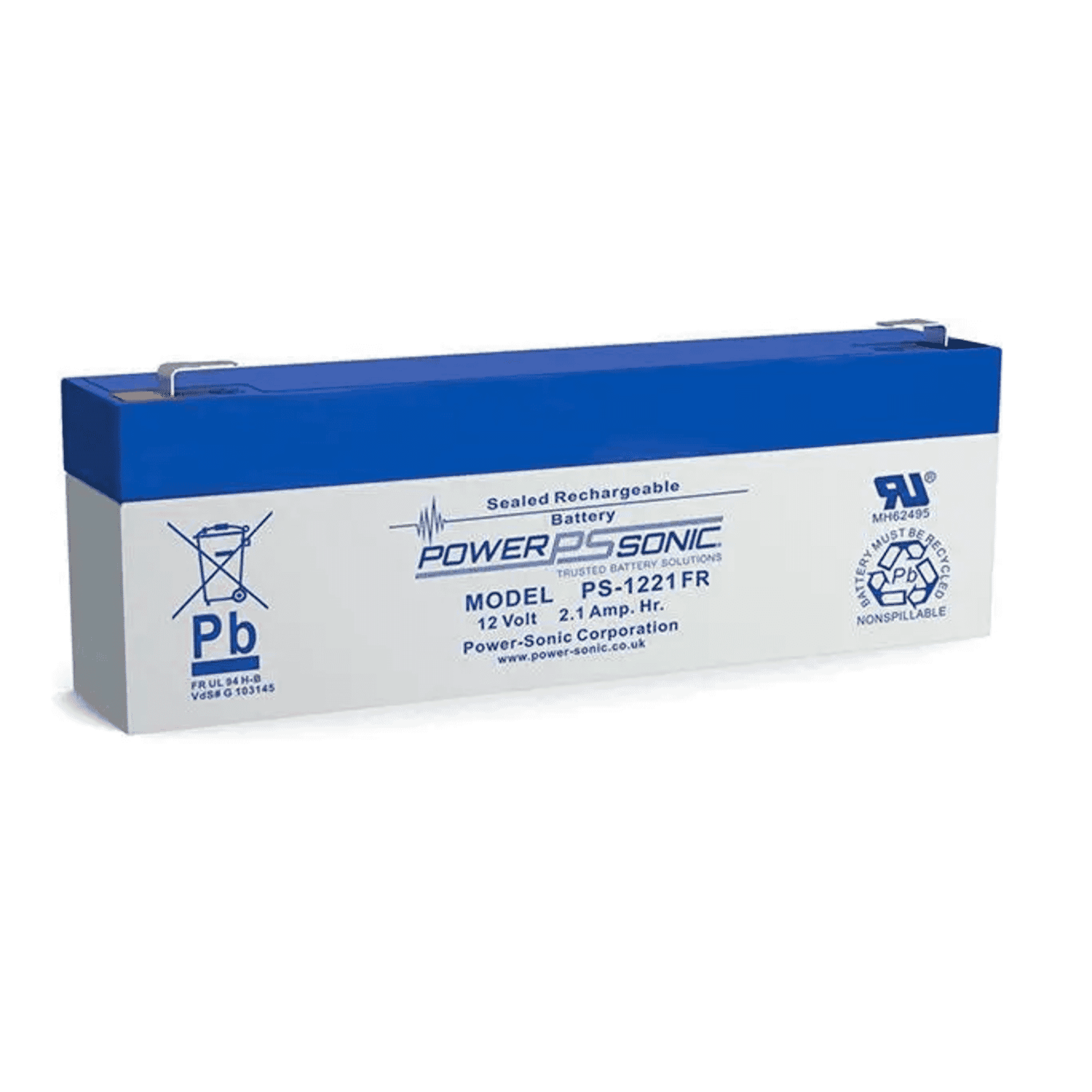

Power Sonic PS-1221VdS FR 12V 2.1Ah AGM Sealed Lead‑Acid Battery ITM003132

Introduction: Power Sonic PS-1221VdS FR — compact, certified standby power

The Power Sonic PS-1221VdS FRis a 12 V, 2.10 Ah sealed lead‑acid (AGM/VRLA) battery built for reliable standby and general‑purpose applications. With an exceptionally compact footprint, a flame‑retardant ABS case and VdS approval for fire/security installations, this battery is aimed at installers and system designers who need a durable, maintenance‑free energy source for critical systems such as fire panels, alarm systems, emergency lighting and small UPS or medical devices. The PS‑1221VdS FR uses AGM technology, is non‑spillable, and comes with F1 spade terminals for straightforward connections. Suggested retail pricing commonly sits around $29.99, making it an affordable choice for many projects.

Key features at a glance

• Nominal voltage:12 Vwith a capacity of2.10 Ah (20‑hour rate).
• AGM (VRLA)construction — valve‑regulated, non‑spillable and maintenance‑free.
• Flame‑retardant ABS (UL94: V‑0)case withVdS approvalfor European fire/security systems (FR variant).
• F1 terminaloption for quick, reliable connection.
• Transport approved for air (DOT / IATA / FAA) — confirm carrier requirements before shipment.

Detailed specifications and benefits

The PS‑1221VdS FR is engineered for longevity and dependable standby service. Key specifications include a nominal 12 V voltage and a rated capacity of 2.10 Ah at the 20‑hour rate (1.90 Ah at the 10‑hour rate). The design life in float service at 20°C is approximately 5 years, making it suitable for long‑term installation in systems where periodic replacement is preferable to frequent maintenance.

Physically the battery measures 178 × 35 × 60 mm and weighs approximately 1.0 kg. Its small size allows integration into tight compartments and compact enclosures commonly found in alarm panels, emergency luminaires and small UPS modules.

AGM (absorbed glass mat) VRLA technology offers a number of practical benefits:

• Maintenance‑free operation — no need to top up electrolyte, eliminating routine servicing in many installations.
• Non‑spillable design — safer handling and transport compared with flooded cells.
• Good low‑temperature performance and relatively low internal resistance for reliable delivery of standby currents.

The flame‑retardant ABS case (UL94: V‑0) and VdS certification are particularly important in regulated fire and security markets. The FR variant is designed to meet local regulatory or supervisory requirements in European installations where component approvals for fire and safety systems are mandatory.

Recommended charging is with a compatible charger such as Power Sonic’s PSC‑12500ACX (manufacturer recommendation). Following the manufacturer’s charge profile and using properly sized and specified chargers will prolong service life and ensure the battery remains at peak readiness.

Use cases and scenarios where the PS‑1221VdS FR excels

This battery is purpose‑built for standby applications where space is limited and approvals matter. Typical use cases include:

• Fire alarm control panels and emergency communication systems — VdS approval and flame‑retardant casing increase acceptance in regulated installations.
• Security alarm systems and access control — compact size fits inside enclosures, providing dependable backup during power outages.
• Emergency lighting modules — small footprint and maintenance‑free operation make it ideal for local battery modules within luminaires.
• Small uninterruptible power supplies (UPS) and backup modules for telecom or low‑power IT equipment — provides short hold‑up time for orderly shutdowns.
• Medical devices and portable equipment where sealed, non‑spillable batteries are preferred for safety and compliance.

Because of the VdS certification and flame‑retardant case, the PS‑1221VdS FR is especially attractive in European projects where fire and life‑safety standards require specific component approvals. Its light weight and small dimensions also mean it’s often chosen as a drop‑in replacement for older or bulkier batteries where space constraints are an issue.

Comparisons with similar products on the market

When comparing the PS‑1221VdS FR to other 12 V sealed lead‑acid batteries, several distinguishing factors emerge:

• Capacity and size:At 2.10 Ah the PS‑1221VdS FR sits between smaller 1–1.5 Ah cells commonly found in compact alarm modules and larger 4–7 Ah batteries used in larger UPS or emergency lighting packs. If you need slightly higher runtime, consider 4–7 Ah units, though they will require more space and cost more. If minimal space is critical and runtimes are short, 1.2–1.5 Ah batteries may suffice but offer less reserve capacity.
• Certifications:The VdS flame‑retardant variant gives the PS‑1221VdS FR an edge in regulated fire/security deployments in Europe. Many basic SLA batteries lack this certification, which can limit their use in certified systems.
• Terminal style:The F1 spade terminal is a common and convenient connection type for many alarm panels and fixtures. Other batteries may use F2 or screw terminals — choose the terminal type that matches your enclosure or harness for easiest installation.
• Technology differences:AGM/VRLA is a popular compromise between flooded and gel technologies — providing sealed, maintenance‑free behavior with good pulse current capability. Gel batteries can be better for deep‑cycle, slow charging in high heat; lithium alternatives offer higher energy density and longer cycle life but at higher cost and often more stringent charging/management requirements.

In short, the PS‑1221VdS FR is a strong contender when you need a compact, certified standby battery; if you need long run‑times or deep cycling, consider larger SLA units or lithium solutions based on system requirements and budget.

Safety, transport and environmental considerations

As a lead‑containing battery, the PS‑1221VdS FR must be recycled or disposed of in accordance with local regulations — do not place it in household waste. The sealed, non‑spillable design reduces handling risk, but standard precautions still apply: avoid short circuits, do not incinerate, and charge only with a suitable charger and correct settings. The battery is approved for air transport under DOT / IATA / FAA rules, but shippers should always check carrier requirements and packaging rules before sending units by air.

Customer testimonials and feedback

There are limited public consumer review records for this specific model, as it is typically sold through trade channels and installed by professionals in regulated systems. Installer and integrator feedback commonly emphasizes the following practical points:

• Reliable standby performance in alarm panels and emergency lighting modules.
• Ease of installation due to the compact size and standard F1 terminal.
• Confidence in using a VdS‑approved FR case for regulated fire/safety projects in Europe.

If you require direct user reviews or references for procurement purposes, consider asking suppliers for case studies or installer references, or request a sample unit for evaluation within your system before large deployments.

Typical installer notes and best practices

• Observe correct polarity and ensure secure F1 connections to avoid voltage drop or intermittent faults.
• Store and operate the battery within recommended temperature ranges — floating the battery near 20°C optimizes design life.
• Use the recommended charger or an equivalent charger with an appropriate AGM/VRLA charge profile to avoid under‑ or overcharging.
• Consult the Power Sonic product datasheet and installation guide for torque settings, mounting orientation and detailed safety instructions.

Conclusion: Why choose the PS‑1221VdS FR?

The Power Sonic PS‑1221VdS FR is a practical, cost‑effective solution for a wide range of standby power needs. Its combination of AGM maintenance‑free technology, compact form factor, F1 terminals and the added assurance of a flame‑retardant VdS‑approved case make it particularly well suited to fire and security installations in Europe and for any application where safety approvals and limited space are priorities. For installers and system designers requiring a dependable, easy‑to‑install battery with a reasonable lifespan and broad applicability — from alarm panels to small UPS modules — the PS‑1221VdS FR is a sensible choice. For best results, pair it with a compatible charger (manufacturer recommends PSC‑12500ACX), follow manufacturer installation guidelines and plan end‑of‑life recycling in accordance with local regulations.
