Introduction: Meet the Technomate 4K HDMI to DVB‑T RF Modulator
The Technomate 4K HDMI Signal Modulator (model TM‑RF HD IR / ITM001455) is a purpose‑built AV distribution device designed for installations that need to deliver HDMI source content over existing coaxial infrastructure. It accepts a modern 4K HDMI 2.0 input (up to 4K60 4:4:4, HDR, HDCP 2.2) and converts that feed into a tunable DVB‑T / DVB‑T2 COFDM RF channel. The RF stream is downscaled to Full HD (1080p) for broad compatibility with televisions that include DVB‑T/T2 tuners or external set‑top boxes. Key features include an HDMI loop‑through for local 4K display, 9V IR over coax for remote control, configurable DVB parameters, front‑panel controls with LCD, and a cascadable architecture for multi‑source deployments.
Key features at a glance
- 4K HDMI 2.0 input:Handles up to 4K60 4:4:4, HDR, and HDCP 2.2 sources.
- DVB‑T / DVB‑T2 RF output:COFDM modulation, RF stream downscaled to 1080p Full HD.
- HDMI loop‑through:Local 4K pass‑through while the RF output distributes Full HD to multiple TVs.
- IR over coax:9V IR support with included IR transmitter and IR eye for remote control of source equipment.
- Configurable DVB settings:Bandwidth selection (6/7/8 MHz), constellation, FEC, guard intervals, LCN/ONID options.
- Installation‑friendly:Front LCD and buttons for on‑site control, USB service/firmware port, wall‑mountable metal housing.
- Cascadable:Multiple modulators can be combined to present several HDMI sources on different RF channels.
Detailed specifications and the benefits they deliver
The Technomate TM‑RF HD IR is built around a simple but powerful concept: accept a high‑quality HDMI feed and make it available across coax using a terrestrial broadcast standard (DVB‑T/T2). Below are the most relevant technical details and what they mean in practice.
With HDMI 2.0 input capable of handling up to 4K60 4:4:4 and HDR, the unit lets you feed contemporary 4K sources such as Blu‑ray players, media servers, streaming boxes and PCs. The HDMI loop‑through provides a local 4K pass‑through so a nearby display can show the native 4K signal while the RF output is encoded and downscaled to 1080p for distribution. Benefit: you don’t sacrifice a local 4K viewing experience while still delivering broadly compatible Full HD to multiple remote screens.
The modulator outputs DVB‑T / DVB‑T2 COFDM, a robust terrestrial standard widely supported in many regions. The RF output is downscaled to 1080p Full HD, a practical compromise that preserves visual quality while ensuring tuner compatibility and efficient bandwidth use. Installers can tweak bandwidth (6/7/8 MHz), modulation constellation, FEC and guard intervals to match regional requirements and network conditions. Benefit: flexibility to optimize signal robustness and spectral efficiency for different deployment scenarios.
Included 9V IR transmitter and IR eye support IR‑over‑coax, allowing end users to control the source device from remote locations via the coax network. This is particularly useful in hospitality, multiroom or commercial settings where sources are centralized but need to be controllable from guest rooms, bars or meeting rooms. Benefit: improved user convenience and centralized source management without additional IP control systems.

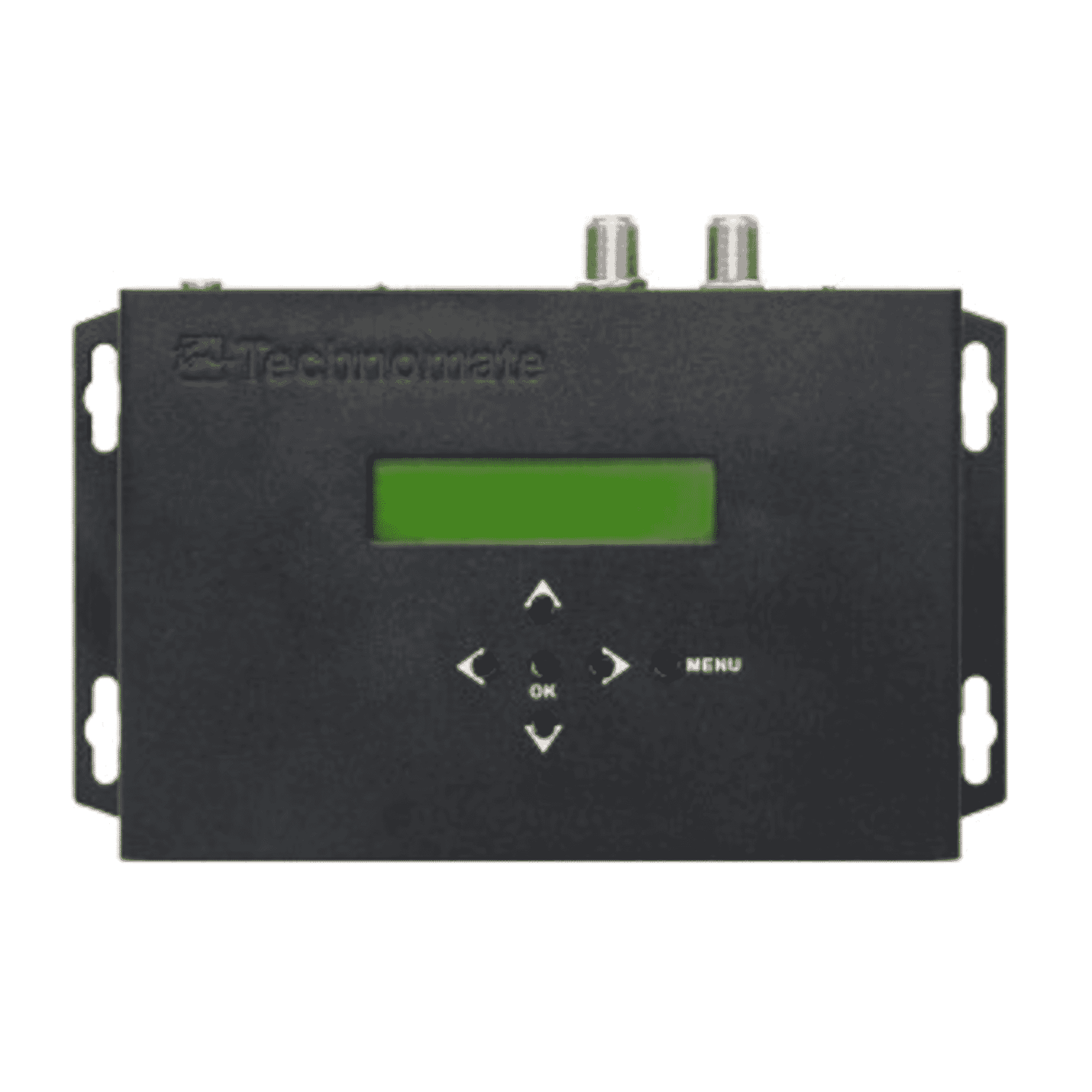

Onboard front‑panel LCD and buttons simplify setup and channel assignment during installation. A USB service port enables firmware updates and maintenance. The compact, wall‑mountable metal housing makes physical installation straightforward and durable. Benefit: installers can commission and maintain the device on site with minimal additional equipment.
While the modulator accepts 4K inputs and provides a 4K loop‑through, the RF distribution is limited to 1080p — an intentional trade‑off to ensure compatibility with DVB tuners and manageable bandwidth. It also outputs DVB‑T/T2 only; it does not produce ATSC RF for regions or TVs that rely solely on ATSC tuners (primarily the US). Finally, HDCP‑protected content can impose restrictions; verify HDCP interactions in complex switching or matrix environments.
Use cases and scenarios where the Technomate modulator excels
This device targets professional and commercial AV deployments as well as residential scenarios where coax infrastructure is already in place. Typical use cases include:
- Hotels and serviced apartments:Centralize satellite, IPTV or media server sources in a back‑of‑house rack and distribute a tuned DVB‑T/T2 channel to guest room TVs over existing coax. The IR return lets guests use their TVs to control the source without added set‑top boxes at each room.
- Multi‑unit residential buildings:Deliver building‑wide informational channels, welcome messages, or a shared media stream to apartment TVs with DVB‑T/T2 support or low‑cost tuners.
- Bars, gyms and public spaces:Feed a live event, signage or promotional video from a central HDMI source to multiple screens across a venue using coax runs already in place.
- Commercial AV installations:Use as part of a larger system to present different sources on multiple RF channels via cascaded modulators — ideal when TV sets rely on tuner inputs rather than IP or HDMI matrices at each endpoint.
- AV integrators and rental:The unit’s compact form factor and configurability make it useful for temporary installs and events where coax distribution is preferred for simplicity and reliability.
Comparisons with similar products and alternative approaches
When choosing a solution for distributing HDMI content, integrators typically consider RF modulators, HDMI over IP encoders, and direct HDMI matrixing with long‑HDMI extenders. Here’s how the Technomate compares:
IP streaming solutions offer flexible multicast/unicast distribution, higher channel density and easier two‑way control, but they require robust network infrastructure, managed switches and often more complex setup. The Technomate modulator is simpler to deploy over existing coax, has lower latency, and doesn’t rely on the local IP network. For venues with coax already installed and TVs with DVB tuners, the Technomate is usually faster and cheaper to install.
Older modulators may accept only SD or 1080p HDMI inputs and lack features like HDR and HDCP 2.2 handling. The Technomate’s support for 4K HDMI inputs and a 4K loop‑through provides future‑proofing for modern sources while still converting for tuner compatibility. Its IR over coax and configurable DVB parameters also add practical advantages for commercial installs.
If your deployment requires ATSC (common in the US), an ATSC modulator would be necessary — the Technomate outputs DVB‑T/T2 and won’t tune on ATSC‑only TVs without an external DVB tuner. Choose the standard that matches the receiving equipment and regional broadcast norms.
Customer feedback and reviews
The Technomate TM‑RF HD IR occupies a niche segment used mainly by installers and AV professionals. Public consumer reviews are limited compared with mass‑market streaming devices. Installers who evaluate such equipment typically cite the following strengths in informal feedback:
- Reliability of the RF output and ease of channel configuration for DVB networks.
- Practicality of the 4K loop‑through — local displays can remain 4K while remote TVs use the distributed 1080p feed.
- IR over coax as a simple, cost‑effective alternative to IP control for centralized sources.
If you require verified customer testimonials or case studies for procurement, request references from your supplier or ask for installation examples demonstrating cascaded deployments and IR control in real‑world settings.
Conclusion: Why choose the Technomate 4K HDMI to DVB‑T RF Modulator?
The Technomate TM‑RF HD IR (ITM001455) is a focused, installation‑grade tool for delivering HDMI source content across coax networks using the DVB‑T/T2 standard. Its ability to accept modern 4K HDR HDMI inputs while providing a local 4K loop‑through and downscaling for RF distribution strikes a useful balance for many hospitality, residential and commercial AV projects. Add to that IR over coax support, configurable DVB parameters, front‑panel controls and a compact, wall‑mountable housing, and you have a versatile device well suited to scenarios where coax remains the most practical distribution medium.
Consider the Technomate modulator if you need a dependable, installer‑friendly solution to convert contemporary HDMI sources for tuner‑based TVs without rebuilding network infrastructure. Verify tuner compatibility (DVB‑T/T2) for receiving equipment and test HDCP behavior with protected sources in your specific setup. For many deployments, the TM‑RF HD IR offers a pragmatic, cost‑effective path from 4K sources to multiroom Full HD DVB distribution.
