Introduction: RG59 Shotgun CCTV Cable and its key features

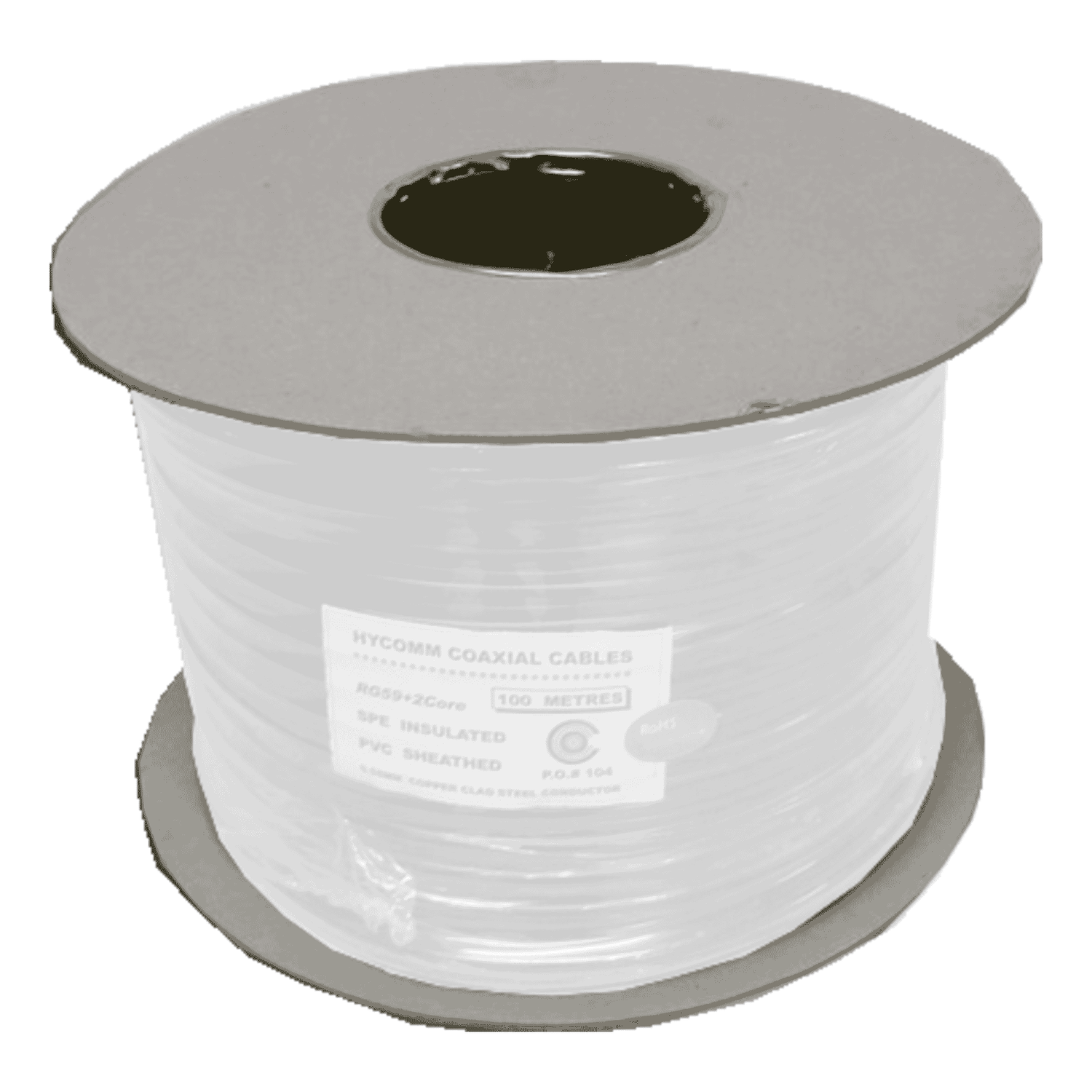

The SFX/59+2C-0.5-PVC-WHT-100 (marketed as "RG59 Shotgun CCTV Cable with 2x0.5 mm² Power Cores, PVC White, 100 m") is a purpose-built shotgun-style cable designed to simplify CCTV and surveillance installations. Combining a standard RG59 video coaxial core with two integrated 0.5 mm² power conductors, this 100 m drum of white PVC-sheathed cable reduces the need to run separate video and power cabling. Its compact overall diameter (≈6.10 mm) and single-run convenience make it an attractive choice for installers working on analogue and HD-over-coax camera systems where video and low-voltage power must be provided together.
- Integrated design:RG59 coax core plus two power conductors (0.5 mm²) in a shotgun arrangement.
- Conductor type:coax centre conductor is copper-clad steel (CCS/CCA), dielectric is solid PE.
- Finish:white PVC outer sheath (RAL 9003) supplied on a 100 m drum for tidy installations.
- Compliance:CE, RoHS and LVD declarations, CPR reaction-to-fire rating Eca.
- Economical:competitive suggested price makes it suitable for one-off projects and larger installs alike.
Specifications and benefits: a detailed description
The SFX/59+2C-0.5-PVC-WHT-100 is built around a conventional RG59 coax core with additional power conductors running alongside the coax in a shotgun configuration. The full specification highlights the practical balance between size, functionality and compliance that many installers look for.
- Manufacturer:Securi-Flex (SFX)
- Model / Part:SFX/59+2C-0.5-PVC-WHT-100
- Drum length:100 m
- Sheath colour:White (RAL 9003)
- Cable type:RG59 coaxial shotgun (RG59 + 2 power cores)
- Unit weight:7.7 kg
- Coax conductor:Copper-clad steel (CCS/CCA) — cost-effective conductor combining mechanical strength with electrical conductivity.
- Power conductor size:0.5 mm² (two cores) — suitable for low-voltage camera power (typical CCTV 12 V or 24 V DC systems), ideal for short- to medium-length runs depending on camera current draw.
- Conductor diameter:≈0.58 mm
- Dielectric / Insulation:Solid polyethylene (PE) on the coax for stable signal propagation.
- Outer diameter:≈6.10 mm — compact enough to route through conduits and trunking alongside other services.
- Regulatory:CE / RoHS / LVD (vendor declared)
- CPR rating:Eca for PVC variant — suitable for many internal installations where low flame propagation requirements apply.
Benefits at a glance:
- Time savings:Carrying video and power in one cable reduces labour and complexity during installation.
- Neat installations:White PVC jacket (RAL 9003) blends with many internal and exterior mountings, giving a tidy final appearance.
- Cost-effective core:CCS conductor lowers material cost and provides good tensile strength; suitable for many typical CCTV scenarios.
- Versatility:Works well with analogue and many HD-over-coax cameras that accept RG59.
Use cases and scenarios where this cable excels
This shotgun RG59 + 2C cable is especially useful in projects where simplicity and tidy routing matter. Typical scenarios include:
- Residential CCTV installations:Running a single cable from each camera to a nearby DVR/NVR or power distribution point keeps runs tidy and avoids pulling multiple separate cables through walls or conduits.
- Small commercial premises:Shops, offices and small warehouses benefit from the convenience of combined video-and-power runs for wall- or ceiling-mounted cameras.
- Retrofits:When upgrading older analogue systems or adding cameras to existing buildings, the shotgun layout lets installers use existing conduit space more effectively.
- Short- to medium-distance HD-over-coax:For HD-TVI / AHD / CVI systems over moderate cable lengths where RG59 signal performance is adequate, the combined cable simplifies wiring without separate power runs.
- Temporary or rapid deployments:Security events, temporary surveillance for construction sites or pop-up installations can be implemented quickly with single-run cables.
Installation notes: due to the 0.5 mm² power core size, installers should calculate voltage drop for longer runs and higher current draw cameras. For power-hungry PTZ cameras or long-distance installations, consider larger power cores or local power supplies to avoid voltage sag.
Comparisons with similar products in the market
Understanding how the SFX/59+2C-0.5-PVC-WHT-100 stacks up against alternatives helps choose the right cable for a job. Key comparison points include conductor type, power core size, jacket material, and cable geometry.
- Both formats combine video and power; the shotgun design keeps the power cores parallel to the coax in the jacket which can make termination neater in some setups. Siamese cables often feature two distinct jackets joined together — slightly bulkier but sometimes easier to separate for termination.
- SFX/59+2C is compact and well suited where space or conduits are constrained.
- CCS/CCA is more economical and provides higher tensile strength; pure copper centre conductors offer lower attenuation and slightly better signal performance over very long runs. For most standard-length CCTV runs, CCS/CCA RG59 is acceptable and widely used.
- If long-range high-bandwidth performance is required (very long runs or professional broadcast-level systems), consider RG6 or RG59 with solid copper conductor instead.
- RG6 has a larger conductor and better shielding characteristics, which can extend effective video range and improve immunity to interference. RG59 remains a popular choice for many CCTV systems due to its flexibility and sufficient performance for short-to-medium runs.
- For installations expecting >100 m runs with HD signals, RG6 or powered/extender solutions may be recommended.
Customer testimonials and installer feedback
There are no vendor-supplied official testimonials attached to this product listing. However, based on the cable's characteristics and common industry practice, typical installer feedback usually highlights:
- Ease of use:Installers appreciate the single-cable run for both video and power, which reduces pulling time and material handling.
- Neat finish:The white PVC jacket blends well with many interior installations, providing a cleaner appearance than darker sheaths in visible areas.
- Value for money:Users often comment that CCS/CCA RG59 shotgun cables offer a cost-effective balance between mechanical strength and acceptable signal performance for most CCTV use cases.
- Limitations noted:Where installers expect to run power over long distances or feed high-current cameras, they recommend verifying voltage drop and, if necessary, choosing larger power conductors or local power supplies.
Conclusion: Why choose the SFX/59+2C-0.5-PVC-WHT-100?
The RG59 Shotgun CCTV Cable with 2x0.5 mm² Power Cores from Securi-Flex is a practical, economical solution for many surveillance projects. It simplifies installations by combining video and low-voltage power in a single compact run, keeps installations neat with a white PVC jacket, and meets common regulatory declarations (CE/RoHS/LVD) with a CPR rating of Eca. For small to medium installations, residential and light commercial sites, and retrofit projects where conduit space is limited, the cable offers a good balance of cost, convenience and performance.
Before specifying this cable, consider run length, camera current draw and the type of camera system (analogue/HD-over-coax). For long-distance or high-power applications, evaluate alternatives with larger power conductors or different coax constructions (e.g., RG6 or solid-copper centre conductors). For standard CCTV deployments where convenience and tidy runs matter, the SFX/59+2C-0.5-PVC-WHT-100 is an efficient and affordable choice — suggested retail pricing (indicative) makes it accessible for both single-site jobs and larger rollouts.
Key takeaway:If you need a compact, all-in-one cable for video and low-voltage power that keeps installations simple and presentable, this RG59 shotgun cable is a sensible, cost-effective option — just confirm power requirements and run lengths during planning to ensure optimal performance.
