DS-1H18S/E(C) 1-Channel Video Balun, BNC→UTP, up to 8MP, 307400306

Introduction: DS-1H18S/E(C) 1‑Channel Video Balun and its key features

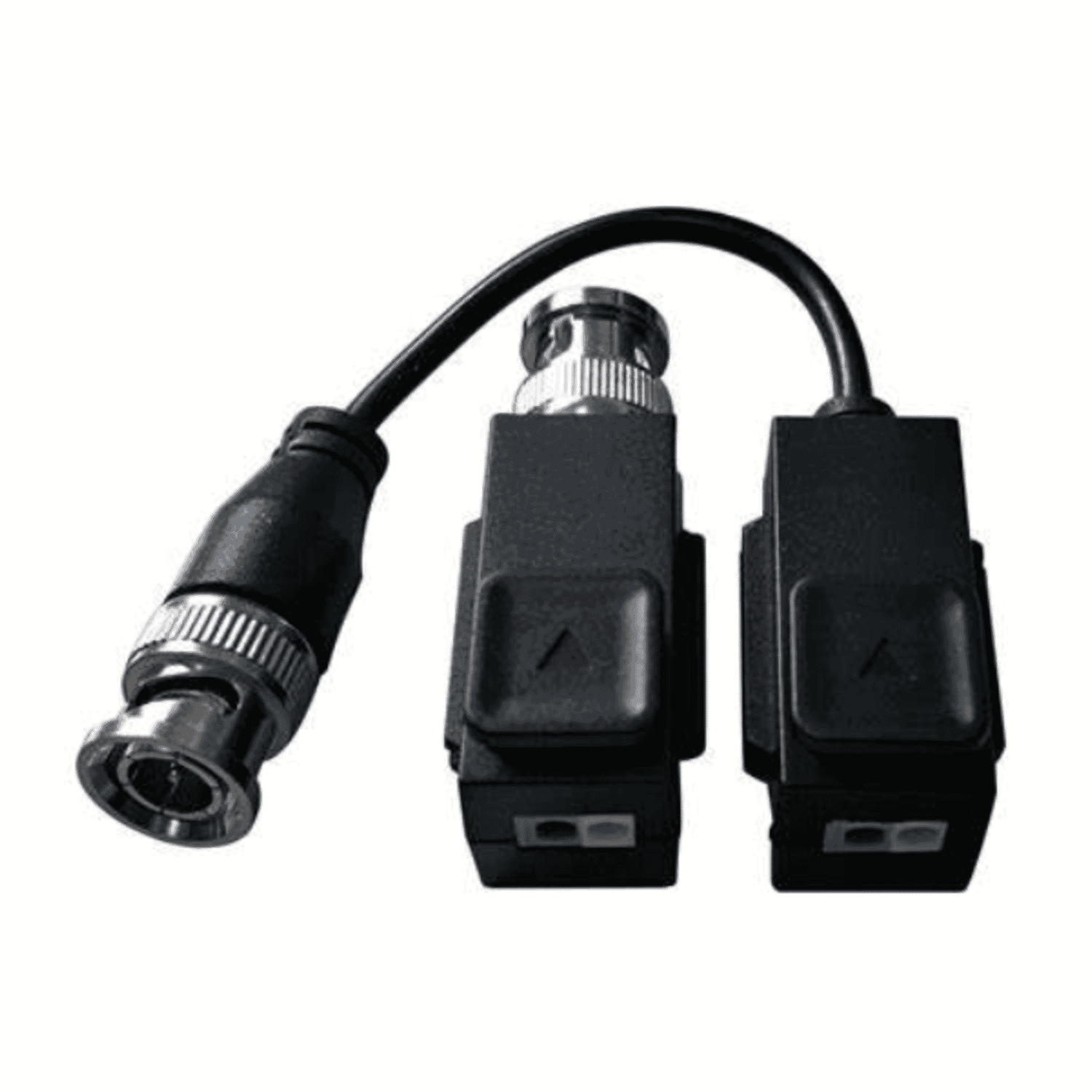

The DS-1H18S/E(C)is a compact, passive 1‑channel video balun designed to carry CCTV video signals over Cat5e/6 cabling. Built for simplicity and low cost, this BNC→UTP transceiver supports HDCVI, HDTVI, AHD and analogue CVBS formats up to 8MP (depending on camera and cabling). With a BNC male coaxial input and a tool‑less push/pat‑press terminal for UTP, the unit enables installers to use standard network cable for point‑to‑point video transmission without active electronics or an external power source.

• Passive 1‑channel UTP transceiver — no external power required.
• Supports HDCVI, HDTVI, AHD and CVBS (up to 8MP).
• BNC male (75 Ω) to push/pat‑press 100 Ω UTP terminal.
• Built‑in TVS surge/ESD protection and wave/anti‑static filtering (≥60 dB interference immunity).
• Compact ABS housing; often sold single or in paired kits.

The DS-1H18S/E(C) offers a focused list of technical attributes that make it ideal for installers who need a reliable, inexpensive way to transmit analog or HD‑over‑coax signals over twisted pair. Key specifications and what they mean in practice:

• Model/Identifier:DS-1H18S/E(C) (internal SKU 307400306). Knowing the model ensures you match datasheets and compatibility notes from the manufacturer.
• Connectors:BNC male (75 Ω) for the camera side and a push/pat‑press terminal block (100 Ω) for Cat5e/6. The push terminal makes on‑site termination quick and tool‑less, while the standard BNC ensures compatibility with most CCTV cameras and DVRs.
• Supported formats:HDCVI, HDTVI, AHD and CVBS up to 8MP. This broad format support gives flexibility for mixed‑fleet installations and future‑proofing at typical surveillance resolutions.
• Interference immunity:Built‑in wave and anti‑static filtering with TVS surge/ESD protection provides ≥60 dB immunity. That reduces common noise on long cable runs and improves signal stability in electrically noisy environments.
• Transmission distance:Typical up to 250 m for non‑POC use; POC distances vary (some references cite up to 150 m for PoC). Actual distance depends on resolution, cable quality and whether power is sent alongside video — plan with conservative margins for higher resolutions.
• Form factor and materials:Compact ABS housing, approximately 150 × 20 × 22 mm with cable and weighing roughly 32–39 g depending on configuration. Small footprint makes it easy to hide or mount near cameras or inside junction boxes.
• Operating temperatures:Typically −10 °C to 55 °C (some regional listings note −20 °C to 55 °C). Check the datasheet for precise environmental ratings if you plan to use in extreme climates.
• Packaging and certification:Often sold as single units or paired kits. Certification details (CE/UKCA) and storage temperature data should be confirmed on regional datasheets.

Benefits of these specifications include straightforward installation, low material cost, and the ability to repurpose existing structured cabling for video. The passive design eliminates failure points associated with powered extenders, while the surge protection adds a level of resilience when used in exposed or electrically noisy sites.

This video balun is well suited to a wide range of residential, commercial and light industrial CCTV projects where simplicity, low cost and compatibility across analog/HD standards matter. Typical scenarios include:

• Residential installations:Homeowners or small contractors converting short coax runs to Cat5e/6 to simplify wiring, reuse conduit or extend existing network cable for cameras around a property.
• Small business and retail:Shops and offices that deploy a handful of cameras and want a tidy, low‑cost way to route video over structured cabling without running new coax lines.
• Legacy camera upgrades:When replacing older analogue cameras with HD‑over‑coax models, the balun enables the use of Cat5e/6 infrastructure while maintaining compatibility with HDCVI/TVI/AHD inputs on recorders.
• Installer convenience:Quick, tool‑less terminations reduce labor time for large deployments where pair‑by‑pair crimping would be slower or unnecessary.
• Temporary or staged deployments:Events, construction sites or temporary monitoring where compact, inexpensive transceivers are needed and the system will be removed or reconfigured later.

Note: For long‑range or high‑resolution scenarios (>8MP, or runs beyond the typical distances listed), consider active extenders, fiber or hybrid solutions. Also plan power delivery separately if cameras require local power at the camera and the balun is passive.

Video baluns are available in many shapes and feature sets. The DS-1H18S/E(C) sits in the category of passive, single‑channel baluns that prioritise affordability and compatibility. When comparing it to alternatives, consider these axes:

• Passive vs active baluns:Passive units like the DS-1H18S/E(C) have no external power requirements and are simple to deploy, but their distance and signal stability are constrained by cable quality and resolution. Active baluns or powered extenders can push signals farther, support higher bandwidths, and often include equalization and OSD adjustments for fine tuning.
• Connector style:The push/pat‑press terminal is faster for field termination compared with RJ45 jacks that require standard pin‑outs. RJ45 baluns are convenient where both ends will be patched into a structured panel, while push‑terminal baluns are handy for direct camera or terminal box connections.
• Multi‑channel vs single‑channel:Multi‑channel balun units (2/4/8 channels) reduce per‑channel cost and consolidate cabling points, but single‑channel units like the DS-1H18S/E(C) give flexibility to mix and match locations and camera types without bulkier housings.
• Surge and ESD protection:The built‑in TVS surge protection elevates this unit above generic no‑protection baluns, making it a better choice for outdoor or exposed runs where ESD events and surges are possible.

In short, the DS-1H18S/E(C) competes strongly on price and simplicity while offering better-than-basic protection. For projects that demand longer reach, integrated power over cable, or multi‑channel consolidation, consider active extenders, PoE hybrids, or multiport balun panels.

There are no specific official customer testimonials included with the product information provided here. However, common feedback themes from installers and users of similar passive baluns tend to include:

• Positives:Praised for low cost, easy and fast installation, compact size and broad format compatibility. The built‑in surge/ESD filtering is often noted as a differentiator against very cheap generic baluns.
• Constructive criticism:Passive design limits maximum reliable distance at higher resolutions; installers sometimes prefer active extenders for long runs. Some users also prefer RJ45 connections for structured cabling environments.
• Value perception:With an estimated suggested retail price around 9.99 (local currency dependent), many find the DS-1H18S/E(C) to be an economical choice when balancing price and functionality.

If you require verified user reviews, check reseller pages, installer forums or the vendor’s regional product listings where real‑world ratings and comments are often published.

To get the best results from the DS-1H18S/E(C), follow these practical tips:

• Use solid Cat5e/6 cabling and maintain good pair integrity; avoid damaged or untwisted pairs that degrade performance.
• Route video pairs away from high‑voltage power cables and strong EMI sources to minimize noise pickup despite the balun’s filtering.
• Test runs at the target resolution and verify signal quality before finalising installations—higher resolutions reduce effective distance.
• If powering cameras over the same cable is required, plan for PoC solutions or separate power conductors; the DS-1H18S/E(C) is passive and not designed to inject power on its own.
• Observe local grounding and surge protection practices; while the unit has TVS protection, site‑level surge mitigation reduces risk to camera systems and recorders.

Conclusion: Why the DS-1H18S/E(C) is a smart choice

The DS-1H18S/E(C) 1‑channel video balun is an effective, budget‑friendly tool for installers and DIYers who want to run CCTV video signals over Cat5e/6 without complex hardware or power requirements. Its support across HDCVI, HDTVI, AHD and CVBS up to 8MP, combined with tool‑less UTP termination and built‑in surge/ESD protection, makes it a versatile option for many residential and small‑business projects. While not a replacement for high‑performance active extenders or fiber solutions for very long runs or cutting‑edge resolutions, its low cost and practical feature set deliver excellent value where straightforward video transmission is the priority.

Note:Always refer to the official datasheet and regional Hikvision product pages for full environmental specs, certification status and detailed transmission charts when planning installations. Confirm packaging and seller claims (single units vs paired kits) with your supplier before purchase.
