Introduction to the DS-D5027F2-1P2 and its key features

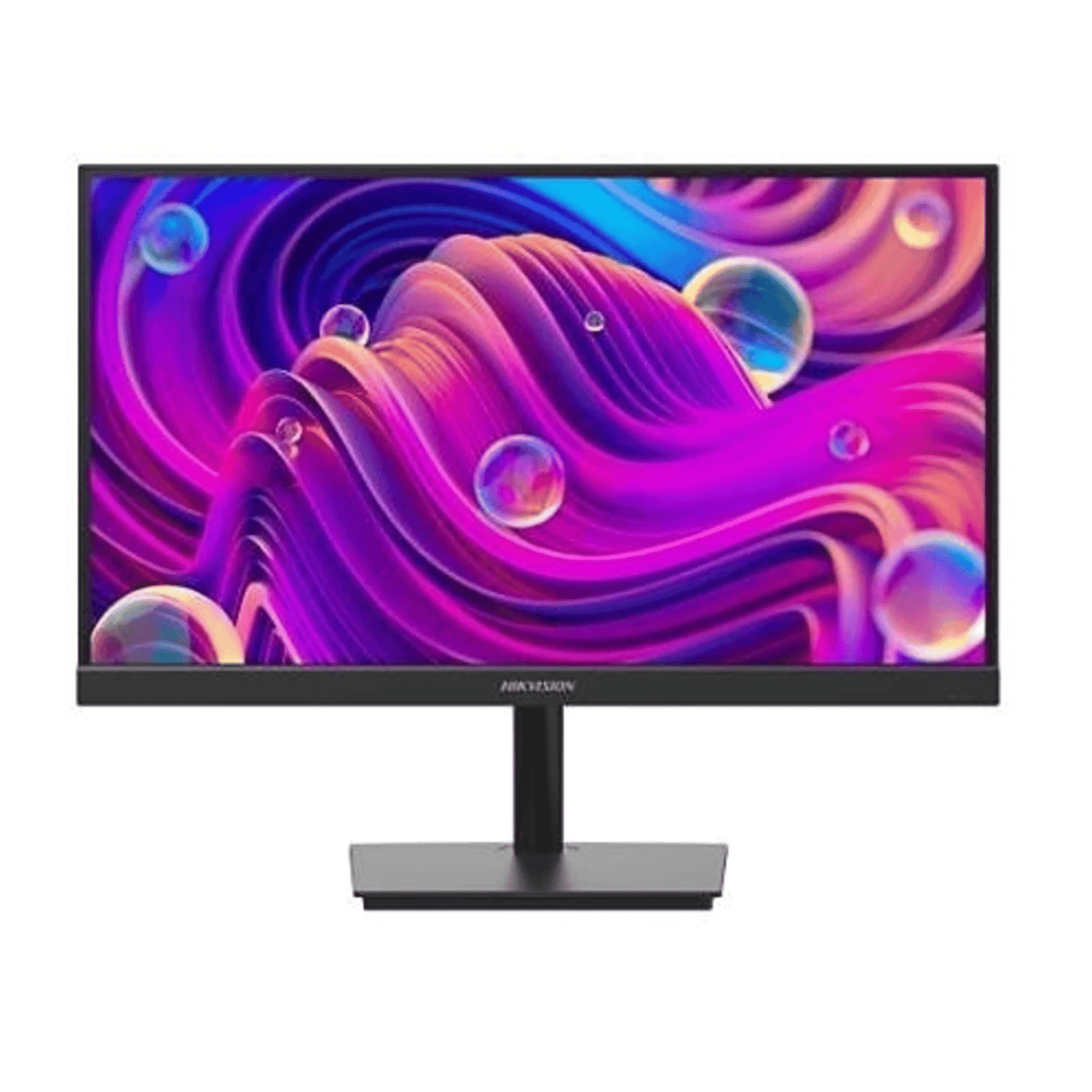

The DS-D5027F2-1P2 is a purpose-built 27in Full HD (1920×1080) IPS surveillance monitor designed for round-the-clock CCTV and control-room environments. With a near-borderless three-side bezel, low-blue-light eye-care design and VESA 100 mounting compatibility, this model targets security operators, installers and commercial users who need a reliable, easy-to-mount display tuned for continuous monitoring. Key selling points include an IPS panel for wide viewing angles, support for up to 100 Hz refresh to help with smooth motion perception, simple HDMI and VGA connectivity, and a low typical power draw suitable for multi-monitor setups.
- 27in FHD (1920×1080) IPS panel with wide 178°/178° viewing angles
- Up to 100 Hz refresh rate (typical 60 Hz) with Overdrive option (5 ms)
- 300 cd/m² brightness and 1300:1 contrast for clear indoor viewing
- Low-blue-light eye-care design and anti-glare surface (Haze 25%, 3H)
- Connectivity: HDMI 1.4 ×1 and VGA ×1; no audio out or network interfaces
- VESA 100 × 100 mm mounting; base, 12 V adapter and 1.5 m HDMI cable included
- Designed for 24/7 CCTV and control-room usage; check regional availability and warranty
Detailed specifications and benefits
Understanding the DS-D5027F2-1P2 starts with the specifications and the practical benefits they deliver in real-world surveillance deployments.
- Screen size & resolution:27 inches at Full HD (1920×1080). This resolution provides ample desktop space for multi-camera layouts and detailed scene inspection without the expense of higher-resolution displays.
- Panel type:IPS — offers consistent colour and contrast across a very wide 178°/178° viewing angle. For monitoring rooms where multiple operators view the same screen, IPS avoids colour and contrast shift seen on TN panels.
- Brightness & contrast:300 cd/m² and 1300:1 contrast ratio — tuned for indoor CCTV environments. The result is readable images under typical control-room lighting and good differentiation of highlights and shadows in camera feeds.
- Colour depth:8-bit (16.7M) and 72% NTSC gamut — adequate for surveillance where true broadcast-grade colour is rarely necessary, while still providing natural-looking images for operator assessment.
- Surface finish:Haze 25% (3H) anti-glare treatment — reduces reflections from overhead lighting and helps maintain visibility in rooms with mixed lighting sources.
- Refresh rate and motion handling:Up to 100 Hz (typical 60 Hz) with an Overdrive option capable of 5 ms response. Increased refresh and faster response reduce motion blur in PTZ sweeps and fast-moving scenes, helping operators detect and follow subjects more clearly.
- Viewing experience:Wide viewing angles and anti-glare finish ensure consistent image quality across operator consoles and multi-monitor arrays.
- Connectivity:HDMI 1.4 ×1 and VGA ×1. These legacy-style inputs guarantee easy connection to a wide range of DVRs, NVRs and PCs, though the model lacks DisplayPort, audio outputs and network interfaces.
- Power efficiency:DC 12 V, 2.5 A (adapter included) with typical power consumption ≤ 30 W and standby ≤ 0.5 W. Lower power draw matters in multi-monitor control rooms where operational costs and heat load accumulate.
- Mounting & accessories:VESA 100 × 100 mm compatibility, base included, and a 1.5 m HDMI cable in the box. These practical inclusions simplify installation on desks, arms or video walls.
- Operating conditions:Rated for 0 °C to 40 °C, and 20%–90% RH non‑condensing — typical for indoor monitoring stations but important to confirm for harsher environments.
- Dimensions & weight:Approx. 613 × 449.7 × 216 mm with base and ≈ 3.93 kg net weight — a manageable footprint for crowded racks and consoles.
Important notes:This model is listed as discontinued in some regions; verify stock, warranty and supplied power adapter type with your supplier before finalising purchases. Installation should follow local electrical regulations and, where necessary, mains connections should be handled by qualified electricians.
Use cases and scenarios where the monitor excels
The DS-D5027F2-1P2 is optimised for monitoring scenarios where reliability, viewing clarity and easy mounting matter more than advanced consumer features. Typical use cases include:
- Control rooms and command centres:Wide viewing angles, anti-glare treatment and a near-borderless bezel make it suitable for operator consoles and small tiled arrays where consistent image quality is required across multiple viewpoints.
- Security workstations:Small to medium security rooms benefit from the monitor’s continuous-duty design, modest power consumption, and included power adapter and HDMI cable for quick deployments.
- Retail and commercial CCTV installations:Stores and service venues that require 24/7 monitoring for loss prevention or operations can rely on the monitor’s simple connectivity and reliable panel performance.
- Surveillance archives and review stations:The FHD resolution provides enough detail for forensic review of recorded footage, and the optional higher refresh and Overdrive help when scrubbing through pans and fast motion.
- Multi-screen video walls for situational awareness:While not a dedicated video-wall panel, the near-borderless three-side bezel and VESA compatibility allow installers to create compact multi-panel setups for situational monitoring.
Comparisons with similar products in the market
Positioning the DS-D5027F2-1P2 against alternatives helps reveal where it is most competitive and where other models might better serve specific needs.
- Versus consumer 27in IPS monitors:Many consumer models offer similar resolution and panel quality, but they typically lack the continuous-duty testing and surveillance-specific ergonomics such as low‑blue‑light eye care and anti-glare haze tuned for control rooms. Conversely, consumer models may provide more varied ports (DisplayPort, USB hubs) and multimedia features that surveillance users often do not require.
- Versus gaming monitors (high refresh, e.g., 144 Hz):Gaming panels often exceed 100 Hz and offer very low response times, but they prioritise motion clarity for games rather than long-term reliability and low-blue-light design. The DS-D5027F2-1P2 provides a middle ground — smoother motion up to 100 Hz while focusing on sustained operation and viewing comfort.
- Versus high-end professional CCTV displays:Advanced surveillance displays may include multiple inputs, built-in switching, higher brightness (for very bright environments), and network management features. The DS-D5027F2-1P2 is more cost-conscious and straightforward; it trades advanced integration features for simplicity, lower power use and an attractive price point for multi-screen deployments.
- Value proposition:With a suggested retail price of around 199.00 (check regional pricing), the DS-D5027F2-1P2 presents a competitive price-to-feature ratio for security integrators who need dependable, easy-to-install displays without premium extras. Confirm supplier stock and support given regional discontinuation notices.
Customer feedback and typical reviews
Official, region-specific customer testimonials for this exact model may be limited, particularly where the model is discontinued. From installer and operator perspectives, the kinds of comments you can expect from this class of monitor include:
- "Dependable day-to-day performance" — installers appreciate reliable performance for multi-monitor control desks and the simplicity of included power and HDMI cabling.
- "Good viewing angles and low glare" — operators note the IPS panel and anti-glare finish make long shifts easier on the eyes and reduce the need to reposition displays.
- "Missing advanced ports" — some customers expect DisplayPort, audio out or network integration; the DS-D5027F2-1P2 focuses on the essentials (HDMI/VGA) rather than extended connectivity.
- "Great value for surveillance deployments" — for projects where many displays are required, lower unit cost, modest power draw and included accessories reduce total installation costs.
When considering this monitor, ask your supplier for local user reviews or demonstration units to validate fit-for-purpose performance in your specific environment.
Conclusion: Why the DS-D5027F2-1P2 is a compelling choice
For integrators and security teams seeking a practical, budget-conscious 27in monitor tuned for 24/7 CCTV and control-room use, the DS-D5027F2-1P2 offers a balanced blend of performance, efficiency and ease of installation. The IPS panel and wide viewing angles support collaborative monitoring, the near-borderless bezels aid tiled setups, and the optional higher refresh and Overdrive mode reduce motion blur for PTZ and fast-motion footage. Power efficiency, included accessories and VESA mounting make it straightforward to deploy across multiple stations.
Limitations to consider include the basic port selection (HDMI and VGA only), the absence of audio and network interfaces, and regional availability or warranty variations — confirm these details with suppliers. If your priority is a dependable, unobtrusive display engineered for continuous operation rather than a feature-rich multimedia screen, the DS-D5027F2-1P2 represents a solid, value-oriented option for many CCTV and control-room installations.
