Introduction to the B‑Tech BT7514/PB and its key features

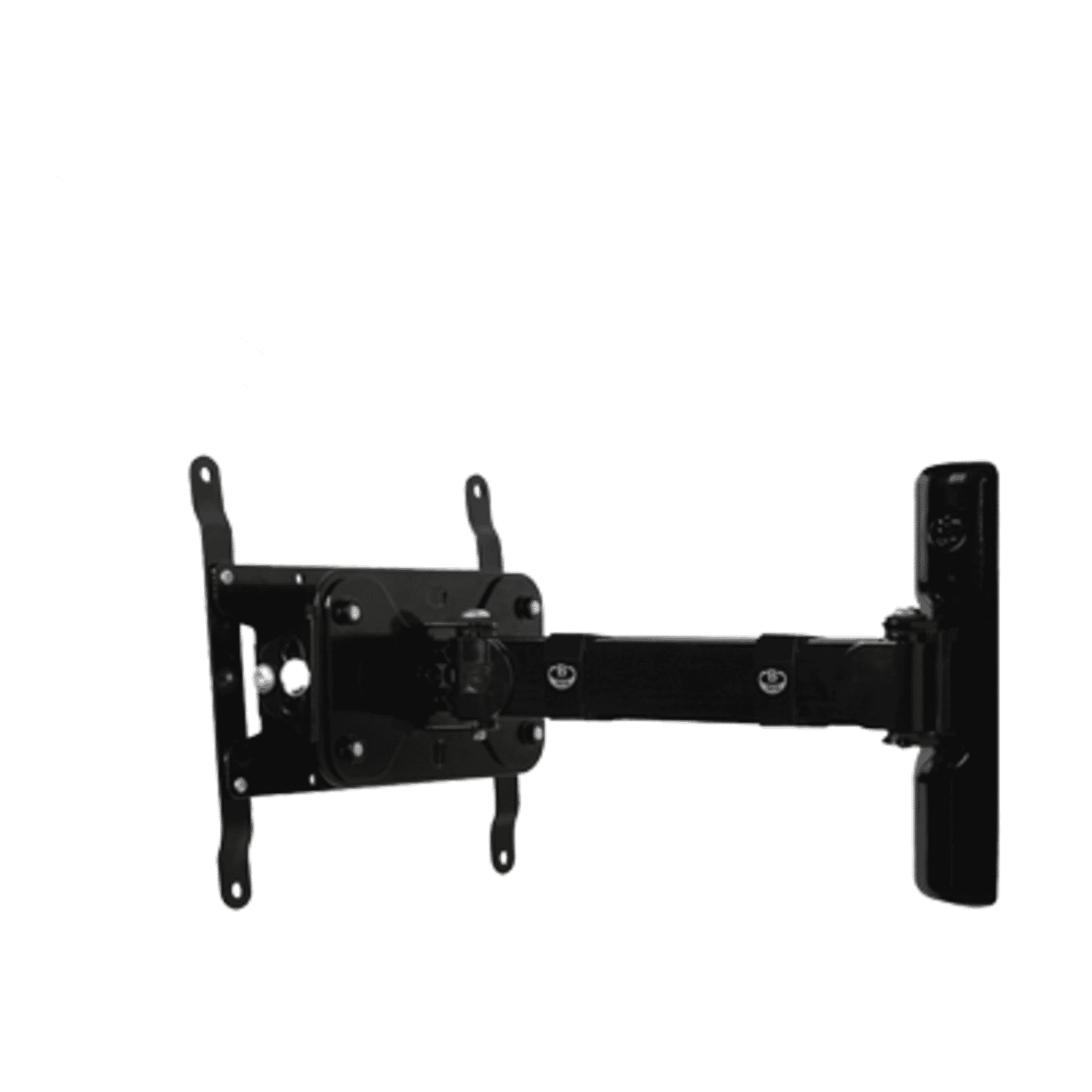

The B‑Tech BT7514/PB is a compact, single‑arm tilt and swivel wall mount designed for small to medium flat‑panel displays — recommended for screens up to 47" (119 cm) and a maximum load of 25 kg. Built for flexibility and a neat finish, the BT7514/PB combines two swivel joints, a generous tilt range, on‑wall levelling and integrated cable management into a low‑profile package that folds flat when not in use. For homeowners, offices and light commercial installations looking for reliable adjustability without the bulk of a full articulating mount, the BT7514/PB is a practical, well‑specified choice.
Detailed product specifications and benefits
Understanding the technical details helps clarify why this mount works well in many environments. Below are the core specifications and the benefits they deliver in everyday use.
- Maximum screen:Up to 47" (119 cm)
- Maximum load:25 kg
- VESA compatibility:75×75, 100×100, 200×100, 200×200 mm
- Tilt range:±40° (helps reduce glare and tailor viewing angle)
- Swivel:180° at the wall / 240° at the interface for wide lateral adjustment
- Extension from wall:Adjustable 95–336 mm; folds flat when retracted
- Finish:Powder black
- Warranty:5‑year warranty (check regional terms and reseller details)
- Included: long arm + short arm, interface/tilt plates, VESA adapter arms
- Extras: CLIPLOGIC® cable management clips, coverplates, security screws & hex/security keys
- Fixings: coach screws & wall plugs for general masonry or timber fixing (verify for your wall type)
- Documentation: installation guide & datasheet available on the B‑Tech product page
- Versatile tilt and swivel:±40° tilt and wide swivel allow comfortable viewing from a variety of seating positions and help reduce reflections from windows or lights.
- Compact footprint:With an extension range of 95–336 mm, the mount keeps the screen close to the wall when desired yet gives enough reach for corner or angled positions.
- Neat installation:OWLS on‑wall levelling simplifies alignment at the time of fitting; CLIPLOGIC® clips keep power and signal cables tidy and concealed.
- Security and finish:Coverplates hide fixings for a cleaner look and security locking screws help deter tampering in public or commercial spaces.
Use cases and scenarios where the BT7514/PB excels
The BT7514/PB is designed to suit many everyday mounting scenarios where a small, adjustable mount is preferred over a fixed plate or a heavy duty articulating arm. Typical use cases include:
For bedrooms, kitchens or smaller living rooms where viewing positions change and glare can be problematic, the ±40° tilt and wide swivel make it easy to point the screen toward sofas, beds or cooking areas. The low‑profile fold‑flat feature keeps the TV unobtrusive when not in use.
In a home office or meeting room, the mount enables simple adjustments for video calls or presentations. Its cable management and tidy finish help maintain a professional appearance, while the security screws are useful in shared spaces.
Small digital signage screens in cafes, bar areas or reception spaces benefit from the mount’s flexible positioning and secure fittings. The relatively light weight and compact design also suit secondary screens in hotel rooms, corridors or staff areas.
Classrooms, small training rooms and multipurpose community spaces often require screens to be moved slightly to accommodate different layouts. The BT7514/PB’s adjustable extension and tilt make it simple to adapt without a bulky installation.
Comparison with similar options on the market
When selecting a mount, buyers typically compare fixed, tilt‑only and full‑motion (articulating) options. The BT7514/PB positions itself as a middle ground between a basic tilt plate and a heavy, complex articulating arm.
Fixed mounts are the simplest and often the cheapest solution, keeping screens flush to the wall. They lack tilt and swivel, so they are best where viewing position is static (e.g., dedicated living rooms with central seating). Compared to fixed mounts, the BT7514/PB offers far more flexibility with only a modest increase in cost and depth.
Tilt‑only mounts provide vertical angle adjustment but little or no lateral movement. The BT7514/PB, with two swivel points and a large tilt range, is more adaptable when side viewing or corner mounting is needed.
Full‑motion mounts that support larger screens and heavier loads deliver extensive reach and multi‑axis movement. They are typically larger, heavier and more expensive. The BT7514/PB delivers many of the benefits of a full‑motion mount for small to medium screens — including double‑swivel capability — while remaining lighter, simpler to install and better suited to spaces where extreme extension isn’t required.
At a suggested retail price of around £/€64.99 (retailer dependent), the BT7514/PB sits in a value segment for buyers who want genuine adjustability, neat cable management and security features without the premium of heavy‑duty brands or large articulating systems. For many buyers, the B‑Tech model offers a stronger feature set than basic mounts from general retailers and a more compact form factor than multi‑arm heavy articulating units.
Customer feedback and representative testimonials
No individual customer reviews were supplied with this brief, but representative comments from users of this type of mount typically focus on three areas: ease of installation, build quality and practicality of the movement range. Example feedback you might expect:
- "Easy to level thanks to the OWLS system — the TV went up straight and looks neat. Tilt and swivel are smooth and stable."
- "Perfect for our kitchen screen. It folds back when we don’t need it and we can angle it away from the window glare."
- "Good value for the features. Cable clips and coverplates make the finished install look professional. Make sure to use the right wall fixings for your surface."
These sample comments reflect common praise for the BT7514/PB’s practical design and tidiness once installed. For verified reviews, check retailer listings or B‑Tech reseller pages where customers may post real‑world ratings and photos.
Installation tips, safety notes and final considerations
To get the best performance from the BT7514/PB and ensure safety:
- Do not exceed the maximum load of 25 kg. Check your screen’s weight and VESA pattern before buying.
- Confirm wall type and use appropriate fixings — masonry, block, stud or plasterboard installations require different anchors or a qualified installer.
- Use the included OWLS levelling system to align the mount during fitting and employ the security screws where public access is a concern.
- Keep cables tidy with the CLIPLOGIC® clips and use the coverplates to conceal holes and fixings for a clean finish.
Conclusion — why the B‑Tech BT7514/PB is a strong choice
For anyone mounting a small to medium screen and seeking a balance between flexibility, neat appearance and value, the B‑Tech BT7514/PB is an attractive option. It offers broad tilt and swivel ranges, double pivot points for flexible positioning, useful cable management and levelling aids that speed up installation and improve the finished look. Its compact extension range makes it ideal for rooms where space is limited but occasional angling is necessary, and its inclusion of security screws and coverplates broadens its suitability for both residential and light commercial environments. Backed by a 5‑year warranty (subject to regional terms), the BT7514/PB stands out as a practical, well‑rounded single‑arm mount for screens up to 47".
