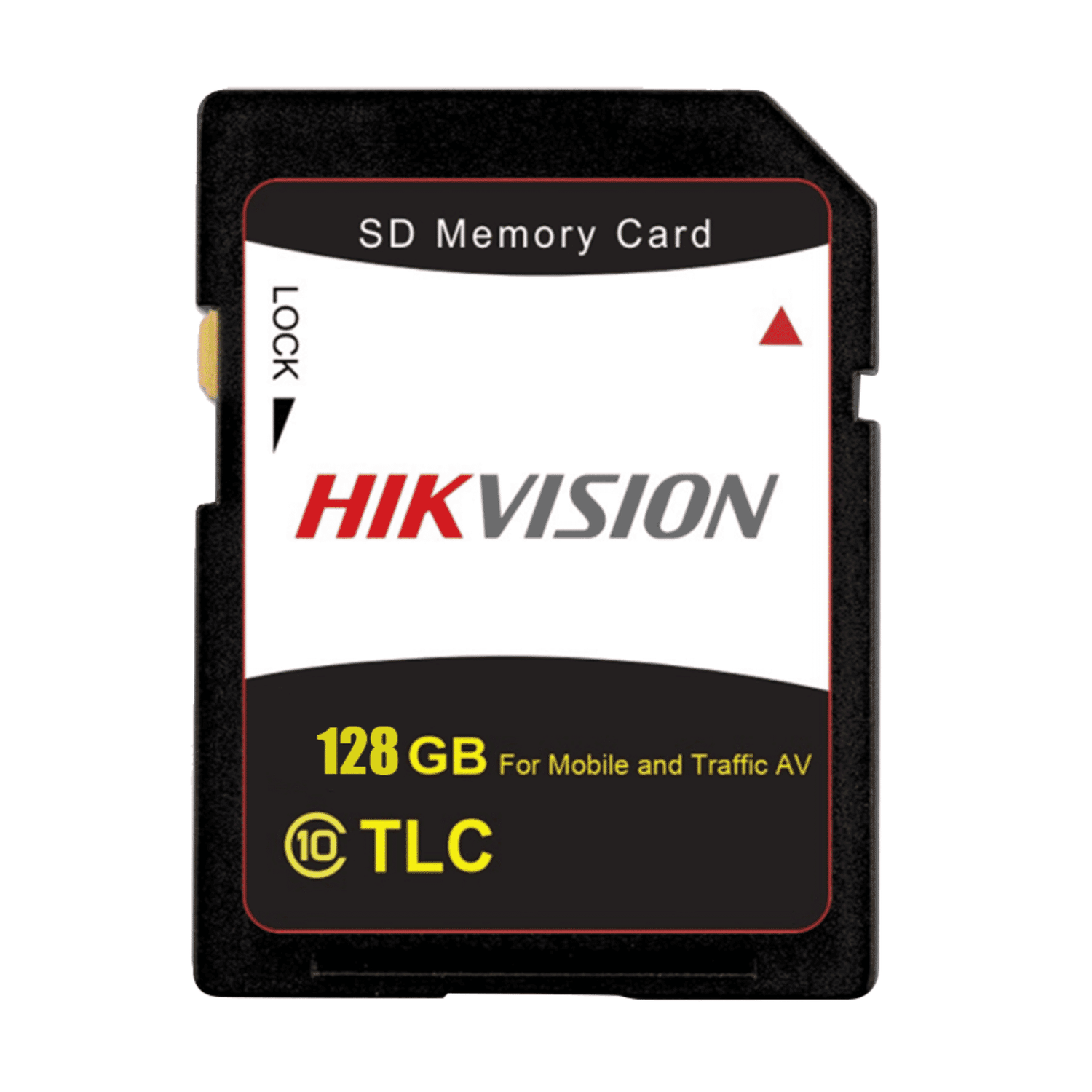

Introduction to the Hikvision AE-MW3SD1 128GB SDXC — On-board High‑Endurance
The Hikvision AE-MW3SD1 128GB SDXC is a purpose-built, high‑endurance memory card designed for continuous video recording in vehicle environments. Optimised for dashcams, mobile DVRs (MDVRs) and other onboard surveillance devices, this UHS‑I/Class 10 card uses TLC NAND to balance capacity, endurance and cost. With published read speeds up to 100 MB/s and write speeds around 70 MB/s for the 128 GB capacity, the AE-MW3SD1 is positioned as a reliable, affordable option for installers, fleet operators and anyone needing stable, long-duration onboard capture.
- Capacity:128 GB (SDXC, full‑size SD)
- Interface & speed class:UHS‑I (SDR104), Class 10 — published read up to 100 MB/s, write up to ~70 MB/s
- NAND type:TLC NAND optimised for endurance and cost
- Endurance:Manufacturer-rated program/erase cycles around ~1,000; designed for frequent write/erase typical of continuous video recording
- Environmental tolerance:Operating 0°C to 70°C, storage −40°C to 85°C, humidity 10%–95%
- Optimised use:Dashcams, MDVRs, onboard security systems
Detailed description of specifications and benefits
The AE-MW3SD1 is built to address the specific demands of onboard recording. Unlike general-purpose consumer cards that prioritise burst performance for photography, this card focuses on sustained, steady writes and mechanical robustness that are vital in a car, truck or fleet environment.
Hikvision publishes maximum read speeds up to 100 MB/s and write speeds up to approximately 70 MB/s for the 128 GB model. Actual speeds depend on the host device, firmware and workload, but these figures indicate the card can handle full‑HD continuous streams and many compressed 4K dashcam formats used by modern MDVRs. The UHS‑I interface (SDR104) and Class 10 rating ensure baseline compatibility with most onboard devices.
The card uses TLC NAND memory engineered to provide higher endurance than typical consumer TLC implementations by focusing on firmware optimisations and wear‑leveling suited to surveillance workloads. Hikvision lists program/erase (P/E) cycles around ~1,000 and specifies high mechanical endurance (insertion/removal cycles). These characteristics reduce the risk of premature failure when the card undergoes frequent, continuous recording and cyclic overwriting — a common pattern in dashcams and MDVRs.
Vehicles expose components to wide temperature ranges and vibration. The AE-MW3SD1 is rated to operate between 0°C and 70°C and endure storage extremes from −40°C to 85°C. Working humidity is specified at 10%–95%. These ratings mean the card is suitable for most temperate to hot climates and typical vehicle interior conditions. For extreme cold starts or unusual installations, always test the card in the target device to validate behaviour at temperature extremes.
- Stability for long recordings:Firmware and NAND selection aim to maintain write stability during extended capture sessions.
- Cost-effective capacity:128 GB provides a practical balance between storage retention time and price for many fleets and private users.
- Compatibility:Full‑size SDXC form factor and standard SD 6.1/SDXC compliance helps ensure broad device compatibility.
- Value:At a suggested price around $19.99 (cost price example $16.68), it targets budget-conscious buyers who still require purpose-built endurance.
Use cases and scenarios where the AE-MW3SD1 excels
This card is tailored for continuous, cyclical recording environments where data is constantly written, overwritten and accessed. Typical applications include:
Dashcams continually record video and typically overwrite the oldest segments once the card reaches capacity. The AE-MW3SD1’s endurance features and sustained write capability make it suitable for such workflows, reducing the chance of corrupted segments and premature card failures.
In MDVRs that record multiple camera channels simultaneously, sustained write performance is more important than burst read speeds. The card’s UHS‑I/Class 10 rating and TLC NAND optimisations help maintain consistent recording across channels, provided the MDVR’s write demands fall within the card’s sustained capacity.
For buses, taxis, delivery trucks and commercial fleets, reliable video capture assists incident forensics and driver training. The AE-MW3SD1 offers a good mix of cost and durability for systems that require continuous logging without frequent manual intervention.
- Always format the card in the host device rather than on a PC to ensure compatibility with the device’s file system and allocation unit size.
- Keep device firmware up to date — host firmware often contains performance and compatibility improvements for specific cards.
- Test sample cards in representative devices before deploying at scale for mission‑critical systems.
- Monitor storage retention policies and set overwrite schedules appropriate to incident retention requirements.
Comparisons with similar products on the market
When selecting an onboard SD card there are three core decision axes: endurance, sustained write performance and cost. The AE-MW3SD1 positions itself as a cost‑effective, endurance‑oriented option rather than a premium, industrial‑grade card.
Consumer cards often prioritise high read/read-burst speeds for photography and video playback. While they can be used in dashcams, they may not have the same firmware-level wear‑leveling and sustained write stability as an onboard‑optimised card. The AE-MW3SD1 provides better assurance for continuous write workloads than generic consumer cards in similar price brackets.
Industrial or SLC/MLC-based cards typically offer far higher P/E cycles and longer warranties, but at significantly higher cost. If your application is mission-critical (e.g., long-term evidential storage, extreme environmental needs), an industrial card may be worth the extra investment. The AE-MW3SD1 represents a middle ground: more durable than standard consumer cards and more affordable than premium industrial options.
With a suggested retail price around $19.99, this card competes well on price per gigabyte for onboard‑optimised cards. For many fleets and installers that need a balance of cost and reliability, the AE-MW3SD1 is a pragmatic choice.
Customer testimonials and reviews
Official, verifiable customer reviews for this specific SKU are not provided here. However, installers and fleet operators evaluating similar Hikvision onboard cards typically report a few consistent themes:
- Reliability in standard operating conditions — fewer corrupted files compared with low‑cost, non‑onboard cards.
- Good value for money — adequate retention time for daily recordings at a moderate price.
- Importance of using the card with up‑to‑date firmware and formatting in device — many issues stem from misconfiguration rather than the card itself.
For prospective buyers, it’s best practice to consult distributor pages or reseller platforms for user reviews and to pilot the card in a small number of vehicles before wider fleet rollout.
Conclusion — why the AE-MW3SD1 is a solid choice for onboard recording
The Hikvision AE-MW3SD1 128GB SDXC blends endurance‑focused engineering with an accessible price point, making it a practical option for dashcams, MDVRs and onboard surveillance systems. Its UHS‑I/Class 10 credentials and TLC NAND backing are tuned for sustained write stability rather than peak burst performance, which matches the needs of continuous video capture. Environmental ratings and manufacturer endurance figures suggest the card can withstand typical in-vehicle stresses, while its capacity provides a reasonable retention window for most daily recording needs.
Ultimately, this card is best suited to installers and fleet managers who need dependable, affordable onboard storage and are prepared to validate compatibility with their host devices and maintain current firmware. For mission‑critical installations that demand maximum longevity under extreme conditions, consider higher‑end industrial options; for broad, day‑to‑day fleet use, the AE-MW3SD1 offers a compelling balance of durability, performance and value.
Note:Warranty and regional compliance (CE/UKCA) can vary by distributor—confirm terms with your supplier prior to purchase. Always test cards in your specific device and environment before full deployment.
