200 m RG59 CCTV Coaxial Cable, CCA Conductor, PVC/LSF Jacket, 75Ω ITM001027

Introduction to the 200 m RG59 CCTV Coaxial Cable and key features

200 m SFX RG59 CCTV Coaxial Cable (ITM001027)is a practical, cost-conscious cable solution designed for CCTV and general video applications. Supplied on a 200 m bulk reel, this RG59 cable delivers a nominal 75 11 impedance and is engineered to support analogue and many HD-over-coax formats such as TVI, CVI and AHD. It is available with either a standard PVC jacket (CPR class Eca) or a low-smoke fluorinated polymer (LSF) jacket (CPR class Fca), and in black or white finishes to suit different installation aesthetics.

Key features at a glance:

• Bulk 200 m reel ideal for multiple camera runs or stock in a van.

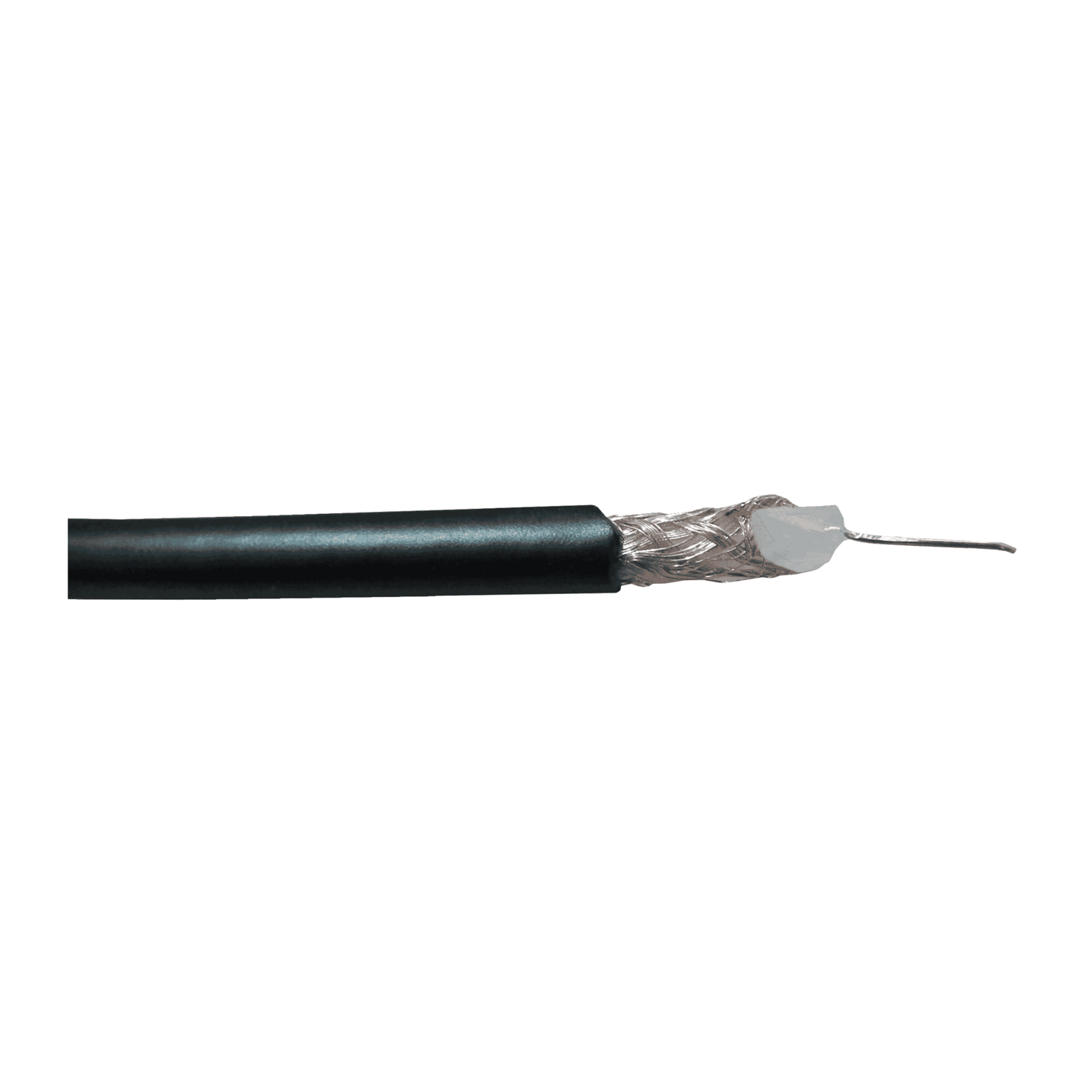

• Copper-clad steel inner conductor with a copper-clad aluminium braiding for economical conductivity and mechanical strength.
• Solid PE dielectric and precise dimensional tolerances for consistent signal performance (75 11 impedance, velocity factor ~0.667).
• Choice of PVC or LSF outer jacket depending on smoke/toxic emission concerns and building regulations.
• Designed for analogue and HD-over-coax CCTV deployments.

Detailed specifications and benefits

This section expands on the technical details so you can understand what the cable delivers in real-world installs and why those specs matter.

• Impedance:75 11 B118 11 tolerance 11 this standard impedance matches CCTV equipment and video connectors.
• Velocity ratio (nominal):0.667 11 affects propagation delay and cable length calculations for signal timing-sensitive systems.
• Capacitance:>67 nF/km 11 relevant for high-frequency behaviour and signal attenuation predictions.
• Conductor DC resistance:<48 11/km @ 20B0C 11 higher than pure copper but typical for copper-clad constructions; suitable for video but consider power feed implications separately.

• Inner conductor:copper-clad steel, 20.58 11 B10.008 mm 11 offers tensile strength and lower material cost compared with solid copper.
• Outer conductor/braid:copper-clad aluminium braid (0.12 x 16 x 7) with ~85% coverage for shielding against interference.
• Dielectric:Solid PE, insulation thickness 1.60 B10.01 mm with resulting insulation diameter ~3.70 B10.10 mm.
• Overall diameter:approx. 6.10 B10.10 mm; jacket thickness ~0.85 B10.10 mm.
• Operating temperature:-20B0C to +80B0C 11 suitable for internal and many sheltered outdoor runs.

• Jacket materials:PVC (standard) or LSF/low smoke option for enclosed spaces or areas where smoke/toxic emissions are a concern.
• Colours:Black (RAL 9005) or White (RAL 9003) to match cameras, conduits or aesthetics.
• CPR classification:PVC = Eca, LSF = Fca; choose the appropriate variant depending on building regulations and location.
• Compliance:Meets CE, RoHS2 and LVD directives per supplier datasheet 11 always review the datasheet for detailed ratings before installation.

Benefits derived from these specifications:

• Cost-effectiveness: copper-clad conductors and aluminium braiding reduce material costs while retaining acceptable performance for typical CCTV distances.
• Good shielding coverage reduces interference and helps maintain picture quality in electrically noisy environments.
• Bulk 200 m reel format reduces waste and simplifies procurement for multi-camera projects.
• LSF jacket option improves safety in public or enclosed spaces by limiting smoke and toxic gas emissions in a fire.

Use cases and scenarios where this cable excels

This RG59 reel is well suited for a wide range of CCTV and video applications. Typical uses include:

• Residential CCTV installations:Short to medium camera runs where cost and discreteness matter. The smaller overall diameter makes concealment in trunking or walls simpler.
• Commercial and retail premises:Multi-camera systems within a store or office where a low-smoke jacket may be preferred for safety compliance.
• Apartment buildings and common areas:The LSF option is useful in corridors, plant rooms and communal spaces where reduced smoke emission is required under local rules.
• Refurbishment and retrofits:The standard RG59 size often fits existing conduit and trunking, making replacement or upgrades straightforward.
• Temporary or event installs:Bulk reels supply many runs from one reel, and the cable is robust enough for temporary deployments when protected from direct weather exposure.

Limitations to consider: while excellent for many CCTV uses, RG59 with copper-clad conductors is not a substitute for high-performance, long-run coax such as solid copper RG6 or specialty low-loss cables when signal levels must be preserved over very long distances. Also, this reel does not include integrated power conductors (not a siamese), so separate power runs or pre-terminated siamese cable would be needed for single-cable camera feeds.

Comparisons with similar products in the market

When choosing coax for CCTV, installers commonly compare RG59 to RG6 and to pre-made siamese or pre-terminated assemblies. HereB4s how this 200 m RG59 reel stacks up:

• RG59 vs RG6:RG6 has a larger conductor and typically lower attenuation at higher frequencies, making it preferable for longer runs or where maximum bandwidth is required. RG59, being thinner and more flexible, is ideal for short-to-medium CCTV runs and is often cheaper. For most analogue and HD-over-coax CCTV runs within typical retail/commercial distances, RG59 performs acceptably.
• CCA/CCS vs solid copper:Cable with copper-clad steel or aluminium conductors reduces material costs but increases DC resistance and slightly higher attenuation than pure copper. This productB4s copper-clad steel inner conductor and copper-clad aluminium braid balance cost and mechanical strength. For budget-conscious projects and standard CCTV distances, performance is acceptable; for maximum headroom and long runs, solid copper remains the premium choice.
• Bulk reel vs pre-terminated coax:Bulk reels like this one are economical and flexible for installers who terminate on-site and run multiple cables. Pre-terminated cables save time and reduce termination errors but cost more per metre and are less flexible for custom lengths or routing.
• Siamese cable alternatives:Siamese cable combines coax and power conductors in a single jacket, which simplifies camera feeds. The 200 m RG59 reel requires separate power cabling or use of a separate power distribution solution. If single-run convenience is critical, siamese may be preferable; if flexibility and cost are priorities, bulk coax plus separate power is often the better choice.

Customer feedback and installer impressions

While specific customer reviews for this exact SKU may vary by supplier and region, typical installer and systems integrator feedback for a cable with these characteristics tends to include the following themes:

• "Good value for money" B1 installers appreciate the lower material cost compared with solid copper alternatives while achieving acceptable picture quality for standard camera runs.
• "Easy to work with on reels" B1 the 200 m bulk format reduces reel changes and keeps van inventory tidy.
• "LSF jacket is a useful option" B1 customers installing in schools, hospitals or multi-storey residential buildings often select the low-smoke jacket variant to meet safety expectations.
• "Not for extremely long runs" B1 some users note that for runs approaching the upper limits of coax performance, a thicker RG6 or solid copper option provides better signal margin.

If you need detailed, first-hand reviews for your region, check supplier review pages or installer forums where users often post comparison notes, video capture examples and long-term reliability reports.

Conclusion: why this cable is a great choice

The 200 m RG59 CCTV Coaxial Cable (ITM001027) is a pragmatic choice for installers and projects seeking an economical, standard-performance coax for analogue and many HD-over-coax camera systems. Its combination of a 200 m bulk reel, 75 11 impedance, copper-clad conductor construction and available LSF jacket makes it versatile for residential, commercial and refurbishment projects where budget, safety and flexibility matter.

Choose this cable if you want a reliable, cost-effective coax for typical CCTV distances, the convenience of a large reel, and the option of a low-smoke jacket for safety-sensitive applications. For longer runs or applications demanding the lowest possible attenuation, consider specifying RG6 or solid-copper variants, but for the majority of CCTV deployments this RG59 reel provides an excellent balance of performance, compliance and price.
