DS-2CD6425G1-20 Separated Covert 2MP IP Camera, 3.7 mm Pinhole Lens, 1080p, PoE

Introduction: Meet the DS-2CD6425G1-20 — Discreet, High-Quality Indoor Surveillance

The DS-2CD6425G1-20 Separated Covert 2MP IP Camera (3.7 mm pinhole lens) is designed for situations that demand reliable, unobtrusive video capture. Combining a compact, separated sensor head with a full-featured network camera body, this 1080p (2 MP) unit offers PoE convenience, efficient H.265 compression, advanced image enhancement and built-in analytic triggers — all packed into a form factor intended for concealed installations in ceilings, fixtures or tight cavities.

Key Features at a Glance

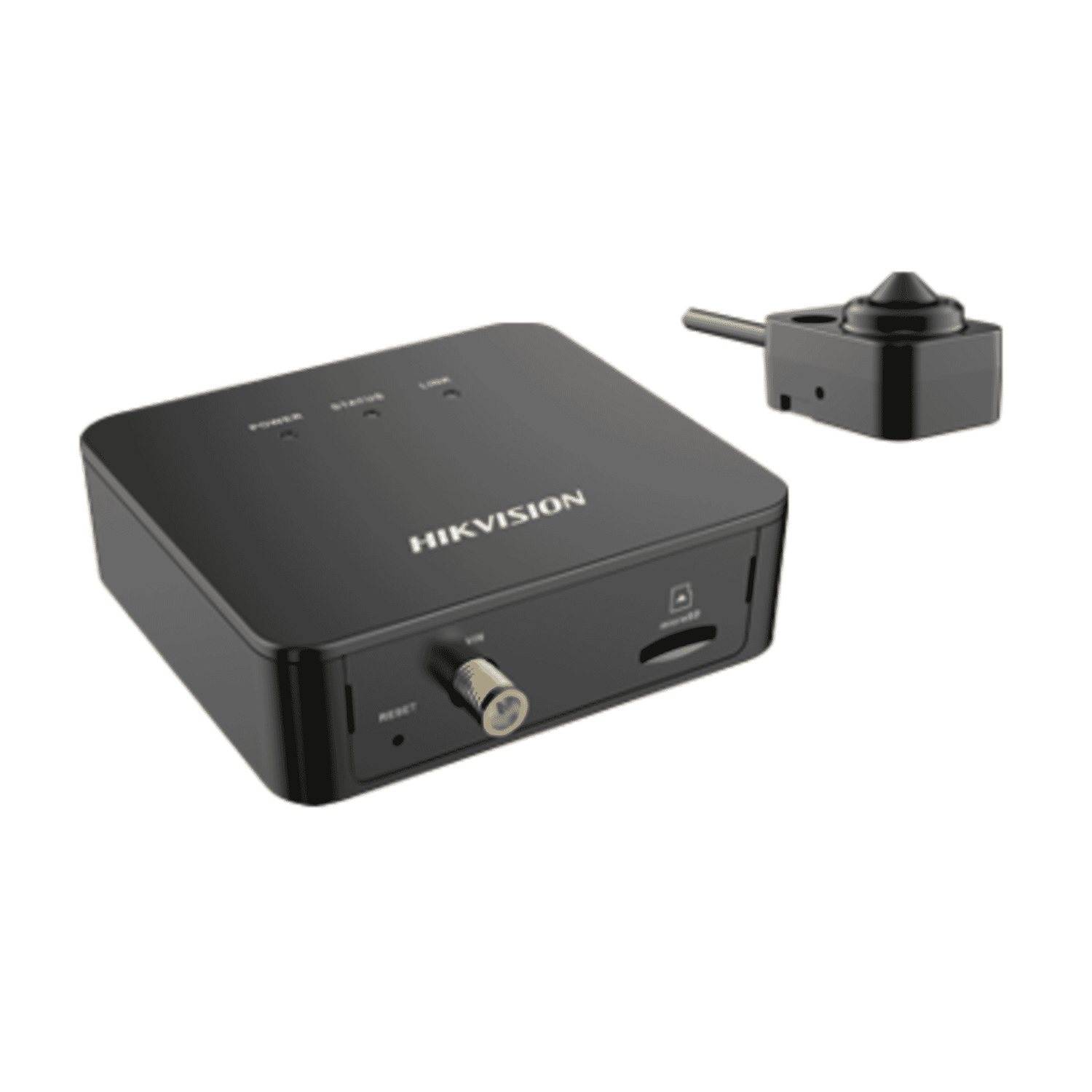

• Separated/modular design:A small pinhole sensor head connected to the main body via a 2 m cable (optional 8 m) for discreet placement.
• Resolution & optics:2 MP (1920×1080) sensor with a 3.7 mm pinhole/block lens (F2.5) and approximately 75.5° horizontal field of view.
• Efficient compression:H.265 and H.264 support (H.265+ on some SKUs) to reduce bandwidth and storage.
• Image enhancement:120 dB true WDR, BLC/HLC, defog and 3D DNR for improved clarity in difficult lighting.
• Smart analytics:Intrusion, line crossing, unattended baggage, object removal, face detection and other event rules.
• Power & storage:PoE (802.3af) or 12 VDC power; microSD support (up to ~128–256 GB depending on variant/firmware) and NAS compatibility.

Detailed Specifications and Benefits

• Sensor:1/2.8" progressive-scan CMOS delivering clear 2 MP imagery suitable for identification and monitoring.
• Resolution & frame rate:1920×1080 at up to 25/30 fps (region dependent), balancing smooth motion with efficient storage needs.
• Lens:3.7 mm pinhole/block lens with F2.5 — compact and optimized for covert indoor viewpoints while providing a practical ~75° horizontal field of view.
• Low light performance:Minimum scene illumination around 0.002–0.005 Lux (colour, AGC ON) depending on firmware/variant, enabling usable detail in dim environments without strong IR assistance.
• Image enhancement:120 dB true WDR addresses scenes with strong backlight or mixed lighting, while 3D DNR reduces noise for clearer low-light images and smaller file sizes.

• Compression:H.265 / H.264 with H.265+ on some SKUs reduces bitrate and storage cost compared with older codecs.
• Multiple streams:Main, sub and third streams supported; ROI and SVC capabilities let you prioritize important regions and adapt quality for remote viewing or mobile access.

• Event triggers:Intrusion, line crossing, unattended baggage, object removal help automate detection and reduce the need for constant monitoring.
• Face detection:Useful in retail and access-control adjacent applications to flag or index potential identity events when paired with appropriate back-end systems.

• Network:Standard IP protocols and ONVIF compatibility make integration into most VMS/NVR systems straightforward.
• On-board & network storage:microSD support (capacity depends on firmware/variant) plus NAS (NFS/SMB) options for flexible recording choices.
• Power:PoE (802.3af) simplifies installation by delivering power and data over one cable; 12 VDC is supported where PoE is unavailable.

• Form factor:Separated sensor head plus main module connected with a default 2 m cable (8 m optional), enabling concealment behind ceilings, panels or within fixtures.
• Operating conditions:Designed primarily for indoor/covert deployments; operating temperature specifications vary by variant — confirm the datasheet for your SKU.

Use Cases and Scenarios Where the DS-2CD6425G1-20 Excels

The separated pinhole design makes this camera particularly well suited to environments where a visible camera would be undesirable or where sightlines and mounting options are restricted.

• Mount the pinhole head behind shelf fronts, signage or ceiling tiles to keep cameras out of customers' immediate view while monitoring checkout zones, high-theft displays and stockrooms.
• Smart analytics such as intrusion and unattended baggage/object removal reduce false alarms and help focus investigators on meaningful events.

• Hotels and conference spaces benefit from discreet monitoring in lobbies, corridors and service areas where aesthetic considerations matter.
• Office reception areas can use the small sensor to preserve interior design while maintaining security coverage.

• Where covert observation is lawful and appropriate, the separated head allows placement in ceilings, fixtures or false panels for unobtrusive footage capture used in investigations or compliance checks.

• Public transport ticketing halls, museum displays and places of worship often need monitoring that does not detract from the environment — the low-profile sensor helps achieve that.

How the DS-2CD6425G1-20 Compares with Similar Cameras

Understanding where this model sits relative to other camera types helps you decide if it fits your project.

• Pros: The separated pinhole head is far less conspicuous than a dome; ideal where concealment is required. You can route the main body to a service area for easier access.
• Cons: Dome cameras typically have integrated housings with IR illumination and vandal resistance; the DS-2CD6425G1-20 is optimized for indoor covert use and may lack those rugged features.

• Pros: Bullet cameras are visible deterrents and often include powerful IR and weatherproof housings. The DS-2CD6425G1-20’s advantage is discretion and flexible concealment rather than visual deterrence.
• Cons: For outdoor or long-range monitoring, a bullet camera with a larger sensor and longer focal length would be a better choice.

• The separated design with a 2 MP sensor, true 120 dB WDR and advanced analytics places it above basic covert modules that capture lower resolution or lack on-board analytics. H.265 compression support also helps reduce storage costs compared with older covert models.
• Make sure to compare SKU variants: some competing covert cameras offer IR LEDs or very wide-angle lenses depending on the model, so map features to your installation needs.

Customer Feedback and Testimonials

While individual reviews vary by deployment, common feedback themes from installers and end-users for cameras of this type include:

• "Excellent for discreet installs — the sensor head is small enough to hide in ceiling cavities without major rework."
• "H.265 support reduced our bandwidth and storage bills significantly compared to older H.264 cameras."
• "Analytics like line crossing and unattended object alarms cut down false-positive reviews in busy retail lanes."

Note: These statements reflect typical user feedback for separated/covert 2 MP cameras with similar feature sets. Verify current customer reviews for the exact DS-2CD6425G1-20 SKU you plan to buy for up-to-date experiences.

Pricing, Compliance and Purchasing Notes

• Suggested retail price:The suggested price for this product is $329.00 (check local suppliers for current pricing and availability).
• Compliance:Confirm CE / UKCA and the correct G0 vs G1 variant on the unit label and datasheet before installation. Datasheets may differ between families; verify the exact SKU.
• Installation best practice:Use a qualified installer or electrician when altering mains wiring or PoE infrastructure. Follow local surveillance laws and privacy guidelines when deploying covert cameras.

Conclusion: Is the DS-2CD6425G1-20 the Right Choice?

The DS-2CD6425G1-20 is a compelling option when discreet indoor surveillance is a priority. Its separated pinhole sensor head, 2 MP resolution, 120 dB true WDR and smart analytics make it especially useful in retail, hospitality and investigative contexts where visibility of the camera must be minimized. H.265 compression and multiple streaming options let you balance image quality with storage and network constraints, while PoE simplifies wiring for many modern installations.

Before purchasing, confirm the exact SKU variant and consult the supplied datasheet for the unit to ensure the features and operational limits meet your needs. When installed and configured correctly, the DS-2CD6425G1-20 provides a practical blend of discretion, performance and cost-efficiency for indoor covert surveillance projects.
