Introduction to the Hikvision DS-1331HZ-HW and its key features

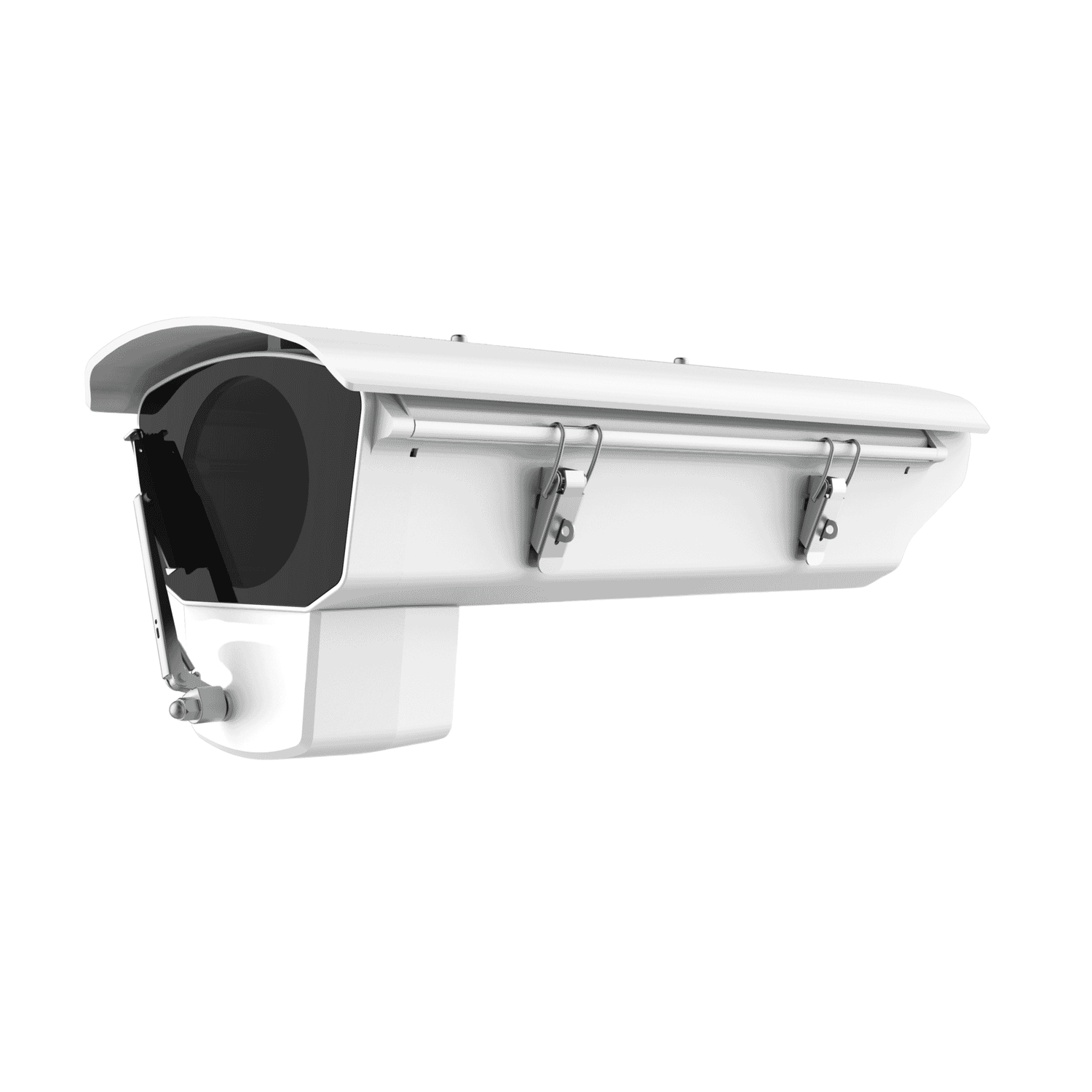

The Hikvision DS-1331HZ-HW is a purpose-built outdoor housing designed to protect box-style surveillance cameras in demanding environments. Combining a robust aluminium-alloy body, a glass viewing window, active temperature control (heater and fan) and a front glass wiper, this unit is aimed at installations where image clarity and camera survival are critical despite exposure to dust, rain, snow and extreme temperatures. The housing carries an IP67 rating for ingress protection and offers installer-friendly features such as a side-cover design for simplified access and cabling.
Key features at a glance:
- IP67-rated enclosurefor high-level dust and water protection.
- Active temperature controlwith automatic heater and fan operation to maintain safe internal operating temperatures.
- Front glass wiperto clear rain, snow and debris for continuous clear imaging.
- Durable constructionusing aluminium alloy and a glass window with watertight dual-hasp closure.
- Installer-friendlyside-cover design for easier mounting, wiring and maintenance.
Understanding the technical specifications helps explain why the DS-1331HZ-HW is well suited for outdoor CCTV work in harsh climates. The main technical details include model, materials, size, environmental tolerances and power requirements. These attributes translate into tangible benefits for system reliability, image availability and total lifecycle cost.
- Model:DS-1331HZ-HW.
- Material:Aluminium-alloy body with a glass viewing window. Benefit: corrosion-resistant structural protection and a clear optical surface for image fidelity.
- Weight:2,500 g. Benefit: sturdy yet manageable for most mounting brackets used in commercial and municipal deployments.
- Dimensions:445.3 × 169.3 × 169.2 mm. Benefit: sized to accommodate standard box cameras while keeping a compact footprint for many mounting scenarios.
- Operating temperature:-40°C to +60°C. Benefit: supports installations in both very cold and very hot climates without sacrificing camera reliability.
- Humidity:≤ 95% (non-condensing). Benefit: tolerates humid environments with reduced condensation risk when combined with temperature control.
- Temperature control:Heater activates around ≈5°C ±5°C; fan activates around ≈40°C ±5°C. Benefit: automatic management of internal conditions prevents freezing and overheating, extending camera and electronics life.
- Power input:AC 24 V (recommended AC24V / 4A power pack). Benefit: standardised supply simplifies integration; follow datasheet recommendations for safe operation.
- Power consumption:Heater 60 W; Fan 4 W; Wiper 4 W. Benefit: predictable consumption makes power budgeting straightforward for remote or distributed installations.
- Protection rating:IP67. Benefit: dust-tight and protected against immersion up to specified depths — ideal for exposed outdoor sites.
- Notes:ABF (automatic back-focus) and wiper cannot run simultaneously; RS-485 control available; see the datasheet for recommended mounts and wiring. Benefit: predictable operational constraints and control options for integrators.
Collectively, these specifications create a protective environment that keeps cameras functioning and imaging reliably under adverse conditions. The heater and fan minimize condensation and thermal stress, while the wiper mechanically clears the viewing window so analytics and operators continue to receive usable video during precipitation or accumulation of debris.
The DS-1331HZ-HW is tailored for scenarios where environmental factors would otherwise degrade camera performance or longevity. Typical deployments include:
- Transportation infrastructure:Highways, toll plazas, bridges and rail corridors where cameras face wind-driven rain, spray and cold temperatures. The wiper maintains sight lines and the temperature control keeps optics and electronics within operational ranges.
- Ports and marine environments:Harsh salt air, fog and frequent precipitation can compromise imaging and corrode equipment. The aluminium body and IP67 sealing provide robust protection; regular wiper use keeps optics clear.
- Industrial and utility sites:Power plants, chemical sites and water treatment facilities that require reliable perimeter and process monitoring despite dust, condensation or thermal extremes.
- Municipal and critical infrastructure:CCTV for city centres, public safety, and surveillance of critical infrastructure where downtime or image loss is unacceptable.
- Remote and high-latitude sites:Locations experiencing sub-zero temperatures, snow and ice where heater support prevents freezing of electronics and maintains viewports.
- Retrofit projects:Projects upgrading existing box cameras that need an easy-to-install housing with side-cover access for cabling and maintenance.
When choosing an outdoor camera housing, buyers typically compare protection rating, climate control features, mechanical window cleaning options and ease of installation. The DS-1331HZ-HW positions itself as a mid-to-high capability housing with balanced features:
- IP rating:IP67 is stronger than IP66 for ingress protection; this makes the DS-1331HZ-HW more suited to environments where temporary immersion or very heavy spray may occur.
- Heater + fan:Some housings offer only passive insulation or just a heater; others rely on thermostatically controlled fans without headroom for extreme cold. The DS-1331HZ-HW’s combination provides both freeze protection and overheat mitigation, which is advantageous across a wide temperature range.
- Wiper:Not all housings have an integrated wiper. Where frequent precipitation or splatter reduces image quality, an integrated wiper is a practical solution compared with manual cleaning or relying on hydrophobic coatings alone.
- Construction and access:The aluminium-alloy body with side-cover access makes installation and servicing simpler compared with fully sealed units that require more intrusive procedures to re-cable or change cameras.
- Power and control:RS-485 control and defined power consumption figures allow integrators to plan power distribution and automation. Some competitors may lack standardised control interfaces, making integration with existing building management or surveillance systems more complex.
In short, compared with basic outdoor housings the Hikvision unit adds survivability features (heater/fan/wiper) that improve uptime. Compared with the highest-end climate-controlled enclosures that might include cooling or redundant systems, the DS-1331HZ-HW offers a cost-effective balance for most commercial, municipal and industrial scenarios.
At the time of writing there are limited formal, public customer reviews specifically tied to this housing. However, common themes reported by installers and system integrators working with similar Hikvision outdoor housings include:
- Reliability:Installers note that housings with integrated temperature control reduce call-backs related to frozen or overheated cameras, especially in very cold or very hot regions.
- Ease of maintenance:The side-cover design and clear wiring guidance in the datasheet make routine servicing and camera swaps faster, lowering on-site labour time.
- Improved image availability:Where a wiper is used appropriately, video analytics and operator monitoring see fewer false alarms and less downtime due to obscured lenses in heavy precipitation.
- Power planning consideration:Installers emphasize the importance of using the recommended AC24V/4A power pack and following RS-485 wiring best practices to avoid operational issues.
If you plan a purchase, consider asking your supplier for any available site references or case studies demonstrating long-term performance in environments similar to your own.
The supplied cost and suggested prices for this product are listed as 107.57 (cost) and 124.86 (suggested). Currency was not specified; please confirm whether these figures are USD, EUR, GBP or another currency to calculate margins and final RRPs accurately. The product listing above specifies no included warranty (warranty = 0), so buyers should verify warranty terms with their reseller or the manufacturer and consider extended support if needed for critical deployments.
The Hikvision DS-1331HZ-HW outdoor housing is a compelling option for projects that need dependable camera performance in challenging outdoor environments. Its IP67 protection, automatic heater and fan, and a mechanical wiper tackle three of the most common causes of outdoor video degradation: water ingress, thermal extremes and obscured optics. The aluminium-alloy construction and side-cover access simplify installation and servicing, making it a practical choice for commercial, municipal and industrial installations where uptime and image quality matter.
For integrators and end-users seeking a mid-to-high capability housing without the complexity and cost of full-blown climate-controlled cabinets, the DS-1331HZ-HW offers a balanced set of features. Confirm power requirements and mounting recommendations from the official datasheet, verify local electrical and mounting regulations, and check warranty and pricing currency details with your supplier before finalising procurement.
Overall, where camera reliability and clear imaging in adverse weather are priorities, this Hikvision housing provides a solid, installer-friendly solution that helps keep surveillance systems operational and effective.
