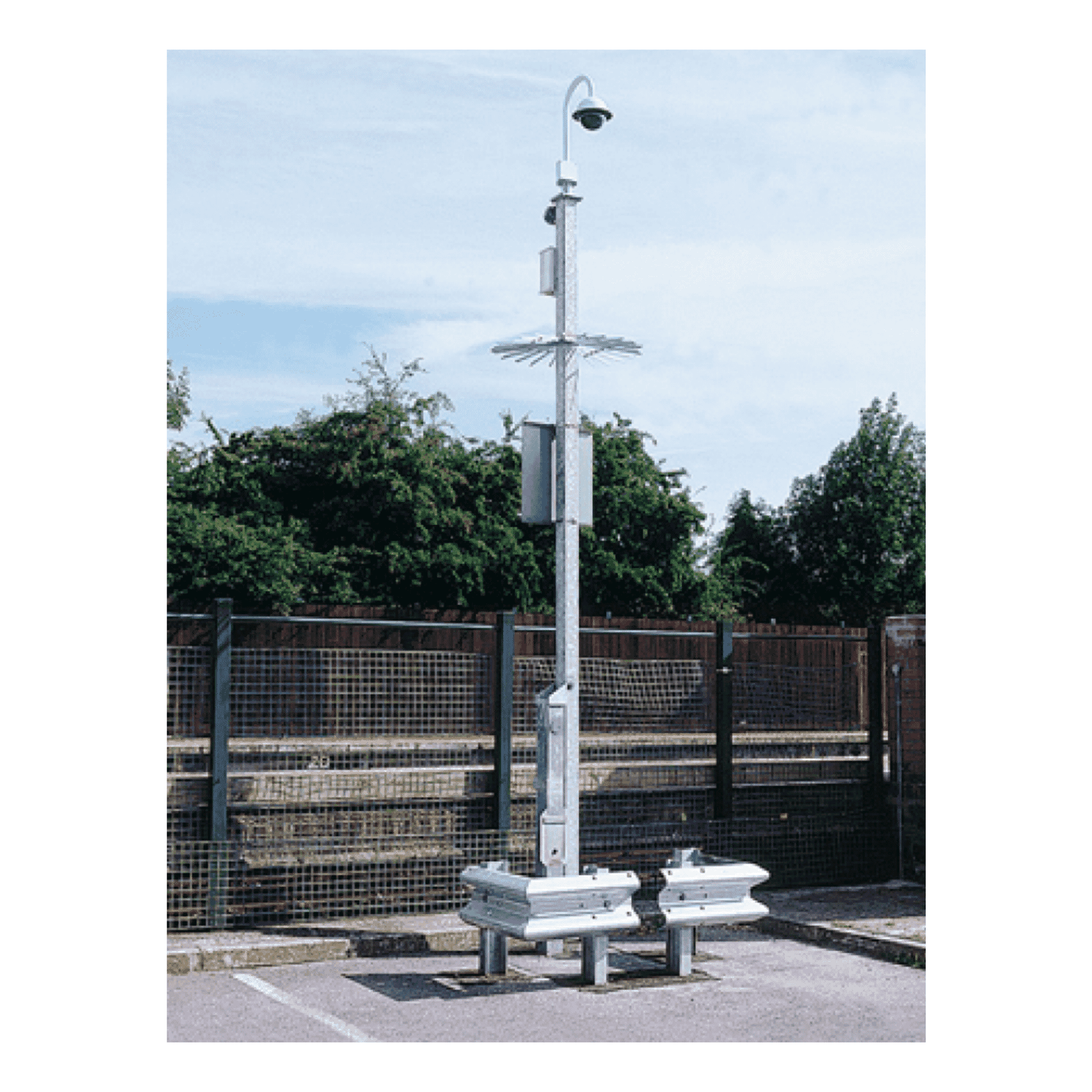

Introduction: Altron ACC1PM/LA 4.5m Tilt‑Down Camera Column and its key features
The Altron ACC1PM/LA 4.5m tilt‑down post‑mounted camera columnis a purpose‑built mounting solution designed to support CCTV domes, fixed cameras and light PTZ heads in demanding outdoor environments. Constructed from high‑tensile structural steel and finished with hot‑dip galvanising (ISO 1461), this modular column combines robustness, serviceability and security. Its signature tilt‑down winch enables routine maintenance at ground level and the unit features internal cabling ducts and padlockable protections to prevent unauthorised access or tampering.
Detailed description of specifications and benefits
The ACC1PM/LA is engineered with features that matter to installers, security managers and infrastructure planners. Below is a breakdown of the product's main specifications and the practical benefits they deliver.
- Model / Part:ACC1PM / ACC1PM/LA (Supplier code ITM003452)
- Height:4.5 m (tilt‑down)
- Material:High‑tensile structural steel (EN10219/EN10025 family)
- Finish:Hot‑dip galvanised after fabrication to ISO 1461; optional paint to BS/RAL available
- Mounting type:Post‑mounted (set into concrete). Foundation templates and bolts are typically quoted separately
- Security & maintenance:Internal cable ducting, flush doors with heavy‑duty locks, padlockable tilt lock, demountable tilt winch supplied with wire rope
- Design standards:Design analysis performed to ILE TR7, BS6399 and BS8100
- Compatibility:Compatible with Altron mounting brackets and accessories; variants alter top plate/bracket and part number
- Serviceability:The tilt‑down winch allows cameras and heads to be lowered to ground level for maintenance, reducing the need for ladders or elevated access platforms and minimising service time and risk.
- Durability:Hot‑dip galvanising after fabrication provides robust corrosion protection suitable for exposed outdoor environments, extending the service life of the column.
- Security:Internal cabling improves theft and vandal resistance, while flush doors and heavy‑duty locks plus a padlockable tilt lock protect both equipment and the tilt mechanism.
- Modularity:The column is designed for on‑site assembly and works with Altron accessories, simplifying logistics and enabling flexible configurations depending on mounting hardware and camera types.
- Standards compliance:Designed to recognised structural and loading standards, giving confidence in wind loading and long‑term structural performance.
Use cases and scenarios where the product excels
The ACC1 4.5m tilt‑down column is suitable for a wide range of applications. Its combination of height, serviceability and protection makes it particularly effective in the following scenarios:
Street CCTV systems, town centre surveillance and public space monitoring benefit from the ACC1's 4.5 m elevation and anti‑tamper features. The tilt‑down facility simplifies routine lens cleaning, firmware updates and replacement of cameras without road closures or specialist access equipment.
Retail parks, shopping centres and car parks need reliable mounting platforms that deter vandalism and hide cables. The internal cable routing and locking doors on the ACC1 reduce vandal risk and provide clean, professional installations while allowing straightforward maintenance.
Factories, depots, ports and rail yards often require robust columns that can host heavier PTZ heads or multi‑camera arrays. The high‑tensile steel construction and design to BS standards ensure the ACC1 can carry a range of camera and head combinations used in these settings.
Because the column is modular and supplied for on‑site assembly, it is suited to projects that roll out in phases or where foundation preparations are scheduled separately. The tilt‑down feature speeds commissioning and routine checks during staged deployments.
Comparisons with similar products in the market
When comparing the ACC1PM/LA to other camera columns, several points stand out:
- Serviceability advantage:Many fixed columns require elevated access for maintenance. Tilt‑down columns like the ACC1 reduce operational costs and risk by allowing technicians to work at ground level. Not all manufacturers offer a demountable winch or padlockable tilt lock as standard.
- Material and finish:The ACC1's use of high‑tensile steel with post‑fabrication hot‑dip galvanising (ISO 1461) offers superior corrosion protection compared to pre‑galvanised or painted‑only alternatives common in lighter duty columns.
- Security features:Internal cabling ducts and flush, lockable access doors give the ACC1 an edge in high‑risk environments where cable theft or tampering is a concern. Some competitor posts have external trunking that can be more vulnerable.
- Standards and design verification:The ACC1 design references ILE TR7, BS6399 and BS8100 for loading and analysis, offering reassurance to specifiers. Cheaper off‑the‑shelf posts may lack formal design verification for specific loading conditions.
- Cost considerations:The suggested price for the ACC1PM/LA is £799.00 (cost price £645.00). While higher than entry‑level non‑tilt columns, the operational savings from safer, faster maintenance and the extended lifespan from galvanising can justify the investment for medium to long‑term installations.
Customer testimonials and reviews
At the time of writing there are no manufacturer‑sourced customer reviews supplied with the product summary. However, common feedback themes from installers and site managers for tilt‑down, hot‑dip galvanised columns generally include:
- "The tilt‑down mechanism significantly reduces the time and cost of maintenance visits compared with fixed posts."
- "Hot‑dip galvanising gives peace of mind in coastal or industrial sites where corrosion is a real concern."
- "Internal cable routing and padlockable access doors reduce vandalism and cut down on unsightly external conduit runs."
For verified testimonials specific to the ACC1PM/LA, request case studies or installer references from your Altron distributor or authorised reseller. They can often provide photos and accounts from similar installations.
Installation, safety and practical considerations
The ACC1 is supplied with a demountable tilt winch and wire rope, but foundation templates, bolts and some accessories are normally quoted separately. Installers should refer to the Altron ACC catalogue and distributor datasheets for foundation bolt sizes, foundation dimensions and weights. All installation must follow the manufacturer’s instructions and local standards. Routine inspection of the winch, wire rope and locking mechanisms is recommended to maintain safe, reliable operation.
Conclusion: Why choose the Altron ACC1PM/LA 4.5m tilt‑down column?
The Altron ACC1PM/LA 4.5m tilt‑down post‑mounted camera column combines a practical height with a service‑friendly tilt‑down mechanism, robust hot‑dip galvanised construction and thoughtful security features like internal cabling and padlockable locks. For installers and specifiers seeking a long‑lasting column that minimises maintenance risks and operational disruption, the ACC1 is a strong candidate. It balances upfront cost with lifecycle savings from easier servicing and corrosion resistance, and its design compliance with recognised standards offers additional assurance for critical CCTV and PTZ installations.
If your project requires a secure, serviceable mounting platform that supports a range of cameras and accessories, the ACC1PM/LA is worth considering. For precise foundation requirements, compatible brackets and final part numbers for different top plates, consult the Altron ACC catalogue or contact an authorised Altron distributor.
Product snapshot:Altron ACC1PM/LA 4.5m Tilt‑Down Camera Column — Hot‑Dip Galvanised, internal cable routing, padlockable tilt, demountable winch. Suggested price: £799.00. Supplier code: ITM003452.
