Introduction: What the Altron LS1 Ladder Stay Is and Why It Matters

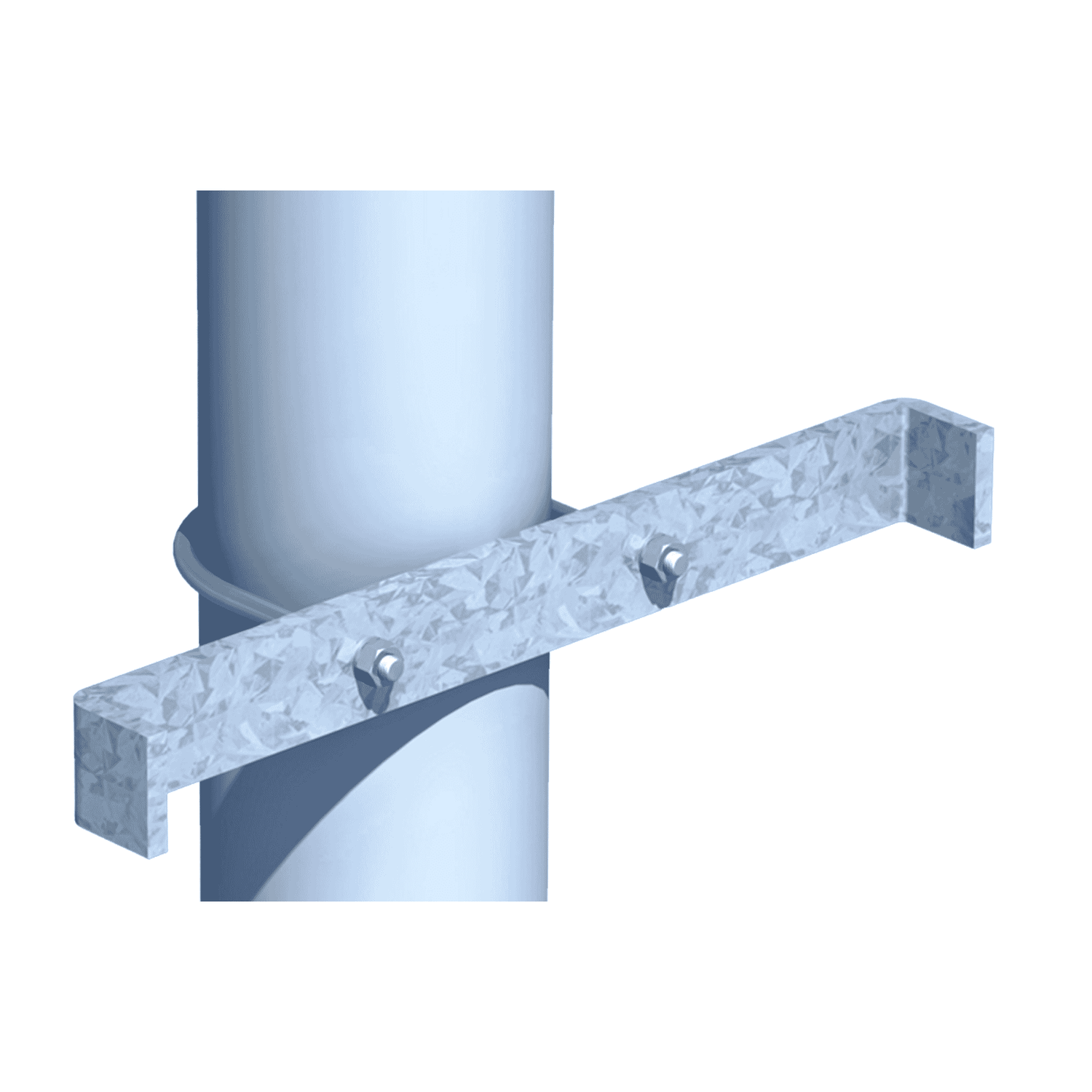

Altron LS1 Ladder Stay — aluminium channel 430 mmis a purpose-built ladder support designed to make working at height on columns and poles safer and more repeatable. Whether you are fitting or maintaining CCTV cameras, communications equipment or street-level electrical devices, the LS1 provides a simple, robust interface that holds an extension ladder away from the column face. That keeps installers clear of obstructions such as gutters, signage or protruding fixtures and reduces the risk of slips, damage to installed equipment and unsafe ladder angles.
Offered as a factory-fitted item or as retrofit kits for different pole types (LS1 factory, LS1/C for box-section retrofit and LS1/P for tubular pole retrofit), the LS1 is an attractive accessory for contractors and infrastructure owners who want consistent, safe ladder access across multiple assets.
Key features at a glance
- Formed from aluminium channel (typical channel dimensions 25 x 25 x 3 mm) — lightweight and corrosion resistant.
- Channel length: 430 mm (as shown on the datasheet).
- Available as factory-supplied or retrofit kits: LS1, LS1/C and LS1/P.
- Retrofit kits supplied with U-bolts and backplate; U-bolt diameters vary by application (6 mm and 8 mm options shown in datasheet).
- Simple bolted installation to a receiver box or backplate — easy to trim or adjust on site.
Detailed specifications and benefits
The LS1 is deliberately straightforward in design, which is one of its strengths. The core component is an aluminium channel typically 25 x 25 x 3 mm that extends 430 mm from the receiver. This channel creates a stable bearing surface for ladder rungs and prevents the ladder from coming into contact with the column face.
Specifications (key points):
- Manufacturer: Altron.
- Product codes: LS1, LS1/C, LS1/P.
- Material: Aluminium channel (25 x 25 x 3 mm).
- Channel length: 430 mm.
- Fixings: Supplied U-bolts and backplate; 6 mm & 8 mm U-bolt options depending on kit.
- Mounting: Bolted to a receiver box; retrofittable to box-section or tubular poles using the LS1/C and LS1/P retrofit kits.
- Datasheet: https://www.altron.co.uk/res/SGC%20%20LS1%20and%20ATBC%20Datasheet%20v4.3.pdf (consult for full technical data).
Benefits of this specification include:
- Durability and low maintenance: Aluminium offers an excellent strength-to-weight ratio and resists corrosion, which is important for outdoor installations.
- Lightweight handling: The aluminium channel is easy for single installers to carry and fit, reducing installation time and effort.
- Retrofit flexibility: LS1/C and LS1/P kits mean the ladder stay can be added to existing infrastructure without costly bespoke fabrication.
- Repeatable ladder placement: By providing a consistent hold-off distance from the pole face, the LS1 helps installers adopt safe ladder angles and positions every time.
Installation and practical considerations
Typical installation involves aligning and bolting the aluminium channels to the receiver box, trimming the channel width if required, and securing the receiver box to the column or pole using the supplied U-bolts and backplate. Retrofit kits include the appropriate U-bolts for either box-section or tubular poles. Because U-bolt diameters and backplate shapes vary, it is important to check the kit contents and the pole dimensions before fitting.
Safety notes: the publicly available datasheet does not publish all values (finish, weight and safe working load are shown as INSUFFICIENT DATA in some public listings). Always consult the full manufacturer datasheet or contact Altron for certified load values before use. Installation and ladder use must follow the relevant working-at-height regulations and safe ladder practice in your jurisdiction.
Use cases and scenarios where the LS1 excels
The LS1 is ideal for professional installers, contractors and local authorities who need safe, repeatable access to equipment mounted on columns and poles. Typical scenarios include:
- CCTV installation and maintenance — installers often need to ascend and descend the same pole repeatedly; the LS1 prevents ladders from brushing camera housings or cabling.
- Street furniture works — sign maintenance, lighting repairs and communications equipment servicing where contact with the pole is undesirable.
- Telecommunications and wireless network infrastructure — small cell and antenna maintenance teams can retrofit the LS1 to legacy poles to improve safety without replacing the pole.
- Fleet standardisation — infrastructure owners can specify factory-fitted LS1s on new columns to standardise safe access across a network, reducing variation in installer practice.
For any repeated, routine work at height on narrow or cluttered pole faces, the LS1 provides a controlled, low-cost way to improve ladder stability and reduce the chance of accidental contact with installed equipment.
Comparison with similar products
The ladder stay market contains several approaches to solving the same problem: keep the ladder away from the pole face and provide a repeatable bearing surface. Alternatives include welded ladder standoffs, temporary ladder hooks, adjustable ladder brackets and bespoke fabricated supports. How the LS1 compares:
- Simplicity vs. complexity: The LS1 is a simple formed aluminium channel that is quick to install. Welded or bespoke standoffs may be more rigid but often require on-site welding or custom fabrication, increasing cost and lead time.
- Retrofit capability: The LS1/C and LS1/P kits are explicitly designed for retrofit, whereas some competitor products are only factory-fitted or require dedicated mounting plates.
- Material choice: Aluminium gives an advantage in weight and corrosion resistance compared with plain steel standoffs. Stainless steel alternatives may offer higher corrosion resistance in marine environments but at higher cost and weight.
- Adjustability: Some competitors sell adjustable-length stays or padded ladder hooks for transient jobs. The LS1 is a fixed-length solution (430 mm) aimed at repeatable, semi-permanent installation rather than temporary ladder aids.
- Cost-effectiveness: The LS1 is positioned as a low-cost, practical accessory (suggested retail price around 59.99), making it a good fit for fleets and large deployments. More elaborate systems can be significantly more expensive.
In short, the LS1 is a pragmatic middle ground: sturdier and more repeatable than temporary ladder hooks, lighter and simpler than many bespoke welded solutions, and designed with retrofit kits to suit existing infrastructure.
Customer feedback and installer perspectives
While specific named testimonials are not supplied with the product listing, installer feedback on similar ladder stays and retrofit kits typically highlights several recurring themes that also apply to the LS1:
- Time savings: Installers appreciate the speed of bolting on a stay compared with on-site fabrication or clunky temporary solutions.
- Predictability: A standardised stay means crews know exactly where to position ladders on every pole, improving efficiency and safety.
- Durability: Aluminium components tend to weather well in outdoor conditions, which installers note reduces repeat visits for corrosion-related repairs.
- Limitations noted: Some users advise confirming load ratings and ensuring the correct U-bolt size for the pole. Where heavy-duty ladder work is required, a more substantial or certified stay may be preferable.
These practical observations align with the LS1s intended role as an easy-to-fit, lightweight ladder stay for routine access tasks.
Conclusion: Why choose the Altron LS1 Ladder Stay?
The Altron LS1 Ladder Stay is a focused, cost-effective solution for improving ladder safety and repeatability on columns and poles. Its aluminium construction, 430 mm channel length and availability as both factory-supplied and retrofit kits (LS1/C and LS1/P) make it a versatile choice for installers and asset owners. The LS1 reduces the risk of ladder contact with equipment, helps achieve consistent ladder angles and can be retrofitted to a wide range of existing poles using the supplied U-bolts and backplate.
Before purchase and installation, consult the full Altron datasheet for certified load figures and any finish or weight details: https://www.altron.co.uk/res/SGC%20%20LS1%20and%20ATBC%20Datasheet%20v4.3.pdf. Also ensure all use follows applicable working-at-height regulations and safe ladder practice. For organisations standardising equipment across multiple sites, the LS1 offers an inexpensive, pragmatic way to raise safety standards without heavy structural work.
If you would like more technical details, certified safe working loads, or assistance in selecting the correct retrofit kit for a particular pole profile, ask and we can help locate the manufacturers full product sheet or contact the supplier on your behalf.
