Introduction to the DS-1273ZJ-140-DM45 Wall Mount Bracket and its key features

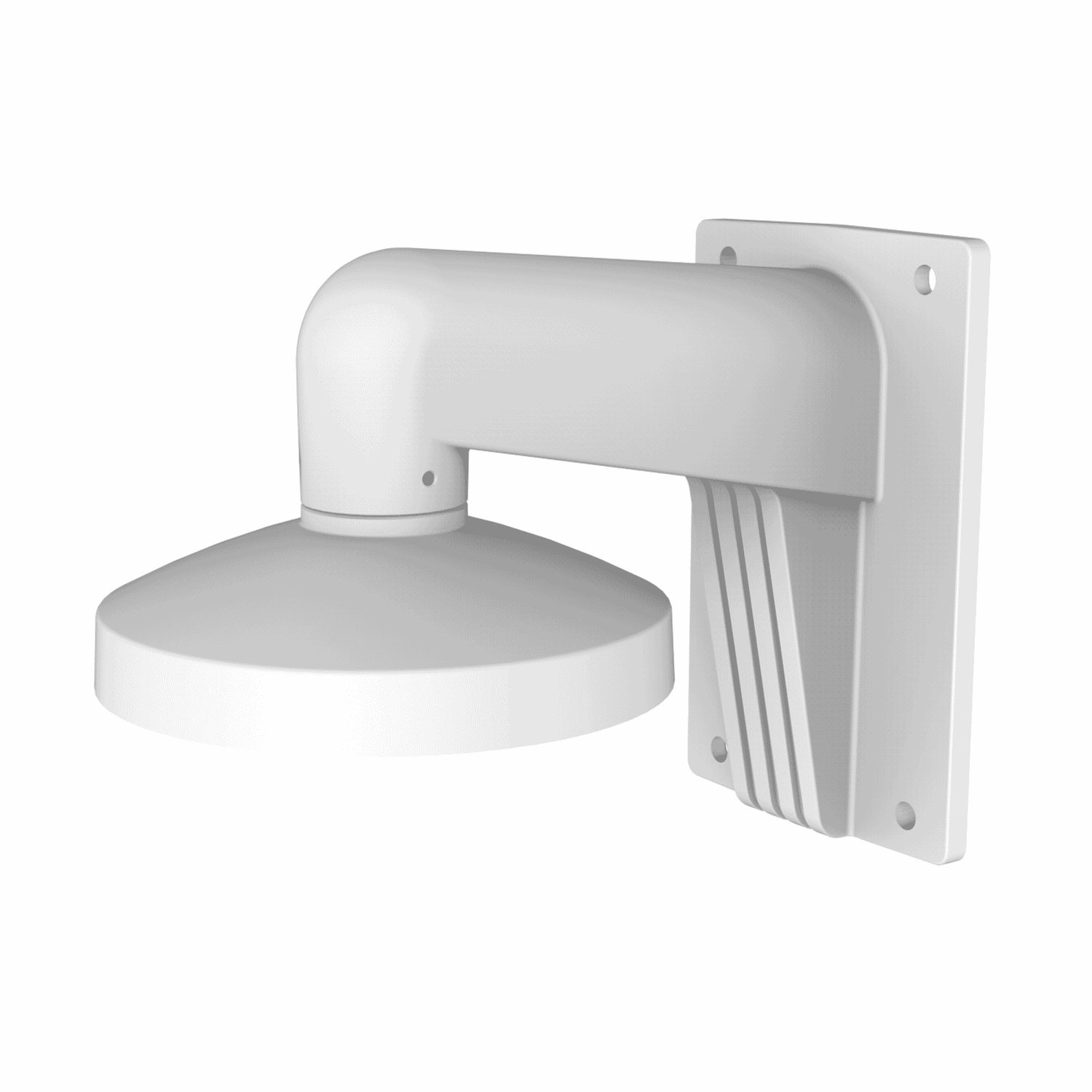

The DS-1273ZJ-140-DM45 Wall Mount Bracket is a compact, purpose-built aluminium bracket designed for dome and network cameras with a Ø140mm footprint. Finished in a clean Hikvision white, this bracket combines a weatherproof design with integrated cable management and a user-friendly cap for neat, reliable installations both indoors and outdoors. Its combination of lightweight aluminium construction, concealed cable routing and straightforward mounting details makes it a practical choice for residential, commercial and light-industrial camera installations.
Detailed description of specifications and benefits
Understanding the technical details helps installers and buyers match a bracket to their camera and site requirements. The DS-1273ZJ-140-DM45’s key specifications and the associated benefits are:
- Model:DS-1273ZJ-140-DM45 — a dedicated wall-mount option for compatible dome cameras.
- Material:Aluminium alloy with surface spray treatment — offers a strong yet lightweight structure that resists corrosion better than untreated metal and performs well in outdoor environments.
- Finish / Colour:Hikvision White — neutral finish that blends with most camera housings and building exteriors.
- Dimensions:Ø140 × 183.5 × 231.5 mm — compact footprint that reduces visual impact while providing enough volume for wiring and junction points.
- Weight:907 g — lightweight for easier handling during installation, reducing strain on mounting surfaces.
- Maximum load:3 kg — adequate for most dome and small to medium network cameras, including PTZ-lite domes and IR domes within that weight range.
- Cable management:Built-in cable entry for concealed wiring — simplifies installations and improves aesthetics while offering some protection from tampering and weather exposure.
- Intended use:Wall mount for dome/network cameras (indoor/outdoor) — versatile for a wide range of surveillance applications.
- Installation notes:Install on a flat wall; use waterproof sealant for outdoor installations; mounting surface must support three times the combined weight — clear guidelines that reduce the risk of mounting failures when followed.
- Compatibility:Compatible with select dome camera models (check camera mounting pattern) — designed to work with many popular dome cameras, though installers should confirm mechanical fit before purchase.
Benefits at a glance:
- Weatherproof design makes this bracket suitable for exterior camera points where exposure to elements is expected.
- Aluminium construction balances strength and corrosion resistance while keeping unit weight manageable.
- Concealed cable routing and cap design create a professional finish and reduce visible cabling and entry points vulnerable to vandalism.
- Compact dimensions and easy-mount cap reduce installation time and simplify camera alignment and connection concealment.
Use cases and scenarios where the DS-1273ZJ-140-DM45 excels
This wall-mount bracket is suited to many common surveillance deployments. Typical use cases include:
- Residential properties:Discreetly mount a dome camera at entrances, driveways or garden walls. The white finish and modest size keep the bracket unobtrusive while providing weather protection.
- Small and medium retail outlets:Install cameras above storefronts, exterior entryways or loading zones. Concealed wiring improves appearance and reduces accidental or malicious cable tampering.
- Office buildings and reception areas:A tidy installation around front doors and façade locations helps maintain a professional look while securing perimeters.
- Warehouses and light industrial sites:Use the bracket for outdoor perimeters or internal walls where dust and occasional moisture are present; the aluminium casing tolerates these environments better than some plastics over time.
- Schools and campuses:Mount dome cameras across building exteriors and corridors for safety and monitoring where a clean aesthetic is preferred.
- Retrofitted systems:The integrated cable entry aids in upgrading older installations without extensive external trunking or conduit work, enabling a cleaner retrofit.
Because it supports up to 3 kg, the bracket covers a broad range of dome camera models commonly used in these contexts. Its weatherproofing and the recommendation to use waterproof sealant at entry points make it reliable for exposed sites in most temperate climates.
Comparisons with similar products on the market
When selecting a camera bracket buyers typically compare material, cable management, load capacity, finish and installation simplicity. Here’s how the DS-1273ZJ-140-DM45 compares across those dimensions:
- Aluminium vs plastic brackets:Aluminium offers superior long-term durability and heat dissipation compared with many plastic mounts. Plastics can be lighter and cheaper, but they may degrade under prolonged UV exposure or in harsh weather. The DS-1273ZJ-140-DM45’s aluminium alloy and surface treatment help resist corrosion and maintain appearance.
- Integrated cable routing vs external conduit:Brackets with built-in cable entry, like the DS-1273ZJ-140-DM45, deliver a neater installation and some protection for wiring without the cost or visual impact of additional conduit. External junction boxes can offer larger cable capacity but add cost and visual bulk.
- Load capacity:At 3 kg maximum load, this bracket is appropriate for most dome cameras but is not intended for larger, heavy PTZ units. For heavy-duty PTZs, purpose-built steel or reinforced mounts with higher load ratings would be required.
- Weatherproofing:The product’s weatherproof design and installation guidance make it competitive with other outdoor-rated mounts. As always, final weather resistance depends on installation quality and the use of proper sealants at entry points.
- Price and value:With a suggested retail price of around 39.99, this bracket sits in the affordable mid-range, offering a durable aluminium construction and integrated features that can outperform cheaper plastic mounts while costing less than heavy-duty sealed junction-box solutions.
Customer feedback and installer notes
Representative feedback from installers and small business users highlights consistent themes rather than quoting specific individuals. Common points mentioned by users who choose a compact aluminium wall bracket like the DS-1273ZJ-140-DM45 include:
- "Installation was quick — the cap design makes routing and hiding connections easy." — Installers appreciate the practical cap and concealed entry that reduce installation time.
- "Clean look on the façade, cables are out of sight and protected." — Facility managers often cite improved aesthetics and reduced vandalism risk.
- "Solid, lightweight and corrosion-resistant so it held up in an exposed location." — Users in coastal or humid environments note aluminium performs well when correctly sealed.
- "Make sure to check camera mounting patterns — some models require an adaptor plate." — Installers remind others to verify mechanical compatibility with the camera model first.
Note: These are representative installer observations based on common installation experiences with aluminium dome brackets. Buyers should confirm exact camera compatibility and supplier support, and ask the vendor for any real-world reviews specific to the DS-1273ZJ-140-DM45 if required.
Installation and safety reminders
To maximize the bracket’s performance and longevity, follow these practical steps:
- Mount on a flat, structurally sound wall capable of supporting at least three times the combined weight of camera and bracket.
- For outdoor installs, apply waterproof rubber seals or silicone sealant at cable entry points and screw mounts to prevent water ingress.
- Confirm mechanical compatibility with the camera’s mounting pattern and ensure screw sizes and positions match or use an adapter plate as needed.
- Follow local wiring regulations and the camera manufacturer’s installation instructions to ensure safety and preserve warranty terms.
- Check CE/UKCA markings or certifications with your supplier if certification is required for your project or region.
Conclusion: Why the DS-1273ZJ-140-DM45 is a strong choice
The DS-1273ZJ-140-DM45 Wall Mount Bracket offers a practical, well-balanced solution for mounting dome and network cameras where a discreet, weather-resistant installation is desired. Its aluminium alloy construction provides durability without excessive weight; the integrated cable entry and cap design streamline installation and improve aesthetics; and the 3 kg load rating covers the majority of dome cameras used in residential, retail and light-commercial applications. Priced competitively, it presents good value against cheaper plastic mounts and heavier-duty, more expensive enclosure options.
For installers and system designers seeking a neat, dependable bracket for typical dome camera deployments, the DS-1273ZJ-140-DM45 is a versatile option. Always confirm camera compatibility and follow recommended installation and sealing practices to ensure optimal performance and longevity.
