Introduction to the Hikvision DS-1272ZJ-110-TRS and its key features

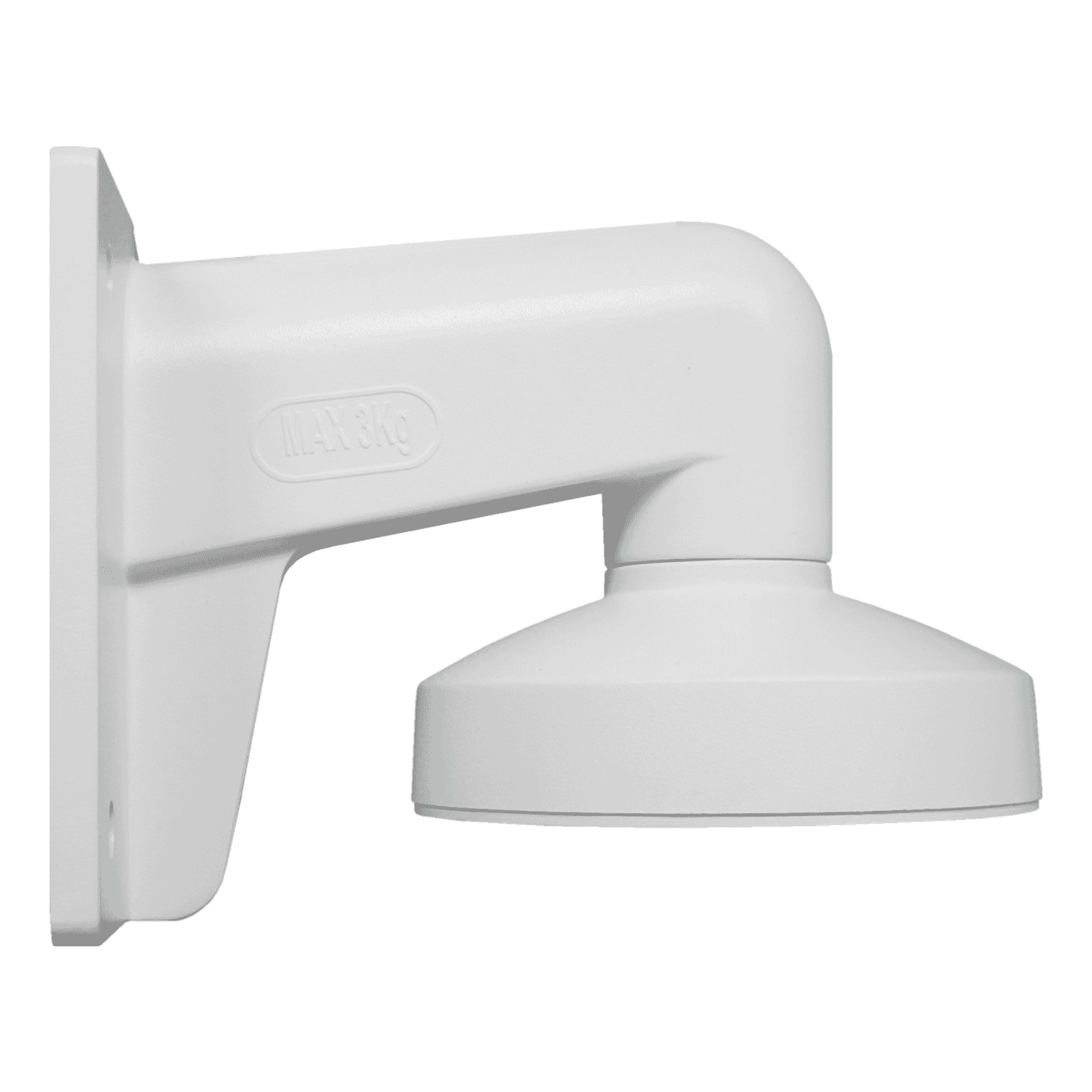

The Hikvision DS-1272ZJ-110-TRS L-shape wall mount bracket is a compact, purpose-built mounting accessory for Hikvision mini dome and motorised dome cameras. Designed to provide a tidy, weather-resistant mounting point on vertical walls, the bracket combines an aluminium alloy body with steel reinforcement and a corrosion-resistant surface treatment. Key features include an internal cable passage (grommet) for concealed wiring, a compact footprint that matches Hikvision domes, and a lightweight build that still supports typical small dome cameras (reseller listings report a maximum load of approximately 4.5 kg). At a suggested retail price of around $24.99, this bracket is positioned as an affordable, camera-specific accessory for both installers and DIY users.
Detailed product specifications and the benefits they bring
The DS-1272ZJ-110-TRS is engineered with several thoughtful details that make it a practical choice for many wall-mounted dome camera installations. Below are the most relevant specifications and why each matters in real-world use:
Aluminium alloy with steel reinforcement:The main body is aluminium alloy, keeping the bracket light and easy to handle during installation, while steel reinforcement provides additional rigidity where mounting stresses concentrate. The combination delivers a good balance of weight, strength and cost.
Surface treated for corrosion resistance:The bracket is painted/sprayed in Hikvision White and treated to resist corrosion, making it suitable for outdoor use in typical environments. While it is not a fully enclosed junction box, the corrosion-resistant finish helps the mount withstand exposure to rain and humidity when installed correctly.
Dimensions:122 × 120 × 169 mm — a compact footprint that keeps the camera close to the mounting surface and minimizes the visual impact on facades.Weight:Approximately 605 g (manufacturer listing).Load capacity:Around 4.5 kg (reseller reported). This is ample for most Hikvision mini dome and motorised dome models; however, always check the camera weight and any added accessories (sunshades, heaters) before finalising the installation.
Internal cable passage (grommet):One of the bracket's strongest practical benefits is the built-in cable grommet that allows cabling to be routed through the bracket and into the wall. This hides cables from view, reduces exposure to weather and tampering, and results in a neater, more professional installation compared with surface-mounted cables.
Compatibility:Designed for Hikvision mini dome and motorised dome cameras.Application:Suitable for indoor and outdoor vertical wall mounting. Because the bracket’s design and finish are aligned with Hikvision cameras, it yields a cohesive aesthetic useful for retail, corporate and residential installations.
Use cases and scenarios where the bracket excels
The DS-1272ZJ-110-TRS is targeted at scenarios where a compact, discreet wall mount with concealed cabling is required. Typical use cases include:
- Residential security:Mounting a mini dome overlooking driveways, front doors or backyard entries where a neat appearance and weather resistance matter.
- Small retail and offices:Discreet installation inside small shops, cafés, and offices where the camera should blend with interior or exterior décor.
- Commercial exteriors:Mounting on building facades, under eaves and on external walls where a compact L-shape is preferable to longer pendant or pole mounts.
- Professional CCTV installations:Installers who want a camera-specific bracket that simplifies installation planning and reduces the need for custom brackets or adapters.
- Situations requiring cable concealment:Any installation where routing cable internally reduces tampering risk, improves weather protection and achieves a cleaner final result.
Because the bracket is compact and unobtrusive, it’s especially useful when camera sightlines require minimal offset from the mounting surface — for example, on narrow building exteriors or attractive facades where large mounts would be visually intrusive.
Comparisons with similar mounting products on the market
When choosing a bracket, installers often weigh options like dedicated L-shape wall mounts, universal adapter plates, corner mounts, pendant mounts and junction boxes. Here’s how the Hikvision DS-1272ZJ-110-TRS stacks up against common alternatives:
Brand-specific L-shape mounts like the DS-1272ZJ-110-TRS are designed to match camera footprint, weight and aesthetic. That typically makes installation faster and results in better visual integration than universal mounts. Universal mounts can add flexibility for multiple camera types but often require additional adapters or drilling templates that complicate installation.
Aluminium alloy mounts offer superior rigidity and a more premium look compared with ABS plastic mounts. Aluminium also dissipates heat and survives UV and temperature swings better over time. Plastic mounts are lighter and cheaper but can become brittle and discoloured under prolonged outdoor exposure.
Stainless steel can offer higher corrosion resistance in extremely harsh coastal or industrial environments, but it is heavier and usually more expensive. The DS-1272ZJ-110-TRS provides a practical middle ground for most urban and suburban installations at a lower cost than stainless steel options.
Junction boxes provide more space for cable splicing and electronics (e.g., PoE injectors), but are bulkier and can be overkill for a single dome camera. Pole mounts and pendant mounts are ideal where the camera must be positioned away from a vertical wall; however, the L-shape bracket is simpler and cleaner when a wall mount is appropriate.
Customer feedback and installer observations
While there are no formal customer testimonials provided here, reseller notes and installer feedback commonly highlight a few recurring points:
- Installers appreciate the compact size and the neat cable grommet — it reduces installation time and yields a professional result.
- Users note the lightweight, solid-feeling construction. The aluminium plus steel reinforcement gives confidence for mounting mini dome cameras without excessive hardware.
- Reseller listings often mention the approximate 4.5 kg load capacity; installers recommend verifying camera weight before use and using appropriate wall anchors for the substrate.
- Some installers stress checking local regulations and manufacturer datasheets for the latest compliance markings (CE/UKCA) and installation guidance.
These practical observations align with the bracket’s intended role as a specialized, affordable option for Hikvision dome cameras.
Installation tips, compliance and practical considerations
To get the best performance from the DS-1272ZJ-110-TRS, follow these practical guidelines:
- Confirm the camera weight and any accessories (sunshades, heaters) to ensure the bracket’s load capacity is not exceeded.
- Use appropriate wall anchors for the mounting surface (masonry, brick, plasterboard, timber) and ensure the steel reinforcement aligns with fixing points when possible.
- Route cables through the internal grommet for weather protection and to deter vandalism. Seal any threaded or wall entry points where needed to maintain moisture resistance.
- Follow the manufacturer’s installation instructions and check the Hikvision product page or datasheet for the most up-to-date compliance markings (CE/UKCA) and installation guidance.
- In coastal or highly corrosive environments, consider stainless steel options or additional protective coatings if long-term exposure is expected.
Conclusion: why the DS-1272ZJ-110-TRS is a solid choice
The Hikvision DS-1272ZJ-110-TRS L-shape wall mount bracket offers a blend of affordability, practical design and camera-matched aesthetics that make it an attractive choice for many wall-mounted dome camera installations. Its aluminium alloy construction with steel reinforcement provides a reliable combination of lightness and strength, while the corrosion-resistant finish and internal cable passage deliver the weather resistance and tidy cable management that installers and end users value.
For residential, small commercial and many professional CCTV installations where a compact, discreet wall mount is needed, the DS-1272ZJ-110-TRS stands out for being camera-specific, easy to install and cost-effective. Always verify camera compatibility, confirm local installation standards and use suitable fixings for the mounting surface, but for typical Hikvision mini dome and motorised dome cameras this bracket is a practical, visually cohesive option that streamlines installation and improves the finished appearance of the system.
