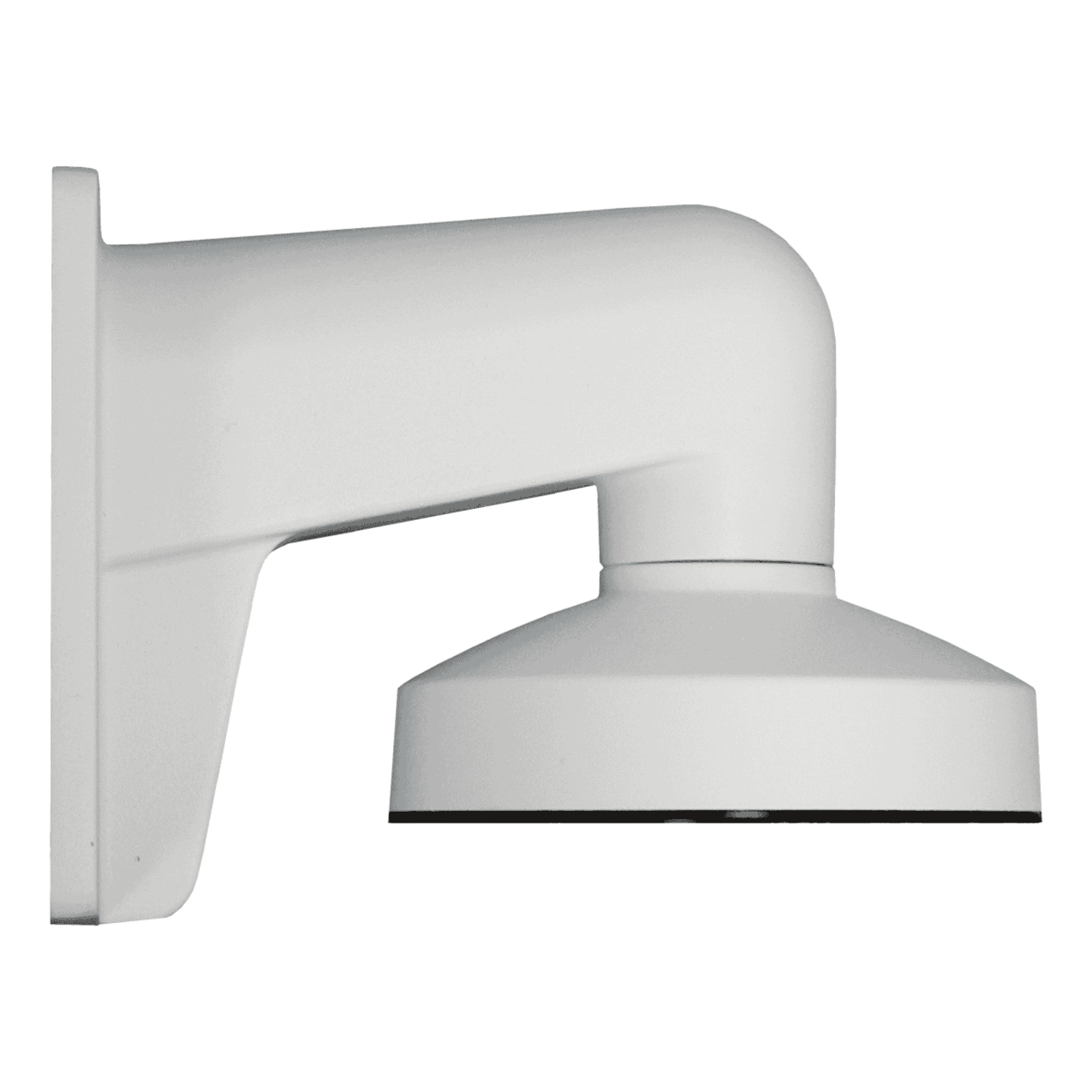

Introduction to the Hikvision DS-1272ZJ-110 Wall Mount Bracket
The Hikvision DS-1272ZJ-110 is a purpose-built wall mount bracket designed for mini dome and turret cameras. Finished in Hikvision white and constructed from aluminium alloy, this compact bracket focuses on neat, durable installations for both indoor and sheltered outdoor locations. Key design choices — such as a hidden cable entry, an anti-rust surface spray, and a waterproof rubber gasket — make it a practical accessory for installers and end users who want a clean aesthetic and reliable performance for small surveillance cameras.
Key features at a glance
- Aluminium alloy construction:Lightweight yet robust, with an anti-rust surface spray for corrosion resistance.
- Hidden cable entry:Conceals cabling for a tidy appearance and enhanced protection.
- Waterproof rubber gasket:Adds protection for outdoor or semi-exposed installations.
- Supports up to 4.5 kg:Suitable for mini dome and small turret cameras (confirm compatibility per model).
- Compact footprint:Dimensions of 120 × 122 × 169 mm and a lightweight 420 g body make it unobtrusive on façades and walls.
Detailed specifications and benefits
Understanding the bracket's technical details helps match it to the right cameras and installation environments. The DS-1272ZJ-110 is intended primarily for Hikvision mini dome/turret series (for example, many models in the DS-2CD21xx family), but it is designed to accept camera adaptors — installers should verify mechanical fit and cable routing for each camera model before final installation.
- Model:DS-1272ZJ-110
- Material:Aluminium alloy with anti-rust surface spray — balances low weight and corrosion resistance.
- Colour:Hikvision white — neutral finish that blends with most building exteriors.
- Dimensions:120 × 122 × 169 mm — compact profile for low visual impact.
- Weight:420 g — easy to handle and install.
- Maximum load:4.5 kg — suitable for mini dome and small turret cameras, not intended for larger PTZ or heavy housings.
The bracket’s hidden cable entry helps create a clean final appearance and provides additional protection against accidental snags or tampering. The waterproof rubber gasket improves resistance to moisture ingress where the junction between bracket and camera must remain dry — helpful for eaves, porch ceilings, and covered outdoor walls. The aluminium alloy body with an anti‑rust surface spray provides a longer life in environments that experience moderate humidity and occasional rain exposure.
Installers should mount the DS-1272ZJ-110 on a flat wall capable of supporting at least three times the combined weight of the camera and bracket. Follow the screw and hole dimensions indicated in the manufacturer datasheet, and verify mechanical and cable-fit compatibility with the specific camera model before sale or installation. While the bracket supports common mini dome cameras, some models may require adapters or slight modifications to secure correctly.
Use cases and scenarios where the bracket excels
The DS-1272ZJ-110 is most effective in applications where discreet, reliable mounting of small dome or turret cameras is required. Typical scenarios include:
- Residential security:Mounting compact dome cameras at front doors, driveways, patios, and garage exteriors where a neat appearance and weather resistance are valued.
- Retail and small business premises:Indoor and sheltered outdoor mounting for cameras covering entrances, cash registers, and back-of-house areas — the hidden cable entry helps keep wiring secure and visually unobtrusive.
- Office and commercial interiors:Corridor and lobby surveillance where a clean ceiling or wall profile is preferred and camera weight is within the bracket's rating.
- Hospitality and service sector:Mounting small cameras in hotels, restaurants, and cafés where aesthetic considerations matter and cameras must be discreetly placed.
- Light industrial or campus settings:Covered walkways, loading bays, and local surveillance points where the waterproof gasket offers added protection against moisture.
Because of its modest load rating (4.5 kg), the bracket is not suitable for heavy housings, large outdoor bullet cameras, or PTZ units. For those applications, junction boxes, pole mounts, or dedicated heavy-duty brackets should be used instead.
How it compares with similar brackets on the market
In the market for CCTV mounting accessories, buyers can choose from a range of materials (plastic, die-cast aluminium, stainless steel), finishes, and mounting styles (wall, ceiling, pendant, junction box). The DS-1272ZJ-110 positions itself as a reliable, budget-friendly option with the following comparative points:
- Material and durability:Aluminium alloy gives a good balance of strength and low weight compared with plastic alternatives that can degrade faster outdoors. Stainless steel mounts may offer superior corrosion resistance but at higher cost.
- Weather protection:The inclusion of a waterproof rubber gasket is an advantage over some indoor-only brackets; however, fully weatherproof housings or IP66-rated junction solutions provide greater protection in exposed locations.
- Cable management:The hidden cable entry is standard among mid-range brackets and offers a cleaner look than open-mount designs. Some competitors add built-in conduits or larger cable reservoirs for multi-cable installations.
- Load capacity:With a 4.5 kg rating, it fits the typical mini dome market. Heavier-duty brackets and masonry anchors are necessary for larger, heavier outdoor domes and PTZ cameras.
- Compatibility and adaptors:While the DS-1272ZJ-110 accepts camera adaptors, some multi-brand universal mounts may offer broader fit without additional adapters — always check camera-to-bracket fit first.
Overall, the DS-1272ZJ-110 is a strong contender for installers and end-users seeking a neat, cost-effective bracket for standard mini dome/turret cameras where moderate weather resistance and good aesthetics are required.
Representative customer feedback
Actual buyer reviews for specific brackets vary by installation complexity and expectations. Below are representative comments and observations commonly reported by installers and users who choose brackets like the DS-1272ZJ-110 (paraphrased from general installer feedback):
- "Easy to install and mounts flush to the wall — the hidden cable entry made the final installation look professional."
- "Good value for money. Lightweight but feels solid for mini dome cameras."
- "The waterproof gasket gave confidence for an under-eave outdoor install, though I wouldn't use this on fully exposed walls without an additional shelter."
- "Double-check camera compatibility — one of our camera models needed an adaptor to sit correctly on the bracket."
- "Perfect for small retail and residential jobs, not for heavy or outdoor PTZ cameras."
These types of comments reflect common strengths — neat appearance, ease of use, and value — while also reminding installers to confirm mechanical compatibility and consider site exposure when choosing mounting hardware.
Conclusion: Why choose the DS-1272ZJ-110?
The Hikvision DS-1272ZJ-110 wall mount bracket is a practical, well-considered accessory for anyone deploying mini dome or small turret cameras. Its aluminium alloy construction, hidden cable entry, and waterproof gasket combine to offer a tidy, durable mounting solution suitable for a wide range of indoor and sheltered outdoor applications. The compact dimensions and Hikvision white finish make it unobtrusive, while the 4.5 kg load capacity aligns well with the weight of most mini dome cameras.
For installers, the DS-1272ZJ-110 offers a straightforward, professional-looking mounting option—provided mechanical fit is confirmed for the chosen camera model and the installation surface meets the recommended load-bearing criteria. If you need a low-profile bracket that balances cost, durability, and neat cable management for small surveillance cameras, this Hikvision wall mount bracket is a solid choice.
