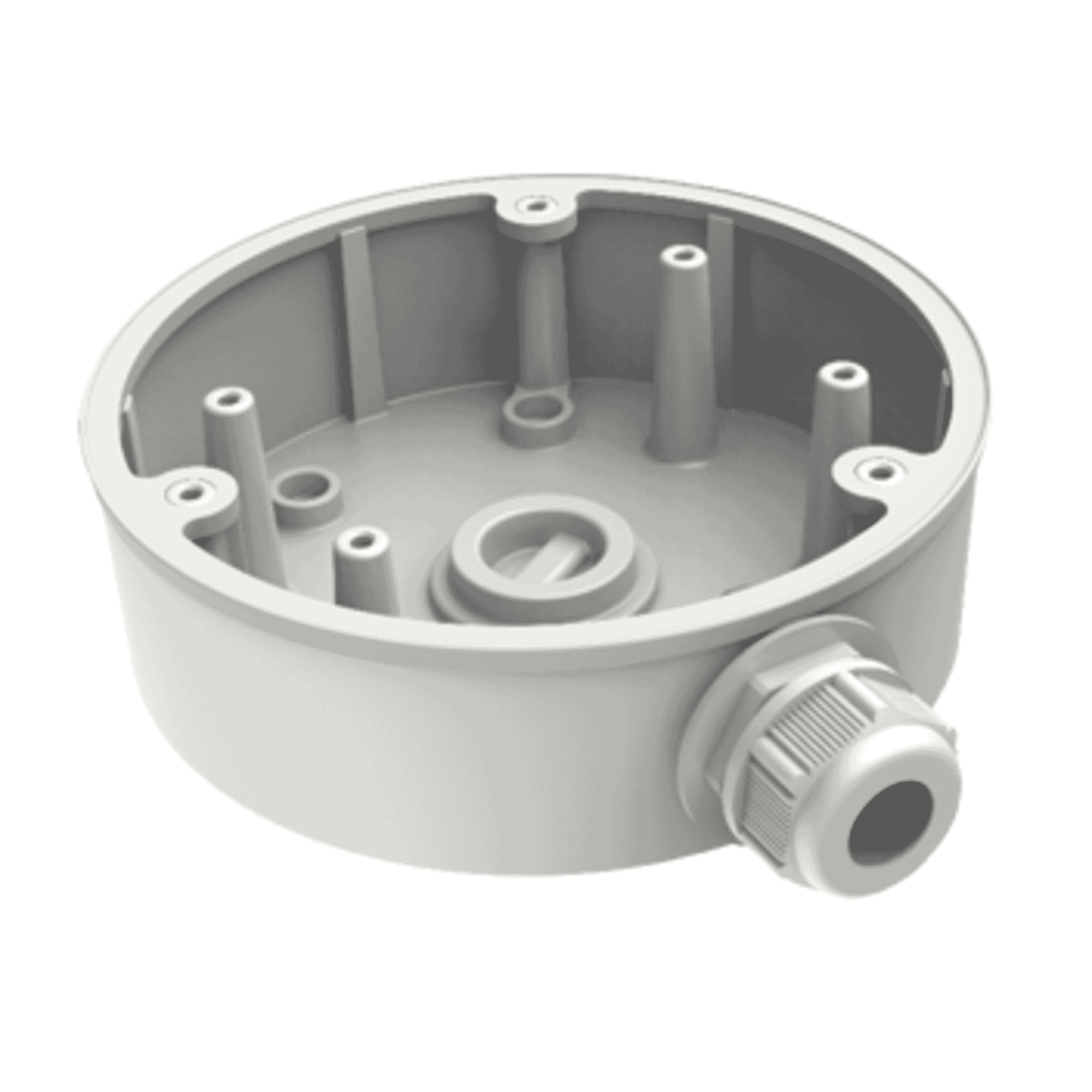

Hikvision DS-1280ZJ-PT6 Junction Box, Aluminium Alloy, Φ137×42mm, 4.5kg

Introduction: Meet the Hikvision DS-1280ZJ-PT6 Junction Box

The Hikvision DS-1280ZJ-PT6 is a purpose-built aluminium-alloy junction box designed for dome, turret and PTZ camera installations on ceilings or walls. Compact in size yet robust in function, this accessory provides a neat, secure enclosure for camera cabling and fixation hardware, while offering flexible cable routing and weatherproofing for outdoor use when fitted with an appropriate gasket. Finished in Hikvision white with a surface spray treatment, the DS-1280ZJ-PT6 supports a maximum combined camera-and-bracket load of 4.5 kg, making it a versatile choice for a wide range of CCTV deployments.

Key features at a glance

• Material:Lightweight, durable aluminium alloy.
• Size:Φ137 mm × 42 mm — compact footprint that suits dome and turret camera aesthetics.
• Load capacity:Supports up to 4.5 kg (camera + bracket).
• Cable entry:Side and bottom options with interchangeable bottom waterproof cover and side gland nut.
• Weatherproofing:Outdoor-capable when used with a waterproof rubber gasket.
• Finish:Hikvision white with surface spray treatment for a clean, professional look.

Detailed specifications and benefits

The DS-1280ZJ-PT6 is engineered for practicality and reliability. Below is a closer look at its technical specifications and the real-world benefits they deliver.

• Aluminium alloy construction:The use of aluminium alloy gives the junction box a favorable strength-to-weight ratio — it weighs just 280 g while remaining sturdy enough to protect cabling and support camera mounts. Aluminium also offers good corrosion resistance compared with untreated steels when properly finished.
• Surface spray treatment:The Hikvision white finish is designed to match common camera housings for a seamless appearance, and the treated surface helps resist wear and environmental discoloration.

• Compact dimensions (Φ137 × 42 mm):A small footprint keeps the camera installation unobtrusive, making it suitable for indoor locations and tight outdoor eaves.
• Maximum supported load — 4.5 kg:This capacity accommodates a wide range of dome, turret and lightweight PTZ cameras plus their mounting brackets. Always ensure the mounting surface itself can support at least three times the combined equipment weight for safety and stability.

• Side and bottom cable entry:Interchangeable fittings allow installers to route cables from the side or through the base — a flexibility that simplifies retrofits and new installations in different mounting scenarios.
• Outdoor use with gasket:The box comes with a bottom waterproof cover and a side gland nut, but an appropriate waterproof rubber gasket is required for weatherproofing on outdoor installations. Proper sealing protects connections from moisture and dust, extending the life of both the camera and cabling.

Use cases and scenarios where the DS-1280ZJ-PT6 excels

The DS-1280ZJ-PT6 junction box is a practical accessory for a wide range of CCTV projects. Its compact size, lightweight build and flexible cable options make it particularly useful in the following scenarios:

• Small retail stores, offices and reception areas benefit from the neat, low-profile appearance while keeping cabling hidden and secure behind the camera mount.

• For homeowners and property managers looking to mount dome or turret cameras under eaves or indoors, the DS-1280ZJ-PT6 offers an affordable, clean solution that blends with residential finishes.

• When paired with an appropriate rubber gasket and mounted on a protected surface, this junction box suits outdoor entrances, porches and covered walkways where the camera requires discreet but secure cabling.

• The interchangeable bottom cover and side gland nut make cable routing choices easy for retrofit projects where existing conduits or junctions need to be adapted without extensive remodeling.

How the DS-1280ZJ-PT6 compares to similar products

When selecting a junction box, installers typically weigh factors such as material, load capacity, size, weatherproofing and price. Here’s how the DS-1280ZJ-PT6 compares to common alternatives:

• Plastic boxes are often cheaper and lightweight, but they offer lower mechanical strength and can become brittle over time under UV exposure. The aluminium DS-1280ZJ-PT6 provides superior durability, a premium finish, and better heat dissipation for camera electronics mounted nearby.

• Stainless steel offers excellent corrosion resistance and higher ultimate strength, but tends to be heavier and more costly. Die-cast metal boxes can be bulkier. The DS-1280ZJ-PT6 balances cost, weight and robustness—making it a practical mid-range option for many projects.

• Integrated housings or pendant mounts often add weatherproofing and vandal-resistant features, but they also increase cost and visual bulk. The DS-1280ZJ-PT6 is ideal where a low-profile aesthetic and tidy cabling are priorities, especially when paired with cameras that already have the required ingress protection ratings.

Customer feedback and typical testimonials

While individual reviews vary, installers and system integrators commonly highlight a few recurring positives for aluminium junction boxes like the DS-1280ZJ-PT6:

• "Clean look and easy to install" — installers appreciate the compact size and standard fittings that speed up mounting tasks.
• "Solid but lightweight" — customers note that aluminium provides the right balance of sturdiness and ease of handling during installation.
• "Flexible cable routing" — the option to use bottom or side cable entry simplifies work in retrofit situations and saves time on site.

Note: This product listing does not include extended warranty details (warranty = 0 in supplied data). Buyers should confirm warranty terms with their supplier or Hikvision representative and ensure they use the recommended gasket for outdoor installs to avoid weather-related issues.

Practical purchasing considerations

The supplied cost price for this junction box is 13.22 with a suggested_price of 15.74, reflecting a minimum RRP that provides a roughly 16% gross margin based on that cost. Confirm the currency (USD, GBP, EUR, etc.) and the target region (UK, EU, US) so local VAT and tax preferences can be applied when finalizing retail pricing. Given its functionality and finish, the DS-1280ZJ-PT6 typically represents a cost-effective accessory choice that adds professional polish to camera installations.

Conclusion: Why choose the Hikvision DS-1280ZJ-PT6?

The Hikvision DS-1280ZJ-PT6 junction box is a compact, well-designed accessory that meets the needs of installers seeking a neat, reliable mounting solution for dome, turret and lightweight PTZ cameras. Its aluminium alloy construction delivers durability without excessive weight, while interchangeable cable-entry options and a weatherproofing pathway (with the right gasket) make it adaptable to both indoor and sheltered outdoor applications.

For projects that prioritize a discreet appearance, flexible installation options and a mid-range price point, the DS-1280ZJ-PT6 is an excellent choice. Confirm mounting-surface strength, use a waterproof gasket for outdoor installations, and check local pricing and warranty arrangements with your supplier to ensure the product meets project requirements and regulatory expectations.
