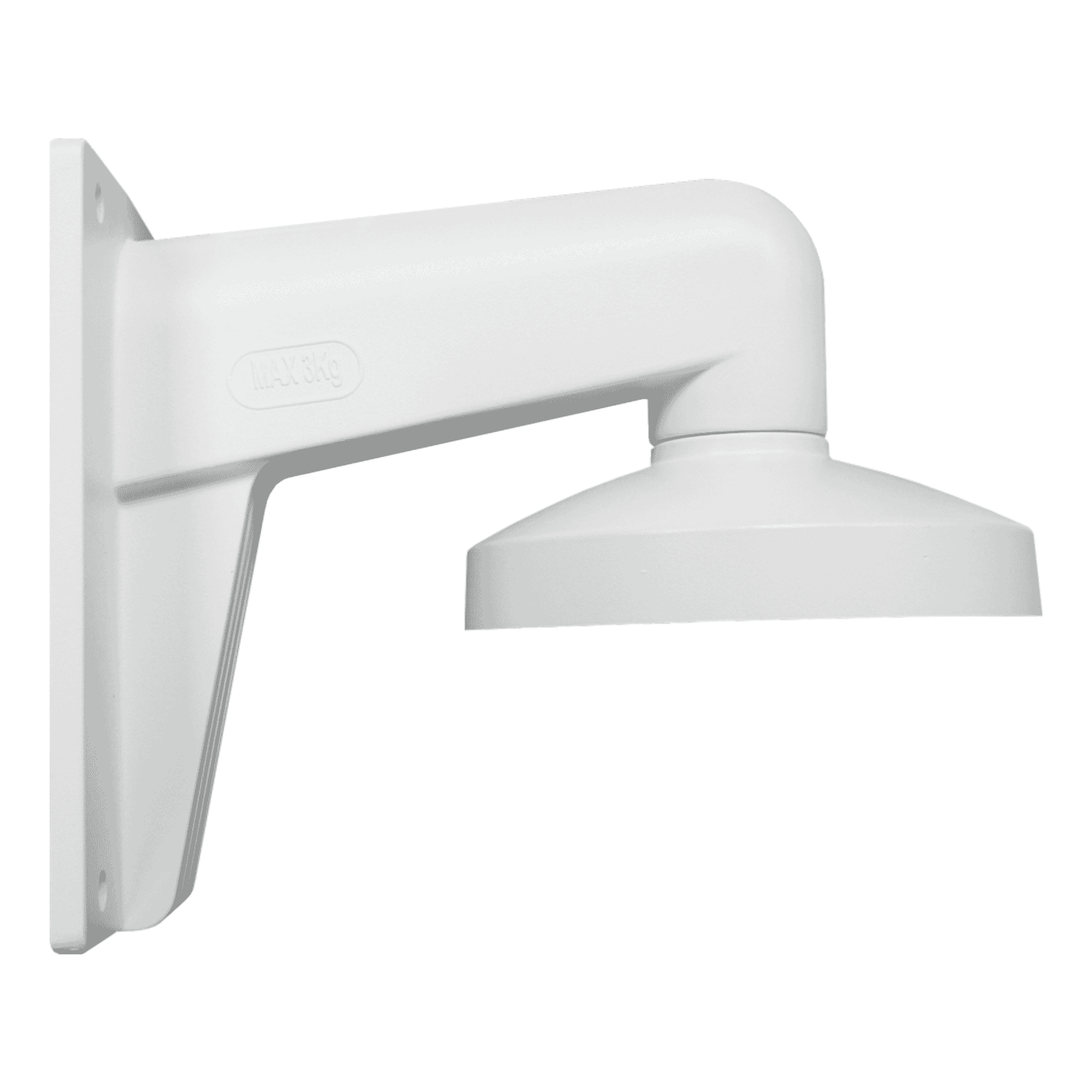

Hikvision DS-1473ZJ-155 Wall Mount Bracket, Aluminium, 3 kg

Introduction: Meet the Hikvision DS-1473ZJ-155 Wall Mount Bracket

The Hikvision DS-1473ZJ-155 is a compact, heavy-duty aluminium wall mount bracket designed specifically for dome and varifocal dome cameras. Finished in Hikvision white with an anti-corrosion surface treatment and a removable cap for neat cable routing, this bracket provides a clean and durable mounting solution for both indoor and outdoor CCTV installations. With a maximum supported load of 3 kg and a compact footprint, it is a practical option for integrators, installers and end users who want a reliable, unobtrusive mounting accessory.

Key features at a glance

• Aluminium alloy construction(ADC12) with anti-corrosion coating for durability and reduced weight.
• Waterproof designsuitable for indoor and outdoor use.
• Removable capfor straightforward cable routing and tidier installations.
• Compact dimensions(Ø155 × 183.5 × 240 mm) to suit many dome camera models without being obtrusive.
• Supports up to 3 kg— sufficient for most compact and varifocal dome cameras.

Detailed specifications and benefits

The DS-1473ZJ-155 is engineered with practical installation needs in mind. Below is a summary of the most relevant specifications followed by the real-world benefits each detail delivers.

• Model:DS-1473ZJ-155
• Material:Aluminium alloy (ADC12) with anti-corrosion surface treatment
• Colour / Finish:Hikvision White; anti-corrosion coating
• Dimensions:Ø155 × 183.5 × 240 mm
• Weight:≈ 650 g
• Maximum load:3 kg (6.6 lb)
• Mounting holes:4 × Ø8.5 mm; 6 × M4 depth 8 mm (see datasheet)
• Environmental:Waterproof for indoor and outdoor installations
• Compatibility:Commonly used with Hikvision dome/varifocal domes (e.g., DS-2CD27x5 series)

• Durability without heavy weight:Aluminium construction provides corrosion resistance and a long service life while keeping the bracket lightweight for easier handling and installation.
• Weather resistance:The waterproof design and anti-corrosion finish make it suitable for external walls, canopies and semi-exposed locations, reducing the need for frequent maintenance.
• Cleaner installs:The removable cap allows installers to route cables internally through the bracket, protecting connections from the elements and delivering a tidy, professional appearance.
• Compact footprint:The relatively small dimensions are ideal where aesthetics matter, such as retail storefronts, office façades or residential properties, while still accommodating typical dome camera sizes.
• Secure load capacity:With support up to 3 kg, the bracket covers the majority of compact dome and varifocal dome cameras used in commercial and residential projects.

Use cases and scenarios where the DS-1473ZJ-155 excels

This bracket is versatile and performs well across a range of common CCTV deployments. Typical scenarios include:

• Retail and storefronts:The neat, white finish and compact profile maintain the look of shopfronts while securing cameras to monitor entrances and display areas.
• Residential installations:Homeowners who want discreet, weatherproof mounting for doorways, driveways and perimeter coverage will benefit from the bracket’s small size and internal cable routing.
• Small to medium commercial sites:Offices, restaurants and small warehouses often use dome cameras in conjunction with this bracket for a secure, low-profile installation.
• Parking lots and external facade mounting:The corrosion-resistant coating and waterproof design mean the bracket can be used in exposed locations where rain, wind and temperature changes are a factor.
• Temporary or semi-permanent surveillance:Installers appreciate the lightweight design when mounting during retrofit or short-term projects where ease of handling and speed matter.

Installation and safety considerations

• Always mount to a flat, stable surface. The mounting surface must support at least three times the combined weight of the camera and bracket to ensure a safe installation.
• Use fixings appropriate for the substrate (concrete anchors, masonry screws, or appropriate fittings for plasterboard) and adhere to the mounting-hole specifications provided in the datasheet.
• Route cables through the removable cap to protect connections from moisture and reduce the risk of tampering or accidental damage.
• Follow local electrical and building regulations when performing external installations and consult a qualified installer if unsure.

Comparisons with similar products on the market

When selecting a wall mount bracket for dome cameras, installers typically weigh factors such as material, load capacity, weather resistance, cable management and price. Here’s how the DS-1473ZJ-155 stacks up against common alternatives:

• Plastic mounts are often cheaper and lighter but can become brittle in sunlight and extreme temperatures. The DS-1473ZJ-155’s aluminium construction offers superior longevity and resistance to environmental wear.
• Aluminium also offers a more professional appearance and better structural integrity for outdoor use.

• Steel brackets may offer higher load capacities but are heavier and, unless properly treated, prone to corrosion. The anti-corrosion finish on the DS-1473ZJ-155 protects it while keeping weight low, making it easier to handle and safer for lightweight domes.

• Manufacturer-specific brackets like the DS-1473ZJ-155 are often tailored to fit certain camera families, improving alignment and compatibility. Generic brackets can be more universal but may require additional fittings or spacers to achieve the same fit and finish.
• Price-wise, the DS-1473ZJ-155 is positioned as a cost-effective OEM accessory — the suggested price is around $31.99 — providing a balance of quality and affordability for professional installations.

Customer feedback and installer perspectives

There are no formal customer testimonials included with the product listing. However, typical installer feedback for brackets of this kind focuses on a few recurring points:

• Installers appreciate the removable cap for faster, neater cable management and the aluminium construction for durability without the bulk of steel.
• Positive comments often highlight the clean aesthetic when paired with Hikvision white dome cameras and the weatherproof performance in exposed locations.
• Where concerns are raised, they are usually about ensuring the mounting surface is adequate and using the correct fixings — which are standard best-practice reminders for any wall-mounted surveillance hardware.

Conclusion: Why choose the Hikvision DS-1473ZJ-155?

The Hikvision DS-1473ZJ-155 wall mount bracket is a practical, well-balanced accessory for dome camera installations. Its aluminium construction with anti-corrosion treatment delivers longevity and a professional appearance while remaining lightweight for easy installation. The waterproof design and removable cap support robust outdoor performance and clean cable routing, and the 3 kg load rating is suitable for most compact dome and varifocal dome cameras commonly used in residential, retail and small commercial applications.

For projects that prioritise a tidy installation, weather resistance and brand compatibility, the DS-1473ZJ-155 offers a cost-effective solution. While it’s always important to confirm compatibility and follow installation guidelines for specific cameras and mounting surfaces, this bracket represents a reliable choice for integrators and end users who want a neat, durable mounting option without overspecifying for heavier or specialised cameras.

Note:Warranty information is not specified with the provided product details; installers should consult the supplier or Hikvision documentation for any warranty or support specifics and review the official datasheet for full technical drawings and compatibility notes.
