Introduction to the Hikvision DS-1602ZJ-CORNER and its key features

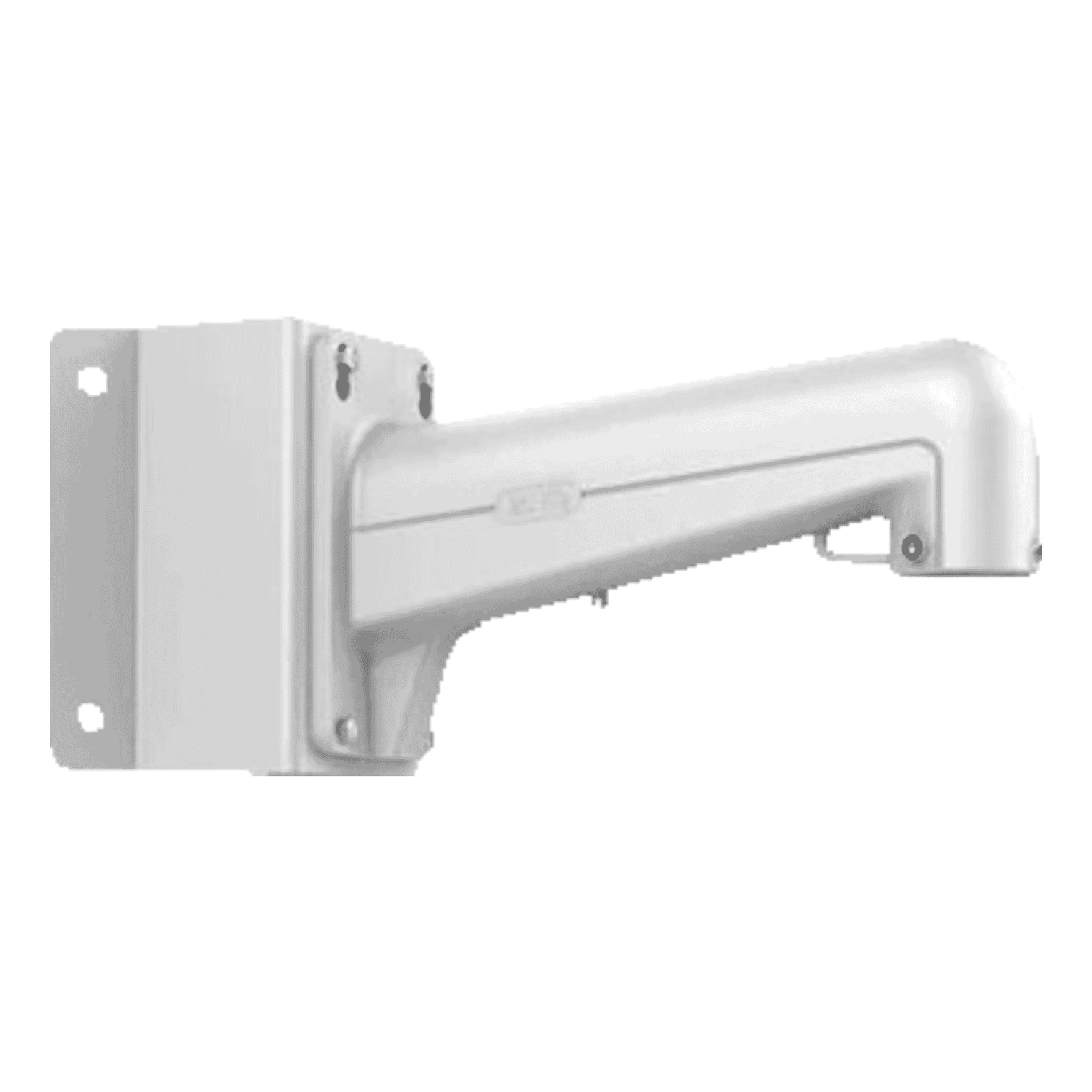

TheHikvision DS-1602ZJ-CORNERis a purpose-built long-arm corner mount bracket designed to secure PTZ and speed‑dome cameras to the external corner of buildings. Engineered from aluminium alloy and steel with a Hikvision‑white, surface‑spray finish, this bracket supports cameras up to10 kgand includes a safety‑rope installation design to make mounting safer and easier. Its long‑arm form factor allows for an expanded field of view when installed on a corner, making it an ideal mechanical accessory for both installers and end users who want a neat, reliable corner mounting solution for surveillance equipment.
Detailed specifications and benefits
The DS-1602ZJ-CORNER is compact yet robust. Key technical specifications include:
- Model:DS-1602ZJ-CORNER
- Description:Long arm wall corner mount bracket for PTZ/speed‑dome cameras
- Material:Aluminium alloy & steel (surface spray treated)
- Colour / finish:Hikvision white
- Dimensions:176.8 × 194 × 417.8 mm
- Weight:2.81 kg
- Load capacity:10 kg
- Installation notes:Mount only to a wall capable of supporting ≥3× total capacity; refer to datasheet
- Datasheet:DS-1602zj-corner_datasheet.pdf (supplier)
These specifications translate into practical benefits on site. The aluminium alloy and steel construction provides an excellent strength‑to‑weight ratio: the bracket itself is light (2.81 kg), keeping overall wall loading down, while still supporting cameras up to 10 kg. The surface spray treatment in Hikvision white improves corrosion resistance and ensures a clean, professional aesthetic that matches Hikvision camera housings.
The long‑arm design is a deliberate choice to deliver better sightlines from building corners. When mounted on a corner, the bracket enables a near 270° viewing envelope compared with conventional short‑arm or flush mounts. The inbuilt safety‑rope/lanyard installation design is a practical installer feature that reduces risk during installation and maintenance, allowing installers to secure the camera or bracket temporarily while working at height.
- Expanded coverage:Long arm increases viewing range from corners, reducing blind spots.
- Durability:Aluminium alloy and steel construction with surface finish for longer life outdoors.
- Installer safety:Safety rope/lanyard design helps manage the camera during installation.
- Compatibility:Designed for most Hikvision PTZ and speed‑dome cameras in the sub‑10 kg category.
- Compact footprint:Modest dimensions make for tidy, low‑profile installation.
Use cases and scenarios where the DS-1602ZJ-CORNER excels
The DS-1602ZJ-CORNER is particularly well suited to situations where camera placement on a building corner is either required for coverage or preferred for aesthetic and structural reasons. Typical applications include:
- Perimeter security:Mounting PTZ cameras on corners of warehouses, distribution centres, and industrial buildings to monitor long stretches of external perimeter with fewer cameras.
- Retail and shopping centres:Providing wide coverage at the junctions of storefronts or across mall exteriors where a corner position offers better sightlines over pedestrian routes and car parks.
- Commercial buildings and office blocks:Surveillance of entry points, vehicle access lanes, and loading bays where a corner mount reduces visual clutter compared with wall clusters.
- Residential and multi‑dwelling sites:Discreetly mounting PTZ units on corner eaves to watch driveways, property boundaries, or shared grounds.
- Transport hubs and public infrastructure:Corners on stations or terminals where an extended view reduces the need for multiple fixed cameras.
In each of these scenarios, the DS-1602ZJ-CORNER helps to reduce the total number of camera locations required, thanks to its extended field of view. For integrators, that can mean fewer conduits and tidy cabling runs; for end users, it can mean a lower overall system cost while maintaining coverage standards.
Comparisons with similar products on the market
Corner mount brackets come in a variety of designs: short‑arm, long‑arm, adjustable tilt models, and combined junction box mounts. The DS-1602ZJ-CORNER positions itself competitively within this landscape.
Compared with short‑arm corner mounts, the long‑arm DS-1602ZJ-CORNER offers a significantly wider viewing angle from the same mounting point. Short‑arm brackets are often more compact and cheaper, but they can create blind spots close to the building and may require additional cameras to achieve the same coverage.
Some corner brackets integrate junction boxes for cable termination and concealment. The DS-1602ZJ-CORNER is a mechanical bracket rather than a full junction solution, which keeps the unit lighter and simpler to fit. For projects where cable termination and ingress protection are priorities, integrators might pair this bracket with a separate junction box or use a compatible housing.
There are also more heavy‑duty third‑party mounts rated for higher wind loading and larger camera weights. Those products can be bulkier and more expensive. The DS-1602ZJ-CORNER strikes a balance for typical PTZ installs up to 10 kg: it offers professional quality, brand‑matched finish, installer‑centric features like the safety rope, and an attractive price point (suggested retail price around£39.99 / $39.99, depending on region).
Customer feedback and installer notes
Formal customer testimonials specific to this product are not supplied here, but common feedback themes from installers and system integrators with experience of similar Hikvision brackets include:
- "Appreciate the matched finish and straightforward fit — it complements Hikvision PTZs aesthetically and mechanically."
- "Safety‑rope feature is a practical touch that makes working at height easier and safer."
- "Lightweight yet feels solid — mounting and alignment are quicker than with heavier brackets."
- "Good value for the price when compared to heavy‑duty custom corner solutions."
These representative comments reflect the typical priorities of professional installers: reliability, ease of installation, compatibility with the camera range, and value. For customers seeking verified user reviews, check supplier websites or installer forums where product feedback and project photos are commonly posted.
- Structure strength:The supplier advises mounting only to a structure capable of supporting at least three times the total installed load. This is essential for long‑term safety and compliance.
- Compatibility check:Verify the camera weight and bracket compatibility before purchase and installation.
- Working at height:Where installation requires scaffolding, lifts, or structural modification, use a qualified installer and follow local building codes.
- Datasheet reference:Consult the manufacturer datasheet for full installation guidance and site‑specific considerations such as wind loading and recommended fixings: https://cdn.dynamictech.uk/Files/Products/CCTV/camera%20brackets/DS-1602zj-corner_datasheet.pdf
Conclusion: why the DS-1602ZJ-CORNER is a strong choice
The Hikvision DS-1602ZJ-CORNER long‑arm corner mount bracket offers a practical, cost‑effective solution for mounting PTZ and speed‑dome cameras on building corners. Its combination of lightweight yet durable materials, a 10 kg load capacity suitable for many popular PTZ models, and installer‑friendly features such as the safety‑rope design make it a versatile accessory for both trade professionals and competent DIY customers. The long‑arm form factor improves sightlines and can reduce the number of cameras required to cover a given area, delivering both functional and economic advantages.
For projects that require a neat, brand‑matched mount without the complexity or cost of heavy‑duty engineered supports, the DS-1602ZJ-CORNER presents a balanced choice. Always verify site load capacity, camera weight, and relevant regulations before installation, and consult the supplied datasheet for detailed guidance. When used appropriately, this bracket helps installers achieve reliable, professional corner camera installations with minimal fuss.
