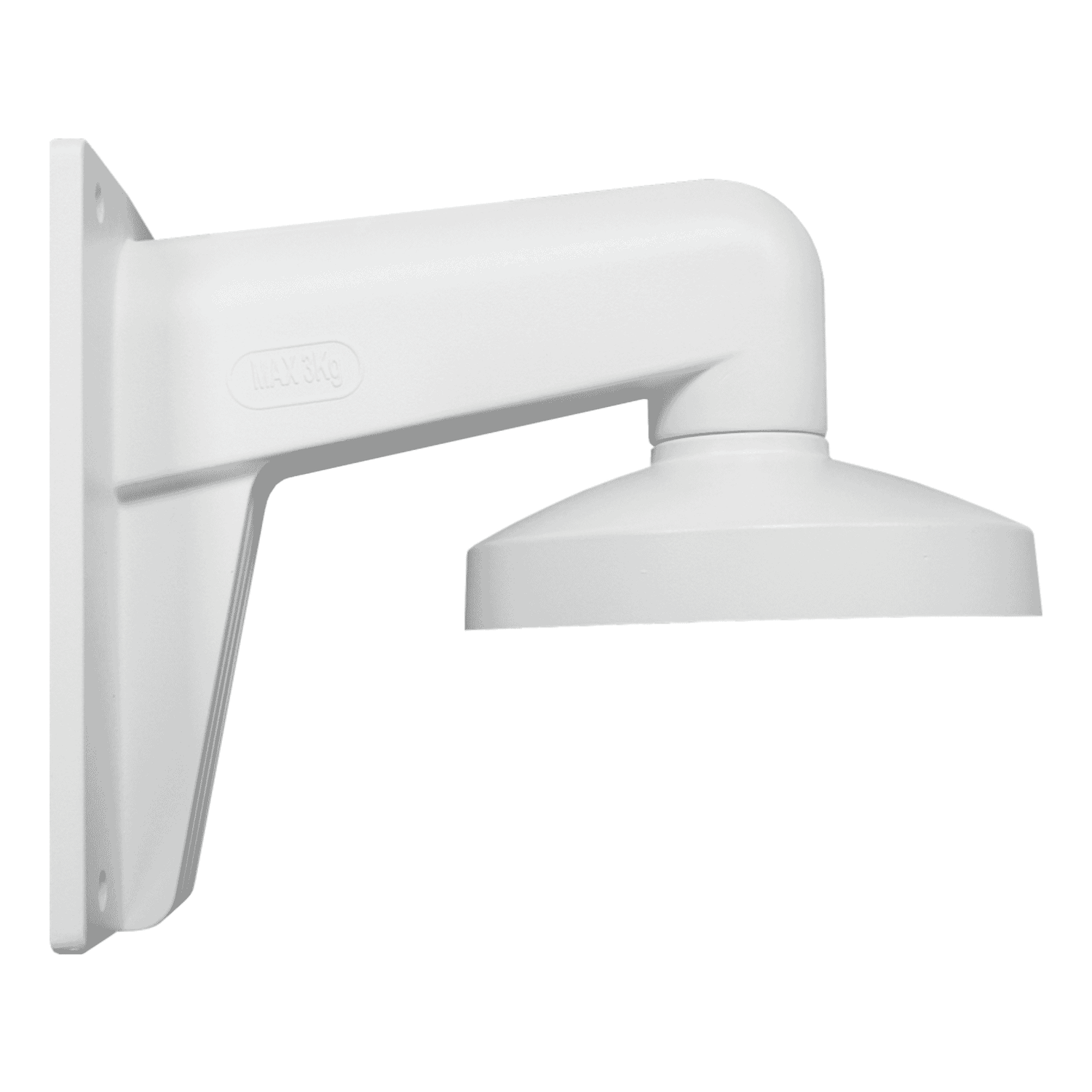

Introduction to the Hikvision DS-1473ZJ-135 Wall-Mount Bracket
Hikvision DS-1473ZJ-135is a purpose-built wall-mount bracket designed to support turret/dome surveillance cameras in neat, reliable installations. Constructed from die-cast aluminium alloy with a corrosion-resistant surface treatment, this bracket combines a compact footprint and tidy cable management with a durable form factor suitable for many indoor applications and outdoor locations when properly sealed. With an integrated cable-pass hole, removable cap and a maximum recommended camera weight of 3.0 kg, the DS-1473ZJ-135 is aimed at installers and system designers who want a clean-looking, dependable mounting option for Hikvision turret series cameras and similar models.
Key features at a glance
- Material: Die-cast aluminium alloy with surface spray treatment for corrosion resistance.
- Cable routing: Integrated cable-pass hole with removable cap for tidy installations.
- Dimensions: Ø136 × 183.5 × 230 mm, compact profile.
- Weight: 704 g (lightweight yet sturdy).
- Maximum load: Supports cameras up to 3.0 kg.
- Colour: Hikvision White (also available in Black as DS-1473ZJ-135(BLACK)).
- Compatibility: Designed for Hikvision turret/dome series (e.g., DS-2CD2Hxx, DS-2CD21x5) and similar camera models.
Detailed specifications and benefits
The DS-1473ZJ-135 is engineered to strike a balance between aesthetics, function and durability. Below is a more detailed look at its specifications and what they mean in practical use.
Manufactured from die-cast aluminium alloy, the bracket is both lightweight and strong. The surface spray treatment provides enhanced resistance to corrosion, which helps extend service life in humid or coastal environments. Compared with plastic alternatives, aluminium offers greater durability and a premium feel while still being lighter than some steel options.
One of the standout design elements is the integrated cable-pass hole with a removable cap. This allows ethernet, power or coaxial cables to be routed cleanly through the bracket rather than hanging exposed beneath the camera. The removable cap simplifies cable insertion during installation and improves the finished appearance. For outdoor installations, the cable-pass can be sealed with waterproof rubber/gaskets to prevent water ingress when installed according to Hikvision guidance.
The DS-1473ZJ-135 measures Ø136 × 183.5 × 230 mm and weighs 704 g. These compact dimensions make it suitable for installations where camera bulk should be minimized—such as building facades, retail interiors, stairwells or corridor ceilings. The maximum recommended camera weight is 3.0 kg, which accommodates most turret/dome cameras but is important to verify against heavier varifocal or armored models. Installers should confirm the combined weight of camera and any accessories remains within this limit and that the mounting surface can safely support the load.
Specifically designed for Hikvision turret/dome cameras (for example the DS-2CD2Hxx and DS-2CD21x5 series), the bracket also supports many similar cameras from other manufacturers that share comparable mounting patterns. The Hikvision White finish blends with most white camera housings and building exteriors while the Black variant provides an alternative where a darker aesthetic is preferred.
Use cases and scenarios where the DS-1473ZJ-135 excels
This bracket is a versatile option for a wide range of surveillance installations. Typical scenarios where it performs particularly well include:
- Retail and hospitality: Neat cable management and a compact profile keep cameras discreet above counters, in lobbies or along corridors.
- Office buildings: The white finish matches ceiling and wall surfaces; the bracket supports tidy installations in open-plan and secure areas.
- Multi-residential complexes: Durable aluminium construction and the ability to seal cable entries make it suitable for covered outdoor corridors, entrances and lobby areas.
- Education and healthcare facilities: Lightweight yet sturdy, the bracket supports cameras in high-traffic areas where aesthetics and reliability matter.
- Light commercial exteriors: When sealed with the appropriate waterproof gaskets, the bracket can be used on sheltered exterior walls and under eaves.
Because of its 3.0 kg maximum load rating, the bracket is best suited to turret/dome cameras and smaller housings. It is not intended for larger PTZ or heavily armored cameras that exceed the specified weight limit.
Comparisons with similar products on the market
When selecting a camera bracket, buyers typically weigh material, load capacity, weatherproofing, aesthetics and compatibility. Here’s how the DS-1473ZJ-135 compares to common alternatives:
Plastic (ABS/PVC) brackets are inexpensive and lightweight but can degrade under prolonged UV exposure and are generally less rigid. The DS-1473ZJ-135’s die-cast aluminium construction provides better long-term durability, improved heat dissipation and a more premium look while remaining light for easy installation.
Stainless steel brackets offer exceptional strength and corrosion resistance but are heavier and often more costly. The aluminium alloy bracket offers a middle ground—good corrosion resistance with a lower weight and cost than stainless steel, making it a practical choice for many commercial and residential applications.
Generic or universal mounts may support multiple camera types but can lack precise fit or finish for branded cameras. The DS-1473ZJ-135 is specifically designed for Hikvision turret/dome models, which simplifies installation and provides a better aesthetic match for those camera lines. The integrated cable-pass and removable cap are features that many low-cost generic mounts do not include.
- If you require support for cameras heavier than 3.0 kg, select a heavy-duty or steel bracket with a higher load rating.
- For fully exposed outdoor installations without any overhang or shelter, consider a bracket or housing rated for IP66/67 installations rather than relying on sealants alone.
- For corner, pole or pendant mounting, choose a bracket specifically designed for those configurations rather than a wall bracket.
Installation tips and safety reminders
To get the best performance and longevity from the DS-1473ZJ-135, follow these core installation and safety tips:
- Install on a flat, stable wall surface and verify the supporting structure can safely carry the combined weight of the camera and bracket.
- Seal cable entries and the bracket base with waterproof rubber/gaskets for outdoor installations and follow Hikvision’s installation guidance to achieve weather resistance.
- Use appropriate anchors and fasteners for the substrate (concrete, brick, timber, etc.) and torque fasteners to manufacturer recommendations where provided.
- Confirm camera compatibility—mechanical mounting pattern and weight—against the bracket before final installation.
- Refer to the manufacturer datasheet for full installation instructions, torque values and compatibility notes.
Customer feedback and representative installer comments
While individual experiences vary, installers and system integrators commonly highlight the following benefits when using the DS-1473ZJ-135:
- "Clean and professional finish" — installers appreciate the integrated cable-pass and removable cap which make final cable routing discreet and fast.
- "Lightweight but solid" — the aluminium construction is praised for being easy to handle on ladders while providing a reassuringly rigid mount for dome cameras.
- "Good match for Hikvision domes" — users note that the aesthetic and mounting fit align well with Hikvision turret series cameras, reducing alignment and aesthetic concerns on visible installations.
These representative comments reflect common themes from professional feedback: tidy cable management, adequate durability for most installations, and convenience when used with Hikvision cameras.
Conclusion: Why the DS-1473ZJ-135 is a compelling choice
The Hikvision DS-1473ZJ-135 wall-mount bracket is a well-considered accessory for installations that demand a tidy appearance, reliable support for turret/dome cameras and an uncomplicated cable routing solution. Its die-cast aluminium construction offers a durable, corrosion-resistant option that’s lighter than steel equivalents, while the integrated cable-pass and removable cap deliver a clean aesthetic and easier installation. With a 3.0 kg load capacity it covers the majority of turret/dome camera installations, and the availability of a black version broadens its visual versatility.
For installers, building managers and security professionals seeking a branded, camera-specific mount with sensible weatherproofing options when paired with proper gaskets, the DS-1473ZJ-135 is a practical and attractive choice. Always verify camera weight and mounting surface suitability before installation, and follow Hikvision’s datasheet and installation guidance for best results.
