Introduction: What the Hikvision DS-1704ZJ Offers

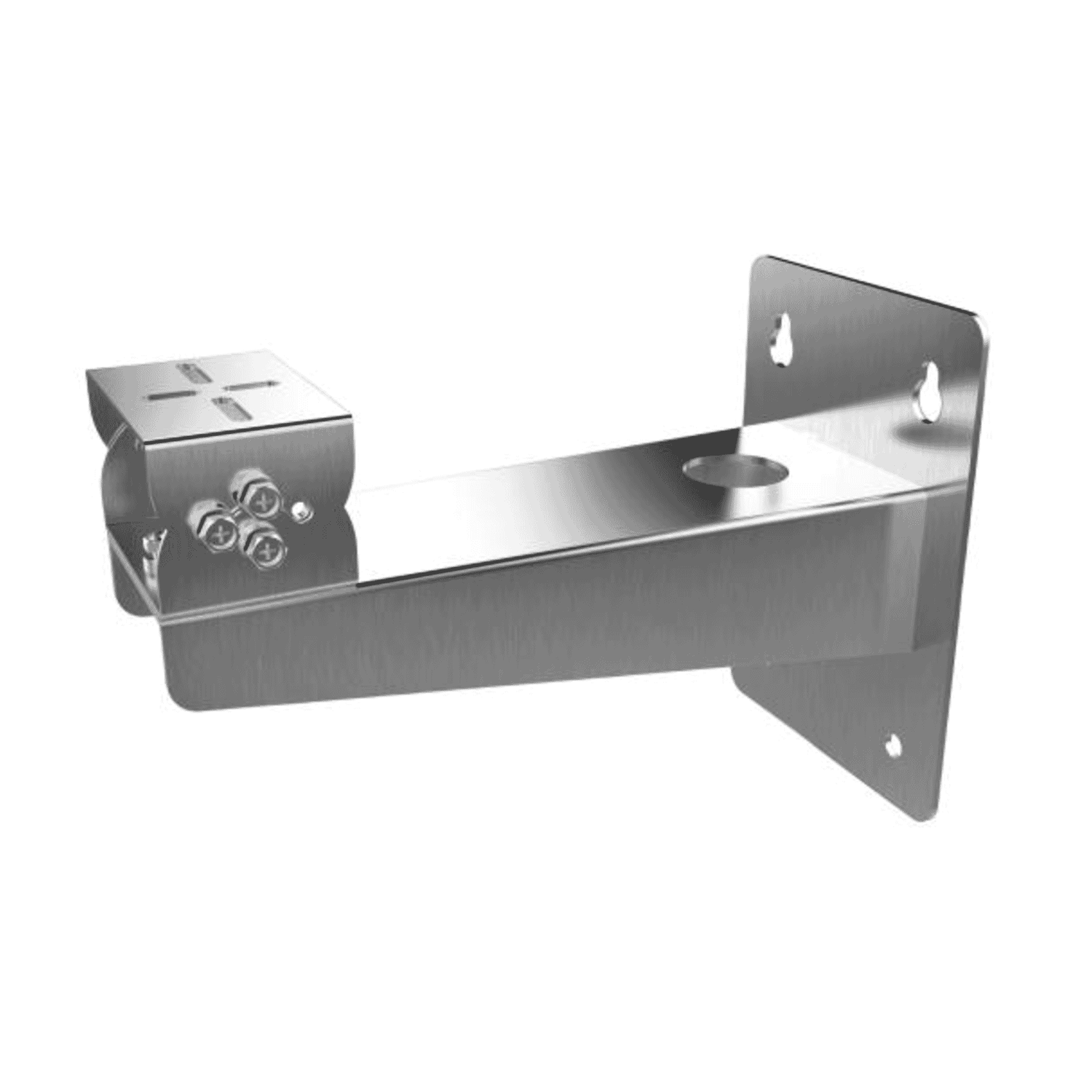

The Hikvision DS-1704ZJ Stainless Wall Mount Bracket is a purpose-built mounting solution for explosion‑proof and bullet-style cameras that need reliable support in corrosive or demanding environments. Constructed from SUS304 stainless steel, with a SUS316L variant (DS-1704ZJ-Y) available in some regions, this bracket combines durability, neat cable management and flexible aiming capability. With approximately ±45° tilt and ±45° pan, internal cable routing and compact dimensions (278 × 140 × 200 mm), it’s a practical choice for security integrators and installers who require a corrosion‑resistant mounting option that keeps installations tidy and serviceable.
Key Features at a Glance
- Material:SUS304 stainless steel (DS-1704ZJ; DS-1704ZJ-Y uses SUS316L in some markets)
- Aiming adjustment:Tilt approximately ±45° and Pan approximately ±45° for precise camera positioning
- Cable management:Internal cable hole for protected and discreet routing
- Dimensions & weight:278 × 140 × 200 mm; weight ≈ 2160 g
- Load capacity:Common reseller listings cite roughly 5–10 kg (typical claim ~8 kg) — confirm with the Hikvision datasheet for your specific camera and housing
- Finish:Natural stainless steel colour, suitable for industrial and coastal environments
Detailed Specifications and Practical Benefits
Understanding the technical specifications helps determine whether the DS-1704ZJ is appropriate for your project. The bracket is engineered to support cylindrical and explosion‑proof bullet cameras where corrosion resistance is important. Below are the technical highlights and the benefits they bring to real-world installations.
The primary construction material is SUS304 stainless steel, which offers strong resistance to rust and oxidation compared with typical painted steel brackets. In regions with highly corrosive environments — for example, coastal areas with salt spray or industrial sites with chemical exposure — the SUS316L variant (DS-1704ZJ-Y) is available and provides even greater resistance due to its molybdenum content. Choosing stainless steel reduces long-term maintenance, prevents flaking paint and preserves structural integrity in harsh conditions.
The bracket provides approximately ±45° of tilt and ±45° of pan. This level of adjustability lets installers fine-tune camera angle after the mount is fixed to the wall, reducing the need for re-drilling or repositioning. For perimeter surveillance, entry points, or coverage of complex sightlines, the adjustability can save time and ensure optimal field-of-view alignment.
Built-in internal cable routing is a practical feature for both aesthetics and protection. Cables routed through the bracket are shielded from weather, tampering and vandalism, and the installation looks neater. Internal routing also simplifies the handoff to the camera housing and helps meet installation standards in regulated environments.
With dimensions of 278 × 140 × 200 mm and a weight of about 2.16 kg, the bracket is compact yet robust. Typical resale listings list the load capacity in the 5–10 kg range (commonly quoted around 8 kg), but installers should always verify load capacities against the specific camera and housing datasheets. Proper fixings and wall anchors must be chosen according to the mounting surface (concrete, brick, steel, etc.) and the total load, including camera, housing, cable and environmental forces such as wind.
Use Cases and Scenarios Where the DS-1704ZJ Excels
- Coastal and maritime facilities:Salt-laden air accelerates corrosion; stainless steel construction resists this and extends service life compared with coated steel mounts.
- Chemical and industrial plants:In environments where mild corrosive vapours are present, the stainless bracket reduces the risk of premature failure and simplifies compliance with maintenance schedules.
- Explosion‑proof camera systems:Designed for use with explosion‑proof and anti‑corrosion bullet cameras—useful when the camera housing itself is rated for hazardous areas and needs a compatible mounting interface.
- Public infrastructure and transport hubs:For outdoor surfaces that require a corrosion‑resistant finish and where visible cable runs are undesirable.
- Retrofit jobs:The bracket’s adjustability and internal cable routing make it easy to upgrade older cameras without significant structural changes.
Installation, Safety and Compliance
Hikvision provides a datasheet for the DS-1704ZJ with mounting details and recommendations. Installers should follow that guidance in conjunction with local codes and safety regulations. Key points to note:
- Verify the complete camera assembly and enclosure for any explosion‑proof certifications required for your site; the mount is one part of the system and doesn’t by itself confer hazardous-area approval.
- Use the appropriate fixings for the mounting surface and check the aggregate load capacity.
- Installation in hazardous areas or where mains wiring is present should be performed by a qualified electrician or certified installer.
- Check product packaging and datasheets for CE / UKCA markings and regional approvals before deployment.
Comparisons with Similar Products on the Market
When evaluating the DS-1704ZJ against other mounting options, consider material, adjustability, cable management, compatibility and price.
Painted steel is often cheaper but can corrode once coating is scratched. Aluminium is lightweight and corrosion‑resistant but can be less strong for heavy loads and may galvanically corrode in certain pairings. The DS-1704ZJ’s SUS304 (and SUS316L variant) provides a middle ground: superior corrosion resistance and strength for demanding sites, usually at a somewhat higher cost than basic steel mounts.
Explosion‑proof and anti‑corrosion mounts like the DS-1704ZJ are designed to match the form factor and weight of heavy, sealed bullet housings and are often specified by the camera manufacturer for compatibility. Generic mounts may fit but can lack the load rating, routing options or material hardness required for hazardous-area use.
The suggested price provided with this product is around 52.00 (local currency units), with common reseller price ranges varying by market. For integrators the slightly higher upfront cost compared to basic brackets can be justified by lower maintenance, longer life in corrosive environments and reduced service calls due to mounting failure.
Customer Feedback and Installer Observations
There are few formal consumer reviews specifically for brackets, but feedback from installers and security integrators in similar markets typically highlights several recurring points:
- "Solid build and weighty—feels like it will last in coastal sites." — common installer remark
- "Internal cable routing makes installations neater and reduces touch‑ups later." — common benefit cited by integrators
- "Tilt and pan range is very helpful when matching fields of view without reworking the wall fixings." — typical observation
These types of practical comments align with the bracket’s intended function: a durable, installer‑friendly mount for challenging environments. If you require formal customer testimonials, check reseller pages or project case studies where integrators document deployments using Hikvision explosion‑proof systems.
Conclusion: Why Choose the Hikvision DS-1704ZJ?
The Hikvision DS-1704ZJ Stainless Wall Mount Bracket is a focused solution for security professionals who need corrosion resistance, internal cable management and flexible aiming for explosion‑proof or anti‑corrosion bullet cameras. Its stainless construction (SUS304 with a SUS316L variant available), approximately ±45° tilt and pan adjustment, and compact footprint make it well suited to coastal, industrial and other harsh environments where longevity and low maintenance matter.
While it carries a modest premium over basic steel mounts, the long-term benefits—reduced corrosion, better protection for cabling, and compatibility with heavy sealed housings—make it a sensible investment for installations where failure or frequent servicing would be costly. Always confirm load ratings and certifications with the Hikvision datasheet for your specific camera assembly, and have the mount installed by a qualified professional to ensure safety and compliance.
