Introduction to the PanoVu Wall Mount Bracket (DS-1603ZJ-P)

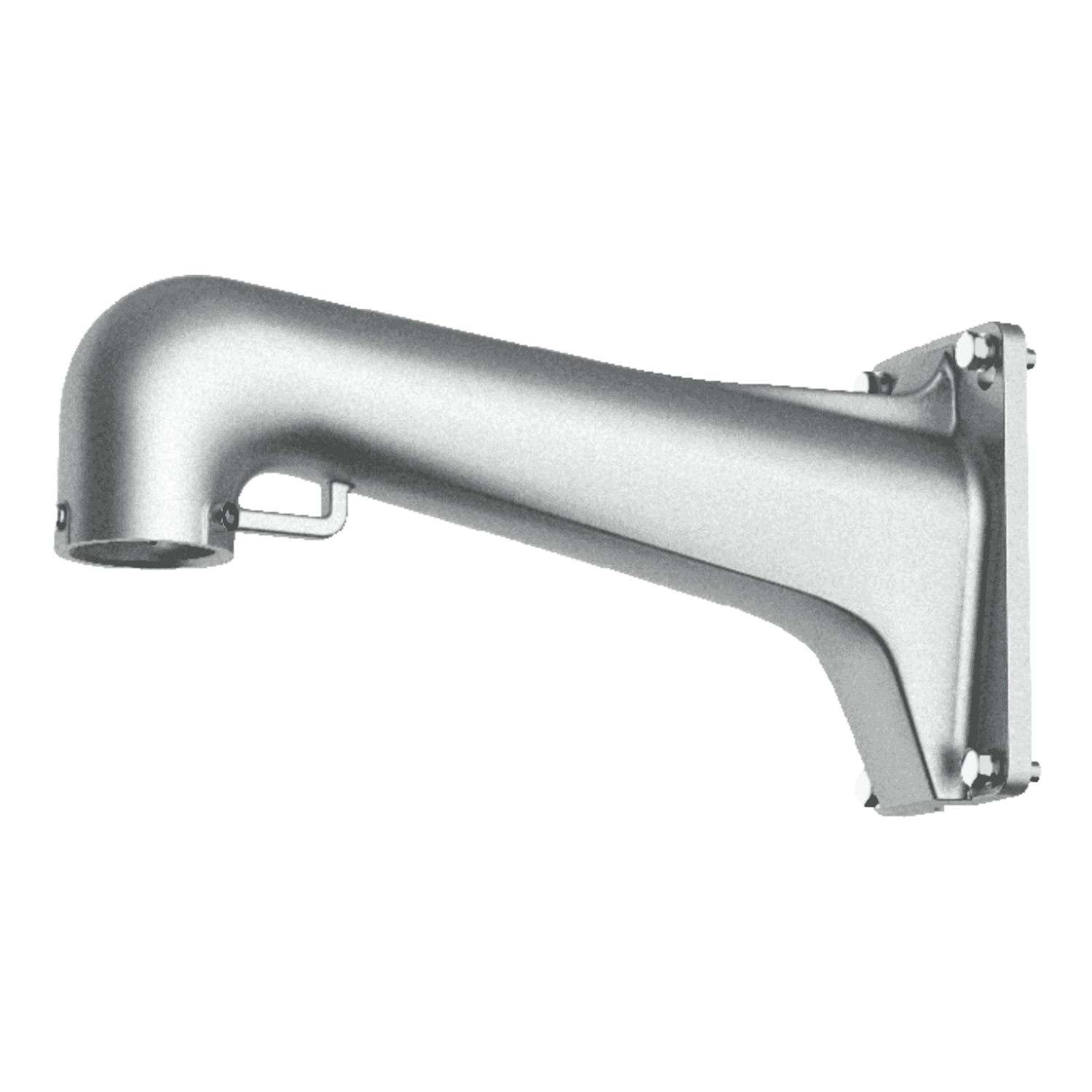

The PanoVu Wall Mount Bracket, model DS-1603ZJ-P, is a purpose-built aluminium-alloy mounting solution designed for panoramic and PanoVu network cameras. Finished in a platinum grey surface spray treatment, this bracket blends durability and discreet aesthetics to provide a reliable mounting platform for both indoor and outdoor camera installations. With a load capacity of up to 20 kg and an integrated safety-rope hook to assist installers, the DS-1603ZJ-P is positioned as a practical and cost-effective option for professional installers and security-conscious organisations.
- Designed for PanoVu / panoramic cameras:Specifically shaped and drilled to suit panoramic camera housings and mounting patterns.
- Aluminium alloy construction:Lightweight yet strong, with a surface spray treatment for improved corrosion resistance and appearance.
- Safety-rope hook:Helps secure the camera during installation for safer handling at height.
- Weatherproof capability:Suitable for outdoor use when fitted with a waterproof rubber gasket (required for sealing).
- High load capacity:Supports cameras up to 20 kg, accommodating a wide range of panoramic camera models and housings.
The DS-1603ZJ-P is presented as a mid-range dedicated mount for panoramic cameras. With a suggested retail price of 59.99 and a cost basis of 32.66, it aims to deliver strong value for installers who need a reliable, camera-specific bracket without paying for premium enclosure features they may not require.
Detailed specifications and benefits
Understanding the DS-1603ZJ-P’s specifications helps explain where it delivers value and why it’s chosen for professional CCTV installations. Below are the key specification highlights and the practical benefits they provide.
- Model:DS-1603ZJ-P
- Type:Wall mount for PanoVu / panoramic network cameras
- Material:Aluminium alloy (surface spray treated)
- Finish / Colour:Platinum grey
- Dimensions:364.1 × 182.0 mm (refer to the manufacturer datasheet for exact mounting-hole positions)
- Weight:1,400 g (1.4 kg)
- Maximum load:20 kg
- Mounting surface:Flat surface required
- Outdoor use:Suitable when used with a waterproof rubber gasket (required)
- Safety feature:Safety-rope hook for installation
- Installation note:Wall must support at least three times the total camera + mount weight
- Manufacturer datasheet:https://cdn.dynamictech.uk/Images/Products/CCTV/Cameras/hikvision/DS-1603ZJ-P_Datasheet.pdf
- Strength-to-weight balance:Aluminium alloy keeps the bracket light (1.4 kg) for easier handling while providing robust support for cameras up to 20 kg.
- Corrosion resistance:Surface spray treatment improves resistance to the elements and reduces maintenance compared with untreated metals.
- Cleaner aesthetic:Platinum grey finish helps the mount blend with modern building facades and camera housings, making installations less obtrusive.
- Safer installations:The integrated safety-rope hook is a simple but effective feature that reduces the risk of dropping a camera during mounting and fosters safer working practices at height.
- Weather readiness:When combined with a waterproof rubber gasket, the bracket supports outdoor deployments and helps maintain the integrity of the camera’s enclosure interface.
Installation guidance and safety considerations
Safe and correct installation is essential for any camera mount. The DS-1603ZJ-P is designed for attachment to flat surfaces; installers should verify that the mounting surface can support at least three times the combined weight of the camera and bracket. Use the integrated safety-rope hook during installation to secure the camera while fastening. For outdoor installations, the waterproof rubber gasket is required to achieve weatherproofing; ensure it is correctly seated and sealed to prevent water ingress. Always consult the manufacturer’s datasheet for mounting-hole positions and full dimensional drawings, and adhere to local electrical and building regulations.
Use cases and scenarios where this bracket excels
The DS-1603ZJ-P performs best in contexts where a camera-specific, robust, yet unobtrusive wall-mount solution is needed. Typical scenarios include:
- Large indoor spaces:Shopping centres, warehouses, airports and atriums that use panoramic cameras for wide-field surveillance will benefit from the bracket’s discreet finish and strong load capacity.
- Building exteriors:Office façades, retail frontages and perimeter walls where a clean, weather-ready mount is required. With the correct gasket and sealing, the bracket supports reliable outdoor operation.
- Transport hubs:Train stations and bus terminals use panoramic cameras for situational awareness; the DS-1603ZJ-P’s safety hook and easy installability reduce downtime and risk during servicing.
- Temporary or semi-permanent installations:Event spaces and arenas that require robust but removable camera mounting can use this lightweight bracket for flexible positioning without sacrificing strength.
Comparisons with similar market options
When choosing a wall-mount bracket there are several common categories to consider: purpose-built aluminium brackets like the DS-1603ZJ-P, heavy-duty steel mounts, universal adjustable brackets, and integrated junction box mounts. Here’s how the DS-1603ZJ-P compares.
Steel brackets may offer higher absolute strength and sometimes lower material cost, but they are heavier, more prone to corrosion without treatment, and harder to handle during installation. The DS-1603ZJ-P’s aluminium alloy provides a strong but lightweight alternative with better intrinsic corrosion resistance after surface treatment—beneficial for installation speed and long-term maintenance.
Universal mounts can handle many camera shapes but may require adapters and extra hardware for panoramic cameras, adding complexity and cost. The DS-1603ZJ-P is purpose-built for PanoVu-style cameras, meaning fewer compatibility issues and a neater installation when used with matching camera models.
Brackets with integrated junction boxes simplify cable management and may offer additional ingress protection. However, they can be bulkier and more expensive. The DS-1603ZJ-P focuses on providing a compact, camera-specific mounting surface; if you need integrated cable access or a conduit entry, you may prefer a mount designed with a junction box, or use the DS-1603ZJ-P in combination with a separate wiring enclosure.
At a suggested price point of 59.99, the DS-1603ZJ-P sits competitively between low-cost universal mounts and premium integrated solutions. For buyers who prioritise a clean, camera-matched fit and installer-friendly features (like the safety rope hook), it represents strong value.
Customer testimonials and feedback
There are no specific public testimonials included with this product listing. However, based on the feature set and installer considerations, typical feedback themes from similar products usually include:
- Positive:Appreciation for the lightweight yet sturdy aluminium build, the easy alignment with PanoVu cameras, and the safety-rope hook simplifying installations at height.
- Constructive:Requests for an integrated wiring channel or optional junction box add-on, and reminders to ensure proper gaskets are used in outdoor environments to guarantee weatherproofing.
If you require verified customer reviews for procurement decisions, consider checking supplier websites or contacting distributors for references or installation case studies.
Conclusion: Why choose the DS-1603ZJ-P?
The PanoVu Wall Mount Bracket DS-1603ZJ-P is a focused, practical solution for mounting panoramic cameras where a clean appearance, reliable load-bearing and straightforward installation are priorities. Its aluminium alloy construction offers an appealing balance of strength and low weight, the platinum grey finish helps it blend with contemporary architecture, and the safety-rope hook shows attention to installer safety. While it does not replace mounts that include integrated junction boxes, it excels as a camera-specific bracket for both indoor and outdoor use (when properly sealed).
For projects that demand a dependable mounting platform for PanoVu panoramic cameras—with easy handling, strong load capacity (20 kg), and an installer-friendly design—the DS-1603ZJ-P is a strong candidate. Always consult the manufacturer datasheet (https://cdn.dynamictech.uk/Images/Products/CCTV/Cameras/hikvision/DS-1603ZJ-P_Datasheet.pdf) and local regulations during planning, and ensure the mounting surface and sealing practices meet the installation recommendations.
