Vertical Pole Mount Bracket for CCTV – Stainless Steel, Ø67–127 mm, 10 kg, DS-1475ZJ-SUS

Introduction to the Hikvision DS-1475ZJ-SUS Vertical Pole Mount

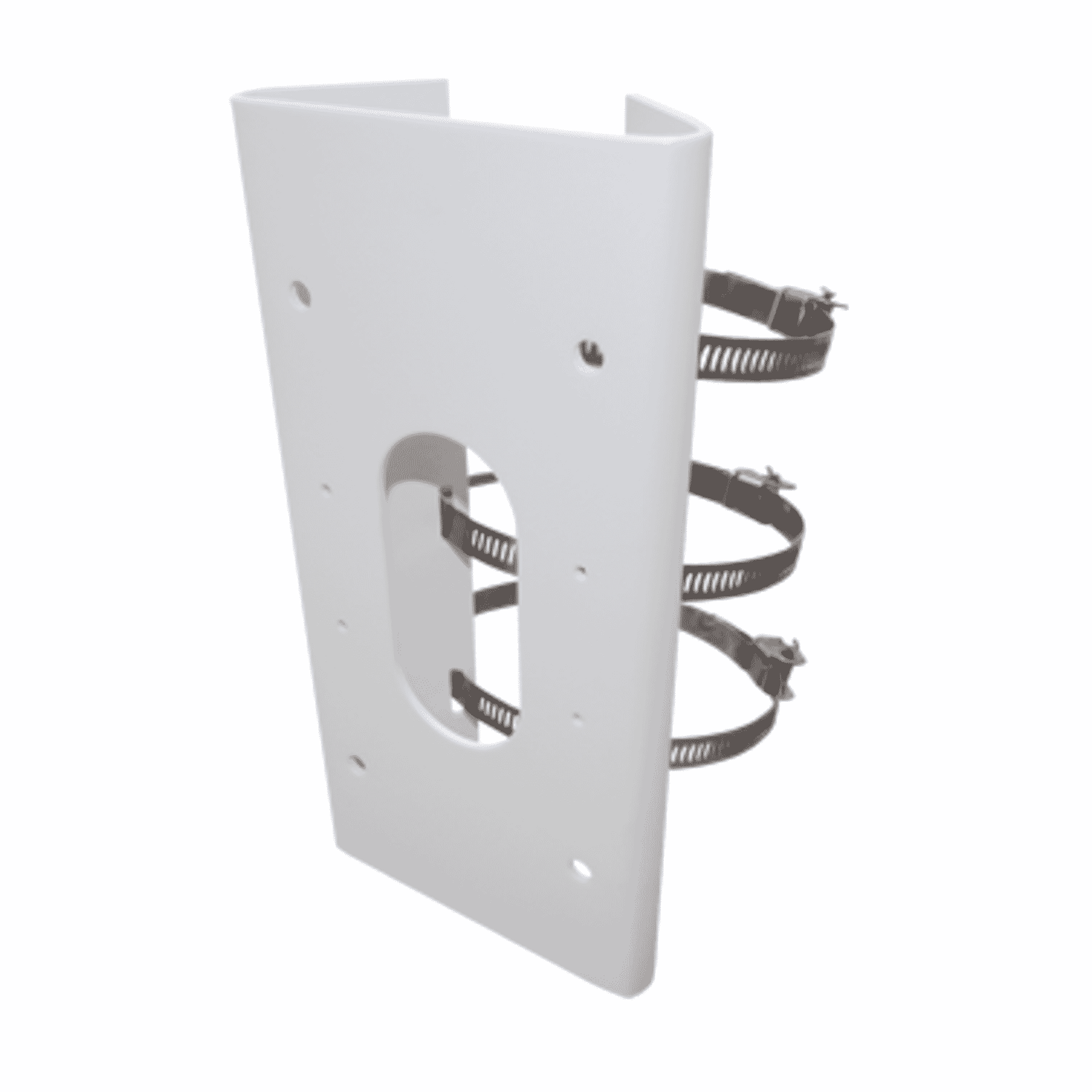

The Hikvision DS-1475ZJ-SUS Vertical Pole Mount Bracket is a purpose-built stainless-steel bracket for mounting compatible Hikvision motorised dome and turret cameras to round poles. With a compact footprint (250 × 127 × 46 mm), a corrosion-resistant surface-spray finish in Hikvision White and an adjustable clamp that fits poles from Ø67–127 mm, this bracket is designed to make outdoor pole-mounted surveillance simple, neat and robust. It supports cameras up to 10 kg and includes mounting holes to attach a camera backplate directly to the clamp assembly.

Key features at a glance

• Material:Stainless steel with surface spray treatment for enhanced corrosion resistance.
• Pole compatibility:Adjustable clamp fits round poles Ø67–127 mm.
• Load capacity:Supports cameras up to 10 kg.
• Compact dimensions:250 × 127 × 46 mm, keeping installations tidy and unobtrusive.
• Finish:Hikvision White spray-coated finish for outdoor durability and visual consistency with Hikvision cameras.
• Datasheet:Full specs and installation diagrams are available: https://cdn.dynamictech.uk/Files/Products/CCTV/Camera/Hikvision_Trade/Datasheet_of_DS-1475ZJ-SUS.pdf

Detailed specifications and benefits

• Model:DS-1475ZJ-SUS
• Product type:Vertical pole mount / pole bracket for surveillance cameras
• Material:Stainless steel (surface spray treatment)
• Colour / Finish:Hikvision White (spray coated)
• Dimensions (L×W×H):250 × 127 × 46 mm
• Weight:Approx. 1.20–1.285 kg
• Pole diameter supported:Ø67–127 mm
• Maximum load capacity:10 kg
• Notes:Waterproof rubber required for outdoor cable sealing (not included). Mounting surface must support at least three times the combined weight of camera and mount.

The use of stainless steel combined with a protective spray finish means the bracket is well-suited for outdoor environments where exposure to moisture, salt spray or industrial pollutants might otherwise accelerate corrosion. The Ø67–127 mm adjustable clamp range covers the majority of street poles, lamp posts and utility columns used in urban and commercial CCTV deployments, reducing the need to source multiple adapters for different pole sizes.

With a 10 kg load rating, the DS-1475ZJ-SUS will accommodate most modern motorised dome and turret cameras, including models with PTZ housings and heavier protective housings—provided the combined weight remains within the limit and the pole structure meets the recommended support safety margin. The compact footprint ensures installations remain low-profile, an important consideration for preserving aesthetics on streetscapes, parks and heritage settings.

Installation considerations and safety

• Cable sealing:For fully weatherproof outdoor installations, use a suitable waterproof rubber for cable passage and sealing (not included). Refer to the official datasheet for recommended sealing methods and dimensions.
• Structural safety:Ensure the chosen pole or column can safely support at least three times the combined weight of the camera and mount—this is industry best practice to allow for wind loading and dynamic forces.
• Compatibility:The bracket is designed for compatible Hikvision motorised dome/turret cameras, but installers should verify the camera backplate fits the clamp assembly and confirm clearances for full camera articulation.
• Regulatory compliance:Follow local electrical and installation regulations; engage a qualified installer if required for public or high-risk locations.

Use cases and scenarios where the DS-1475ZJ-SUS excels

This vertical pole mount is a practical choice in many surveillance scenarios. Typical deployments include:

• Urban street CCTV:Mounting motorised dome cameras on lamp posts for traffic monitoring, city centre security and public safety. The adjustable clamp fits common street pole diameters and the compact design minimises visual intrusion.
• Car parks and commercial sites:Surveillance of parking areas and retail exteriors where poles are already in place or where pole installations are preferred over wall mounting.
• Industrial yards and ports:Corrosion-resistant stainless steel is beneficial near coastal areas or industrial sites with airborne salts or chemicals.
• Sports grounds and parks:Temporary or permanent camera placements on existing poles to cover crowds, entry points and perimeters without large visual impact.
• Heritage areas and architectural sites:The unobtrusive footprint and neat Hikvision White finish help maintain aesthetics where visual impact is a concern.

Comparisons with similar products on the market

When evaluating pole-mount options, several factors typically guide selection: material and corrosion resistance, range of pole compatibility, load capacity, visual profile, and price. Here’s how the DS-1475ZJ-SUS stacks up against common alternatives.

Aluminium brackets are lightweight and often less expensive, but stainless steel offers superior long-term corrosion resistance—especially in coastal or harsh industrial environments. The DS-1475ZJ-SUS’s stainless-steel construction and spray finish make it a more durable option where longevity and low maintenance are priorities.

Some pole mounts are made for a single pole diameter and require different models or adapter kits for other sizes. The adjustable Ø67–127 mm clamp on the DS-1475ZJ-SUS reduces the need for multiple parts, simplifying inventory and installation on sites with varied pole diameters.

Heavier-duty mounts rated for very large PTZs or housings will support much higher loads than 10 kg, but they are bulkier, more expensive and often over-specified for typical dome or turret cameras. The DS-1475ZJ-SUS is a practical mid-range choice for most motorised domes and turrets, balancing capacity, size and cost.

Some mounts include integrated conduits or cable channels for power and data, or come with gaskets and seals included. The DS-1475ZJ-SUS requires separate waterproof rubber for cable sealing, which keeps the bracket compact and cost-effective but means installers should plan for sealing materials during procurement.

Value and pricing

Price is an important consideration for installations requiring many mounts. Priced competitively for its material and finish, the DS-1475ZJ-SUS offers strong value: a corrosion-resistant stainless design, adjustable clamp range and practical load capacity at a price point that typically undercuts heavier duty or fully integrated alternatives. The suggested retail price is around 38.0, making it an affordable option for both one-off and large-scale deployments while keeping long-term maintenance costs down due to improved corrosion resistance.

Customer feedback and installer observations

While there are no individual customer reviews listed here, installers and system integrators commonly report the following practical benefits based on field experience with stainless pole mounts of this design:

• Fewer site surprises:The wide clamp range reduces on-site adaptation and the need to order additional adapters when encountering different pole diameters.
• Good long-term durability:Stainless construction with protective coating stands up to outdoor exposure better than uncoated metal in coastal and industrial sites.
• Neat finish and compatibility:The compact footprint and Hikvision White finish match camera aesthetics and minimise visual intrusion in public areas.
• Installation notes:Installers stress the importance of planning for waterproof cable seals (not supplied) and confirming pole structural strength to meet the recommended safety margin (≥3× combined weight).

Conclusion: Why choose the DS-1475ZJ-SUS pole mount?

The Hikvision DS-1475ZJ-SUS Vertical Pole Mount delivers a focused combination of durability, versatility and value. Its stainless-steel construction and protective spray finish make it well-suited to outdoor use in environments that demand corrosion resistance. The adjustable Ø67 6127 mm clamp covers the majority of commonly encountered pole sizes, simplifying inventory and installation logistics. With a 10 kg load capacity and a compact, unobtrusive design, it suits most motorised dome and turret cameras while preserving the visual character of streetscapes and commercial properties.

For projects that require a robust, mid-range pole mount without the bulk or higher cost of heavy-duty alternatives, the DS-1475ZJ-SUS is a practical choice. Just remember to plan for waterproof cable sealing and confirm the poles load-bearing capacity as part of good installation practice. For complete installation diagrams and technical details, refer to the official datasheet: https://cdn.dynamictech.uk/Files/Products/CCTV/Camera/Hikvision_Trade/Datasheet_of_DS-1475ZJ-SUS.pdf

• Model:DS-1475ZJ-SUS
• Pole fit:Ø67 6127 mm
• Load capacity:Up to 10 kg
• Finish:Hikvision White, stainless steel
• Suggested price:38.0
