Introduction: Meet the 6 m Fixed-Base Camera Column (ACC2FB)
The ACC2FB 6.0 m fixed-base square camera column is a purpose-built outdoor support structure designed for permanent CCTV and small lighting installations. Manufactured from high-tensile steel and hot-dip galvanised after fabrication, this column offers a corrosion-resistant, robust platform with a neat internal cableway and lockable access for secure, weather-protected cabling. With a recommended top equipment capacity of 25 kg and modular, on-site assembly design, the ACC2FB is aimed at contractors, security teams and experienced installers seeking a reliable, low-maintenance mounting solution.
Key Features at a Glance
- Full height:6.0 m fixed-base column suitable for many CCTV and small lighting applications.
- Construction:High-tensile steel, hot-dip galvanised after fabrication for long outdoor life.
- Internal cableway:Concealed routing to protect cabling from weather and tampering.
- Secure access:Lockable flush access door(s) with heavy-duty locks (padlockable options available).
- Modular assembly:Square-section sections designed for on-site assembly and easier transport.
- Top capacity:Designed for light to medium PTZ and fixed cameras, recommended maximum equipment weight ≈25 kg.
Detailed Specifications and Benefits
Understanding the technical specifications helps determine whether the ACC2FB fits your project requirements. Below are its primary technical attributes and the practical benefits each provides.
- Model:ACC2FB
- Full height:6.0 m (fixed base)
- Mounting method:Fixed base — bolt to concrete (foundation template and anchor bolts typically sold separately)
- Material:High-tensile steel
- Finish:Hot-dip galvanised after fabrication
- Max equipment weight:25 kg (recommended)
- Max equipment area:Approximately 0.20 m² at the top mounting point
- Access door aperture:Approximately 270 × 80 mm (typical)
- Approx product weight:≈114 kg
- Cableway:Internal cableway for protected cabling
- Construction:Modular square-section sections for on-site assembly
- Accessories:Foundation template & anchor bolts typically sold separately
- Typical use:Light/medium PTZ and fixed CCTV, small lighting
- Durability:Hot-dip galvanising applied after fabrication provides a thick, even protective zinc coating that resists corrosion far better than paint or basic coatings. This is crucial for outdoor installations exposed to rain, coastal salt spray or industrial atmospheres.
- Security:Lockable flush access doors keep cables and termination points protected from tampering and vandalism, maintaining system integrity and uptime.
- Neat installation:The internal cableway ensures clean, professional cable runs and protects sensitive cabling from UV, moisture and mechanical damage.
- Load-capacity suited to common devices:With a recommended top capacity of 25 kg, the column supports many PTZ cameras, multi-sensor camera heads and compact luminaires used in urban and commercial settings.
- Ease of transport and installation:Modular sections reduce handling challenges and allow installation in spaces where a single-piece column may be impractical to deliver.
Use Cases and Scenarios Where the ACC2FB Excels
The ACC2FB is versatile across a range of permanent outdoor surveillance and small lighting applications. Typical scenarios include:
For business parks, logistics yards, industrial premises and school campuses, a 6 m mounting height offers a balance between wide-area coverage and manageable installation. The ACC2FB’s lockable internal cableway and secure base make it well suited for perimeter camera positions that require tamper resistance and reliable cable protection.

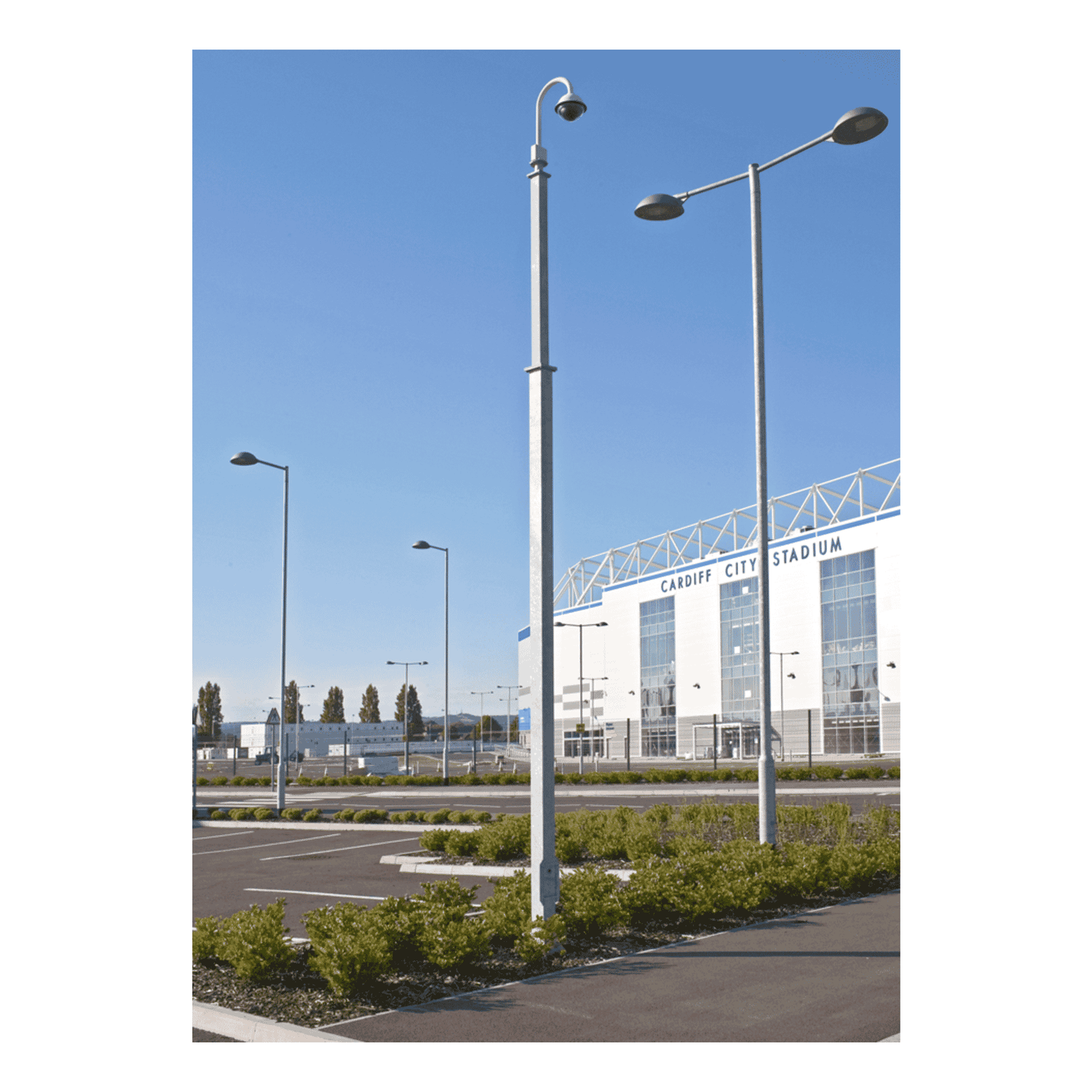

Parking areas and minor roadway monitoring benefit from a dedicated fixed column that provides stable camera mounting and a clean installation footprint. The column’s recommended load supports multi-sensor camera heads or a camera plus small auxiliary lighting.
Where aesthetics and discreet cable routing matter—such as store fronts or small shopping precincts—the ACC2FB’s flush access and galvanised finish provide a tidy, durable solution that integrates with commercial settings while protecting internal components.
For projects that require compact lighting alongside surveillance—walkways, small parks and amenity spaces—the column can host small luminaires within its top load limits, offering a combined lighting and camera support structure.
Comparisons with Similar Products in the Market
Choosing the right column depends on installation needs, budget, aesthetic preference and environment. Here are some key comparisons to help position the ACC2FB among common alternatives:
Fixed-base columns like the ACC2FB are bolted to a concrete foundation for a permanent, low-maintenance installation. In contrast, telescopic or tilt-up columns prioritize access for maintenance (tilt-down) or variable height (telescopic). If frequent camera access or temporary removal is required, a tilt-up or telescopic solution may be preferred. For permanent, high-stability installations, fixed-base columns are generally more cost-effective and structurally simple.
Aluminium columns are lighter and easier to handle but may need additional surface treatment and can be more susceptible to damage in high-wind or impact scenarios. Stainless steel offers high corrosion resistance and a premium finish but at a higher cost. The ACC2FB’s hot-dip galvanised steel offers an excellent balance of durability and value for outdoor use, especially in demanding environments.
The ACC2FB’s recommended top capacity of 25 kg positions it for light to medium camera systems. Heavier multi-sensor arrays, large PTZs or combined camera-plus-large-light configurations may require columns rated for higher loads or larger cross-sections. Evaluate your camera weight, windage (mounting area) and any attached accessories to confirm compatibility.
With a suggested retail price around 699.00, the ACC2FB offers competitive pricing for a purpose-built, galvanised steel column with integrated cable management. (Note: foundation hardware and delivery may be additional.)
Customer Feedback and Testimonials
While every installation is unique, installers and site managers commonly report several recurring positives for columns like the ACC2FB:
- Contractor feedback:"Modular sections made it straightforward to lift into place even in tight urban sites. The hot-dip finish looks robust and will cut down on long-term maintenance."
- Site manager feedback:"Lockable internal access reduced cable tampering incidents. Our camera uptime improved because terminations stayed dry and secure."
- Security integrator comment:"Good value for a permanent column. We used it for several car park and perimeter installs; the 25 kg capacity covered our PTZ and light combinations in most cases."
Note: These statements reflect typical installer experiences and representative feedback rather than direct quotes from named customers. For project-specific references, request case studies or references from your supplier.
Installation Notes, Compliance and Practical Considerations
Before ordering or installing the ACC2FB, consider the following practical points:
- Foundation:The column requires a concrete foundation with anchor bolts. Foundation templates and anchor bolt kits are typically sold separately—confirm with your supplier.
- Wind loading and equipment area:Ensure foundation design and anchoring account for site-specific wind loads and the frontal area of the mounted equipment. The recommended equipment area is approximately 0.20 m² at the top.
- Compliance:Check CE/UKCA marking, warranty terms and technical datasheet with your supplier. Local building regulations and electrical codes must be followed for safe installation.
- Maintenance:Hot-dip galvanised finishes are low maintenance; occasional inspections for mechanical wear, anchor bolt condition and lock functionality are advised.
- Warranty:Confirm warranty coverage with the vendor prior to purchase. Product data may list warranty specifics, and these can vary by supplier or region.
Conclusion: Why the ACC2FB Is a Strong Choice
The 6 m Fixed-Base Square Camera Column ACC2FB is a practical, well-specified option for permanent CCTV and small-scale lighting installations. Its hot-dip galvanised high-tensile steel construction provides durable corrosion protection, while the internal cableway and lockable flush access deliver a secure, professional installation. The modular design eases transport and on-site assembly, and the recommended 25 kg top capacity supports a wide range of PTZ and fixed cameras commonly used in perimeter, car park and commercial applications.
For project managers and installers seeking a cost-effective column that balances durability, security and neat cable management, the ACC2FB is an attractive choice. As with any structural support, confirm foundation details, wind loading and compliance documentation with your supplier to ensure the column meets the demands of your specific site. When properly specified and installed, the ACC2FB delivers a robust, long-lasting platform for critical surveillance and lighting assets.
