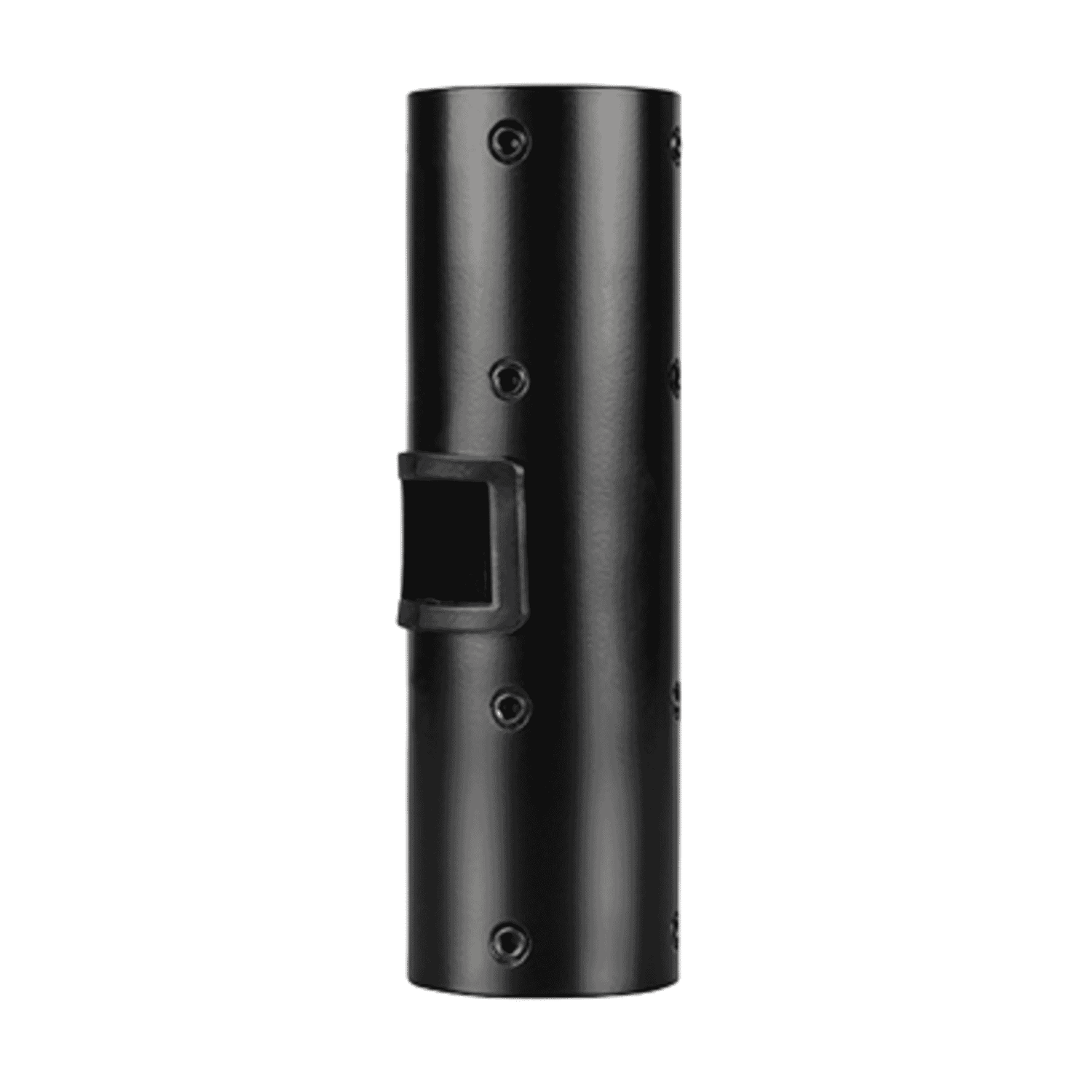

Introduction to the B‑Tech BT7824 System 2 External Pole Joiner
The B‑Tech BT7824 is a purpose‑built, external pole joiner designed for the System 2 range of AV and display support poles. Engineered as a single‑piece external coupler for Ø50 mm poles, the BT7824 combines heavy‑duty construction with practical features that make it ideal for demanding commercial and residential installations. With 4 mm steel construction, an open‑tube design for cable routing, micro‑angle adjustment via grub screws and supplied safety bolts, this joiner is a compact but robust solution for extending pole lengths without compromising internal cable pathways or structural rigidity. Typical retail pricing is around A329.00, making it an affordable component for professional AV rigs and DIY projects alike.
Key features at a glance
- 4 mm heavy‑duty steel constructionfor a rigid, low‑movement join.
- External single‑piece designbolts around the outside of two Ø50 mm System 2 poles.
- Open‑tube cable accessallows cables to run between poles without obstruction.
- Micro‑angle adjustmentusing supplied grub screws and safety bolts (short/long options for cable routing).
- Aesthetic finishes— available in Black or Chrome to match common AV hardware.
- Compatibilitywith B‑Tech System 2 poles such as BT7850 and BT7853.
Detailed specifications and benefits
- Material:4 mm steel — provides superior stiffness compared with thinner or softer materials and improves longevity in high‑use environments.
- External diameter:Ø60 mm to suit the external profile while accommodating Ø50 mm poles internally.
- Overall length:Approx. 195 mm — long enough to create a stable join while leaving room for grub screws and safety bolts.
- Finishes:Available in Black or Chrome — choose to match the look of your poles or surrounding AV hardware.
- Supplied fixings:Grub screws for micro‑angle adjustment plus safety bolts with short and long options to accommodate cable routing requirements.
- One‑piece bolted design:Bolts on externally so the pole interiors remain unobstructed for cable runs — important for maintaining neat, functional AV installs.
- Micro‑adjustment:The grub screws allow installers to fine‑tune alignment, making it easier to achieve perfectly vertical poles or precisely level displays after joining.
- Open‑tube design:Unlike fully enclosed internal couplers, the BT7824 provides a channel that lets cables pass between sections of pole. This preserves the benefit of internal routing (a clean, protected run) while avoiding blockages inside the pole.
- Safety bolt options:The inclusion of short and long bolts means you can secure the join firmly without forcing cables into sharp bends or compressing them at the join point.
Use cases and scenarios where the BT7824 excels
- Commercial AV installations:In conference rooms, lecture theatres and retail environments where signage or displays require taller or extended poles, the BT7824 lets installers increase pole length without compromising cable management.
- Digital signage and retail displays:Long runs are commonly needed for floor‑standing signage or multi‑screen arrays. The BT7824 provides a secure join while keeping power and signal cabling neat and hidden.
- Multi‑screen and video wall support:When building arrays that require precise alignment, the micro‑adjustment feature helps achieve uniform screen planes and stable mounts.
- Temporary events and touring setups:The bolt‑on external joiner is fast to fit and remove, ideal for event rigs that need rapid assembly and reliable structural joins without modifying the pole interior.
- Retrofits and DIY projects:For installers updating existing systems or hobbyists building custom stands, the BT7824 is an easy way to lengthen poles while preserving internal cabling paths.
Comparisons with similar products on the market
When choosing a pole joiner you typically consider internal couplers, external clamp‑style joiners and welded or permanently fixed solutions. Each approach has strengths and trade‑offs; the BT7824 positions itself between convenience and structural performance.
Internal couplers sit inside the pole and can offer clean lines and very high stiffness if the internal fit is tight. However, they often block the internal bore and complicate cable routing. The BT7824's external, open‑tube design preserves the internal cable route while delivering comparable rigidity due to its 4 mm steel construction.
Clamp or split‑ring joiners are common because they are quick to fit and adjust. Many are made from thinner materials and rely on clamping pressure rather than solid bolted structure, which can allow micro‑movement under load. The BT7824's single‑piece bolted design reduces movement and creates a more permanent, secure join while remaining serviceable.
Welded joins offer the highest possible stiffness but are permanent and negate the advantage of internal cable routing unless a bespoke cable channel is created. The BT7824 offers a non‑permanent, fully serviceable option that balances assembly speed, adjustability and structural integrity.
Aluminium joiners are lighter and resist corrosion naturally, but aluminium parts generally need larger cross‑sections to match the stiffness of 4 mm steel. For most fixed AV applications where rigidity is paramount, 4 mm steel is preferred; it helps minimise flex and keeps pole alignments true under load.
Customer feedback and typical user impressions
While specific user reviews for every project vary, installers and AV integrators commonly praise the BT7824 for a few recurring reasons:
- Stability:Professionals note the joiner's rigidity — once tightened it stays put and reduces the need for later adjustments.
- Cable management:The open‑tube design is repeatedly cited as a practical feature that saves time and prevents the need for workarounds when routing power and signal cables between pole sections.
- Fit and finish:The choice of Black or Chrome means the joiner integrates visually with most System 2 pole setups, which is appreciated in visible, customer‑facing installs.
Representative installer comments might include: "Excellent rigidity and easy to route cables through the join — saved us a lot of time on a multi‑screen install" or "The grub screws make final levelling quick; this removed one more adjustment step from the job." These are representative of common installer feedback rather than quoted testimonials from named individuals.
Installation tips and safety advice
- Always follow the manufacturer installation guide and technical drawing for orientation and torque recommendations. Reference: https://www.btechavmounts.com/file/bt7824-installation-guide-pdf-pdf and https://www.btechavmounts.com/file/bt7824-technical-drawing-pdf.
- Use the supplied grub screws and safety bolts as intended. Choose the short or long safety bolt depending on whether cables pass close to the join.
- Check the overall system load rating and ensure pole lengths and joins meet load and deflection requirements for the mounted equipment.
- If you are unsure about load ratings or structural safety for heavy displays, consult a qualified installer or structural engineer.
Conclusion: why the BT7824 is a strong choice
The B‑Tech BT7824 System 2 external pole joiner offers a practical, well‑engineered solution for extending Ø50 mm poles while preserving internal cable routing and providing a stiff, reliable join. Its 4 mm steel construction, open‑tube cable access, and micro‑adjustment capability make it particularly well suited to professional AV, retail and event setups where alignment and cable management matter. Compared with internal couplers and clamp‑style alternatives, the BT7824 strikes a successful balance between structural performance and serviceability. For installers seeking a dependable, economical joiner that simplifies on‑site cable work without sacrificing rigidity or aesthetics, the BT7824 is a compelling choice.
