Introduction: XDL12TT-AM External Tri-Technology Detector and its key features

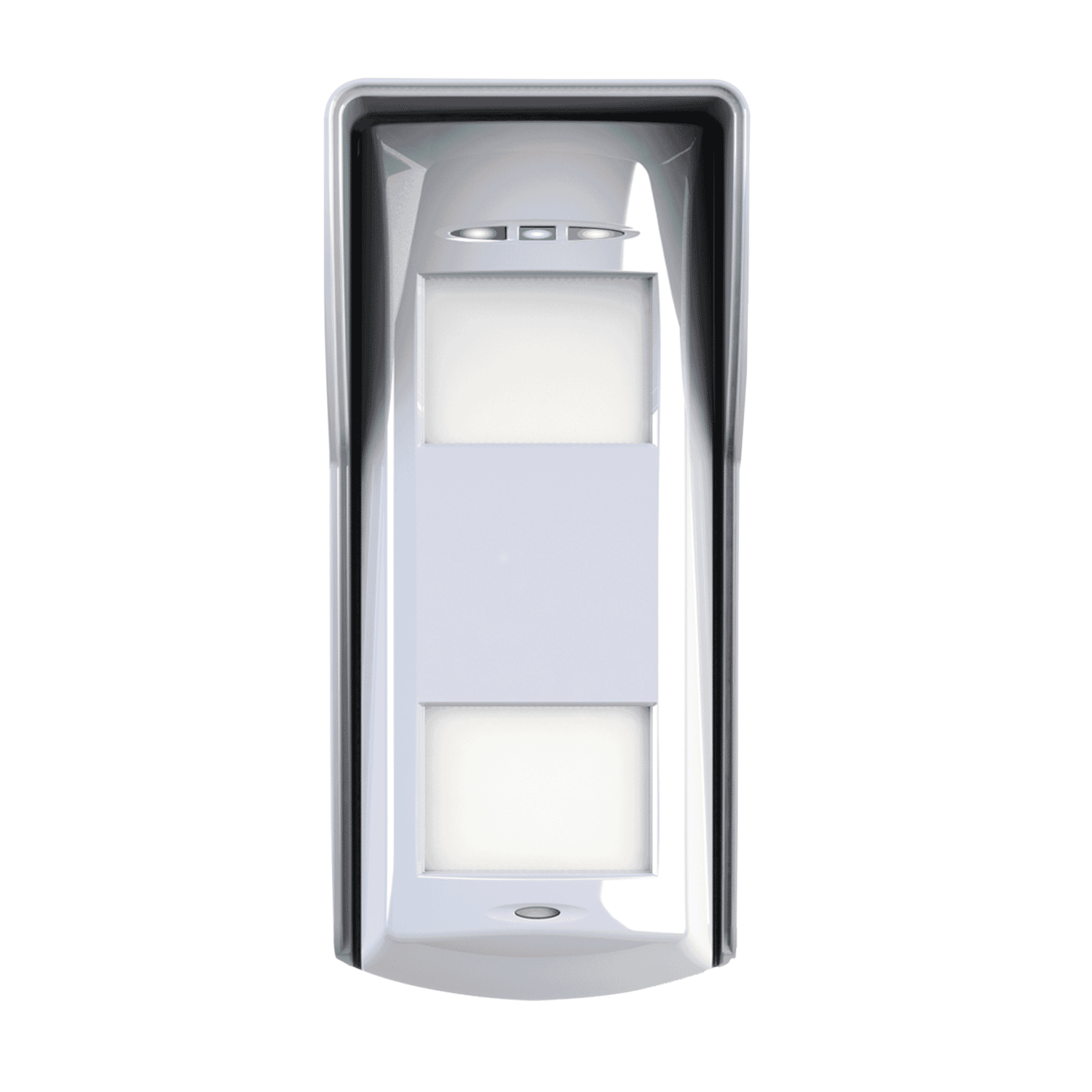

XDL12TT-AM External Tri-Technology Detector, 12 m, IP55is designed to deliver robust, reliable perimeter protection for homes, commercial properties and light industrial sites. Combining two dual-element PIR sensors with a microwave Doppler unit inside a UV-stabilised IP55 housing, this low-mount detector uses Tri-Signal Detection Logic to distinguish genuine intrusions from environmental noise. Key features include Dual-Vision pet-immune optics, selectable volumetric or curtain coverage, Grade 3 anti-masking and Grade 4 anti-block protection, adjustable sensitivity, and walk-test aids to streamline commissioning.
Detailed description: specifications and benefits
The XDL12TT-AM is built for professional performance in outdoor conditions while keeping installation and tuning accessible for experienced DIYers. Below are the technical highlights and the practical benefits they bring:
- Maximum range: 12 m — long enough to secure most garden perimeters and approaches without the need for multiple overlapping units.
- Coverage: Volumetric 85° or Curtain 17° — selectable optics allow installers to choose wide area detection or narrow, focused coverage for gates and approaches.
- Detection zones: 22 zones (11 top / 11 bottom) — fine-grained zoning improves detection reliability and reduces false alarms in complex scenes.
- Animal immunity: typically up to 24–35 kg (mounting-height dependent) — Dual-Vision optics help tolerate pets when mounted at the recommended low heights.
- Microwave frequency: 9.9 GHz (other variants available) with three selectable frequency bands to minimise cross-talk between adjacent detectors.
- Operating voltage: 9–16 V DC (typical 13.8 V) with supply current ≈24–25 mA @ 13.8 V DC.
- Relay outputs: 3 × SELV, 60 V DC, ≈50 mA — standard outputs for integration into alarm panels or auxiliary circuits.
- Tamper protection: front & rear tamper — helps protect the unit from tampering attempts.
- IP rating: IP55 — weatherproof and dust-protected for outdoor installation, with UV-stable polycarbonate housing to withstand sun exposure.
- Operating temperature: -25°C to +60°C — suitable across a wide range of climates.
- Dimensions & weight: 188 × 77 × 84 mm, ≈300 g — compact low-mount form factor.
- Anti-masking: Grade 3 anti-mask / Grade 4 anti-block with Anti-Sway analytics — sophisticated protection against deliberate obstruction and nuisance triggers from foliage movement.
- Adjustments & indicators: selectable sensitivity (Auto/High), adjustable PIR/microwave ranges, EOL resistor options, walk-test buzzer and separate top/bottom LEDs for straightforward commissioning.
- Warranty & certification: 5-year manufacturer warranty (lens excluded); CE marked and PD6662 referenced.
- Higher immunity to false alarms: The Tri-Signal Detection Logic requires corroboration between dual PIR channels and the microwave element, dramatically reducing false positives from insects, small animals or sudden light changes.
- Pet-tolerant low-mounting: Dual-Vision optics are optimised for low-mount installations where pets are present. Combined with sensitivity and range adjustments, this makes the detector suitable for many domestic settings.
- Flexible coverage: Choice of 85° volumetric view or a narrow 17° curtain gives installers the freedom to tailor protection to wide borders or narrow approaches like driveways and gate lines.
- Robust outdoor performance: IP55 housing and UV-stable materials mean the unit withstands common weather and sunlight exposure without rapid degradation.
- Advanced anti-mask and anti-block: Grade 3/4 protections detect attempts to obstruct or cover the detector and help suppress nuisance alarms from moving vegetation with Anti-Sway analytics.
- Easy commissioning: Walk-test buzzer and separate LEDs speed up alignment and setup, while multiple frequency bands reduce the risk of cross-talk on sites with many detectors.
Use cases and scenarios where the XDL12TT-AM excels
This detector is particularly well suited to sites where perimeter or approach detection is the primary requirement and where environmental challenges or pets are present. Typical use cases include:
For homeowners who want reliable exterior detection at a low mounting height, the XDL12TT-AM offers pet immunity and selectable curtain patterns for driveway-focused coverage. Its weatherproof housing makes it ideal for exposed locations such as gate posts and low boundary walls.
Warehouses, small industrial yards and commercial premises benefit from the detector’s 12 m reach and tamper protection. Anti-masking and multiple microwave bands are particularly useful on sites with several detectors or where deliberate obstruction could be a concern.
When protecting fences, hedges or approaches where a narrow detection corridor is preferable, the 17° curtain option focuses detection to a tight lane, reducing detection of off-axis movement while maintaining early warning of intruders.
Properties with trees, shrubs or high wind exposure can trigger many detectors. The XDL12TT-AM’s Anti-Sway analytics and Tri-Signal logic help suppress foliage-induced false alarms while retaining sensitivity to genuine intruders.
How it compares with similar products in the market
External detectors typically come in three flavours: single-technology PIR, dual-technology (PIR + microwave) and tri-technology. The XDL12TT-AM sits in the higher reliability tier thanks to its tri-technology approach and additional anti-masking features.
- Single-technology PIR units are inexpensive but prone to false alarms from sunlight, insects and pets. They can work well in controlled, sheltered positions but are limited outdoors.
- Dual-technology detectors reduce false alarms by requiring concurrence between PIR and microwave elements. However, they may still be vulnerable to sophisticated masking attempts and can struggle with vegetation-induced microwave noise unless specifically tuned.
- Tri-technology detectors such as the XDL12TT-AM add redundancy and finer discrimination by using two PIR channels plus microwave, combined with Tri-Signal logic. This yields better false-alarm rejection in challenging outdoor conditions and gives stronger protection against masking or deliberate interference.
Compared to other tri-tech models on the market, the XDL12TT-AM’s practical advantages include selectable coverage patterns (volumetric and curtain), Dual-Vision optics for pet tolerance and Grade 3/4 anti-mask/block ratings — features that make it competitive for both residential and commercial installers. The availability of multiple microwave frequency bands is also a notable benefit on multi-detector sites where cross-talk can be an issue.
Customer testimonials and installer feedback
No formal customer testimonials are included here, but typical installer and user feedback for detectors with this specification profile commonly highlights the following points:
- Reliable perimeter detection with fewer nuisance alarms after proper tuning and siting.
- Ease of commissioning thanks to walk-test buzzer and separate LEDs, shortening on-site setup time.
- Effective pet tolerance when mounted at the recommended heights and with sensitivity adjustments applied.
- Positive feedback on the anti-masking and anti-block functions for sites where tampering is a risk.
If you need real customer reviews for sales or marketing, consider requesting anonymised installer case studies or seeking verified purchaser feedback from distributor platforms.
Conclusion: why the XDL12TT-AM is a great choice
The XDL12TT-AM External Tri-Technology Detector offers a balanced mix of performance, flexibility and outdoor durability. Its Tri-Signal Detection Logic and Dual-Vision optics provide strong false alarm immunity while the selectable volumetric and curtain coverage modes make it adaptable to a wide range of mounting scenarios. Anti-masking and anti-block capabilities, multiple microwave frequency options and clear commissioning aids reduce on-site complexity and long-term nuisance events.
For professional installers and technically confident DIYers seeking a robust perimeter detection solution, the XDL12TT-AM is a compelling option. With a suggested price of 89.99 (confirm currency and VAT details as required) and a 5-year manufacturer warranty (lens excluded), it represents a competitive choice for securing domestic gardens, driveways, commercial yards and other external approaches where reliability and low nuisance alarms are priorities.
For full technical details, installation guidance and the datasheet, refer to the manufacturer’s documentation and follow recommended mounting heights and wiring safety procedures.
