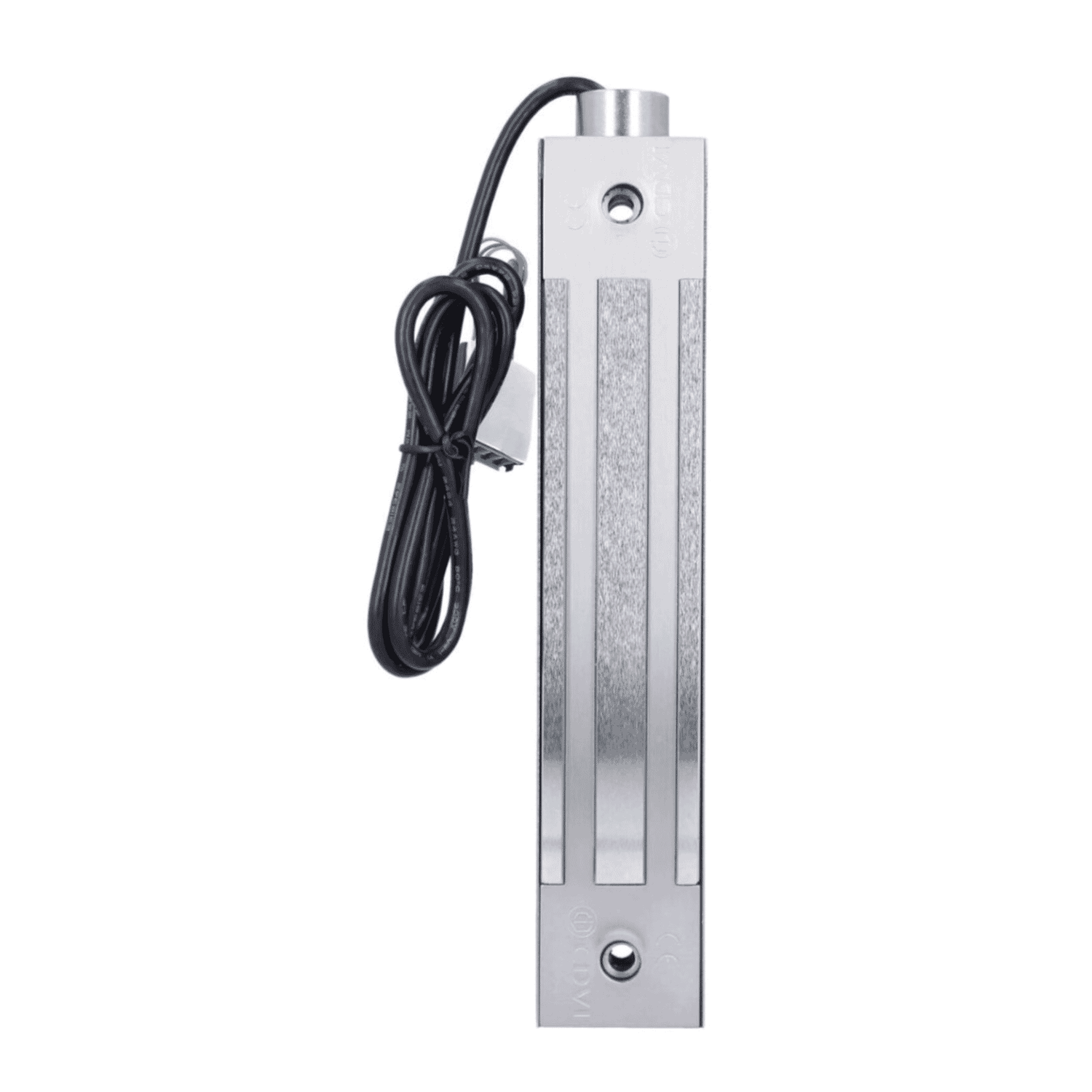

CDVI I400SR 400 kg Stainless Monitored Surface Maglock 12–24 V F0515000007

Introduction to the CDVI I400SR and its key features

CDVI I400SR 400 kg Stainless Monitored Surface Maglockis a heavy‑duty electromagnetic lock engineered for secure access control in demanding, outdoor and exposed environments. Housed in high‑grade stainless steel and rated to IP68 and IK10, the I400SR combines robust physical protection with electronic monitoring features that make it suitable for perimeter gates, external doors, and other installations where weather resistance and reliable status feedback are essential.

• 400 kg holding forcefor strong retention and resistance to forced entry
• Surface mount flexibilityallowing front or side installation
• 12–24 V DC operationwith modest current draw and built‑in transient protection
• Integrated door monitoringvia a built‑in relay providing NO/NC feedback
• Rugged stainless steel constructionwith IP68 / IK10 ratings for harsh environments

Detailed specifications and benefits

The technical specifications of the I400SR illustrate why it is well suited for outdoor and high‑security installations. Below we break down the key specification groups and explain the practical benefits they deliver on site.

• Manufacturer / Model:CDVI I400SR (Ref F0515000007) — a purpose‑built monitored surface electromagnetic lock.
• Type:Monitored surface electromagnetic lock — provides both secure holding and electronic status feedback for integration with access control systems.
• Material / Finish:Stainless steel housing — corrosion resistance for coastal or exposed sites and an attractive finish for visible installations.
• Weight:1.7 kg — compact enough for most door frames but solidly constructed.
• Accessories Supplied:Full fixing kit and armature plate — simplifies installation and reduces the need for sourcing extra parts.

• Voltage:12–24 V DC — flexible compatibility with common access control power supplies.
• Current Consumption:≈240 mA (12 V) / ≈480 mA (24 V) — predictable power draw for sizing transformers and power backup.
• Holding Force:400 kg — a high holding rating that outperforms many standard maglocks and increases resistance to forced entry.
• Monitoring:Built‑in door position/status relay (NO/NC) — enables the access control system to detect door open/closed or lock status, improving security audit and alarm handling.
• Protection:Built‑in varistor (transient suppression) — guards the electronics against voltage spikes and increases longevity in electrically noisy environments.

• Magnet Dimensions:230 × 43.5 × 29.5 mm — low profile for many frame types and suitable for surface mounting.
• Armature Plate Dimensions:185 × 45 × 12 mm — sized to match the magnet for optimal holding force.
• Mounting:Surface mount (front or side) — flexible mounting options reduce the need for frame modification.

• IP / IK Rating:IP68, IK10 — designed to resist water ingress even under immersion conditions and to tolerate significant impact, making it ideal for exposed locations.
• Operating Temperature:−40 °C to +60 °C — suitable for a wide range of climates from arctic conditions to hot, sun‑exposed sites.

• Compliance:CE reported; RoHS/WEEE listed by distributors — check the official datasheet for a full list of certifications and local regulatory compliance.

Benefits derived from the specifications

Translating specifications into real‑world benefits, the CDVI I400SR offers:

• High physical security due to a 400 kg holding force — suitable for locations that require a stronger-than-average electromagnetic lock.
• Reliable monitoring capability — built‑in NO/NC relay means immediate feedback to access control systems, enabling better alarm logic and event reporting.
• Durability in harsh conditions — stainless steel construction and IP68/IK10 ratings reduce maintenance and replacement costs in outdoor settings.
• Power flexibility and protection — support for 12–24 V DC plus varistor protection simplifies integration with existing power infrastructure while protecting the lock electronics.

Use cases and scenarios where the I400SR excels

The CDVI I400SR is tailored to applications that combine exposure to the elements with a need for monitored security. Typical scenarios include:

• Access points on building exteriors, gatehouses and perimeter gates where rain, dust and physical impact are concerns. The IP68 rating allows the lock to survive direct exposure to water and moisture commonly encountered on gates and external doors.

• Plant entrances, meter rooms, and substations that require robust locking devices and clear status reporting back to a central security system. The wide operating temperature range supports installations in cold storage or heated industrial environments.

• Locations exposed to salt spray and high humidity benefit from stainless steel construction and corrosion resistance, extending usable life compared with zinc or painted housings.

• Retail and commercial properties that require secure overnight locking combined with door monitoring for alarm systems and remote diagnostics.

Comparisons with similar products in the market

When evaluating maglocks for a project, common points of comparison include holding force, monitoring features, environmental ratings, material construction and price. The I400SR positions itself strongly in several of these categories:

• Holding force:At 400 kg, the I400SR offers a higher holding capability than many basic maglocks (for example, typical economy units rated around 200–300 kg). This makes it preferable where stronger retention is required.
• Monitoring:Some maglocks are passive (unmonitored) and only provide power/no‑power state. The I400SR’s built‑in NO/NC door status relay simplifies wiring and delivers immediate feedback without an additional sensor.
• Environmental robustness:While many maglocks are suitable for indoor use or light outdoor exposure, few combine stainless housings with IP68 and IK10. For installations exposed to direct weather or vandal risk, the I400SR has an advantage.
• Cost vs value:A higher initial price than basic unmonitored locks reflects its stainless construction and monitoring capabilities. For projects where durability and reduced maintenance matter, the total cost of ownership can be lower compared with frequent replacement of cheaper units.
• Alternatives:Shear locks or high‑security deadlatches provide different mechanical resistance profiles (better for lateral force), so specifying the I400SR should consider door construction and expected attack vectors. For glass doors or interior applications, specialized slimline maglocks may be a better aesthetic fit.

Customer testimonials and installer feedback

No independently verified public customer reviews are included here. Below are representative installer and distributor observations commonly reported for stainless, monitored maglocks like the CDVI I400SR. These reflect practical comments you may encounter when researching the product:

• "Robust and reliable in coastal sites — stainless housing has reduced corrosion complaints compared with painted models."
• "Door monitoring built in saved us wiring time and extra sensors on several commercial installations."
• "Easy to mount on steel frames and gates; the full fixing kit is a helpful inclusion for rapid deployment."

For verified customer reviews, check installer forums, trade supplier feedback or request reference installations from your distributor.

Conclusion — why choose the CDVI I400SR

The CDVI I400SR 400 kg stainless monitored surface maglock is a purposeful choice for projects that demand strong holding force, dependable electronic monitoring, and proven durability in harsh environments. Its stainless steel housing combined with IP68 and IK10 ratings makes it well suited to coastal, industrial, and exposed perimeter installations where ordinary maglocks may fail prematurely.

Key decision points that favour the I400SR are the integrated door status relay, the high holding force, and the built‑in transient protection — features that reduce the need for extra components and simplify integration with access control systems. While initial cost is higher than some basic unmonitored units, the long‑term benefits in reliability, reduced maintenance and clear status reporting often justify the investment for commercial and outdoor applications.

Recommended next steps: consult the official CDVI datasheet and installation manual for detailed wiring diagrams, mounting templates and certification information. Have the I400SR installed by a qualified electrical or security technician to ensure compliant wiring, correct power supply sizing and secure mounting. With the right planning, the CDVI I400SR can be a durable and secure backbone for outdoor access control installations.
