Introduction — EXML1200-GATE: a heavy-duty external gate maglock

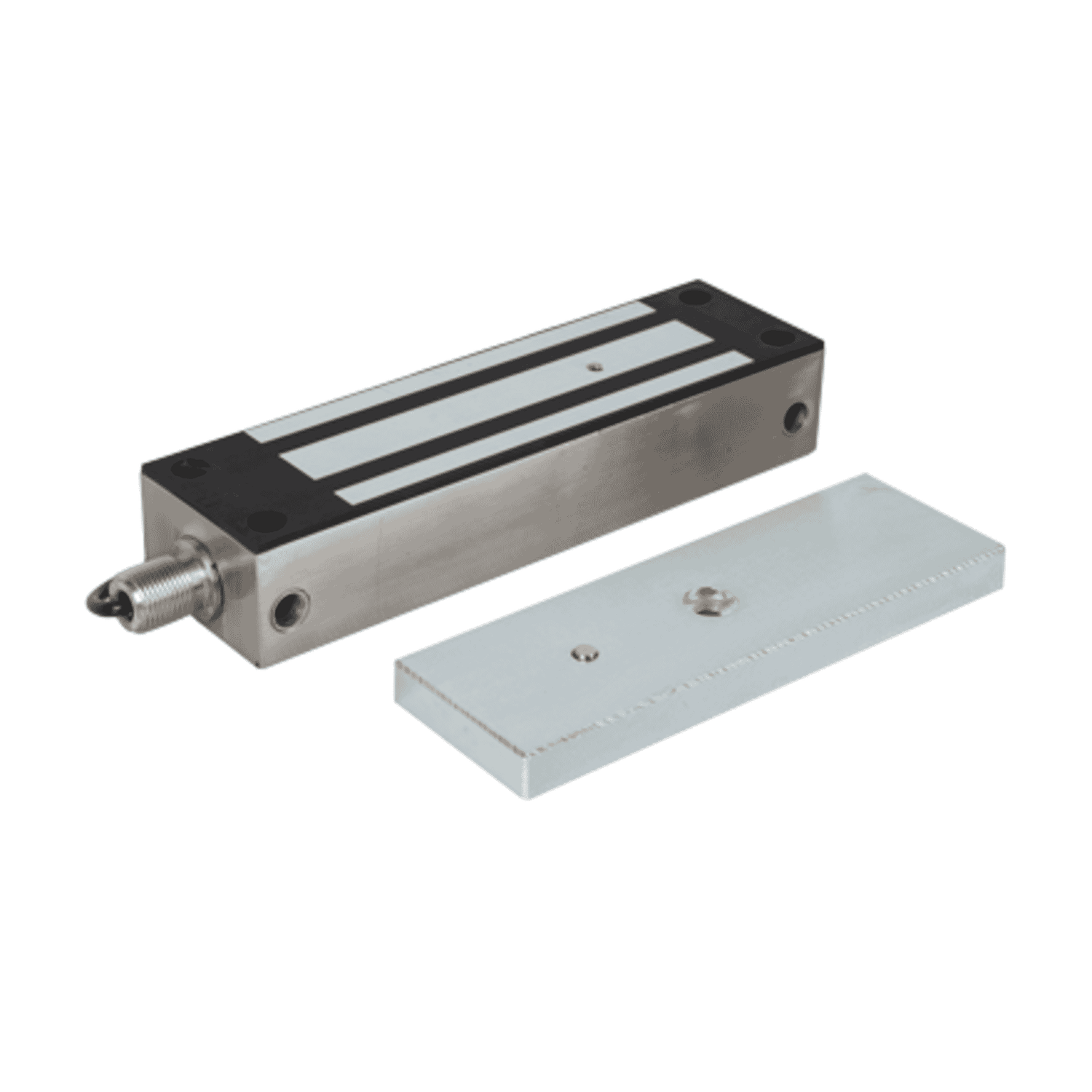

EXML1200-GATE — External/Gate-rated Electromagnetic Lockis a purpose-built maglock designed for perimeter and gate applications that demand a high holding force and weatherproof construction. With a rated holding force of 545 kg (1,200 lb), stainless-steel housing, dual 12/24 VDC operation, and built-in surge protection, this unit is aimed at contractors and experienced DIY installers who need a robust electromagnetic locking solution for outdoor pedestrian and vehicle gates.
Key features at a glance
- High holding force:545 kg (1,200 lb), suitable for heavy gates and high-security perimeter points.
- Weatherproof construction:stainless-steel housing designed for external use.
- Dual-voltage operation:12 VDC (≈500 mA) or 24 VDC (≈250 mA) for flexible power options.
- Transient protection:built-in MOV for surge protection and a 500 mm cable supplied for wiring.
- Ready to install:armature plate and fixing kit included; supports side or face fixing with optional brackets available.
Detailed specifications and benefits
Understanding the EXML1200-GATE’s specifications reveals why it suits outdoor access-control tasks. Below are the primary technical details and the practical benefits each brings to a gate installation.
- Product code:EXML1200-GATE
- Holding force:545 kg (1,200 lb)
- Dimensions:220 × 60 × 40 mm
- Weight (boxed/unboxed):4.5 kg / 2.85 kg
- Material:stainless-steel housing
- Power:12 / 24 VDC
- Current draw:≈500 mA @12 VDC; ≈250 mA @24 VDC
- Cable:500 mm supplied
- Surge protection:built-in MOV transient protection
- Mounting:side or face fixing; armature plate & fixing kit included
- Optional brackets:BKEX1200ZL (ZL) / BKEX1200L (L) — sold separately
- Holding force:At 1,200 lb, the EXML1200-GATE provides a substantial margin of security for most perimeter gates. This makes it effective against forced entry attempts and helps secure larger or heavier gates where lower-rated locks would be insufficient.
- Stainless-steel housing:Outdoor fittings are exposed to weather, and stainless steel resists corrosion better than painted steel or aluminum — extending service life and reducing maintenance frequency.
- Dual-voltage flexibility:Support for both 12 VDC and 24 VDC simplifies integration with existing access control power supplies and can reduce current draw when using 24 V, which lowers heat and can improve reliability over long cable runs.
- Built-in surge protection:The incorporated MOV helps protect the lock from transient voltage spikes (lightning-induced or switching transients), which is critical for externally mounted equipment.
- Mounting options:The supplied armature plate and fixing kit allow either side or face fixing, making the unit adaptable to a range of gate designs; optional brackets expand compatibility with posts, pillars, and non-standard frames.
Use cases and scenarios where the EXML1200-GATE excels
This maglock is engineered for outdoor perimeter control. Typical and ideal applications include:
- Residential gated estates:High-value homes and estate entrances that need reliable holding force for driveway and pedestrian gates.
- Commercial sites and small industrial yards:Loading yards, service entrances, and perimeter gates requiring a weatherproof locking device with substantial holding capacity.
- Condominium and community gates:Gated communities often require durable locks that cope with frequent use and outdoor exposure.
- Remote vehicle gates:Automated or manually operated vehicle gates where the lock must resist environmental conditions and provide secure keep when closed.
- Upgrades from lower-rated maglocks:Sites previously secured with lower-holding-force maglocks can upgrade to the EXML1200-GATE to improve security against forced entry or to meet updated site requirements.
In installations where access control is tied to automation (gate motors, intercoms, or remote release systems), the dual-voltage capability and low current draw at 24 VDC make this lock easier to integrate while keeping power consumption manageable.
Comparisons with similar products on the market
When choosing a maglock for external gates, buyers commonly compare holding force, environmental rating, durability, power options, and additional features like monitoring or built-in surge protection. Here’s how EXML1200-GATE stacks up against typical alternatives:
- Vs. lower-rated maglocks (e.g., 500–600 lb):Many indoor or light-duty outdoor maglocks are rated around 500–600 lb. The EXML1200-GATE’s 1,200 lb rating offers roughly double the holding force, significantly improving resistance to forced entry and making it a better choice for larger gates or higher-risk perimeters.
- Vs. non-stainless external locks:Cheaper external maglocks may use painted or plated steel. Stainless-steel housing on the EXML1200-GATE offers superior corrosion resistance, reducing long-term maintenance and failure risk in coastal or highly humid environments.
- Vs. maglocks with additional electronics (status switches, timers):Some competitors include built-in door status sensors or LED diagnostics. The EXML1200-GATE focuses on core robustness and transient protection; installers requiring monitoring should pair it with external sensors or choose models with built-in monitoring if that feature is a priority.
- Vs. fail-safe vs. fail-secure solutions:Most electromagnetic locks are fail-safe (they unlock when power is removed), which is common for egress-compliant designs. If your application requires fail-secure (remains locked if power removed), an electromechanical deadbolt or additional mechanical locking device should be considered. Verify the required fail-safe behavior for your local codes and emergency egress requirements.
Customer testimonials and real-world feedback
No formal customer testimonials are supplied with the product data here. However, based on the EXML1200-GATE’s specification and typical installer experience with similar products, the following are representative points of feedback you can expect from end users and installers:
- Installers:Appreciate the dual-voltage flexibility and included armature kit that reduce site-specific modification time. Contractors also value the stainless housing for longevity on external jobs.
- Site managers:Note reliable holding under wind load and repeated cycles, and they often cite the surge protection as a useful feature in lightning-prone areas.
- Homeowners/Residents:Comment on the perceived increased security versus older or lighter locks and the neat, low-profile appearance when properly mounted.
For objective assurance, potential buyers should request site references, installation photos, or third-party reviews from vendors when possible. If monitoring or advanced diagnostics are required, ask whether additional accessories or integration components are recommended.
Installation, safety notes and best practices
Successful outdoor maglock installations depend on correct power, mounting, and regulatory compliance:
- Verify voltage and power supply:Confirm whether you will run the lock at 12 VDC or 24 VDC and ensure the power supply can handle the current draw and any other connected devices.
- Use correct mounting hardware:The supplied fixing kit is suitable for many installations, but incorrect mounting orientation or lack of appropriate brackets reduces holding performance. Optional brackets (BKEX1200ZL / BKEX1200L) expand compatibility with post or pillar mounts.
- Weatherproof cabling:Protect connections and routing to prevent water ingress and corrosion. Although the housing is weatherproof, cable glands and junctions should be sealed appropriately.
- Check local regulations:Confirm egress, fire, and safety codes (UKCA/CE or local approvals) applicable to your installation. Manufacturer certification details are not supplied here; request them if required for compliance.
- Maintenance:Periodic inspection of fasteners, the armature plate, and the stainless finish will extend service life and ensure reliable performance.
Conclusion — why EXML1200-GATE is a strong choice for outdoor gate security
The EXML1200-GATE combines a formidable 545 kg (1,200 lb) holding force, stainless-steel weatherproof housing, dual-voltage flexibility, and built-in transient protection into a compact, installer-friendly package. It is especially well-suited to residential estates, commercial perimeters, and any external gate where enhanced holding capacity and corrosion resistance are priorities.
While it focuses on core robustness rather than integrated diagnostics, its specification makes it an attractive choice for projects where longevity, reliability, and physical security matter most. Prospective buyers should ensure correct mounting, verify power supply compatibility, and check applicable regulatory requirements for their jurisdiction. For sites that need monitoring features, plan to add external sensors or consult vendors about compatible accessories and brackets.
In short, if you need a weatherproof, high-holding-force maglock for gate and perimeter applications, the EXML1200-GATE represents a practical, heavy-duty option that balances security performance with installation flexibility.
