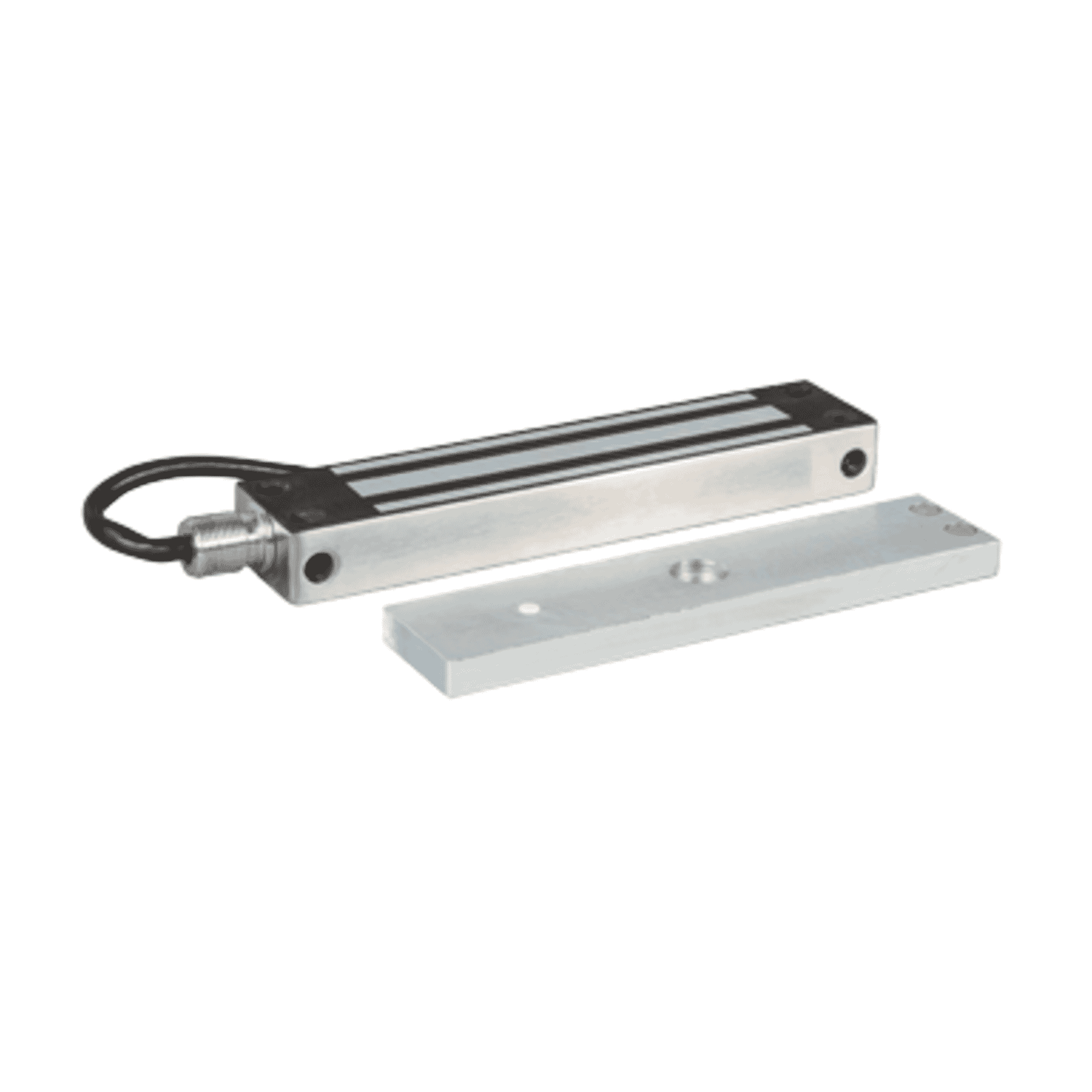

Introduction to the RGL EXML600-GATE-M and its key features
RGL EXML600-GATE-Mis a slimline external electromagnetic gate lock designed for straightforward, reliable access control on pedestrian gates and lightweight security doors. Despite its compact profile, the unit delivers a strong 280 kg (600 lb) holding force and is engineered specifically for outdoor use with a stainless-steel, weatherproof housing. It supports both 12 VDC and 24 VDC power supplies, includes a monitored lock-status output for panel integration, and incorporates built-in surge protection for improved longevity in real-world electrical environments.
Key practical features at a glance:
- 280 kg (600 lb) holding force — strong enough for many external gate applications.
- Monitored lock status output — lets an access control system confirm the lock state.
- Dual-voltage operation — works on 12 VDC or 24 VDC systems (typical currents: ~500 mA at 12 V; ~250 mA at 24 V).
- Stainless-steel, weatherproof housing — suitable for external installations when mounted with appropriate brackets.
- Built-in surge protection — helps protect the device and attached power supply from transient events.
Detailed description of specifications and benefits
The EXML600-GATE-M is engineered to balance strength, convenience and suitability for outdoor environments. Measuring approximately 220 × 45 × 26–27 mm with an armature plate around 200 × 44 × 20 mm, it is a slim profile maglock that can be face-fixed or side-fixed depending on gate geometry and mounting brackets. It is supplied with an armature plate and fixing kit, and the recommended Z/L brackets are advised for many gate installations.
- Product code:EXML600-GATE-M
- Holding force:280 kg (600 lb)
- Voltage:12 VDC / 24 VDC
- Current consumption:~500 mA at 12 V; ~250 mA at 24 V (typical)
- Operating mode:Fail-safe (unlocks on power loss)
- Housing:Stainless-steel; weatherproof / external rated
- Monitoring:Lock status monitoring output
- Surge protection:Built-in
- Dimensions & weight:Maglock approx. 220 × 45 × 26–27 mm; armature approx. 200 × 44 × 20 mm; boxed weight ~2.64 kg
Benefits tied to these specifications:
- Compact footprint: the slimline body is less visually intrusive and easier to fit on narrow gate heads or frames where larger maglocks would be impractical.
- High holding force for its size: 280 kg offers robust resistance to forced opening attempts on pedestrian gates and light-duty vehicular gates when used within its design envelope.
- Dual-voltage flexibility: installers can integrate the maglock into either 12 V or 24 V access-control systems without needing separate SKUs, simplifying stock and installation choices.
- Monitored output: lock state feedback is essential for modern access control—this unit can send a status signal to the controller so alarms or logs accurately reflect whether the gate is latched.
- Weatherproof and durable: stainless-steel housing and an external rating make the unit suitable for outdoor installations where corrosion resistance is important.
- Surge protection: transient suppression at the lock reduces the likelihood of control electronics malfunction following electrical spikes on the supply line.
Use cases and scenarios where the EXML600-GATE-M excels
The RGL EXML600-GATE-M is positioned to serve a number of common access-control needs where a compact, monitored, weatherproof maglock is preferable.
- Residential and small-commercial gates:For lightweight swing or sliding pedestrian gates, the 280 kg holding force is typically more than adequate while the slim housing keeps the installation neat.
- Apartment block entrances and communal gates:When integrated with intercom and access control panels, the monitored output supports building management systems to track lock state and permit remote release.
- Service doors and personnel access points:Internal or sheltered external doors in commercial properties where fail-safe operation (unlock on power loss) is required for egress and safety.
- Temporary or retrofit installations:The dual-voltage capability and compact form factor make it a convenient choice when updating existing systems that may use different voltage rails.
- Environments with electrical variability:Built-in surge protection helps in sites where supply transients are a concern — for instance near motorway lighting circuits or industrial environments.
Note on safety and installation: Always isolate power before installation; follow manufacturer mounting diagrams (including Z/L bracket recommendations) and local regulations. Installations affecting fire escape routes or other life-safety doors should be designed and approved by qualified professionals.
Comparisons with similar maglocks on the market
When evaluating maglocks, installers typically weigh holding force, mounting flexibility, environmental protection, monitoring features and whether the lock is fail-safe or fail-secure. The EXML600-GATE-M sits in a niche where slimline form meets monitored, weatherproof performance. Here are a few comparative considerations:
- Vs larger industrial maglocks:Larger units may offer greater holding forces (400–1000+ kg) and sometimes more robust IP ratings, making them suitable for heavy vehicular gates or high-security applications. The EXML600-GATE-M trades raw holding force for a slimmer profile and easier integration on smaller gates.
- Vs unmonitored consumer maglocks:Many low-cost maglocks omit lock-status monitoring. The EXML600-GATE-M’s monitored output provides a clear advantage when integration with access control panels or alarm systems is required.
- Vs purely internal maglocks:Non-weatherproof models designed for indoor doors often lack corrosion-resistant materials and surge protection. The stainless-steel housing and built-in surge protection of the EXML600-GATE-M make it better suited for exposed locations.
- Vs fail-secure alternatives:Some sites require fail-secure behaviour (remain locked on power loss) for asset protection; the EXML600-GATE-M is a fail-safe device, meaning it unlocks on power loss—advantageous for egress and safety but not for preventing exit during power cuts.
Overall, the EXML600-GATE-M is a strong contender for mid-range gate and door applications where a balance of aesthetics, monitoring and weather resistance is desired.
Customer testimonials and reviews
Verified public customer testimonials for this specific product are not available here. That said, common themes reported by installers and property managers when using similar slimline monitored maglocks typically include praise for the compact design, the convenience of dual-voltage capability, and the value of a monitored output for system integration. Installers also frequently note that stainless-steel housings reduce long-term maintenance in coastal or exposed environments.
If you are considering the EXML600-GATE-M, ask your reseller for any site references or case studies and request the manufacturer’s datasheet and installation drawings. Where possible, request feedback from local installers who have fitted the device in similar conditions to your project.
Conclusion: Why choose the RGL EXML600-GATE-M?
TheRGL EXML600-GATE-Mis a practical, cost-effective option for many residential and light-commercial gate and door access-control applications. It combines a respectable 280 kg holding force with a slim, weatherproof stainless-steel housing, monitored output for modern access control systems, dual-voltage flexibility and built-in surge protection. These attributes make it especially well-suited to installations where space is limited, outdoor exposure is a concern, and system feedback is required.
At a suggested price of approximately A369.99 (check with your reseller for current pricing and availability), it offers a feature set that aligns with professional installation requirements without the bulk or higher cost of industrial-grade maglocks. Before purchase and installation, always consult the manufacturer’s datasheet, ensure compatibility with your access-control panel, and arrange fitting by a qualified installer in line with local regulations.
For projects that need a neat external maglock with monitoring and weather resistance, the EXML600-GATE-M is a compelling choice—delivering balanced performance, installation flexibility and the practical features installers and end users rely on.
