Introduction to the CDVI 500‑ZL Z+L Bracket and its key features

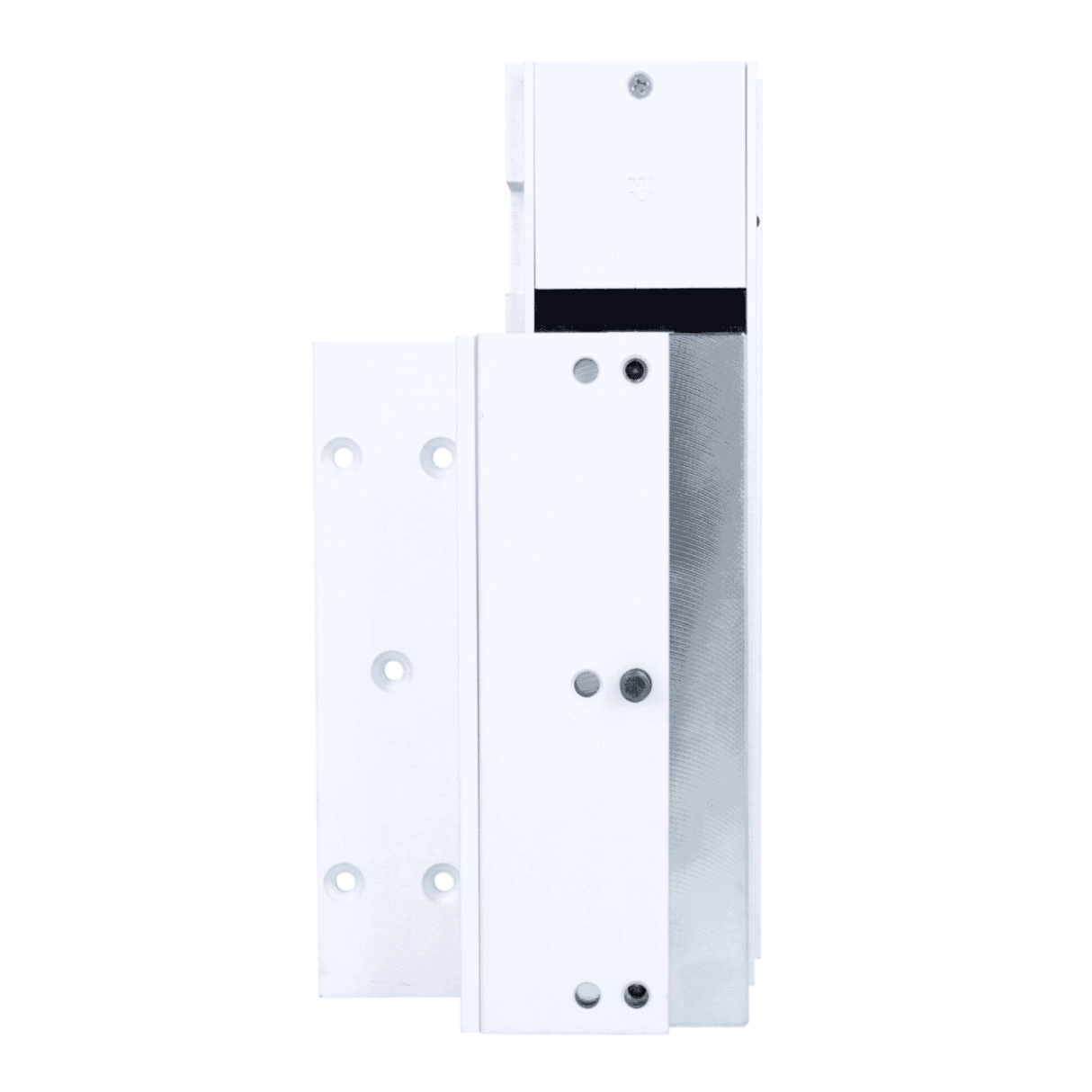

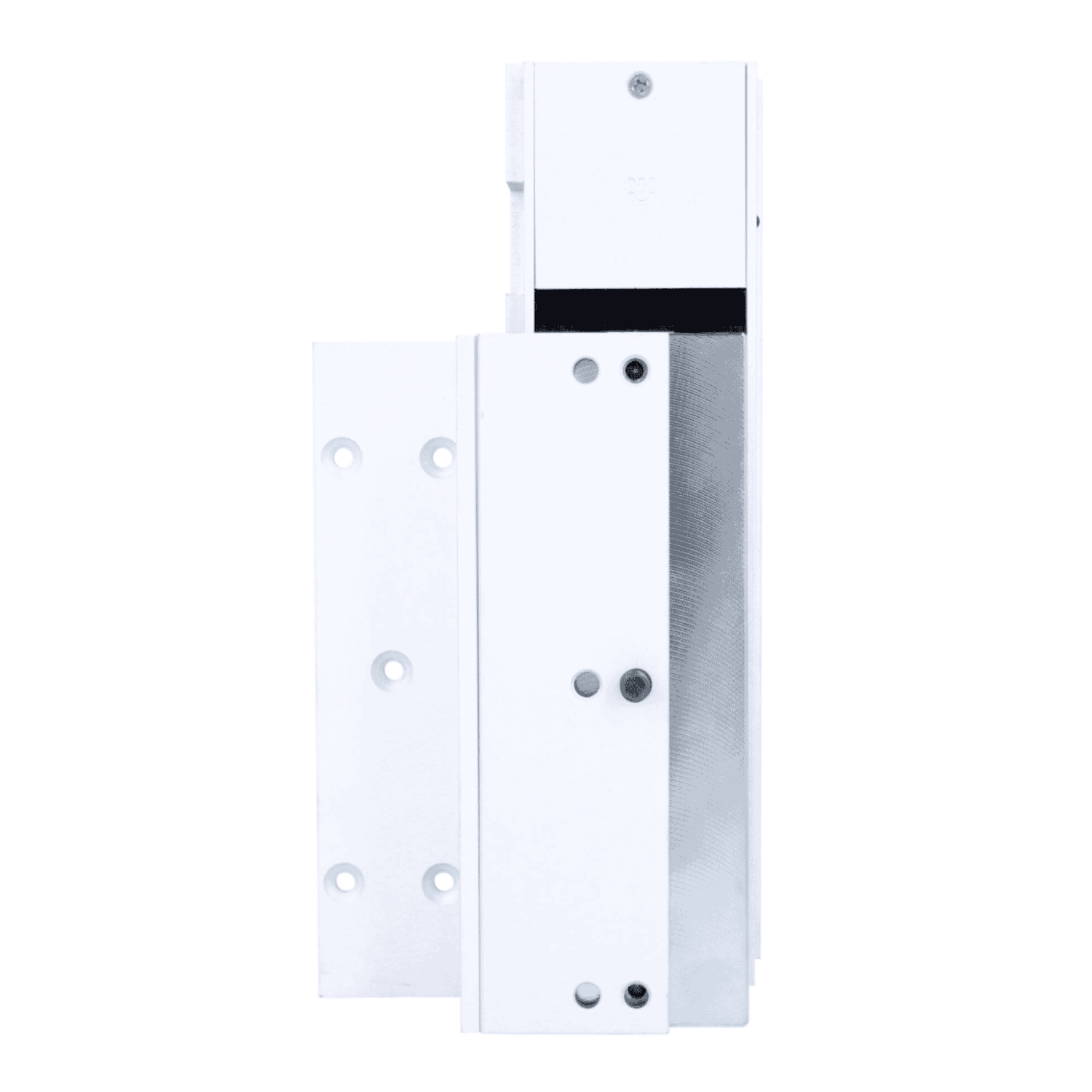

CDVI 500‑ZL Z+L Bracket — 500kg Magnetic Lock Mountis a purpose‑built surface mounting accessory for CDVI 500 kg series internal electromagnetic locks. Manufactured in satin‑anodised aluminium, the bracket offers an adjustable Z and L configuration to ensure precise alignment between magnet and armature on both inward‑ and outward‑opening doors. With a depth adjustment range of 50.5–101 mm and a compact footprint, this bracket is designed for professional installers and contractors needing a robust, architectural finish and flexible mounting options.
- Compatibility: Designed specifically for CDVI 500 kg internal surface magnetic locks (CDVI reference F0516000038).
- Adjustability: Z & L configuration with depth adjustment from 50.5 mm to 101 mm for precise alignment.
- Finish and durability: Satin‑anodised aluminium provides a corrosion‑resistant, architectural silver finish suitable for visible installations.
- Mounting: Surface mount bracket suitable for both inward and outward opening doors.
- Dimensions and weight: 265 × 76 × 50.5–101 mm (H×W×D), product weight approximately 0.9 kg.
Detailed specifications and benefits
The CDVI 500‑ZL is more than a simple bracket — it is an engineered accessory that addresses alignment, aesthetics and installation flexibility for high‑holding magnetic locks. Below are the technical specifications and the practical benefits they deliver.
- Manufacturer:CDVI
- CDVI reference:F0516000038
- Supplier / ITM:500‑ZL / ITM002641
- Intended use:Fixing 500 kg internal surface magnetic locks (Z+L bracket accessory)
- Mounting:Surface
- Finish:Satin‑anodised aluminium (silver)
- Dimensions (H×W×D):265 × 76 × 50.5–101 mm (depth adjustable)
- Product weight:0.9 kg
- Operating temperature:−20 °C to +60 °C
- Suitable doors:Inward and outward opening
- Precise alignment:The Z & L configuration allows installers to fine‑tune the relative position of magnet and armature without resorting to shims or secondary fabrication, reducing installation time and improving the reliability of the holding surface.
- Versatility:Depth adjustability (50.5–101 mm) makes the bracket suitable for a wide range of frame and door profiles commonly encountered in commercial buildings, making it a strong choice for retrofits as well as new installations.
- Architectural finish:Satin‑anodised aluminium provides a contemporary look that blends well with metal door frames and modern interiors while offering resistance to corrosion and wear in typical indoor environments.
- Robustness:Although the stated holding force is a property of the magnet itself, the bracket is constructed to support the heavy duty CDVI 500 kg series magnets and ensure consistent contact and load transfer.
- Temperature tolerance:Rated to operate between −20 °C and +60 °C, appropriate for most internal environments including plant rooms, service doors and conditioned commercial spaces.
Use cases and scenarios where the 500‑ZL excels
This bracket is targeted at professional installers and contractors working with high‑holding force magnetic locks. Typical scenarios where the CDVI 500‑ZL is an excellent choice include:
In multi‑tenant office spaces and retail environments where appearance matters and access control must be reliable, the satin‑anodised finish provides a neat, unobtrusive appearance while the adjustability ensures doors close and secure correctly without costly frame modifications.
Older buildings often present irregular frame depths and offset door profiles. The 50.5–101 mm adjustable depth range and dual Z/L modes make this bracket especially useful where exact mounting points vary from the ideal specified in datasheets.
Where a 500 kg holding force magnet is used for internal security doors (server rooms, storerooms, internal security zones), the bracket ensures the magnet and armature are rigidly supported and correctly aligned to achieve rated performance.
When a lock is visible to users, finish and neat installation matter. The satin‑anodised aluminium finish of the 500‑ZL complements contemporary doors and frames while avoiding the heavy look of unfinished steel brackets.
Comparisons with similar products in the market
When selecting a mounting accessory for high‑holding electromagnetic locks, installers typically weigh up adjustability, material and finish, compatibility, and cost. Here is how the CDVI 500‑ZL compares with common alternatives:
- Fixed L‑brackets (steel):Fixed L‑brackets are often cheaper but lack the adjustability of a Z+L bracket. They may require shims or on‑site modification to achieve correct alignment, increasing labour time. Steel brackets can be heavier and require paint or finish to match visible installations.
- Universal mounting plates:Some universal plates accept a range of magnets and door types but may not provide the same level of depth range or the neat architectural finish of an anodised aluminium bracket tailored to a specific magnet family.
- Stainless steel Z/L brackets:Stainless options offer superior corrosion resistance for harsh environments, such as coastal locations, but are usually more expensive and might be over‑specified for internal installations where satin‑anodised aluminium is adequate.
- Integrated magnet housings:Some manufacturers offer magnets pre‑housed with matching mounting hardware. While these reduce parts count and installation steps, they can be less flexible for unusual frames; the 500‑ZL gives installers flexibility for a wide range of frame depths without replacing the magnet housing.
In short, the CDVI 500‑ZL hits a middle ground: more adjustable and architecturally finished than basic steel brackets, more cost‑effective than premium stainless solutions, and more flexible than some integrated housings. For projects using CDVI 500 kg magnets in internal, visible, or retrofit contexts, it is a practical choice.
Customer feedback and testimonials (availability note)
There are no specific customer testimonials included with the product data provided here. However, common feedback themes from installers and contractors working with adjustable Z+L brackets typically include:
- Appreciation for the time saved in alignment and the reduced need for shims or on‑site fabrication.
- Positive comments about the finish and how well the satin‑anodised aluminium blends with modern door frames.
- Requests for clear datasheet guidance on fixing patterns and torque settings — installers highly value comprehensive helpsheets and templates provided by manufacturers.
- Notes to always verify that the magnet, armature and door/frame construction are rated and installed correctly to achieve the specified holding force.
If you need real user reviews, check supplier websites, installer forums or request references from a distributor. Many trade suppliers will also provide example installation photos or case studies on request.
Installation, compliance and purchasing considerations
- Always refer to the CDVI datasheet and bracket helpsheet for fixing points, torque settings and alignment diagrams. These documents reduce installation errors and ensure the bracket supports the magnet correctly.
- Confirm that the door/frame and selected magnet are appropriate for the required holding force — the bracket itself is an accessory and does not change the magnets rated capacity.
- Check local regulatory requirements and CE/UKCA markings as applicable. Where compliance or certification matters, request documentation from the supplier.
- Warranty information is not specified in the provided product data. Verify warranty and after‑sales support with the distributor prior to purchase.
- Suggested retail and cost considerations: the supplied cost price for the bracket is 23.86 (supplier cost) and a suggested retail price is 36.00. This positions the product as a mid‑range accessory for professional installers balancing quality and value.
Conclusion — why the CDVI 500‑ZL is a strong choice
The CDVI 500‑ZL Z+L Bracket is a practical, well‑specified mounting accessory for CDVI 500 kg electromagnetic locks. Its adjustable Z and L configuration, meaningful depth range (50.5–101 mm), and satin‑anodised aluminium finish combine to deliver alignment flexibility, a durable architectural appearance, and ease of installation. For commercial fit‑outs, retrofits and visible internal installations where both performance and appearance matter, the 500‑ZL offers a balanced solution compared with basic fixed brackets or more expensive stainless alternatives.
For installers and specifiers: verify compatibility with the magnet and door/frame, consult the CDVI datasheet for fixing details, and confirm warranty and compliance documentation with your supplier. When these checks are complete, the CDVI 500‑ZL is likely to save time on site, give a neat finished appearance, and support reliable operation of your 500 kg magnetic lock installations.
